Component Inspection (Battery Current Sensor)

CHECK BATTERY CURRENT SENSOR

Turn ignition switch OFF.
Reconnect harness connectors disconnected.
Disconnect battery negative cable.
Install jumper cable between battery negative terminal and body ground.

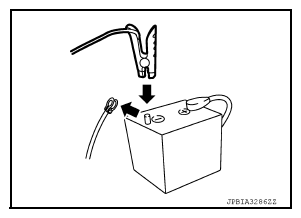

Fig 1: Installing Jumper Cable Between Battery Negative Terminal And Body Ground
Courtesy of NISSAN NORTH AMERICA, INC.
Turn ignition switch ON.

Check the voltage between ECM harness connector terminals.

Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to "HOW TO HANDLE BATTERY ".

Is the inspection result normal?

YES: INSPECTION END

NO: Replace battery current sensor. Refer to "REMOVAL AND INSTALLATION ".
