System - Engine Mechanical&Other

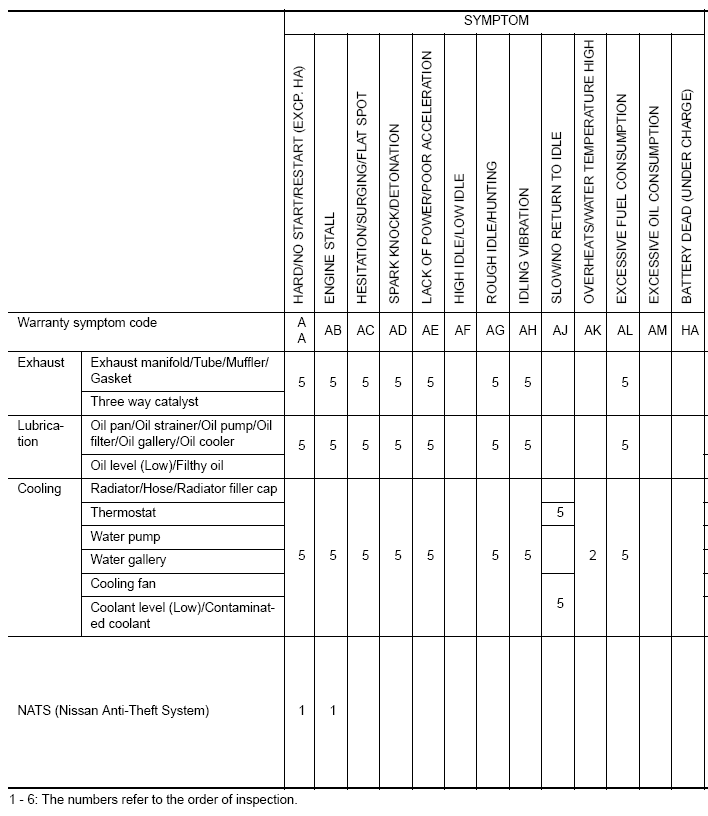

Fig 1: Warranty Symptom Code Chart (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Warranty Symptom Code Chart (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

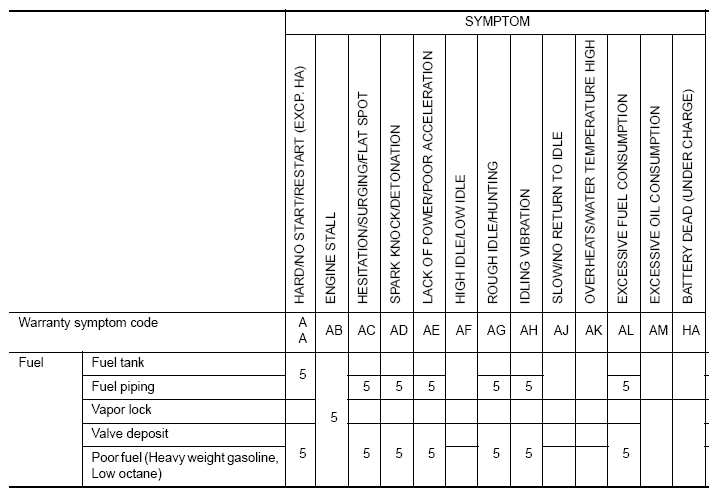

Fig 3: Warranty Symptom Code Chart (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
