COMBINATION SWITCH READING SYSTEM: Component Parts Location

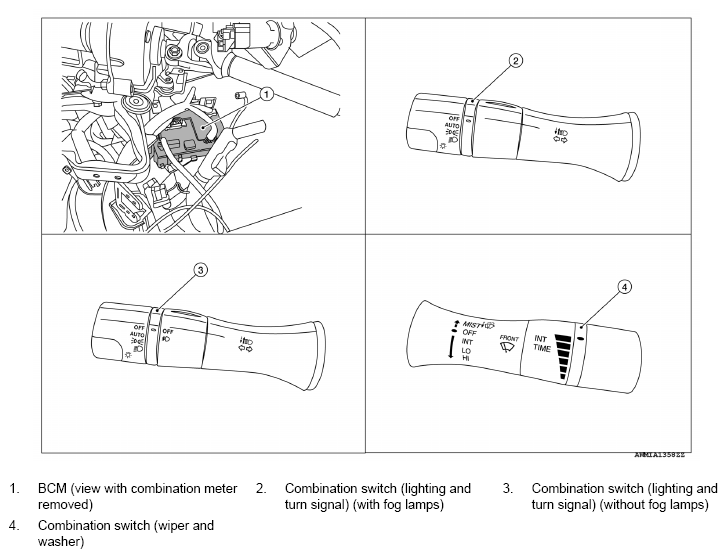

Fig 1: Combination Switch Reading System Component Parts Location
G08991554Courtesy of NISSAN NORTH AMERICA, INC.
