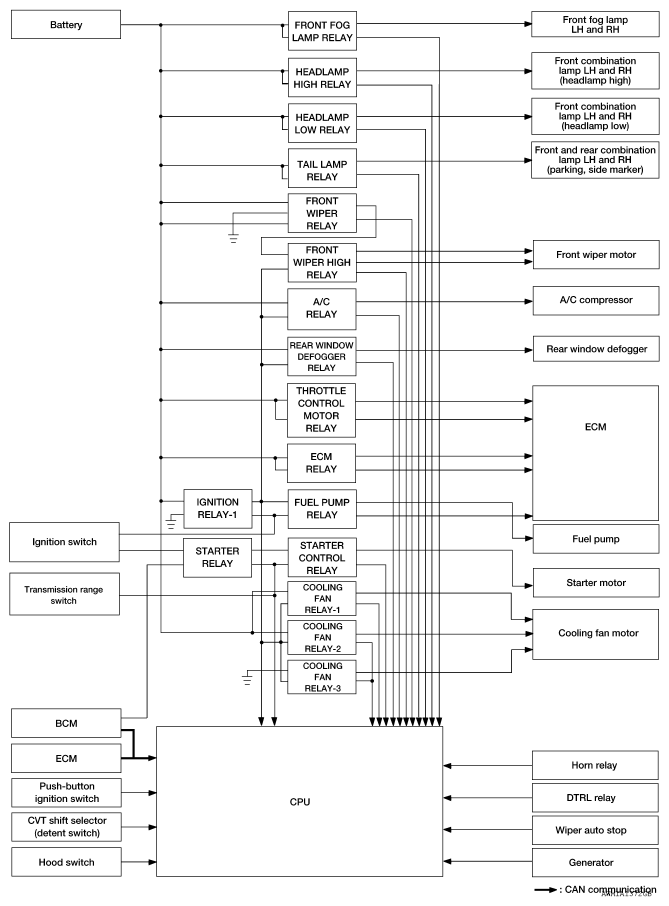

Home >> Nissan-Datsun >> 2013 >> Sentra SL >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Control System (IPDM/Er) (With I-Key) >> System Description >> System >> Relay Control System >> RELAY CONTROL SYSTEM: System Diagram >> System Diagram
