Exploded View

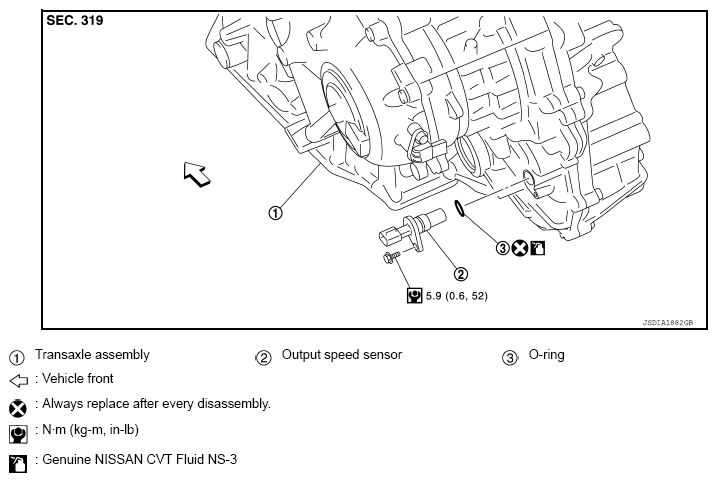

Fig 1: Transaxle Assembly, Output Speed Sensor And O-Ring With Torque Specification
G08989801Courtesy of NISSAN NORTH AMERICA, INC.
