Component Function Check

INSPECTION START
Turn ignition switch to START.

Is any cylinder ignited?

YES: GO TO 2.

NO: Go to "DIAGNOSIS PROCEDURE ".
CHECK FUEL INJECTOR FUNCTION
With CONSULT
1. Start engine.
2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT
1. Let engine idle.
2. Listen to each fuel injector operating sound.
  Clicking noise should be heard.

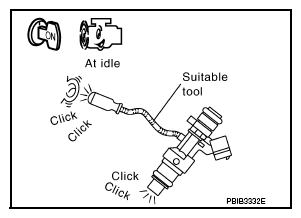

  Fig 1: Checking Function Of Fuel Injector
  Courtesy of NISSAN NORTH AMERICA, INC.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: Go to "DIAGNOSIS PROCEDURE ".
