Exploded View

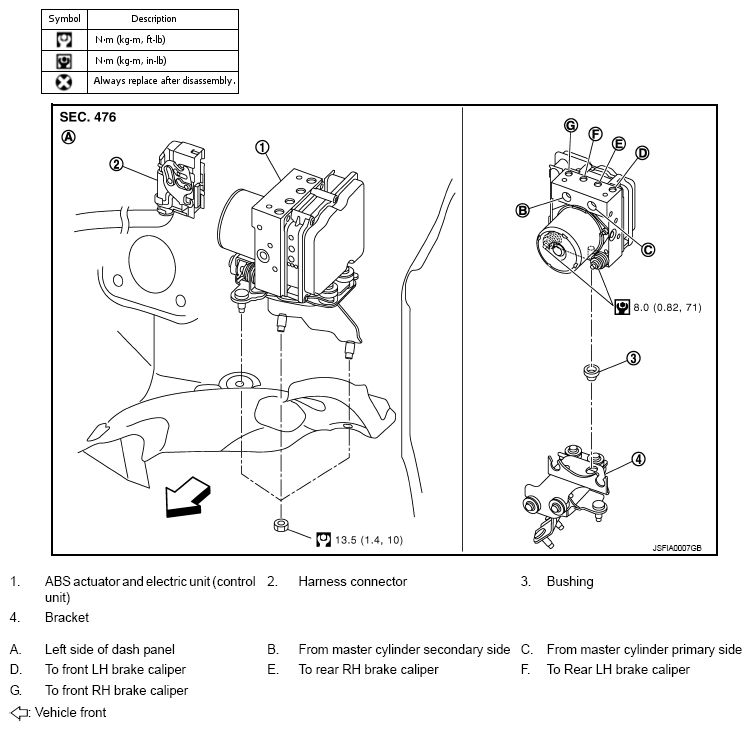

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
G09508086Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
