Component Parts Location

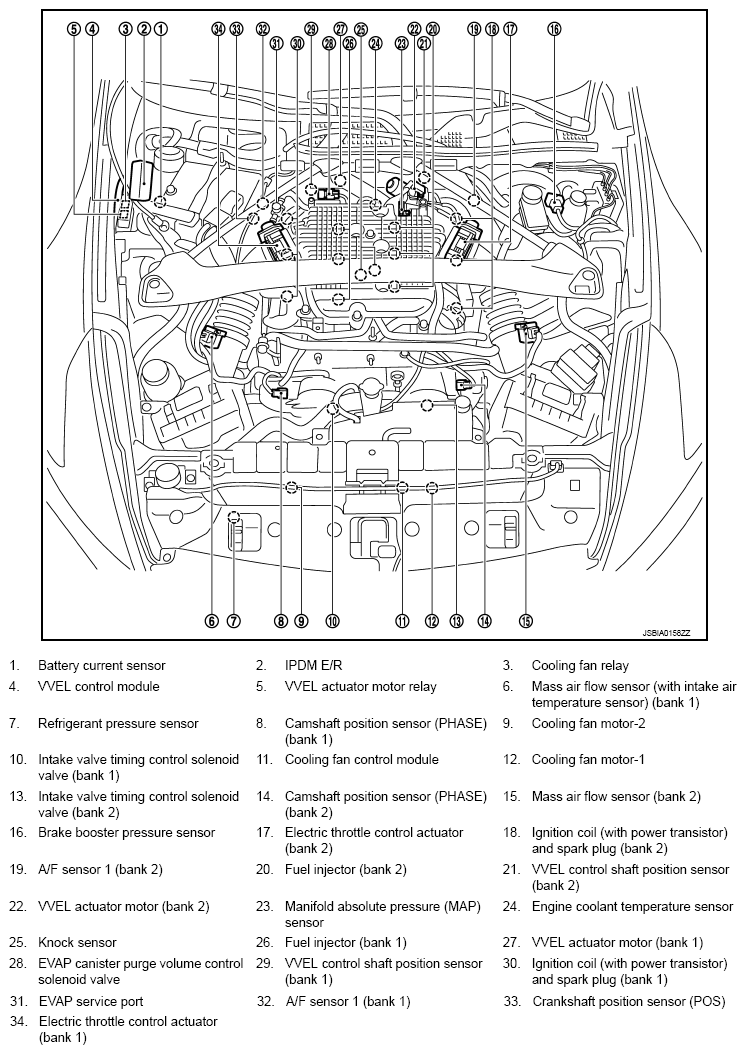

Fig 1: Air Conditioning Cut Control Related Component Parts Location (1 Of 20)

G09506847

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Air Conditioning Cut Control Related Component Parts Location (2 Of 20)

G09506848

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Air Conditioning Cut Control Related Component Parts Location (3 Of 20)

G09506849

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Air Conditioning Cut Control Related Component Parts Location (4 Of 20)

G09506850

Courtesy of NISSAN NORTH AMERICA, INC.

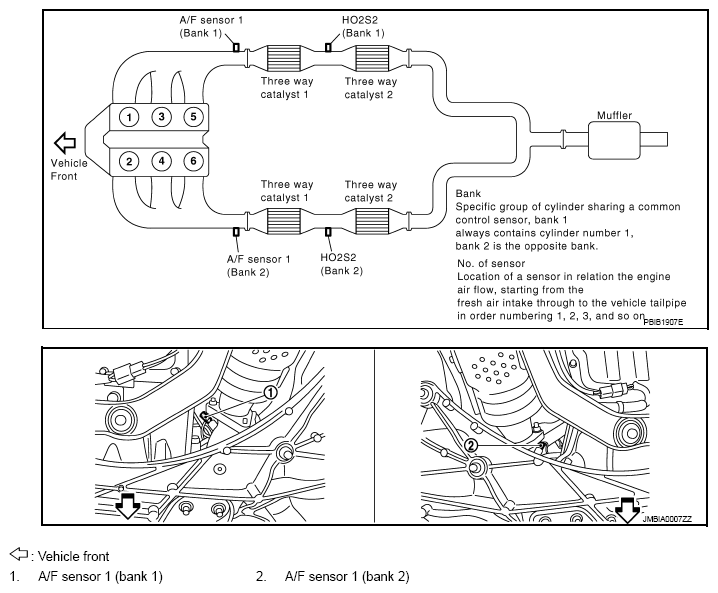

Fig 5: Air Conditioning Cut Control Related Component Parts Location (5 Of 20)

G09506851

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Air Conditioning Cut Control Related Component Parts Location (6 Of 20)

G09506852

Courtesy of NISSAN NORTH AMERICA, INC.

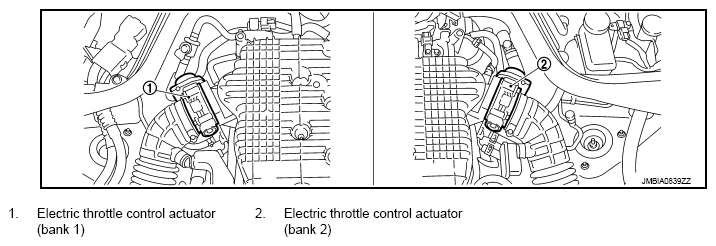

Fig 7: Air Conditioning Cut Control Related Component Parts Location (7 Of 20)

G09506853

Courtesy of NISSAN NORTH AMERICA, INC.

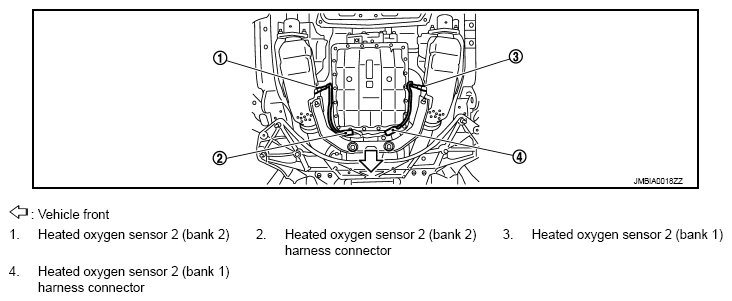

Fig 8: Air Conditioning Cut Control Related Component Parts Location (8 Of 20)

G09506854

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Air Conditioning Cut Control Related Component Parts Location (9 Of 20)

G09506855

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Air Conditioning Cut Control Related Component Parts Location (10 Of 20)

G09506856

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Air Conditioning Cut Control Related Component Parts Location (11 Of 20)

G09506857

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Air Conditioning Cut Control Related Component Parts Location (12 Of 20)

G09506858

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Air Conditioning Cut Control Related Component Parts Location (13 Of 20)

G09506859

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Air Conditioning Cut Control Related Component Parts Location (14 Of 20)

G09506860

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Air Conditioning Cut Control Related Component Parts Location (15 Of 20)

G09506861

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Air Conditioning Cut Control Related Component Parts Location (16 Of 20)

G09506862

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Air Conditioning Cut Control Related Component Parts Location (17 Of 20)

G09506863

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Air Conditioning Cut Control Related Component Parts Location (18 Of 20)

G09506864

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Air Conditioning Cut Control Related Component Parts Location (19 Of 20)

G09506865

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Air Conditioning Cut Control Related Component Parts Location (20 Of 20)

G09506866

Courtesy of NISSAN NORTH AMERICA, INC.
