Component Parts Location

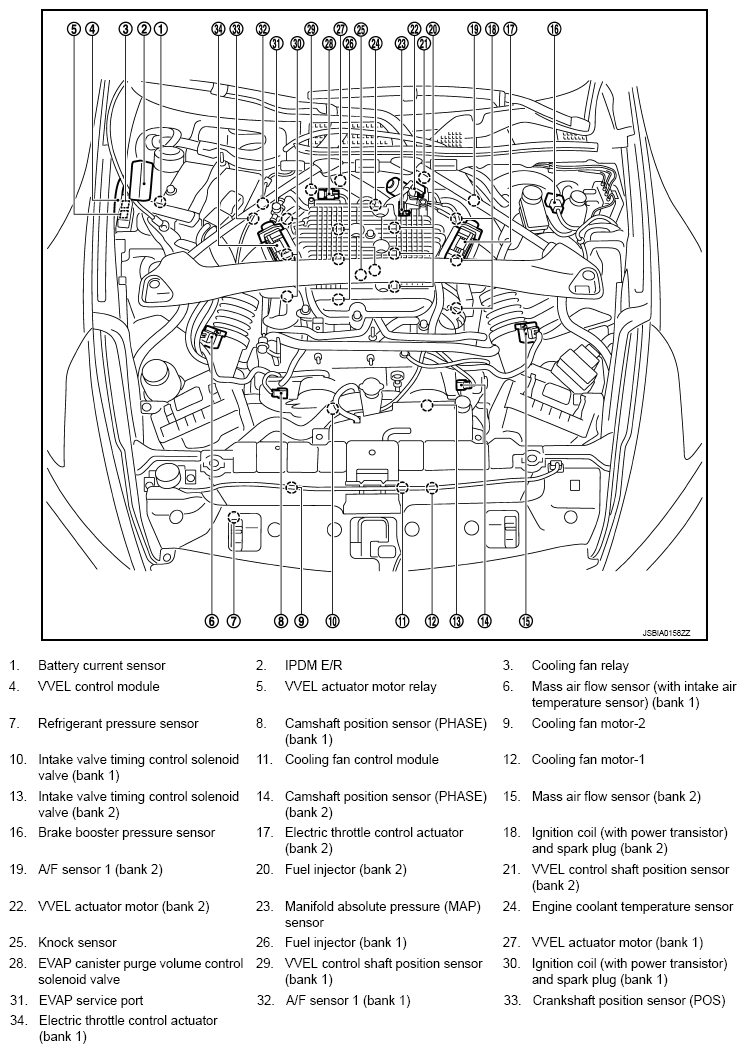

Fig 1: Automatic Speed Control Device Related Component Parts Location (1 Of 20)

G09506868

Courtesy of NISSAN NORTH AMERICA, INC.

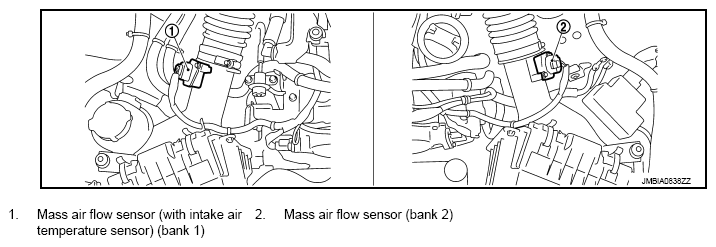

Fig 2: Automatic Speed Control Device Related Component Parts Location (2 Of 20)

G09506869

Courtesy of NISSAN NORTH AMERICA, INC.

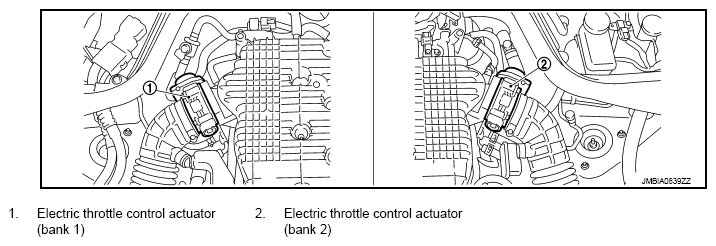

Fig 3: Automatic Speed Control Device Related Component Parts Location (3 Of 20)

G09506870

Courtesy of NISSAN NORTH AMERICA, INC.

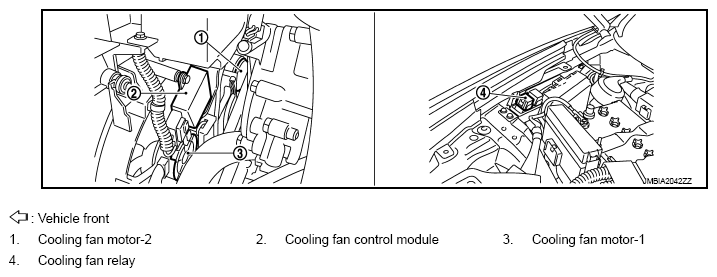

Fig 4: Automatic Speed Control Device Related Component Parts Location (4 Of 20)

G09506871

Courtesy of NISSAN NORTH AMERICA, INC.

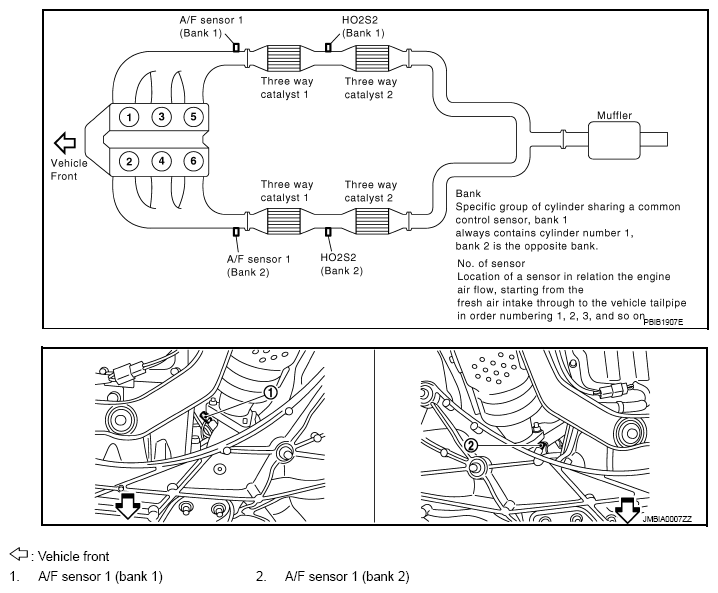

Fig 5: Automatic Speed Control Device Related Component Parts Location (5 Of 20)

G09506872

Courtesy of NISSAN NORTH AMERICA, INC.

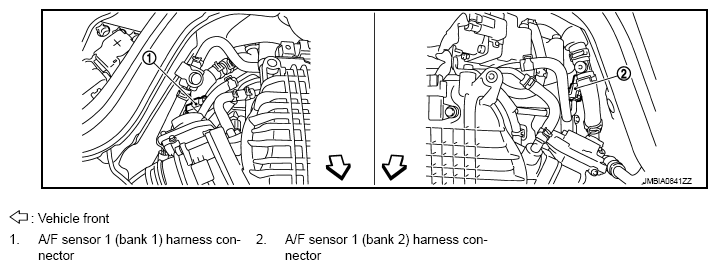

Fig 6: Automatic Speed Control Device Related Component Parts Location (6 Of 20)

G09506873

Courtesy of NISSAN NORTH AMERICA, INC.

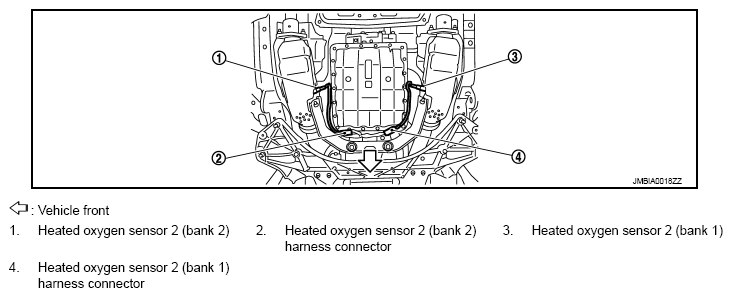

Fig 7: Automatic Speed Control Device Related Component Parts Location (7 Of 20)

G09506874

Courtesy of NISSAN NORTH AMERICA, INC.

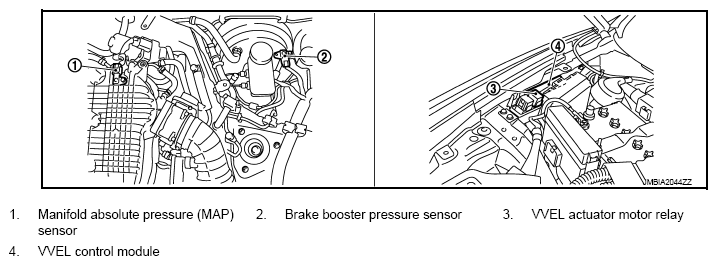

Fig 8: Automatic Speed Control Device Related Component Parts Location (8 Of 20)

G09506875

Courtesy of NISSAN NORTH AMERICA, INC.

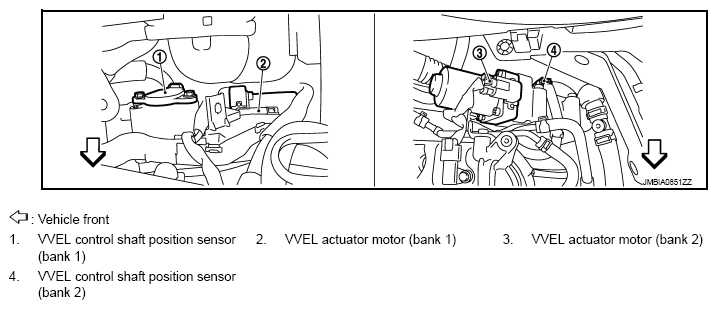

Fig 9: Automatic Speed Control Device Related Component Parts Location (9 Of 20)

G09506876

Courtesy of NISSAN NORTH AMERICA, INC.

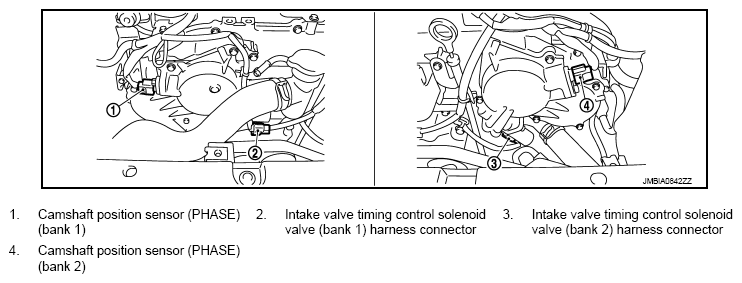

Fig 10: Automatic Speed Control Device Related Component Parts Location (10 Of 20)

G09506877

Courtesy of NISSAN NORTH AMERICA, INC.

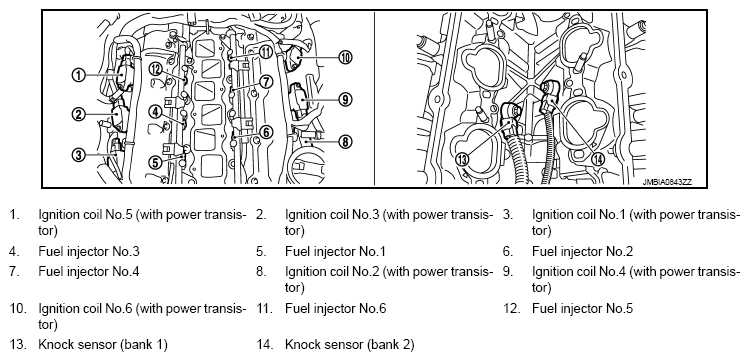

Fig 11: Automatic Speed Control Device Related Component Parts Location (11 Of 20)

G09506878

Courtesy of NISSAN NORTH AMERICA, INC.

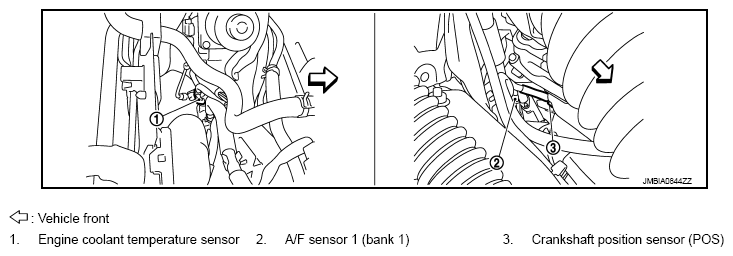

Fig 12: Automatic Speed Control Device Related Component Parts Location (12 Of 20)

G09506879

Courtesy of NISSAN NORTH AMERICA, INC.

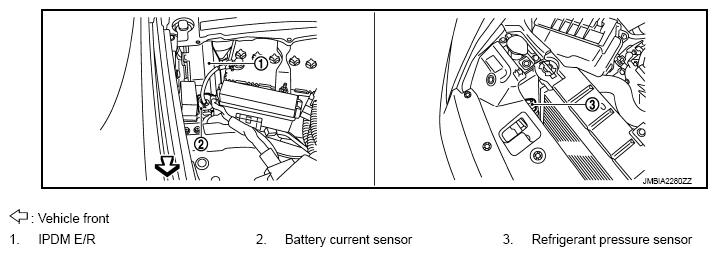

Fig 13: Automatic Speed Control Device Related Component Parts Location (13 Of 20)

G09506880

Courtesy of NISSAN NORTH AMERICA, INC.

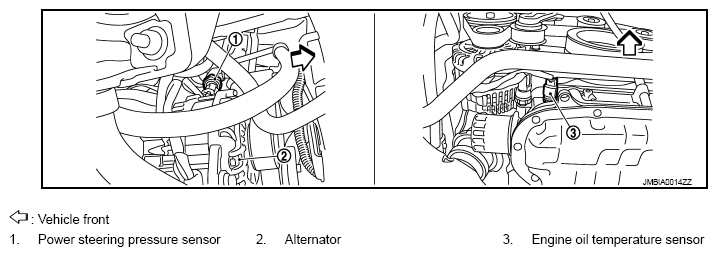

Fig 14: Automatic Speed Control Device Related Component Parts Location (14 Of 20)

G09506881

Courtesy of NISSAN NORTH AMERICA, INC.

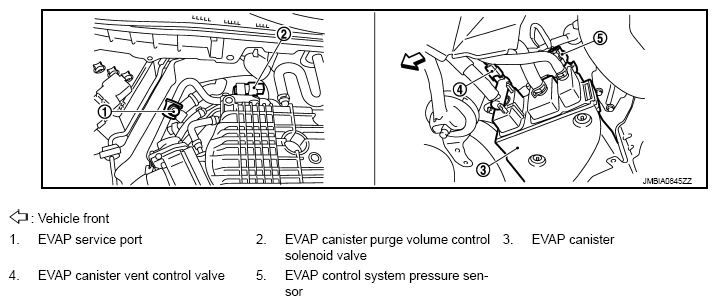

Fig 15: Automatic Speed Control Device Related Component Parts Location (15 Of 20)

G09506882

Courtesy of NISSAN NORTH AMERICA, INC.

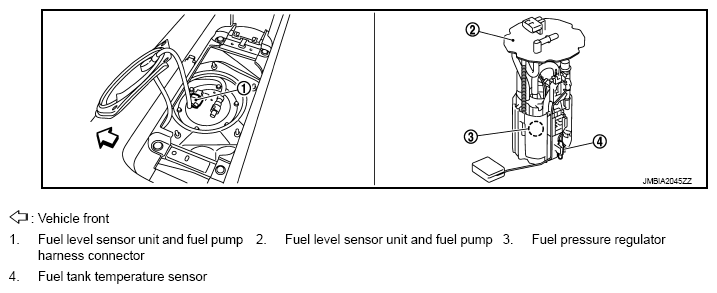

Fig 16: Automatic Speed Control Device Related Component Parts Location (16 Of 20)

G09506883

Courtesy of NISSAN NORTH AMERICA, INC.

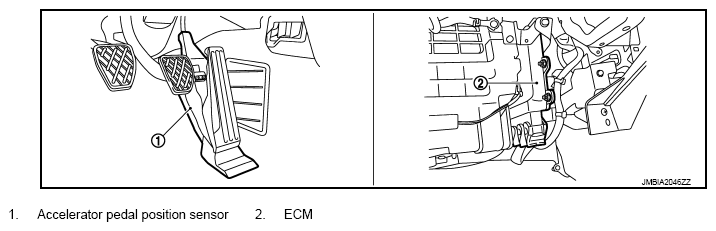

Fig 17: Automatic Speed Control Device Related Component Parts Location (17 Of 20)

G09506884

Courtesy of NISSAN NORTH AMERICA, INC.

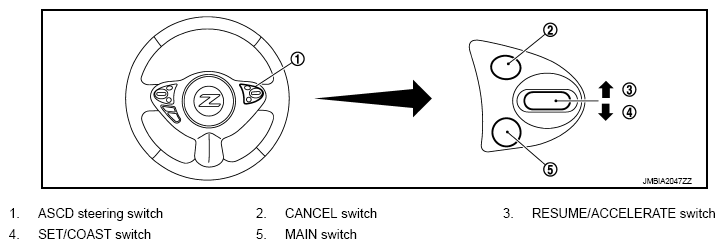

Fig 18: Automatic Speed Control Device Related Component Parts Location (18 Of 20)

G09506885

Courtesy of NISSAN NORTH AMERICA, INC.

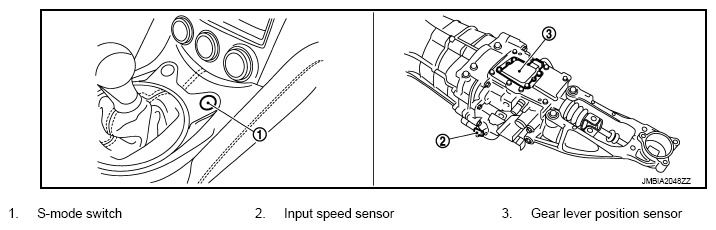

Fig 19: Automatic Speed Control Device Related Component Parts Location (19 Of 20)

G09506886

Courtesy of NISSAN NORTH AMERICA, INC.

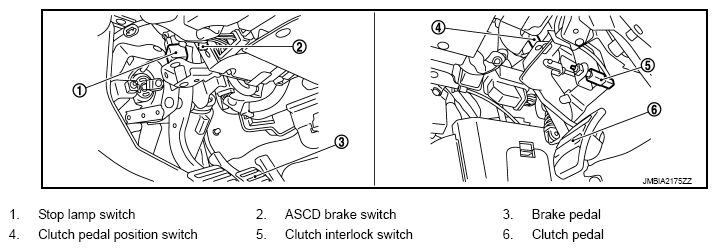

Fig 20: Automatic Speed Control Device Related Component Parts Location (20 Of 20)

G09506887

Courtesy of NISSAN NORTH AMERICA, INC.
