Component Parts Location

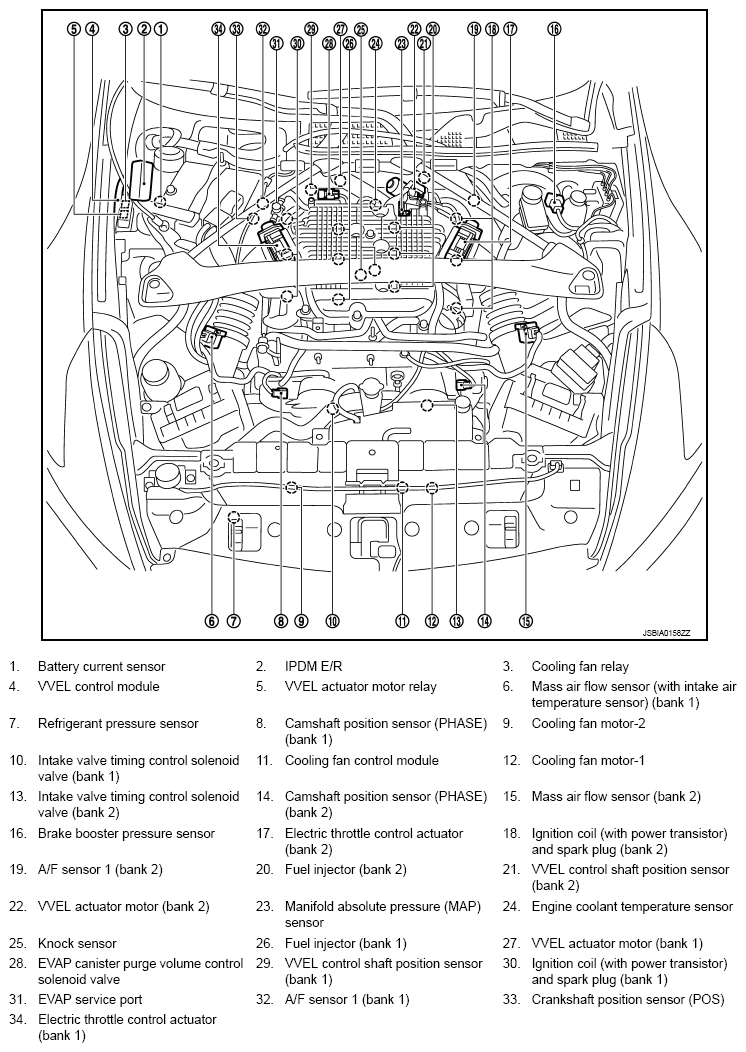

Fig 1: Electric Ignition System Related Component Parts Location (1 Of 20)

G09506826

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Electric Ignition System Related Component Parts Location (2 Of 20)

G09506827

Courtesy of NISSAN NORTH AMERICA, INC.

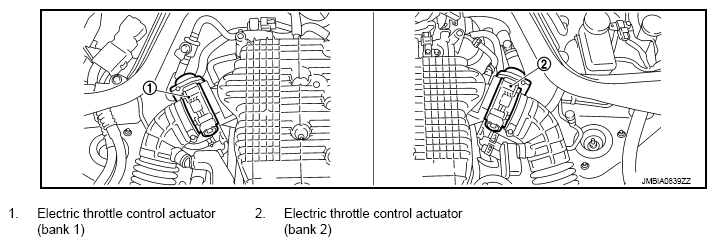

Fig 3: Electric Ignition System Related Component Parts Location (3 Of 20)

G09506828

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Electric Ignition System Related Component Parts Location (4 Of 20)

G09506829

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Electric Ignition System Related Component Parts Location (5 Of 20)

G09506830

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Electric Ignition System Related Component Parts Location (6 Of 20)

G09506831

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Electric Ignition System Related Component Parts Location (7 Of 20)

G09506832

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Electric Ignition System Related Component Parts Location (8 Of 20)

G09506833

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Electric Ignition System Related Component Parts Location (9 Of 20)

G09506834

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Electric Ignition System Related Component Parts Location (10 Of 20)

G09506835

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Electric Ignition System Related Component Parts Location (11 Of 20)

G09506836

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Electric Ignition System Related Component Parts Location (12 Of 20)

G09506837

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Electric Ignition System Related Component Parts Location (13 Of 20)

G09506838

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Electric Ignition System Related Component Parts Location (14 Of 20)

G09506839

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Electric Ignition System Related Component Parts Location (15 Of 20)

G09506840

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Electric Ignition System Related Component Parts Location (16 Of 20)

G09506841

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Electric Ignition System Related Component Parts Location (17 Of 20)

G09506842

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Electric Ignition System Related Component Parts Location (18 Of 20)

G09506843

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Electric Ignition System Related Component Parts Location (19 Of 20)

G09506844

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Electric Ignition System Related Component Parts Location (20 Of 20)

G09506845

Courtesy of NISSAN NORTH AMERICA, INC.
