Component Parts Location

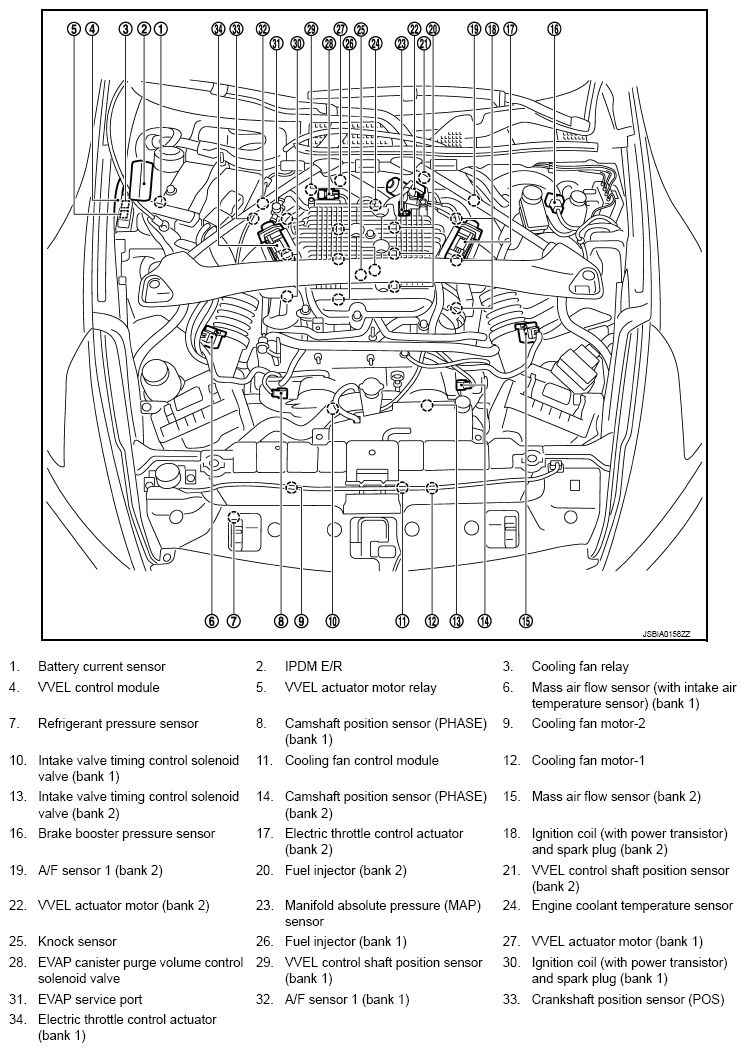

Fig 1: Fuel Filler Cap Warning System Related Component Parts Location (1 Of 20)

G09506997

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Fuel Filler Cap Warning System Related Component Parts Location (2 Of 20)

G09506998

Courtesy of NISSAN NORTH AMERICA, INC.

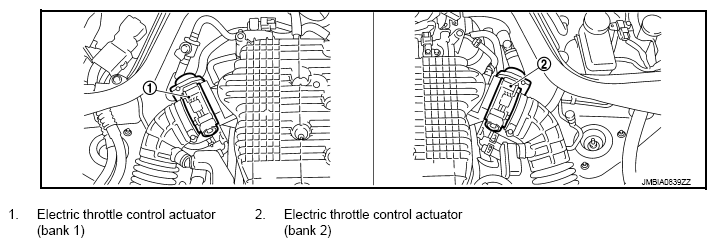

Fig 3: Fuel Filler Cap Warning System Related Component Parts Location (3 Of 20)

G09506999

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Fuel Filler Cap Warning System Related Component Parts Location (4 Of 20)

G09507000

Courtesy of NISSAN NORTH AMERICA, INC.

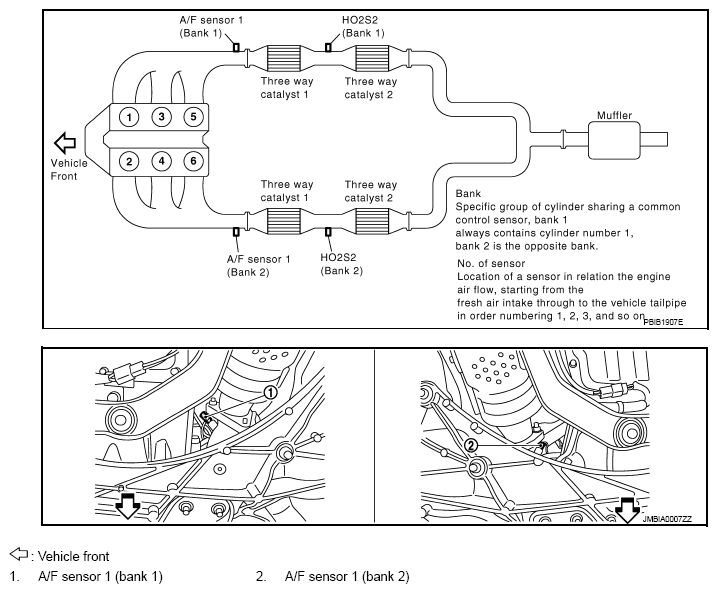

Fig 5: Fuel Filler Cap Warning System Related Component Parts Location (5 Of 20)

G09507001

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Fuel Filler Cap Warning System Related Component Parts Location (6 Of 20)

G09507002

Courtesy of NISSAN NORTH AMERICA, INC.

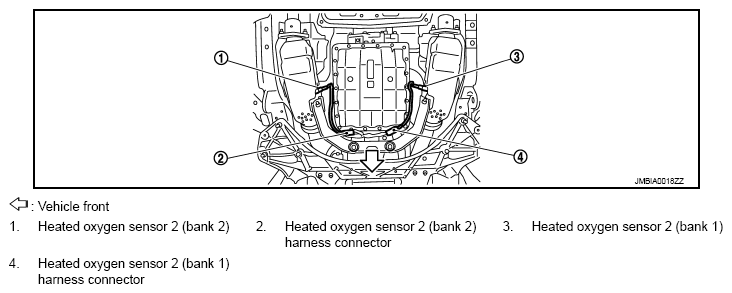

Fig 7: Fuel Filler Cap Warning System Related Component Parts Location (7 Of 20)

G09507003

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Fuel Filler Cap Warning System Related Component Parts Location (8 Of 20)

G09507004

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Fuel Filler Cap Warning System Related Component Parts Location (9 Of 20)

G09507005

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Fuel Filler Cap Warning System Related Component Parts Location (10 Of 20)

G09507006

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Fuel Filler Cap Warning System Related Component Parts Location (11 Of 20)

G09507007

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Fuel Filler Cap Warning System Related Component Parts Location (12 Of 20)

G09507008

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Fuel Filler Cap Warning System Related Component Parts Location (13 Of 20)

G09507009

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Fuel Filler Cap Warning System Related Component Parts Location (14 Of 20)

G09507010

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Fuel Filler Cap Warning System Related Component Parts Location (15 Of 20)

G09507011

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Fuel Filler Cap Warning System Related Component Parts Location (16 Of 20)

G09507012

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Fuel Filler Cap Warning System Related Component Parts Location (17 Of 20)

G09507013

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Fuel Filler Cap Warning System Related Component Parts Location (18 Of 20)

G09507014

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Fuel Filler Cap Warning System Related Component Parts Location (19 Of 20)

G09507015

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Fuel Filler Cap Warning System Related Component Parts Location (20 Of 20)

G09507016

Courtesy of NISSAN NORTH AMERICA, INC.
