Component Parts Location

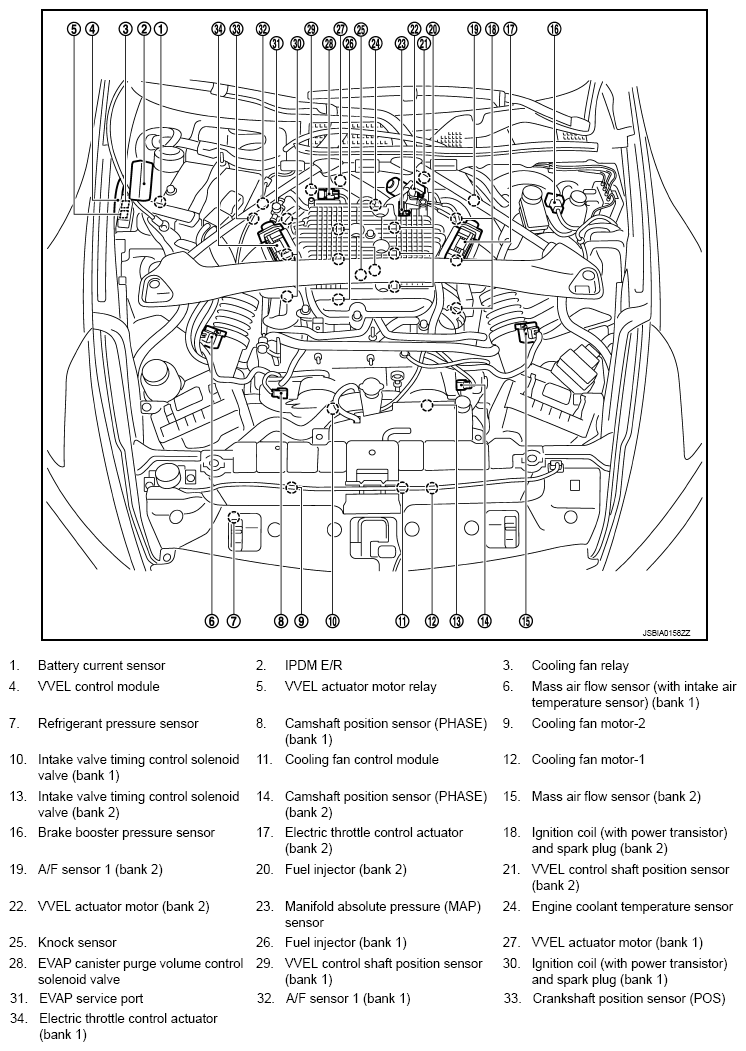

Fig 1: Intake Valve Timing Control Related Component Parts Location (1 Of 20)

G09506933

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Intake Valve Timing Control Related Component Parts Location (2 Of 20)

G09506934

Courtesy of NISSAN NORTH AMERICA, INC.

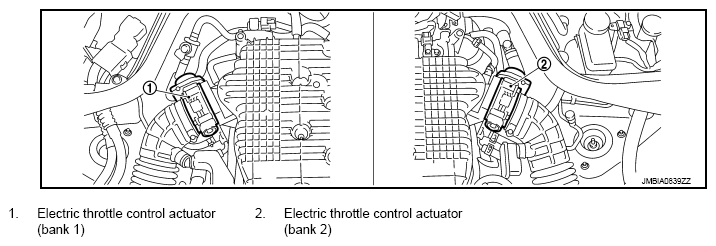

Fig 3: Intake Valve Timing Control Related Component Parts Location (3 Of 20)

G09506935

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Intake Valve Timing Control Related Component Parts Location (4 Of 20)

G09506936

Courtesy of NISSAN NORTH AMERICA, INC.

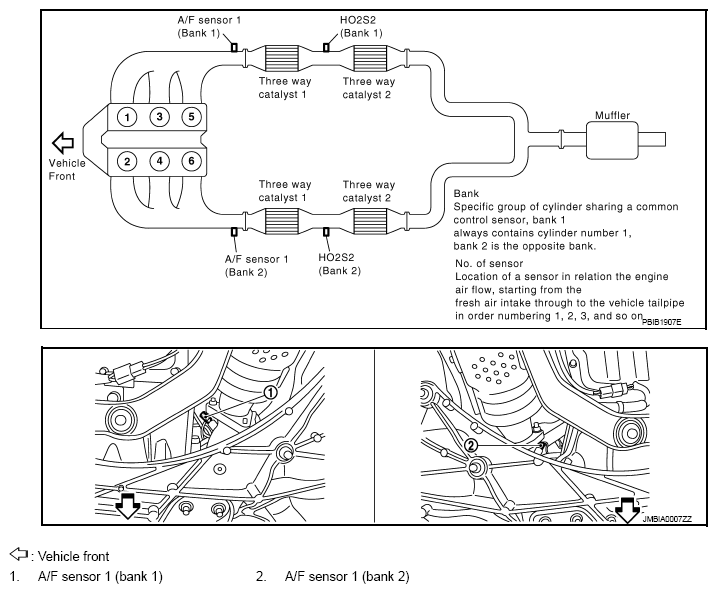

Fig 5: Intake Valve Timing Control Related Component Parts Location (5 Of 20)

G09506937

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Intake Valve Timing Control Related Component Parts Location (6 Of 20)

G09506938

Courtesy of NISSAN NORTH AMERICA, INC.

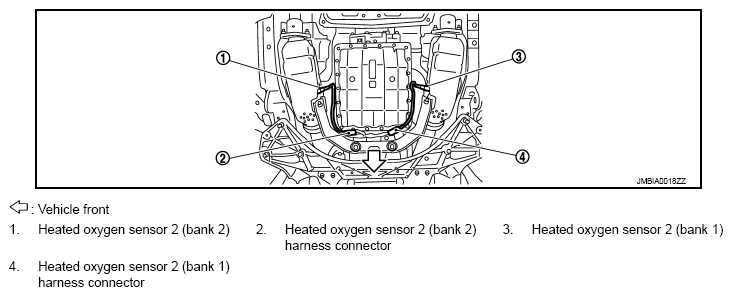

Fig 7: Intake Valve Timing Control Related Component Parts Location (7 Of 20)

G09506939

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Intake Valve Timing Control Related Component Parts Location (8 Of 20)

G09506940

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Intake Valve Timing Control Related Component Parts Location (9 Of 20)

G09506941

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Intake Valve Timing Control Related Component Parts Location (10 Of 20)

G09506942

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Intake Valve Timing Control Related Component Parts Location (11 Of 20)

G09506943

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Intake Valve Timing Control Related Component Parts Location (12 Of 20)

G09506944

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Intake Valve Timing Control Related Component Parts Location (13 Of 20)

G09506945

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Intake Valve Timing Control Related Component Parts Location (14 Of 20)

G09506946

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Intake Valve Timing Control Related Component Parts Location (15 Of 20)

G09506947

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Intake Valve Timing Control Related Component Parts Location (16 Of 20)

G09506948

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Intake Valve Timing Control Related Component Parts Location (17 Of 20)

G09506949

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Intake Valve Timing Control Related Component Parts Location (18 Of 20)

G09506950

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Intake Valve Timing Control Related Component Parts Location (19 Of 20)

G09506951

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Intake Valve Timing Control Related Component Parts Location (20 Of 20)

G09506952

Courtesy of NISSAN NORTH AMERICA, INC.
