Component Parts Location

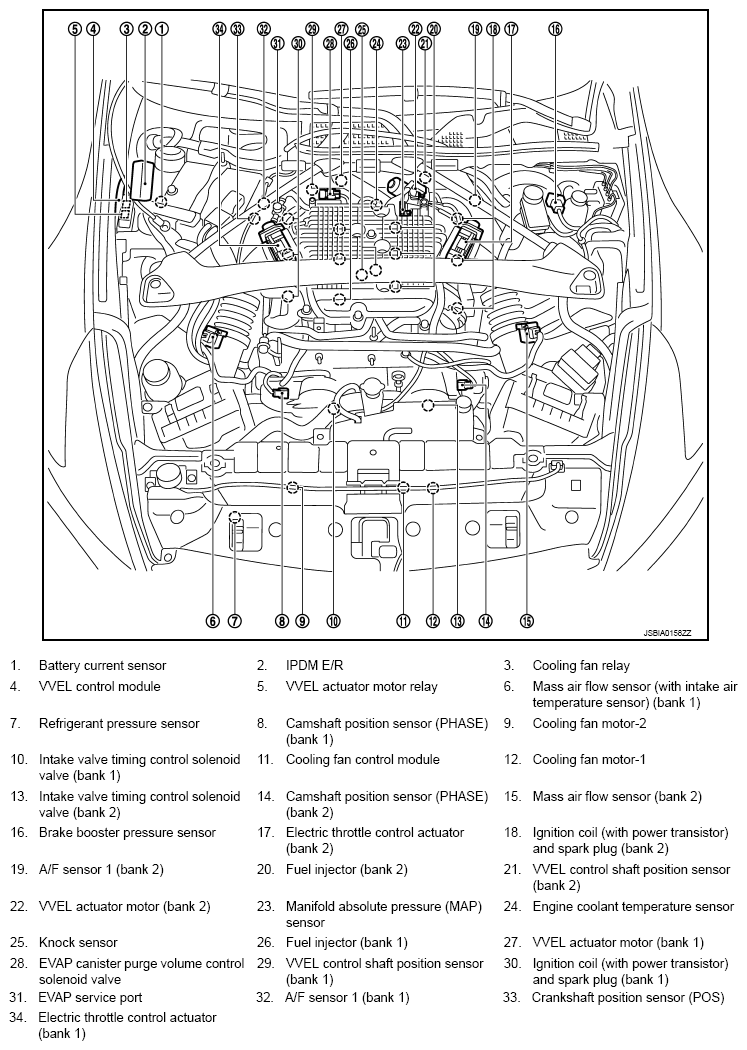

Fig 1: Synchrorev Match Mode Related Component Parts Location (1 Of 20)

G09506976

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Synchrorev Match Mode Related Component Parts Location (2 Of 20)

G09506977

Courtesy of NISSAN NORTH AMERICA, INC.

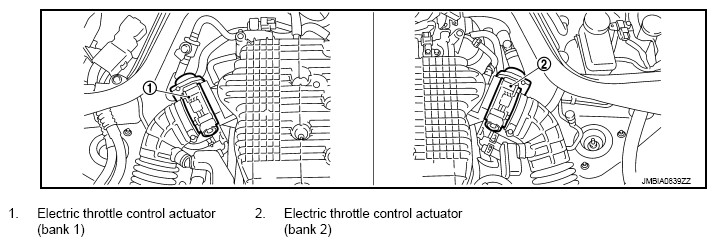

Fig 3: Synchrorev Match Mode Related Component Parts Location (3 Of 20)

G09506978

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Synchrorev Match Mode Related Component Parts Location (4 Of 20)

G09506979

Courtesy of NISSAN NORTH AMERICA, INC.

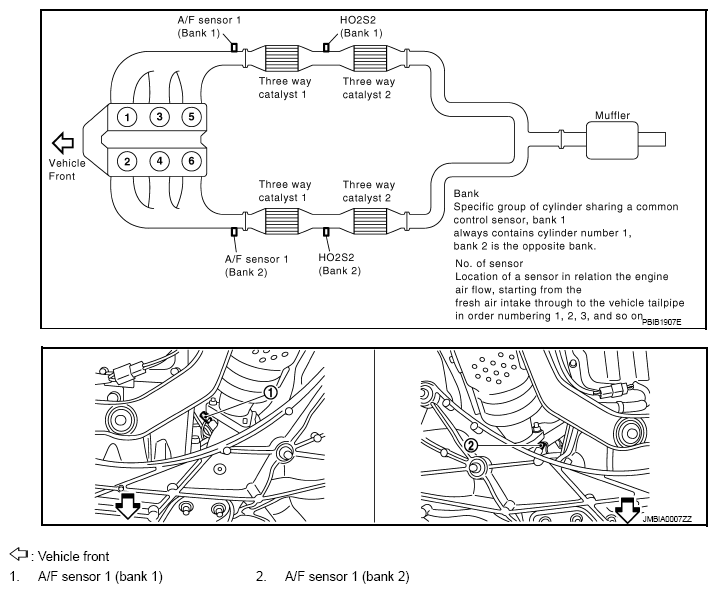

Fig 5: Synchrorev Match Mode Related Component Parts Location (5 Of 20)

G09506980

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Synchrorev Match Mode Related Component Parts Location (6 Of 20)

G09506981

Courtesy of NISSAN NORTH AMERICA, INC.

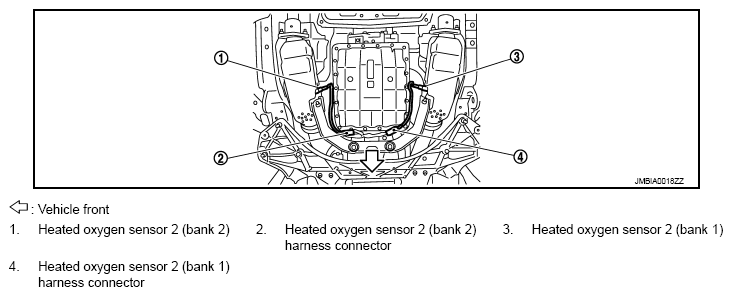

Fig 7: Synchrorev Match Mode Related Component Parts Location (7 Of 20)

G09506982

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Synchrorev Match Mode Related Component Parts Location (8 Of 20)

G09506983

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Synchrorev Match Mode Related Component Parts Location (9 Of 20)

G09506984

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Synchrorev Match Mode Related Component Parts Location (10 Of 20)

G09506985

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Synchrorev Match Mode Related Component Parts Location (11 Of 20)

G09506986

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Synchrorev Match Mode Related Component Parts Location (12 Of 20)

G09506987

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Synchrorev Match Mode Related Component Parts Location (13 Of 20)

G09506988

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Synchrorev Match Mode Related Component Parts Location (14 Of 20)

G09506989

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Synchrorev Match Mode Related Component Parts Location (15 Of 20)

G09506990

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Synchrorev Match Mode Related Component Parts Location (16 Of 20)

G09506991

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Synchrorev Match Mode Related Component Parts Location (17 Of 20)

G09506992

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Synchrorev Match Mode Related Component Parts Location (18 Of 20)

G09506993

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Synchrorev Match Mode Related Component Parts Location (19 Of 20)

G09506994

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Synchrorev Match Mode Related Component Parts Location (20 Of 20)

G09506995

Courtesy of NISSAN NORTH AMERICA, INC.
