Component Parts Location

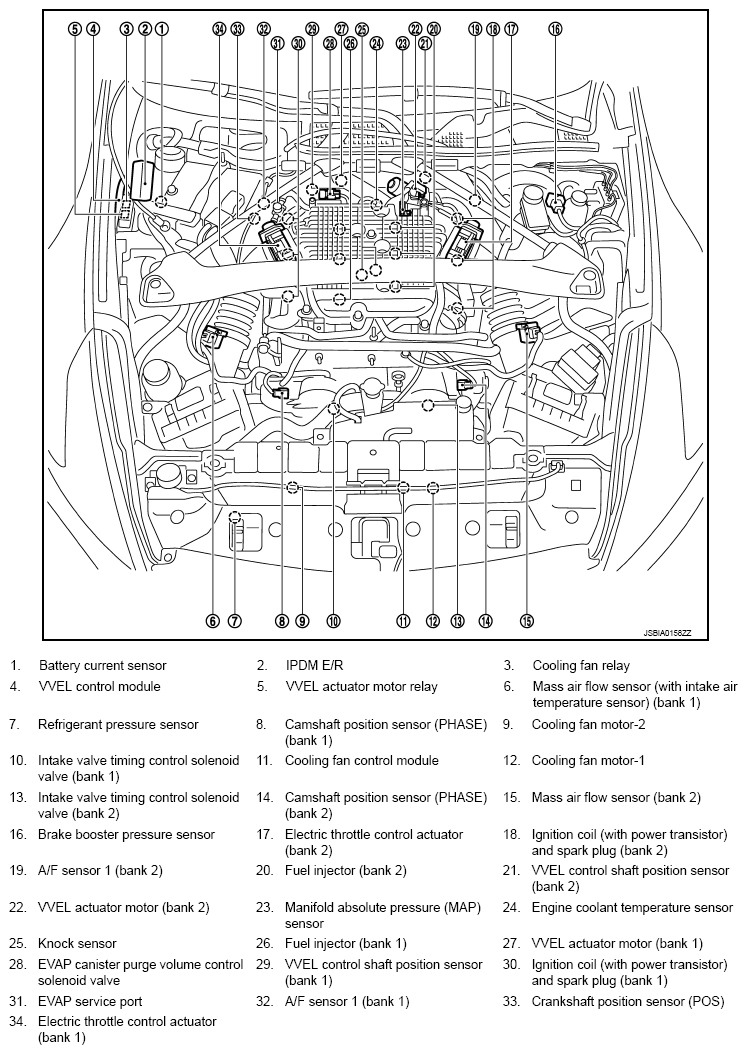

Fig 1: Engine Control System Related Component Parts Location (1 Of 20)

G09506782

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Engine Control System Related Component Parts Location (2 Of 20)

G09506783

Courtesy of NISSAN NORTH AMERICA, INC.

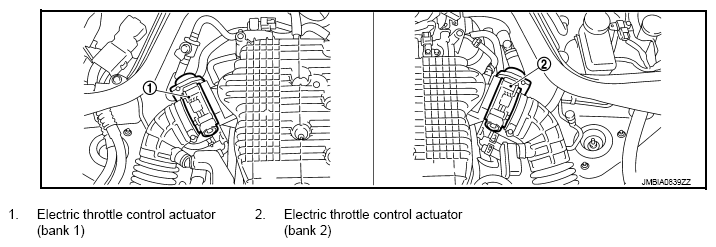

Fig 3: Engine Control System Related Component Parts Location (3 Of 20)

G09506784

Courtesy of NISSAN NORTH AMERICA, INC.

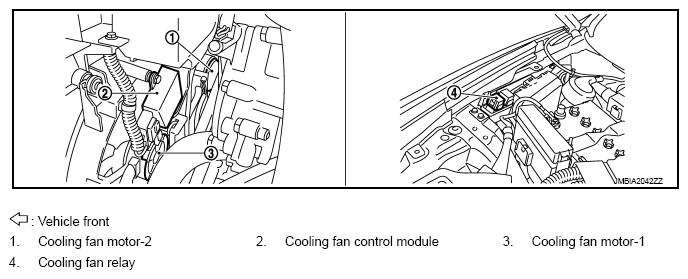

Fig 4: Engine Control System Related Component Parts Location (4 Of 20)

G09506785

Courtesy of NISSAN NORTH AMERICA, INC.

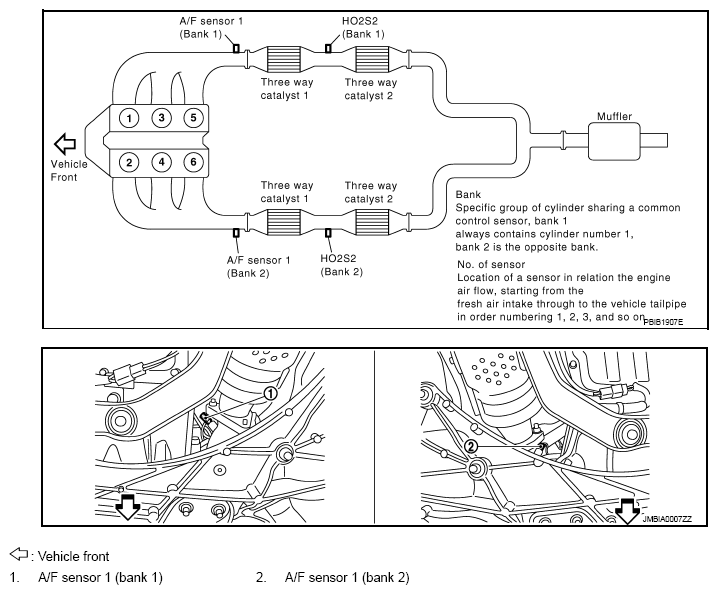

Fig 5: Engine Control System Related Component Parts Location (5 Of 20)

G09506786

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Engine Control System Related Component Parts Location (6 Of 20)

G09506787

Courtesy of NISSAN NORTH AMERICA, INC.

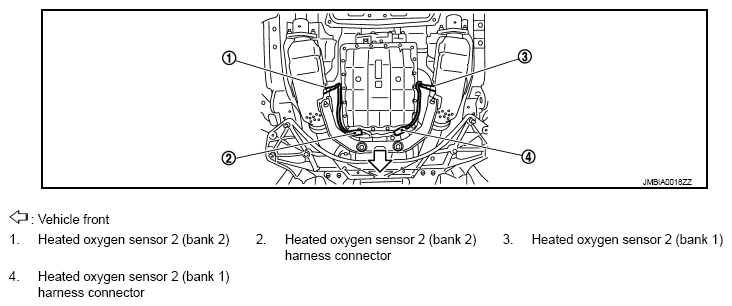

Fig 7: Engine Control System Related Component Parts Location (7 Of 20)

G09506788

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Engine Control System Related Component Parts Location (8 Of 20)

G09506789

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System Related Component Parts Location (9 Of 20)

G09506790

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Control System Related Component Parts Location (10 Of 20)

G09506791

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Engine Control System Related Component Parts Location (11 Of 20)

G09506792

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Engine Control System Related Component Parts Location (12 Of 20)

G09506793

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System Related Component Parts Location (13 Of 20)

G09506794

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Related Component Parts Location (14 Of 20)

G09506795

Courtesy of NISSAN NORTH AMERICA, INC.

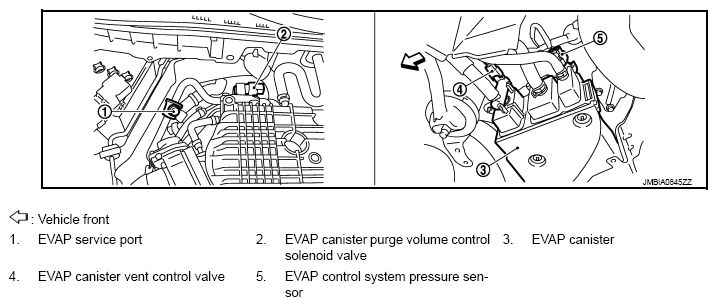

Fig 15: Engine Control System Related Component Parts Location (15 Of 20)

G09506796

Courtesy of NISSAN NORTH AMERICA, INC.

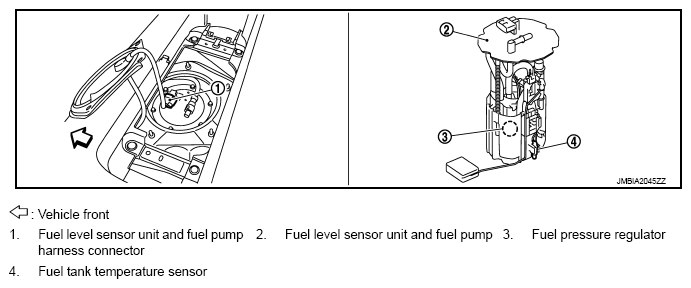

Fig 16: Engine Control System Related Component Parts Location (16 Of 20)

G09506797

Courtesy of NISSAN NORTH AMERICA, INC.

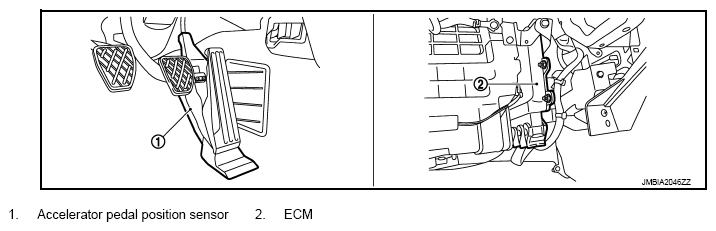

Fig 17: Engine Control System Related Component Parts Location (17 Of 20)

G09506798

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Engine Control System Related Component Parts Location (18 Of 20)

G09506799

Courtesy of NISSAN NORTH AMERICA, INC.

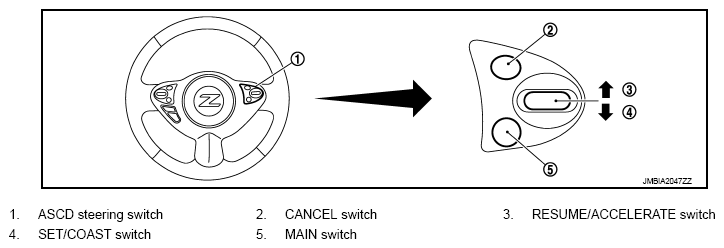

Fig 19: Engine Control System Related Component Parts Location (19 Of 20)

G09506800

Courtesy of NISSAN NORTH AMERICA, INC.

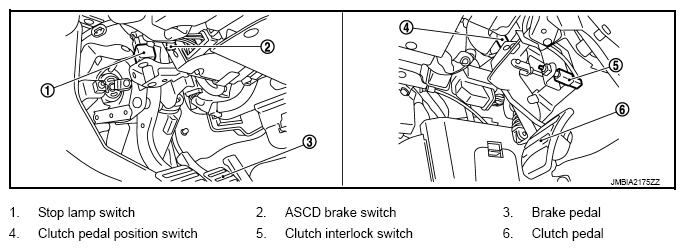

Fig 20: Engine Control System Related Component Parts Location (20 Of 20)

G09506801

Courtesy of NISSAN NORTH AMERICA, INC.
