Outside Key Antenna Detection Area

The outside key antenna detection area of door lock/unlock function is in the range of approximately 80 cm (31.50 in) surrounding the driver, passenger door handles (1) and rear bumper (2). However, this operating range depends on the ambient conditions.

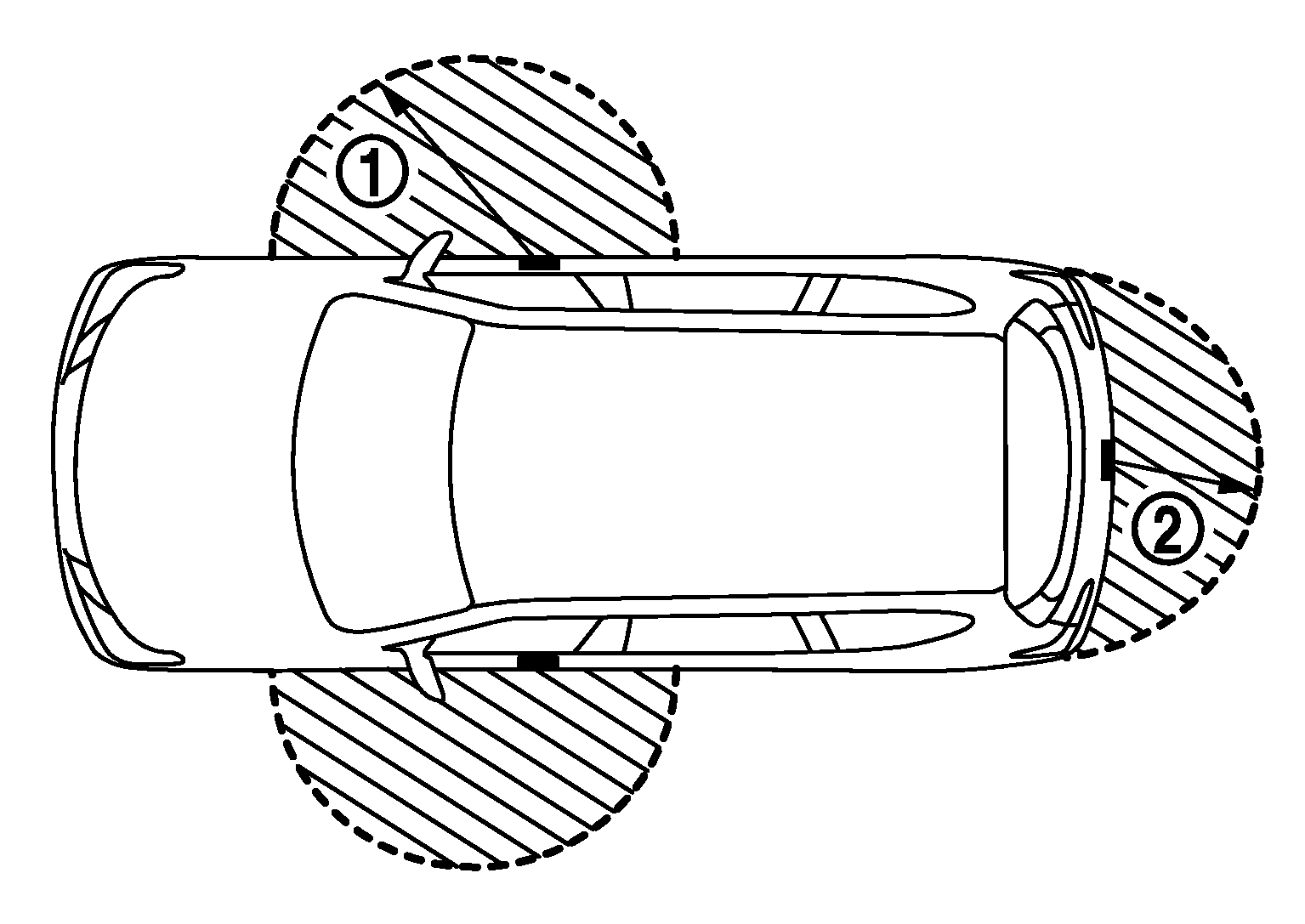

Fig 1: Identifying Passenger Door Handles And Rear Bumper Operating Ranges

Courtesy of NISSAN NORTH AMERICA, INC.
