AV Control Unit (With Navigation System Without Bose Audio System) Connector End View (M103)

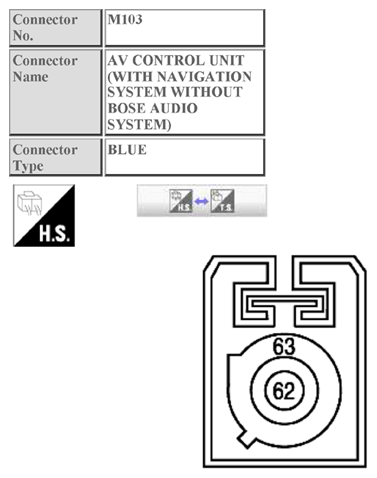

Fig 1: AV Control Unit (With Navigation System Without Bose Audio System) Connector End View (M103)
G10395597Courtesy of NISSAN NORTH AMERICA, INC.
