CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

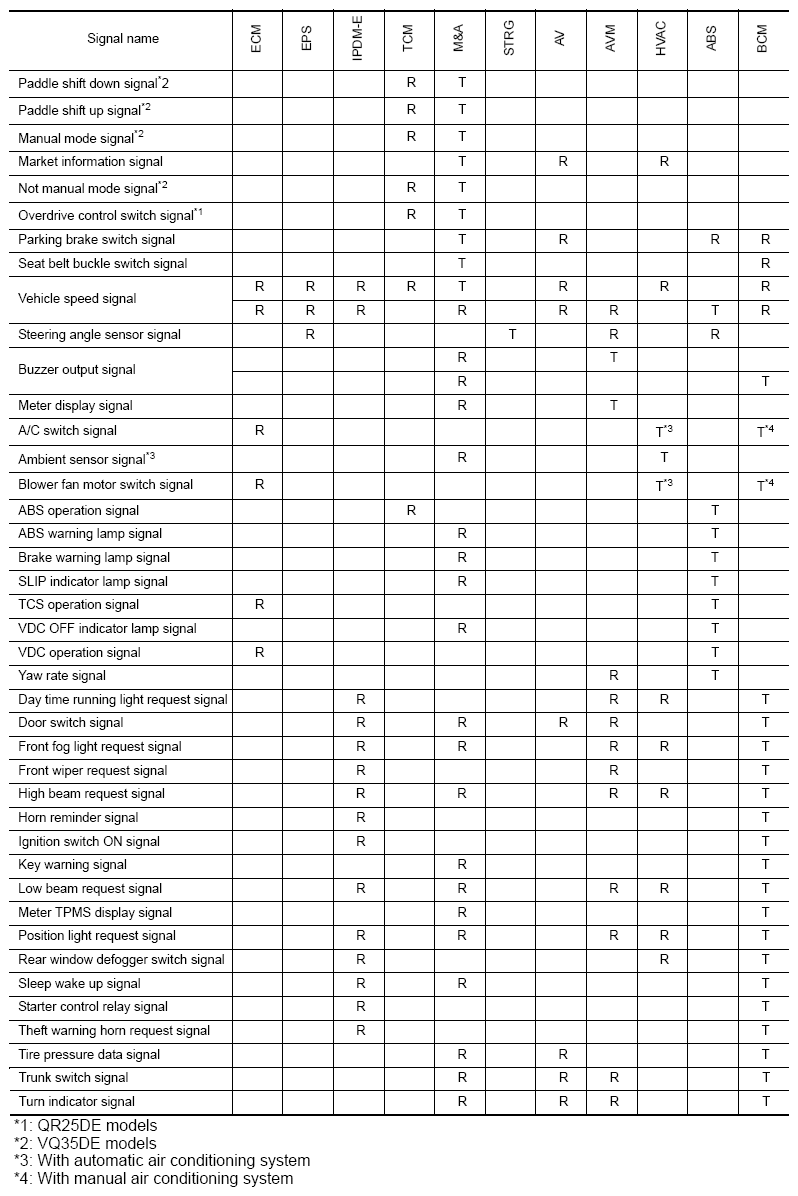

Fig 1: CAN Communication Signal Chart

Courtesy of NISSAN NORTH AMERICA, INC.

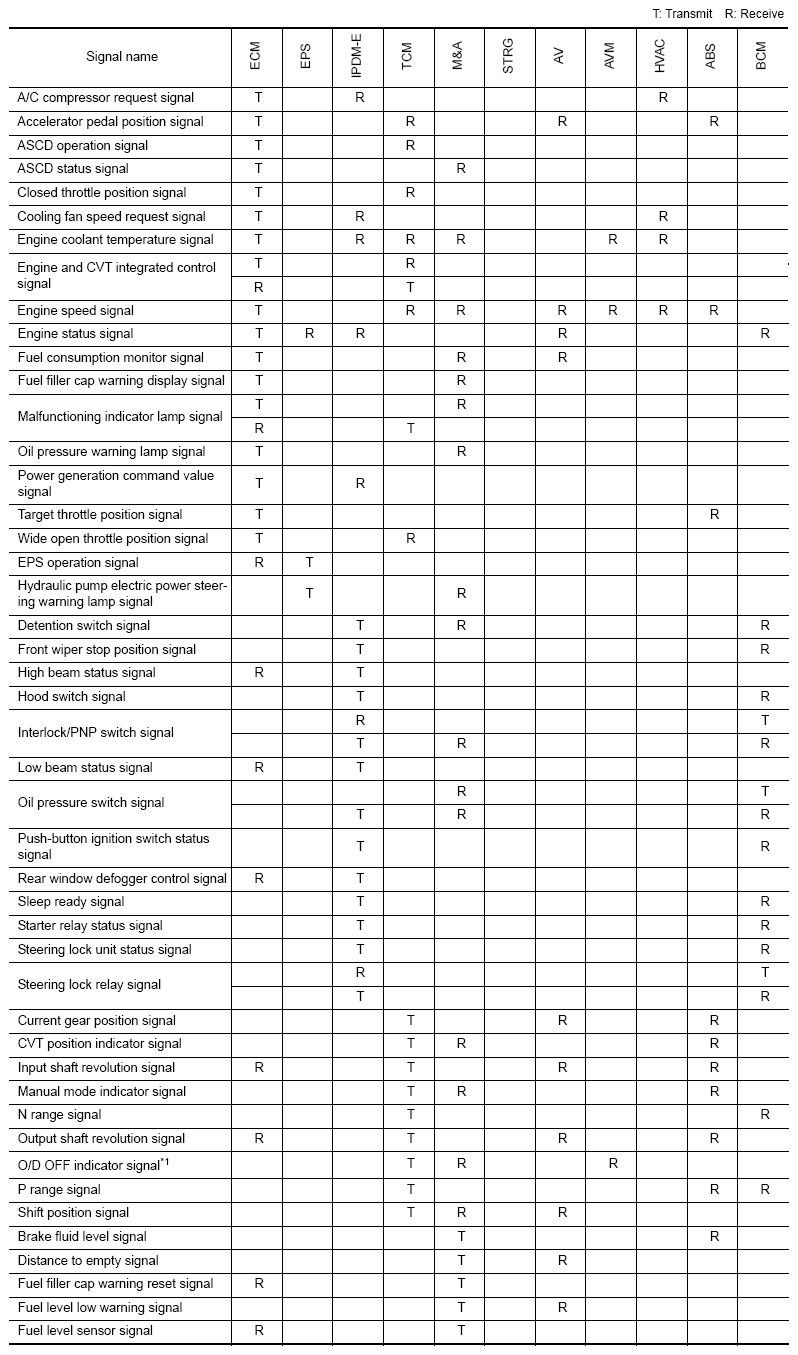

Fig 2: CAN Communication Signal Chart

Courtesy of NISSAN NORTH AMERICA, INC.

*1: QR25DE models

*2: VQ35DE models

*3: With automatic air conditioning system

*4: With manual air conditioning system

NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
