Connector End Views

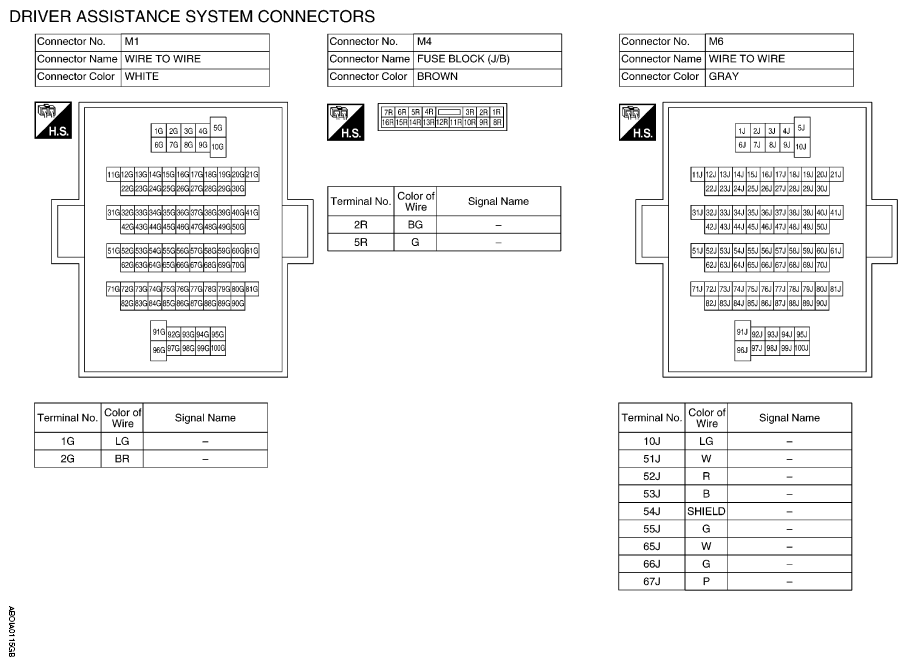

Fig 1: Driver Assistance System Connector End Views (1 Of 8)
G09143373Courtesy of NISSAN NORTH AMERICA, INC.

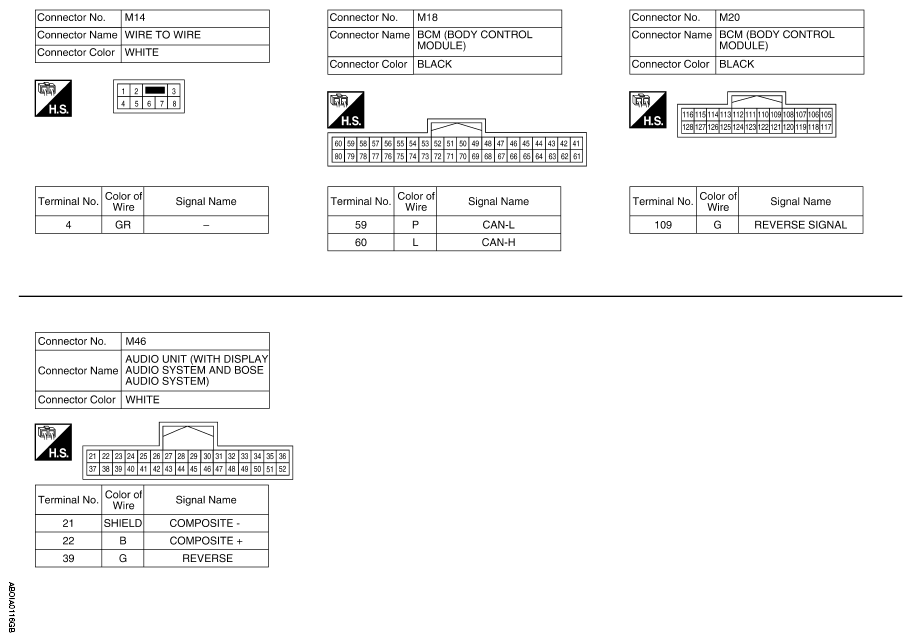

Fig 2: Driver Assistance System Connector End Views (2 Of 8)
G09143374Courtesy of NISSAN NORTH AMERICA, INC.

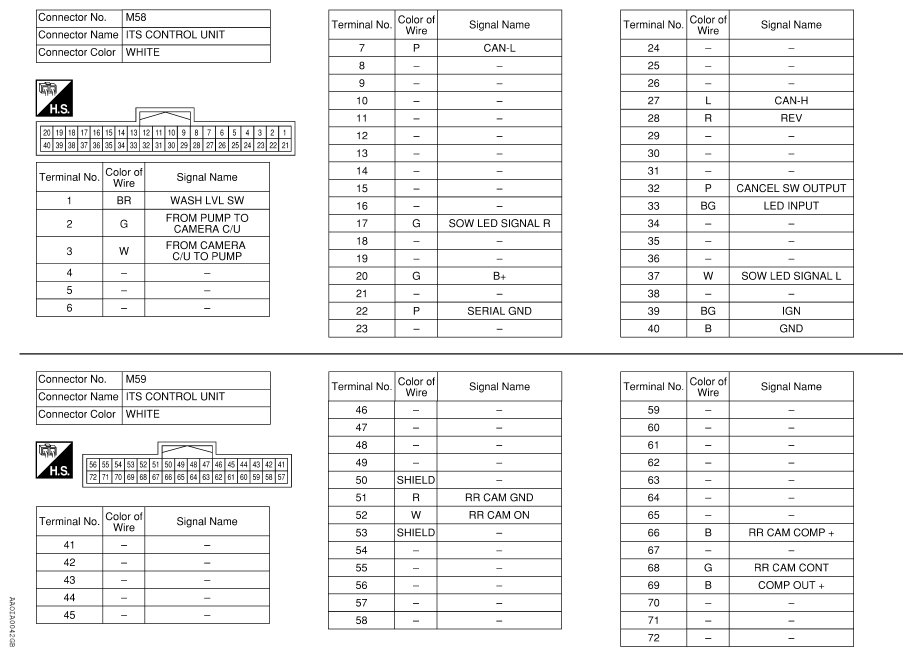

Fig 3: Driver Assistance System Connector End Views (3 Of 8)
G08687229Courtesy of NISSAN NORTH AMERICA, INC.

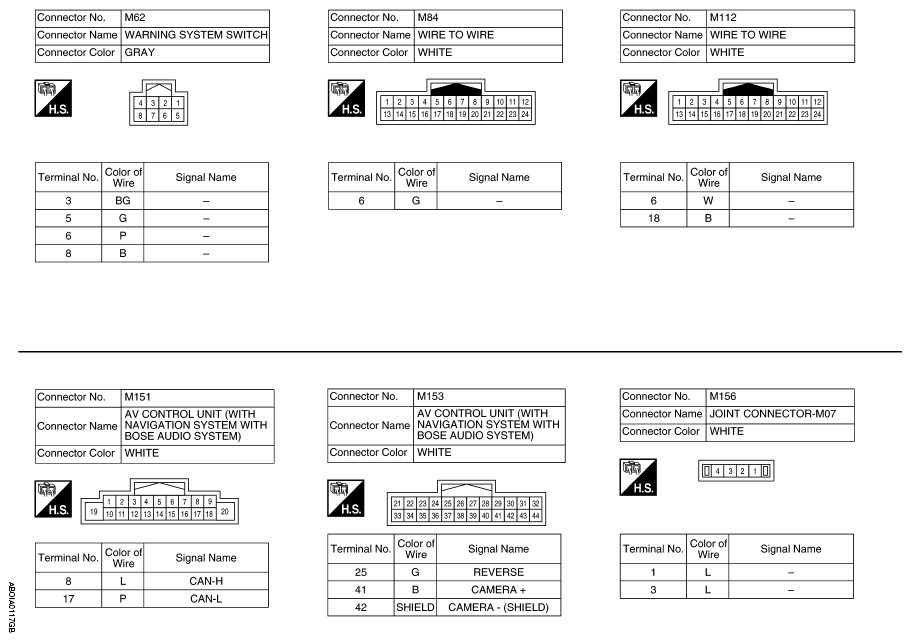

Fig 4: Driver Assistance System Connector End Views (4 Of 8)
G09143376Courtesy of NISSAN NORTH AMERICA, INC.

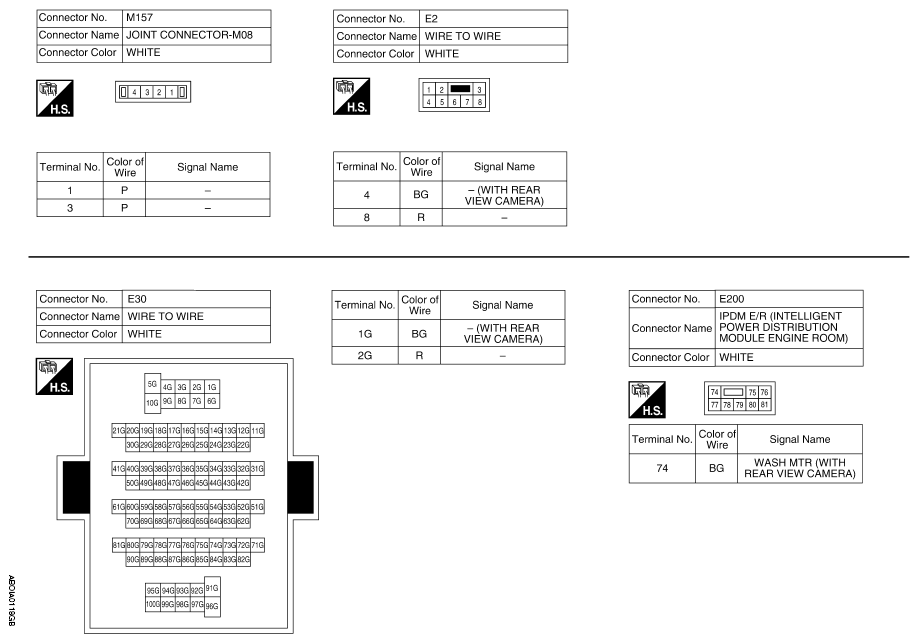

Fig 5: Driver Assistance System Connector End Views (5 Of 8)
G09143377Courtesy of NISSAN NORTH AMERICA, INC.

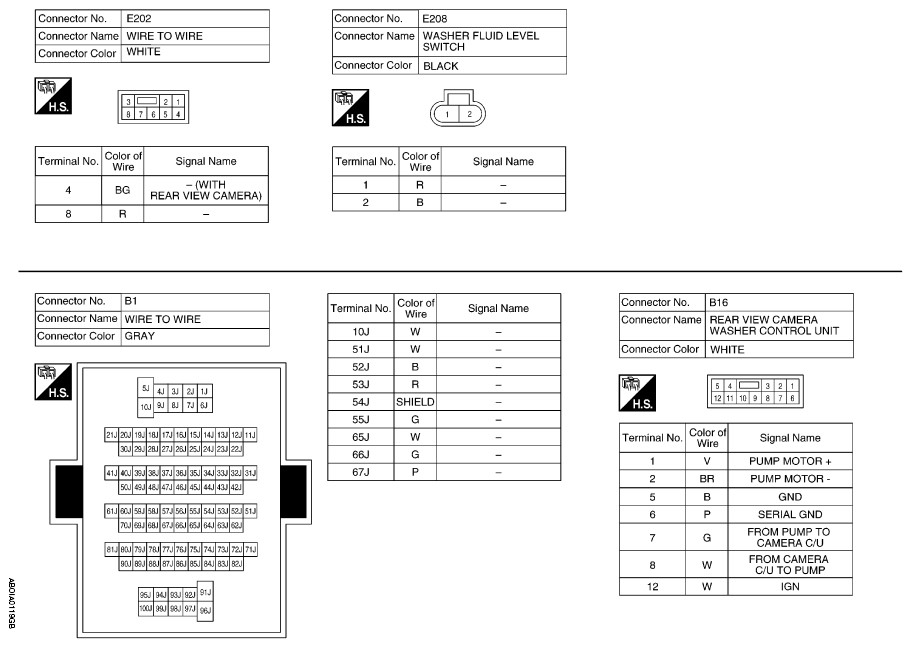

Fig 6: Driver Assistance System Connector End Views (6 Of 8)
G09143378Courtesy of NISSAN NORTH AMERICA, INC.

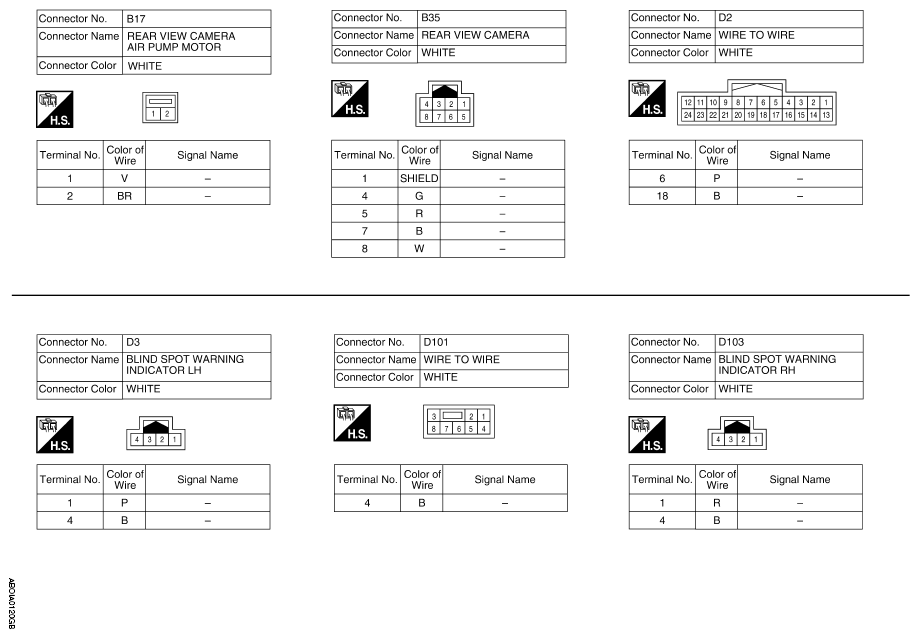

Fig 7: Driver Assistance System Connector End Views (7 Of 8)
G09143379Courtesy of NISSAN NORTH AMERICA, INC.

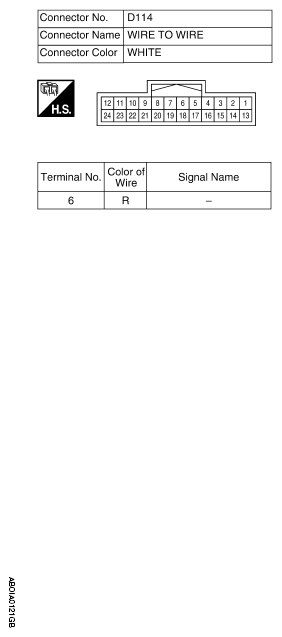

Fig 8: Driver Assistance System Connector End Views (8 Of 8)
G09143380Courtesy of NISSAN NORTH AMERICA, INC.
