Connector End Views

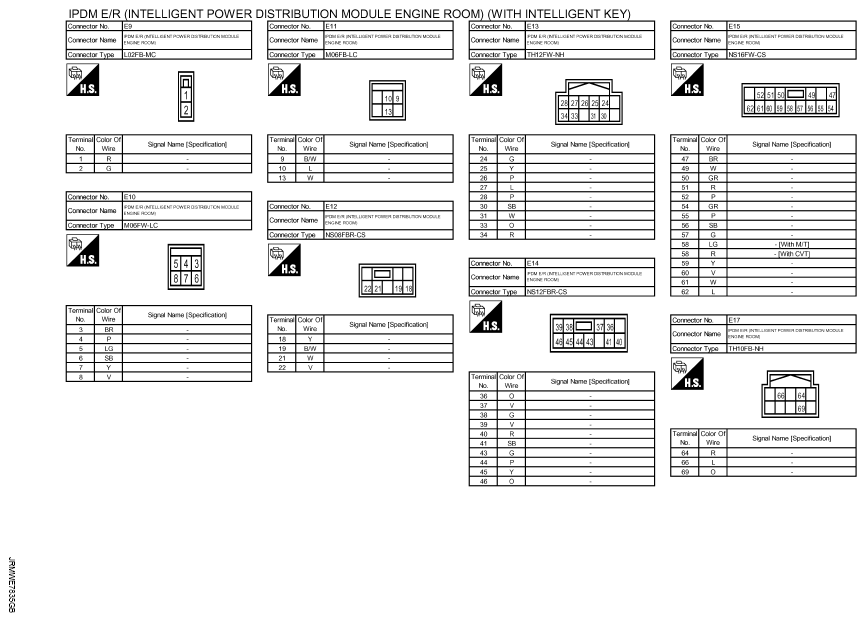

Fig 1: Intelligent Power Distribution Module Engine Room Connector End Views (With Intelligent Key System)
G09520087Courtesy of NISSAN NORTH AMERICA, INC.
