Body Control Module Connector End Views (With Intelligent Key)

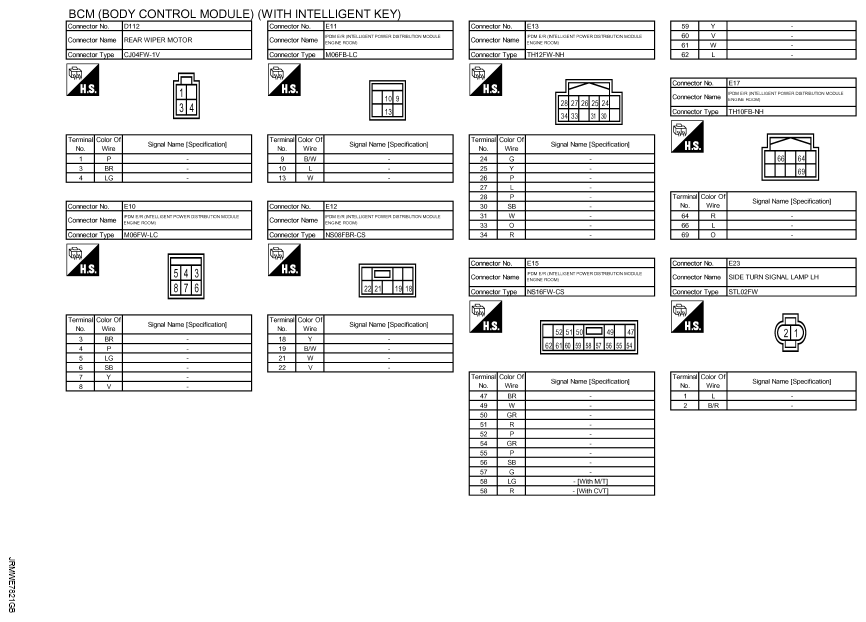

Fig 1: Body Control Module Connector End View (With Intelligent Key) (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

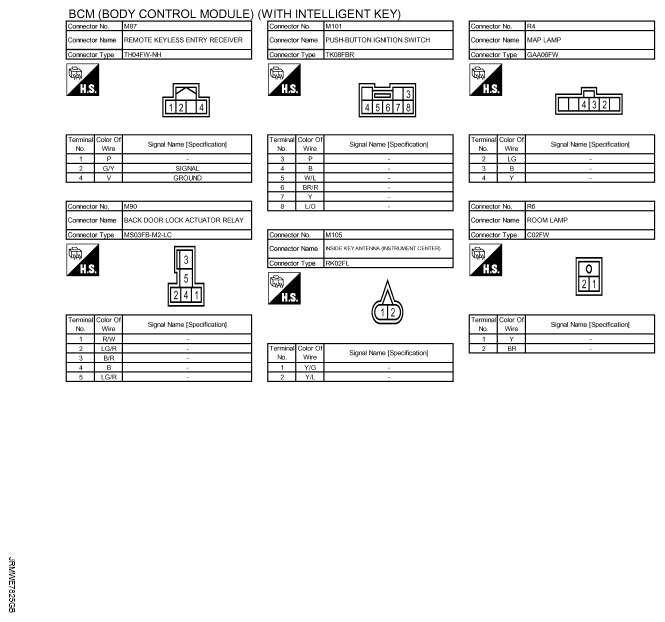

Fig 2: Body Control Module Connector End View (With Intelligent Key) (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

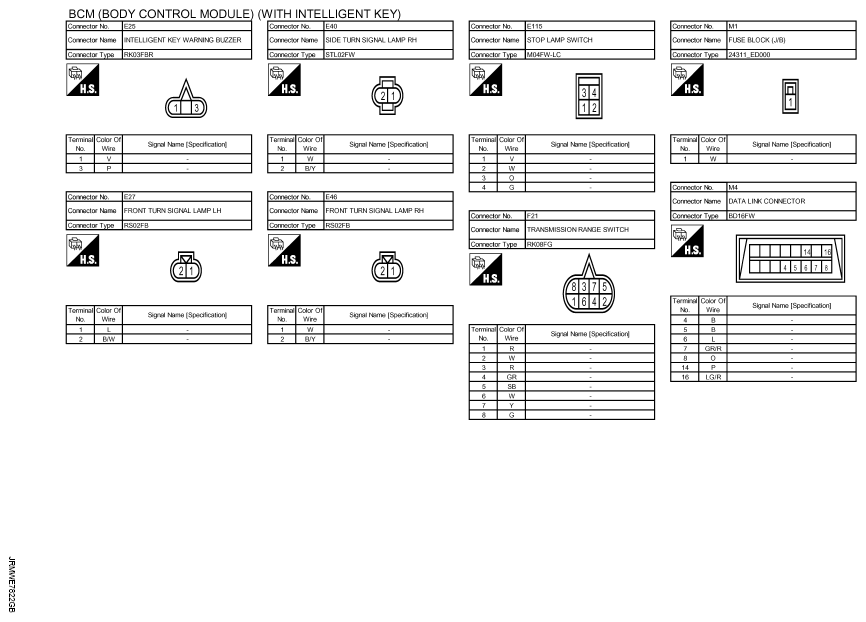

Fig 3: Body Control Module Connector End View (With Intelligent Key) (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

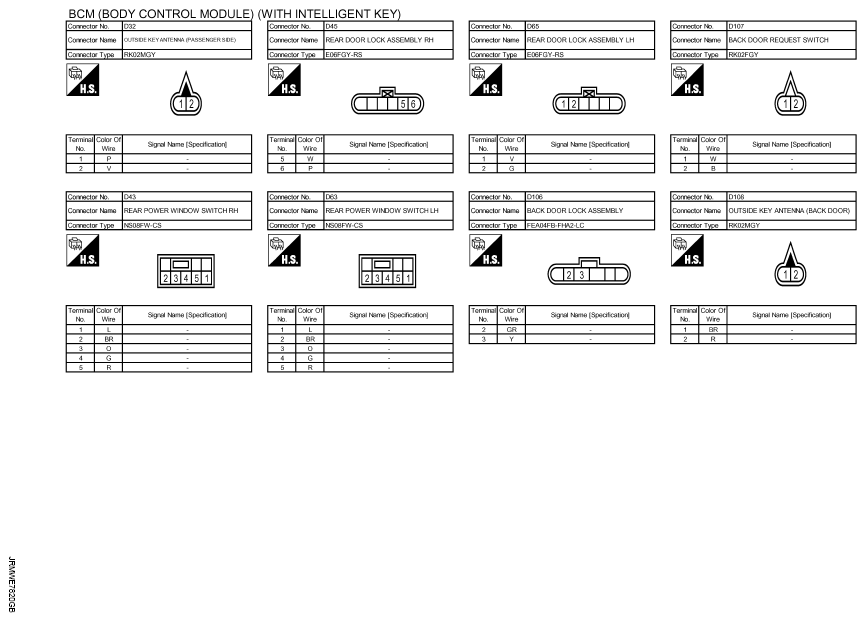

Fig 4: Body Control Module Connector End View (With Intelligent Key) (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

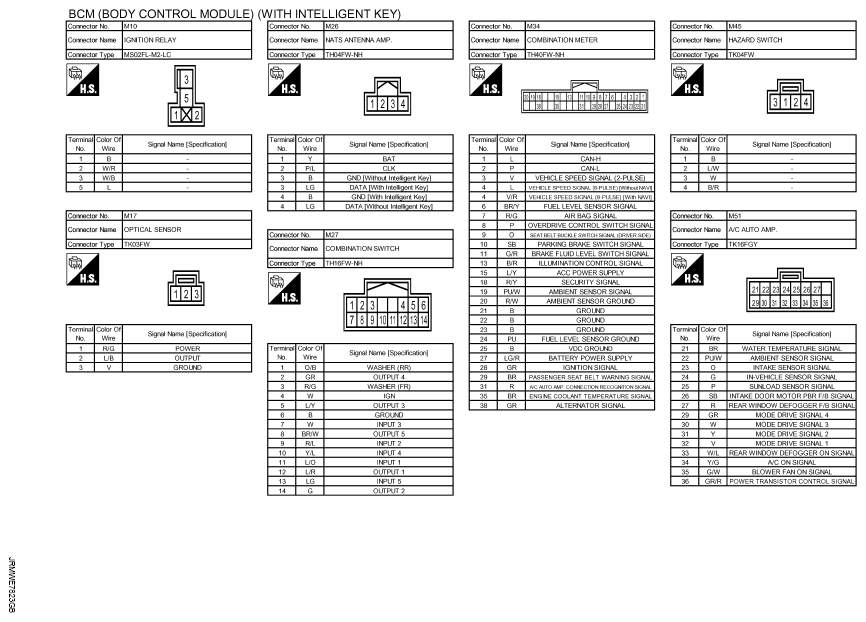

Fig 5: Body Control Module Connector End View (With Intelligent Key) (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

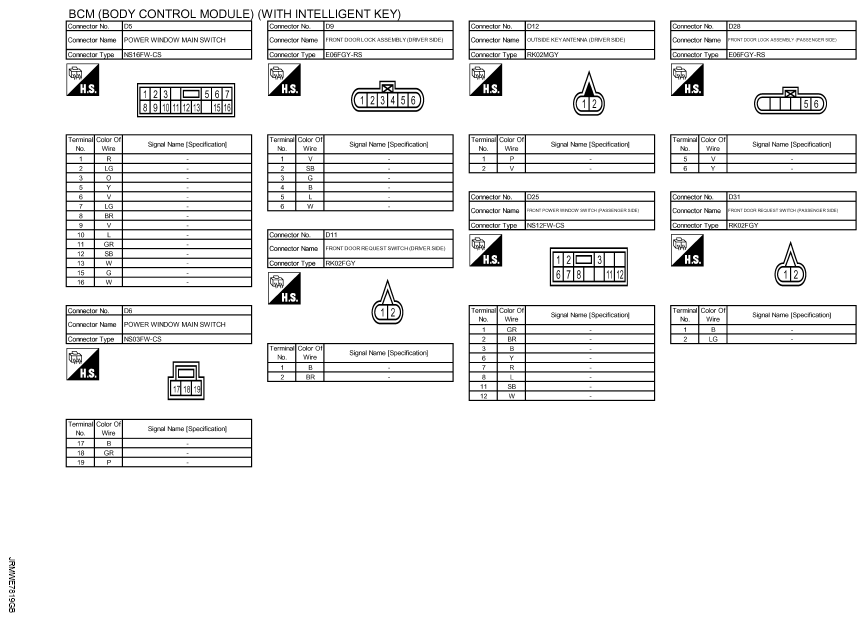

Fig 6: Body Control Module Connector End View (With Intelligent Key) (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

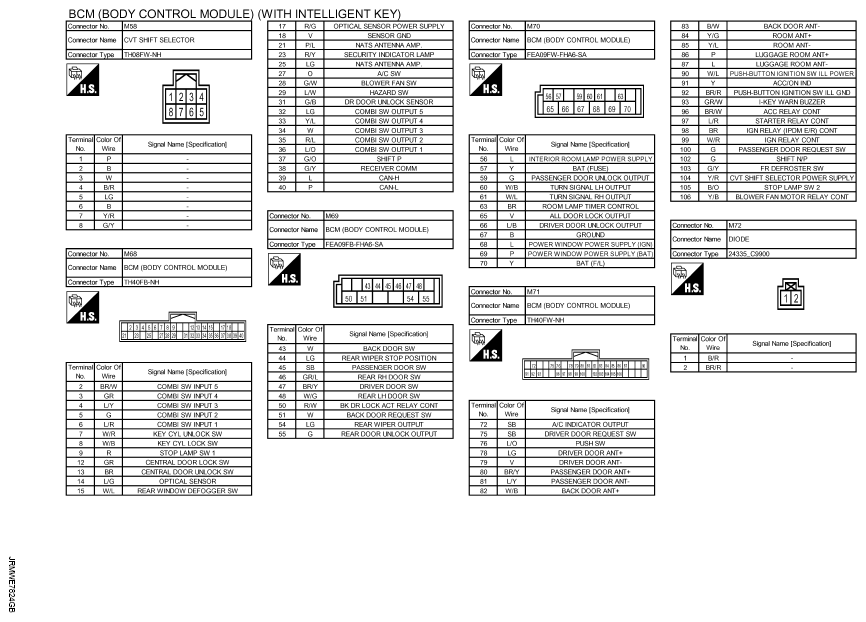

Fig 7: Body Control Module Connector End View (With Intelligent Key) (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

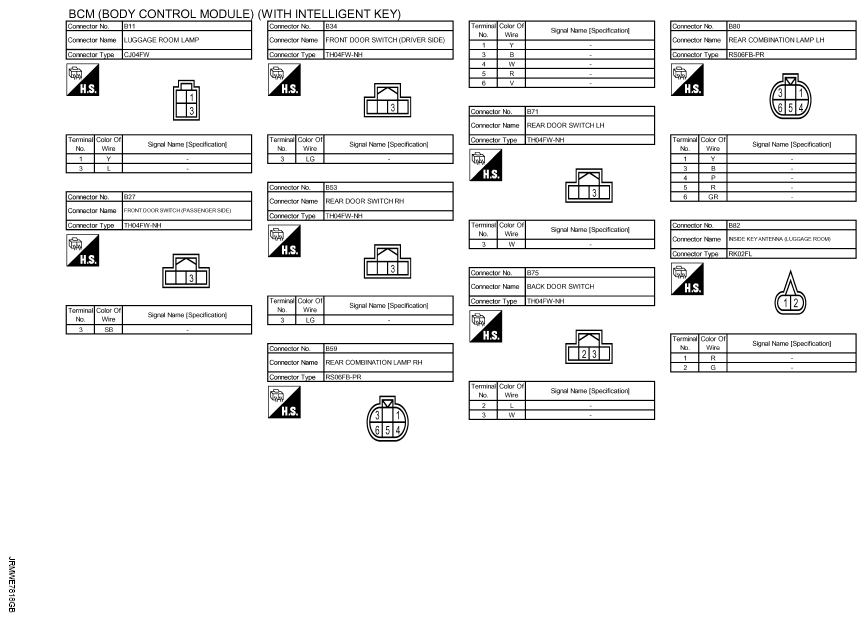

Fig 8: Body Control Module Connector End View (With Intelligent Key) (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
