Connector End Views

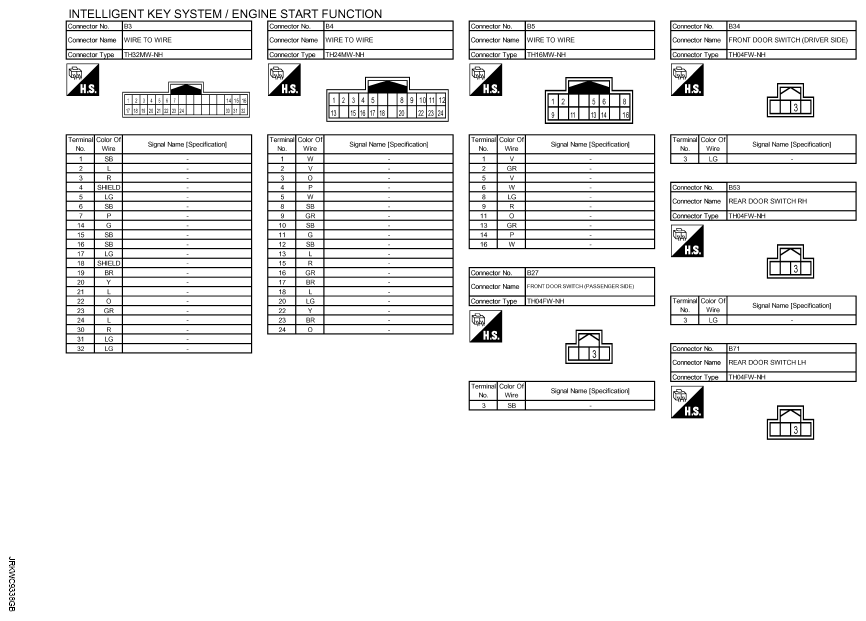

Fig 1: Intelligent Key System/Engine Start Function Connector End View (1 Of 7)
G09519982Courtesy of NISSAN NORTH AMERICA, INC.

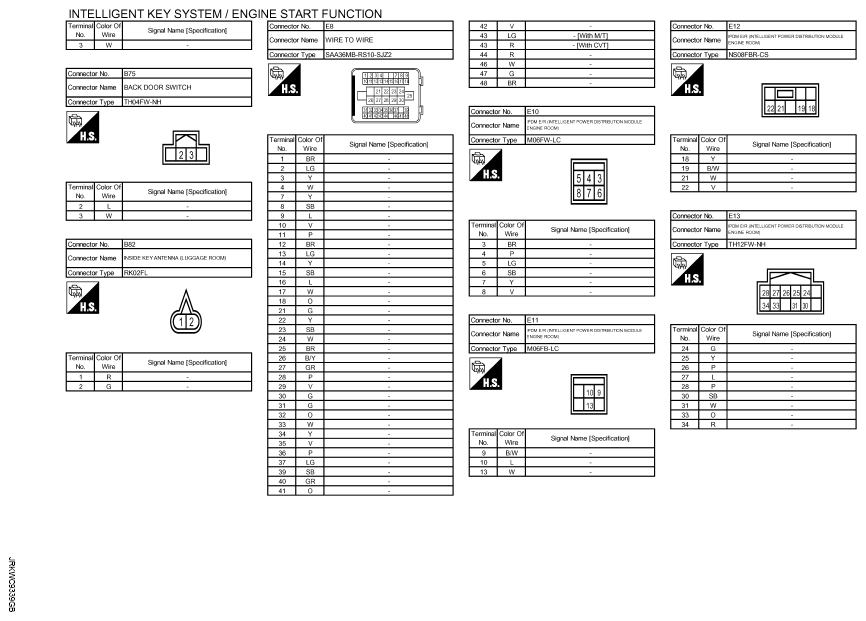

Fig 2: Intelligent Key System/Engine Start Function Connector End View (2 Of 7)
G09519983Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intelligent Key System/Engine Start Function Connector End View (3 Of 7)
G09519984Courtesy of NISSAN NORTH AMERICA, INC.

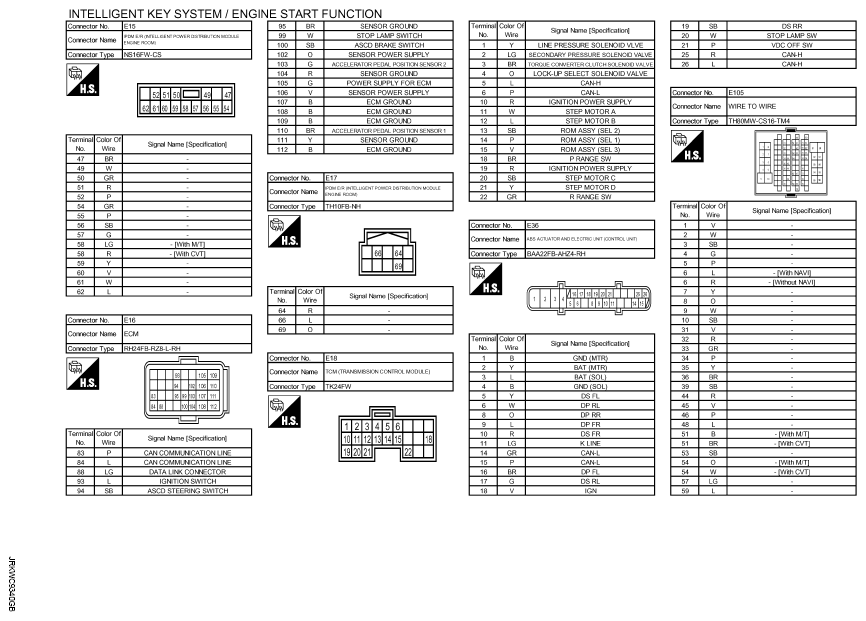

Fig 4: Intelligent Key System/Engine Start Function Connector End View (4 Of 7)
G09519985Courtesy of NISSAN NORTH AMERICA, INC.

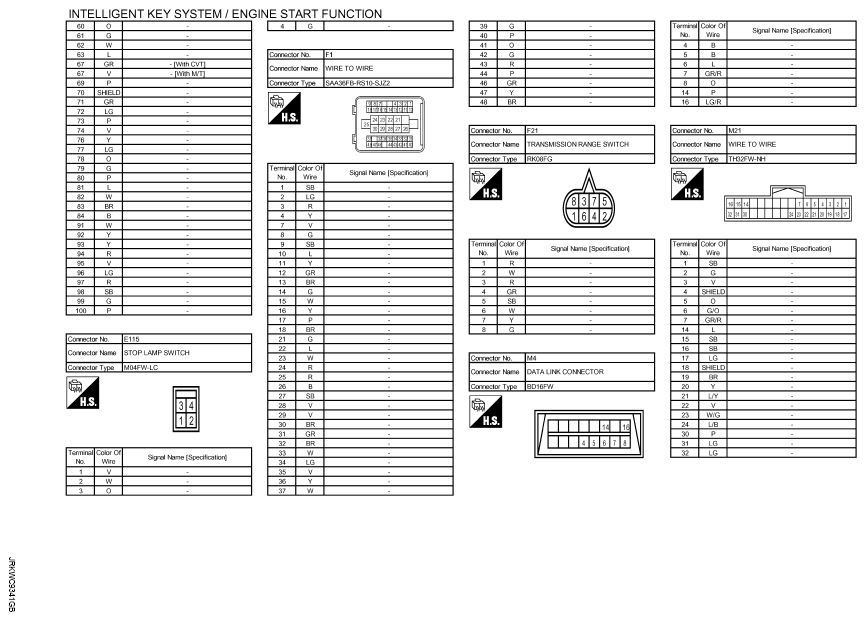

Fig 5: Intelligent Key System/Engine Start Function Connector End View (5 Of 7)
G09519986Courtesy of NISSAN NORTH AMERICA, INC.

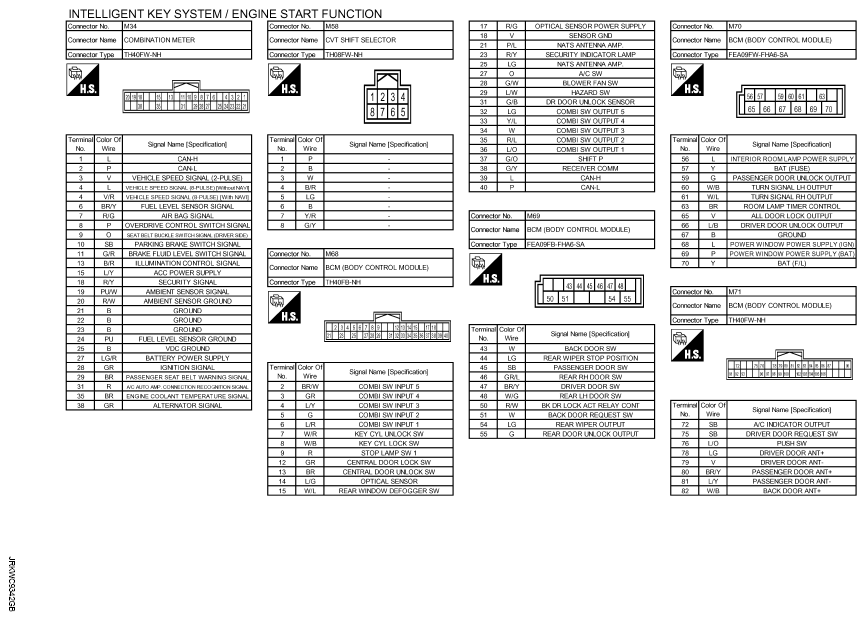

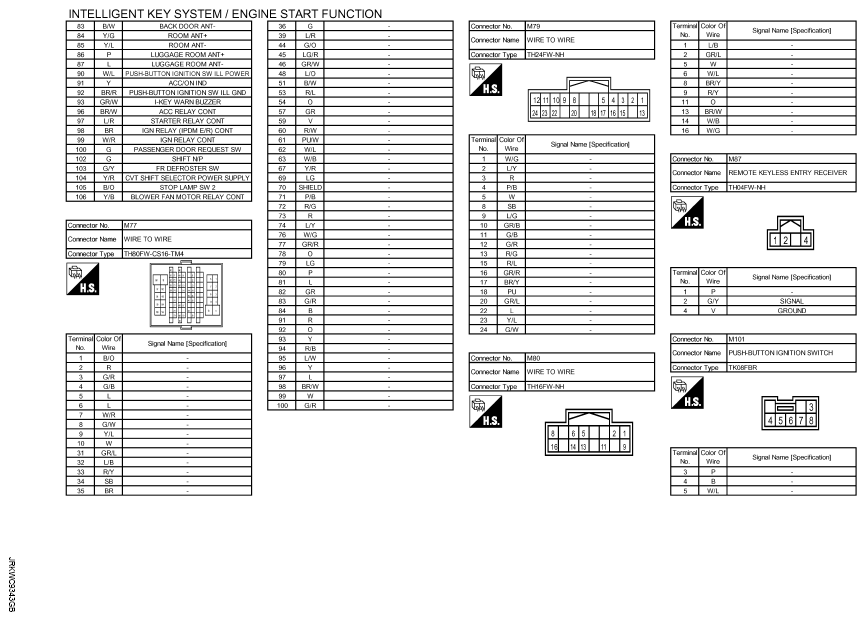

Fig 6: Intelligent Key System/Engine Start Function Connector End View (6 Of 7)
G09519987Courtesy of NISSAN NORTH AMERICA, INC.

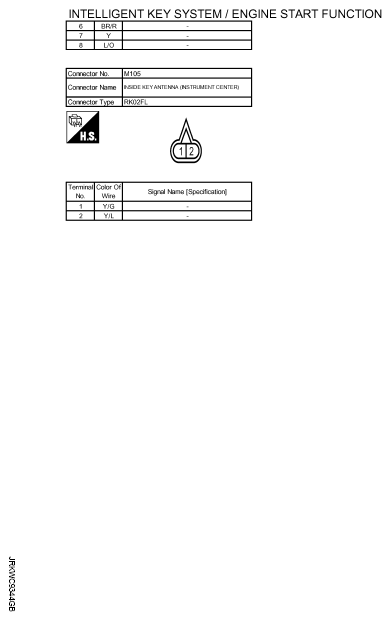

Fig 7: Intelligent Key System/Engine Start Function Connector End View (7 Of 7)
G09519988Courtesy of NISSAN NORTH AMERICA, INC.
