Connector End Views

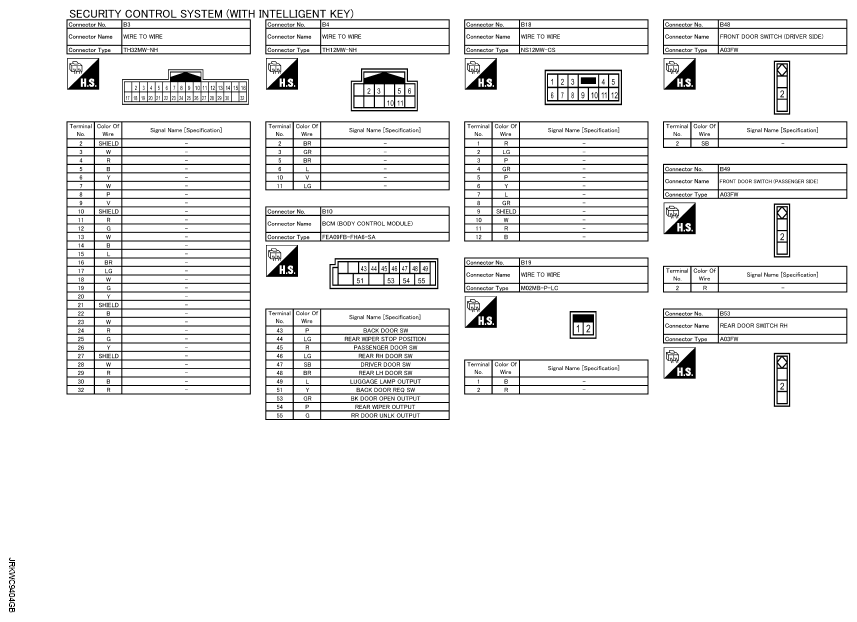

Fig 1: Security Control System Connector End Views (1 Of 10)
G09245121Courtesy of NISSAN NORTH AMERICA, INC.

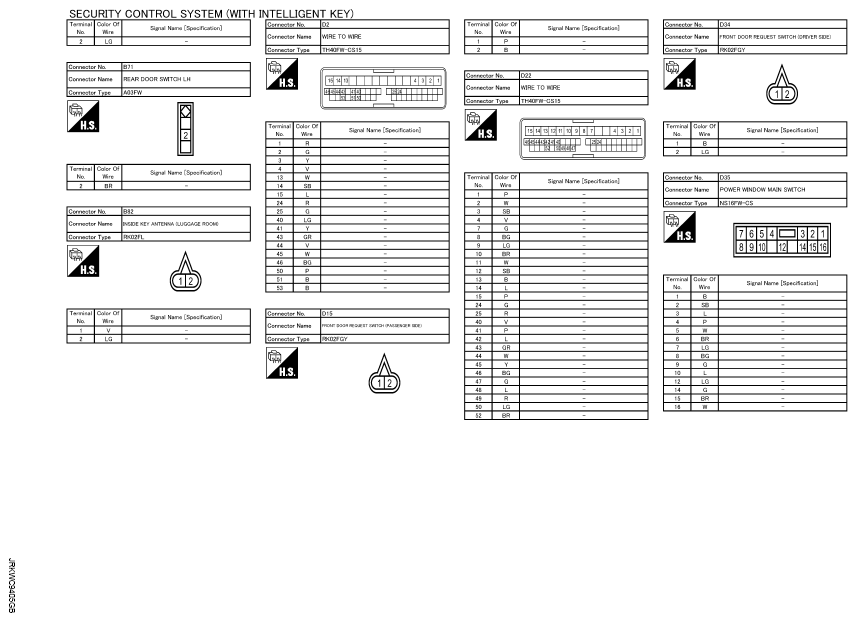

Fig 2: Security Control System Connector End Views (2 Of 10)
G09245122Courtesy of NISSAN NORTH AMERICA, INC.

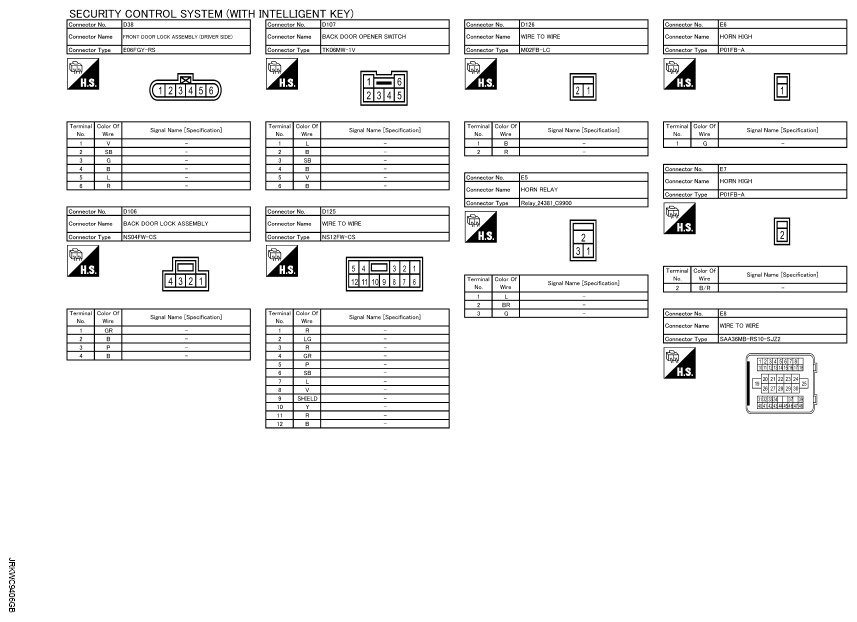

Fig 3: Security Control System Connector End Views (3 Of 10)
G09245123Courtesy of NISSAN NORTH AMERICA, INC.

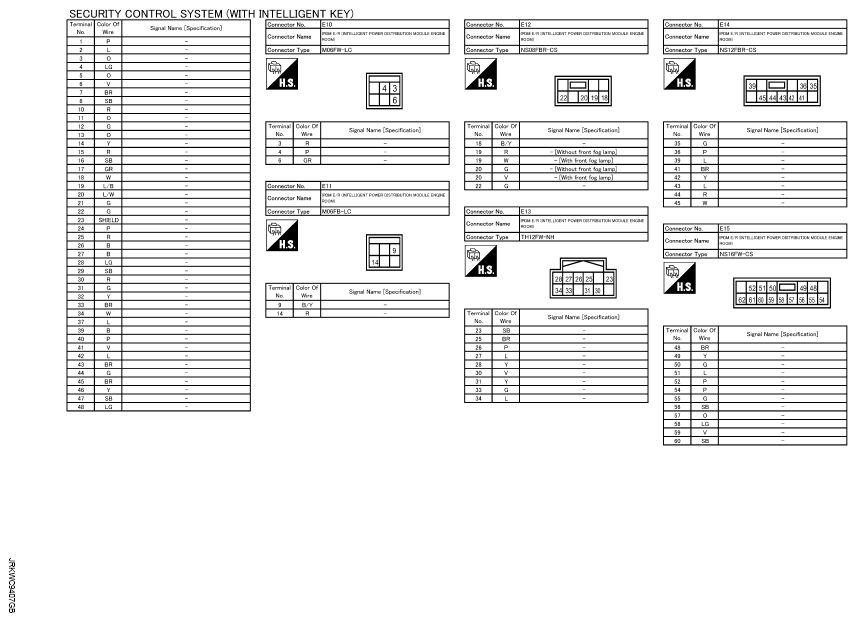

Fig 4: Security Control System Connector End Views (4 Of 10)
G09245124Courtesy of NISSAN NORTH AMERICA, INC.

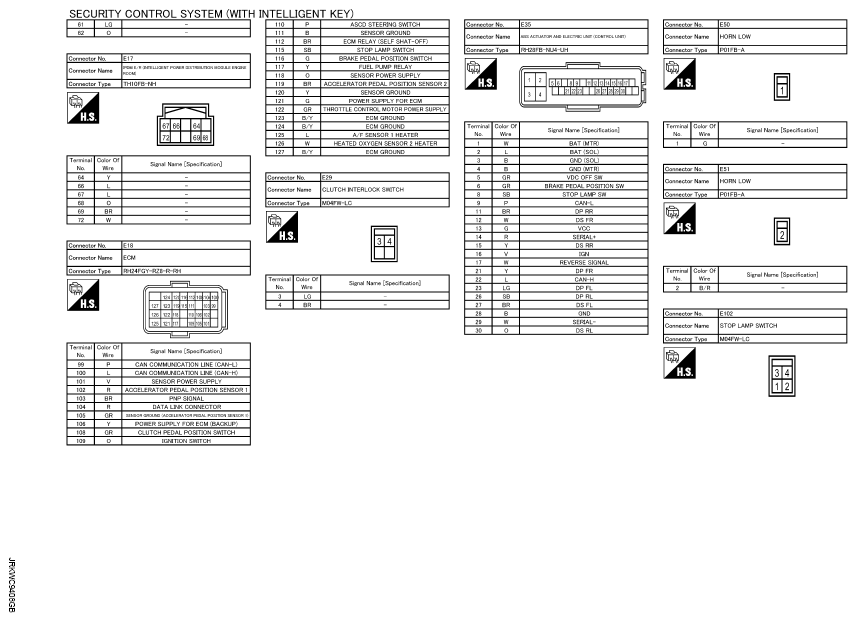

Fig 5: Security Control System Connector End Views (5 Of 10)
G09245125Courtesy of NISSAN NORTH AMERICA, INC.

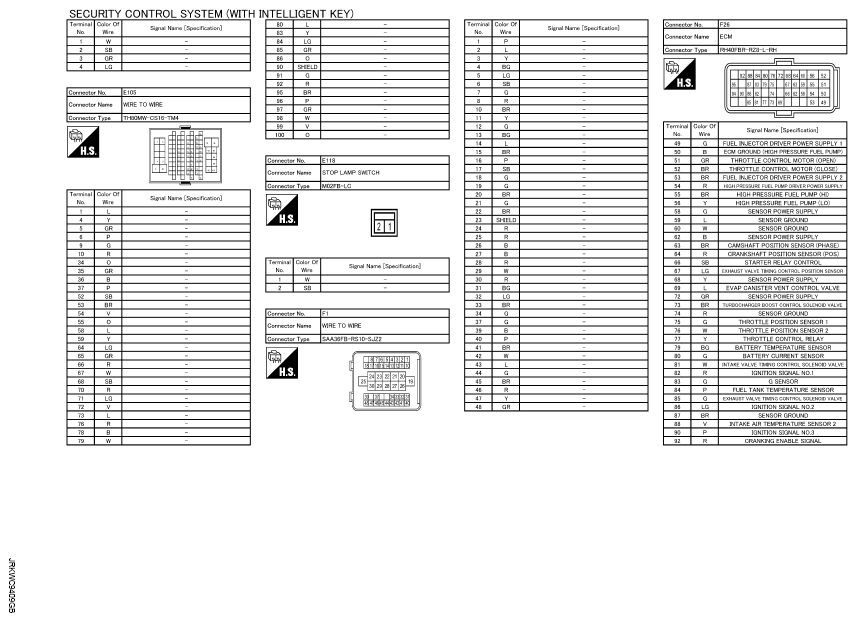

Fig 6: Security Control System Connector End Views (6 Of 10)
G09245126Courtesy of NISSAN NORTH AMERICA, INC.

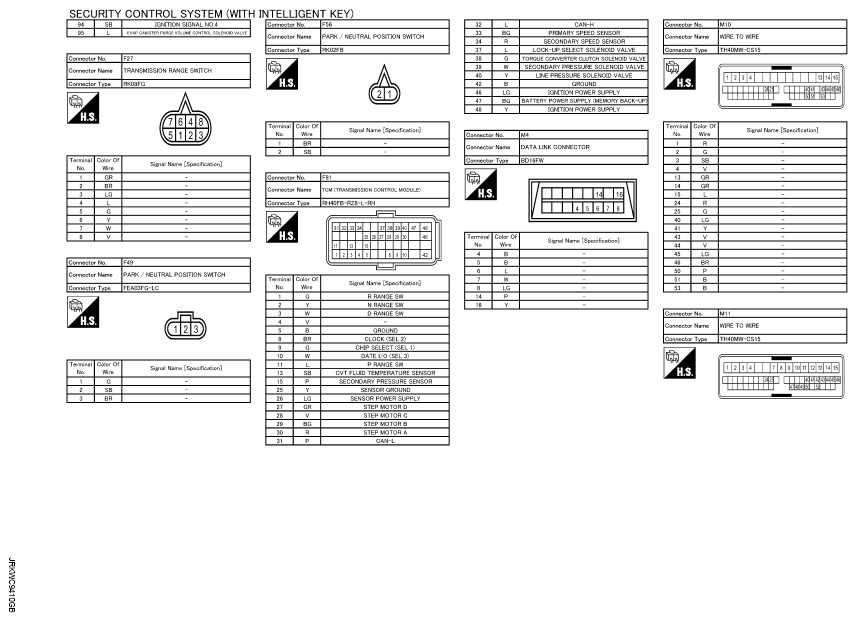

Fig 7: Security Control System Connector End Views (7 Of 10)
G09245127Courtesy of NISSAN NORTH AMERICA, INC.

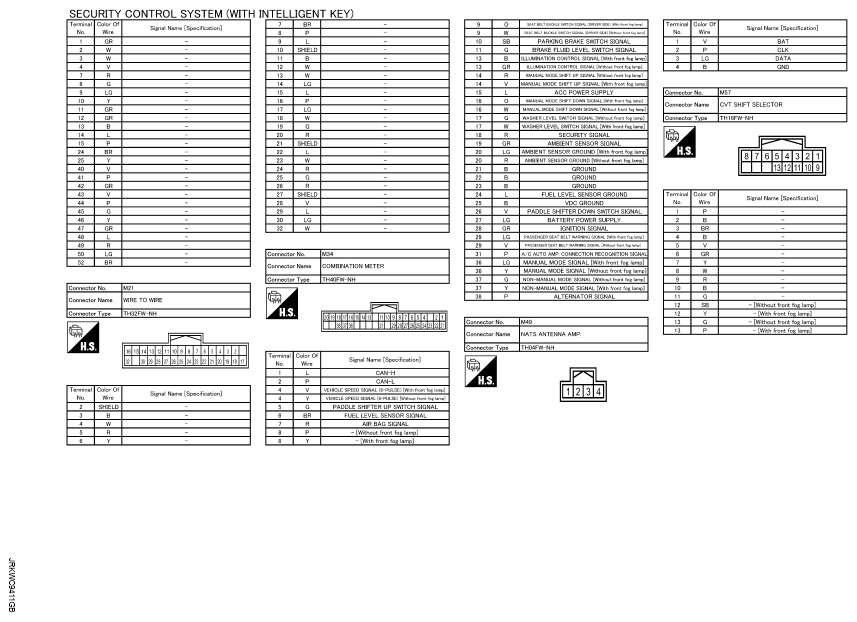

Fig 8: Security Control System Connector End Views (8 Of 10)
G09245128Courtesy of NISSAN NORTH AMERICA, INC.

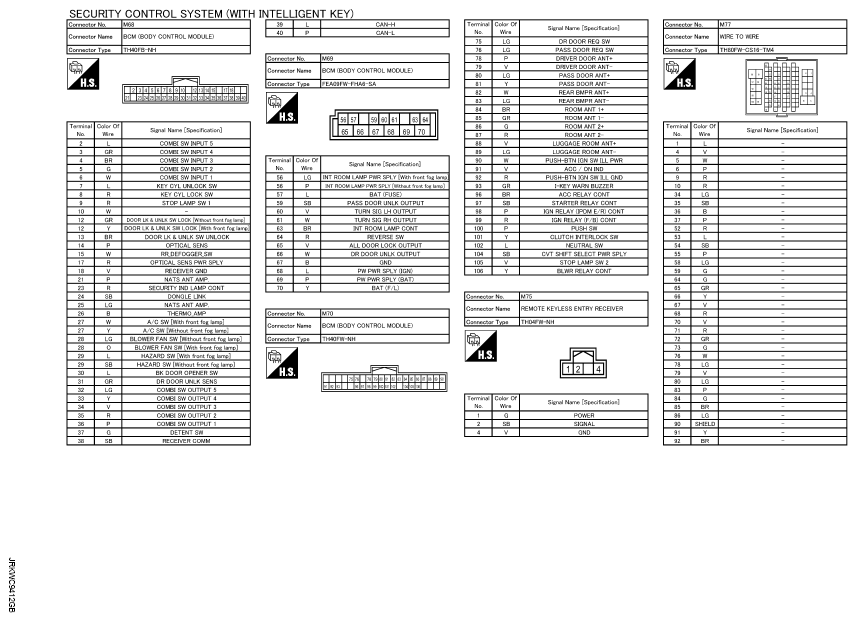

Fig 9: Security Control System Connector End Views (9 Of 10)
G09245129Courtesy of NISSAN NORTH AMERICA, INC.

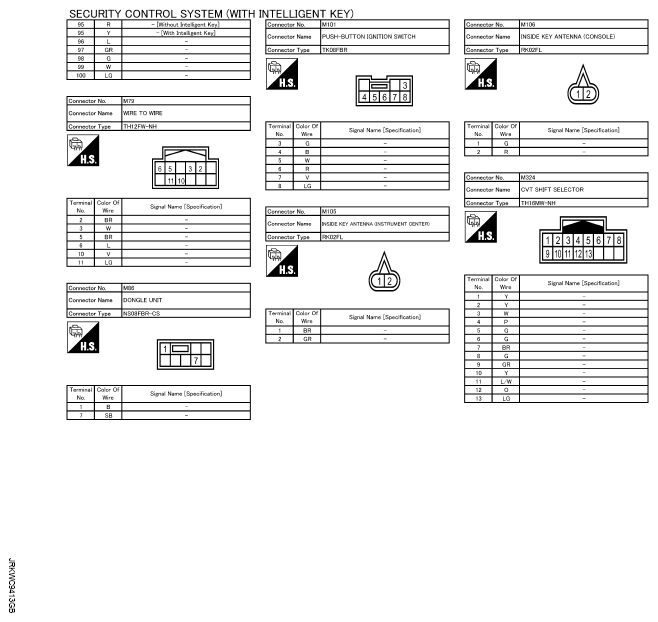

Fig 10: Security Control System Connector End Views (10 Of 10)
G09245130Courtesy of NISSAN NORTH AMERICA, INC.
