Body Compartment

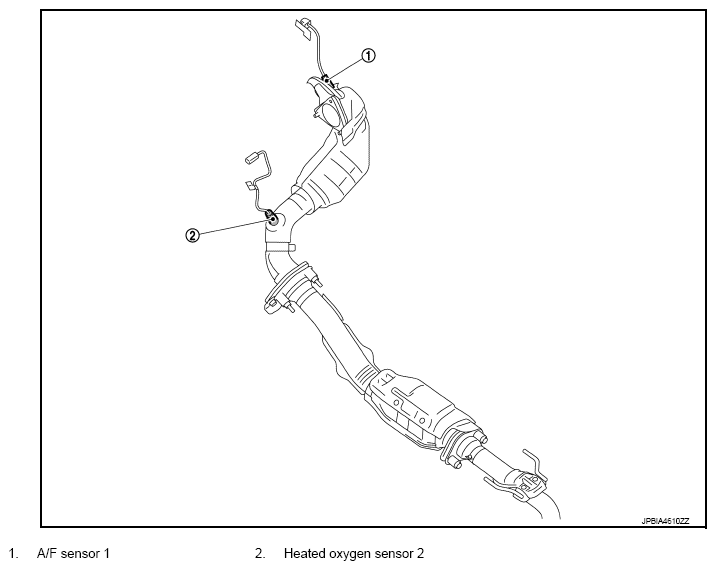

Fig 1: Identifying A/F Sensor And Heated Oxygen Sensor (AWD)
G09246105Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Identifying Body Compartment Components
G09246106Courtesy of NISSAN NORTH AMERICA, INC.
