Exploded View
WARNING: This page is about a different car, the 2013 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

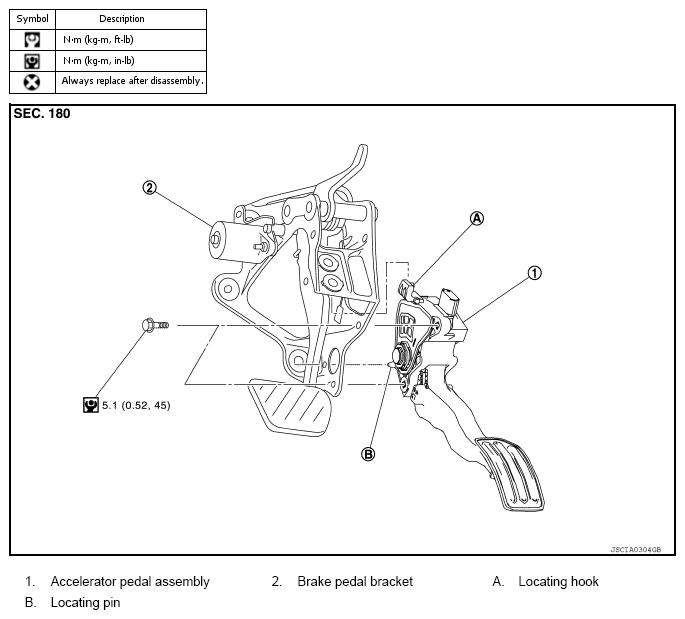

Fig 1: Exploded View Of Accelerator Control System With Torque Specification
