Combination Meter: Notes

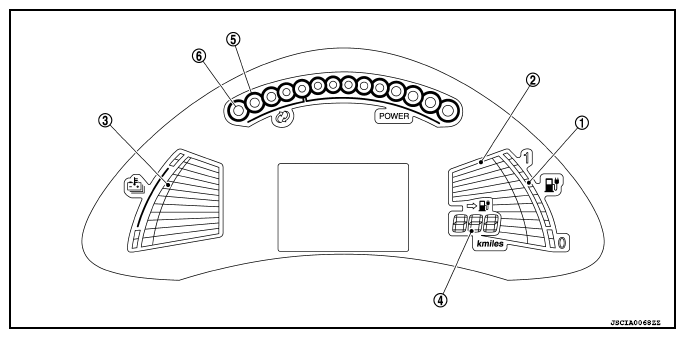

Fig 1: Identifying Combination Meter
G09454056Courtesy of NISSAN NORTH AMERICA, INC.

VCM controls the following items on the combination meter.
