System Diagram

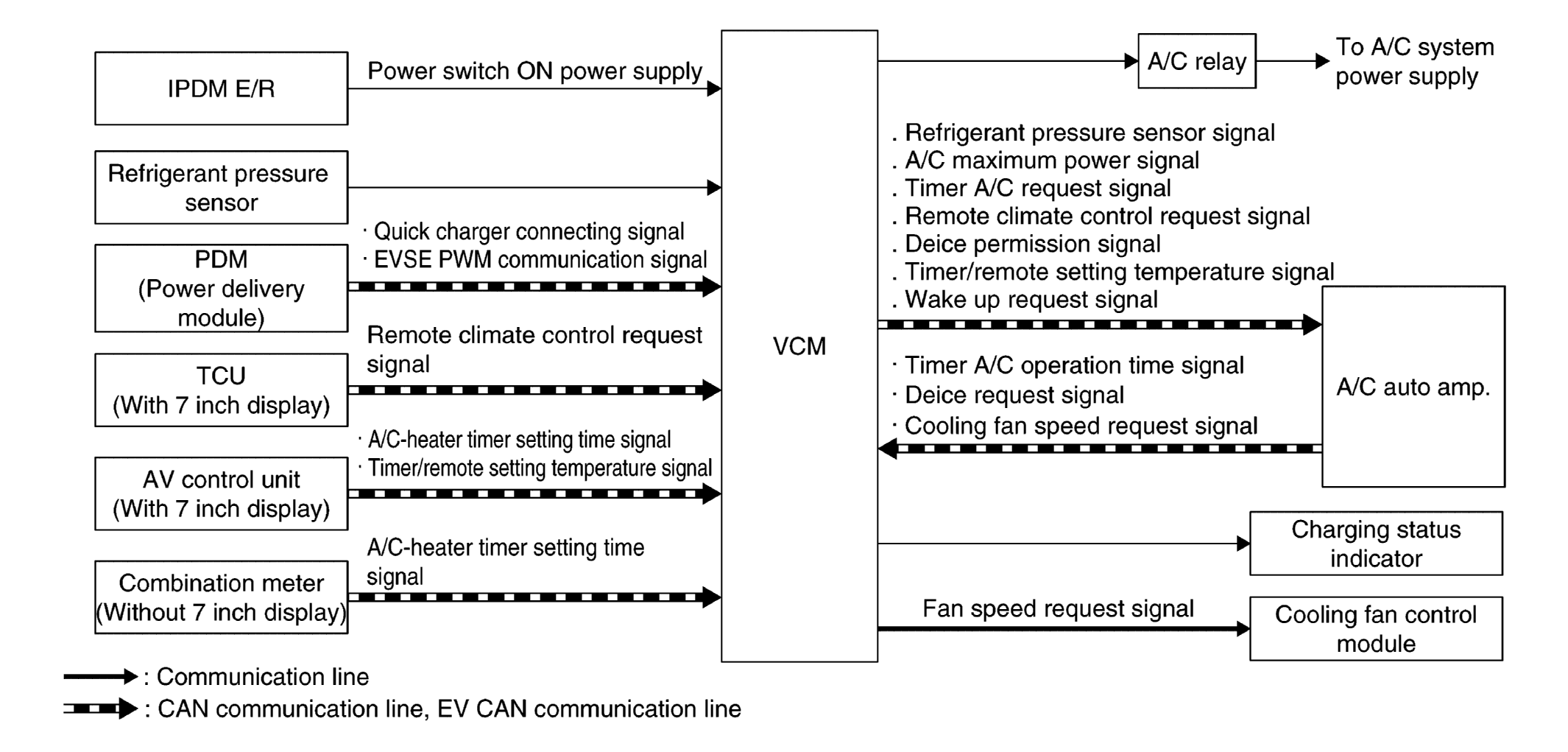

Fig 1: Air Conditioner Control - System Diagram
G08702969Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: TCU is included only in models with TELEMATICS system.
