Vacuum Hose Drawing

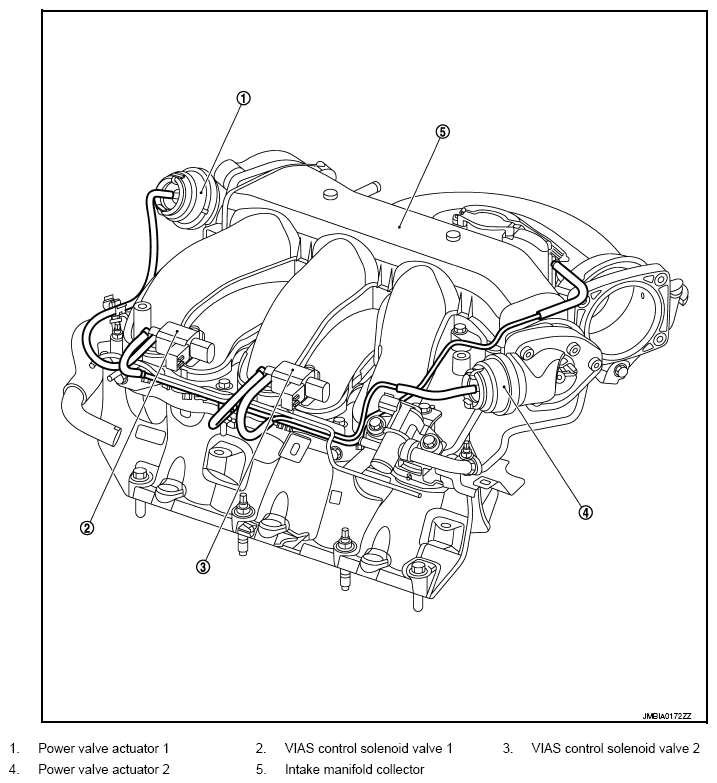

Fig 1: Identifying Vacuum Hose Drawing
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
