Connector End Views

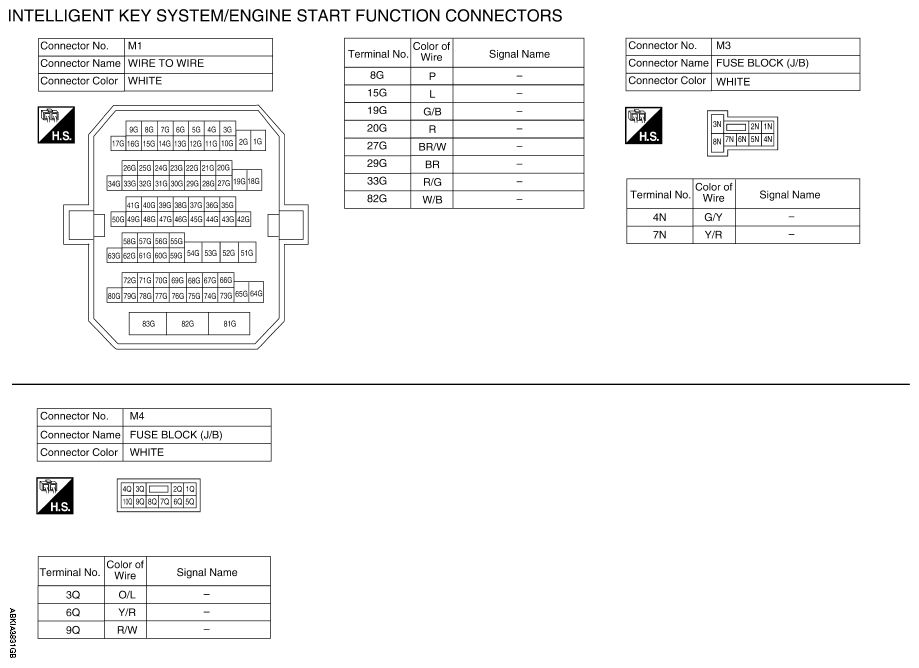

Fig 1: Intelligent Key System/Engine Start Function Connector End Views (1 Of 8)
G08924336Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Key System/Engine Start Function Connector End Views (2 Of 8)
G06658929Courtesy of NISSAN NORTH AMERICA, INC.

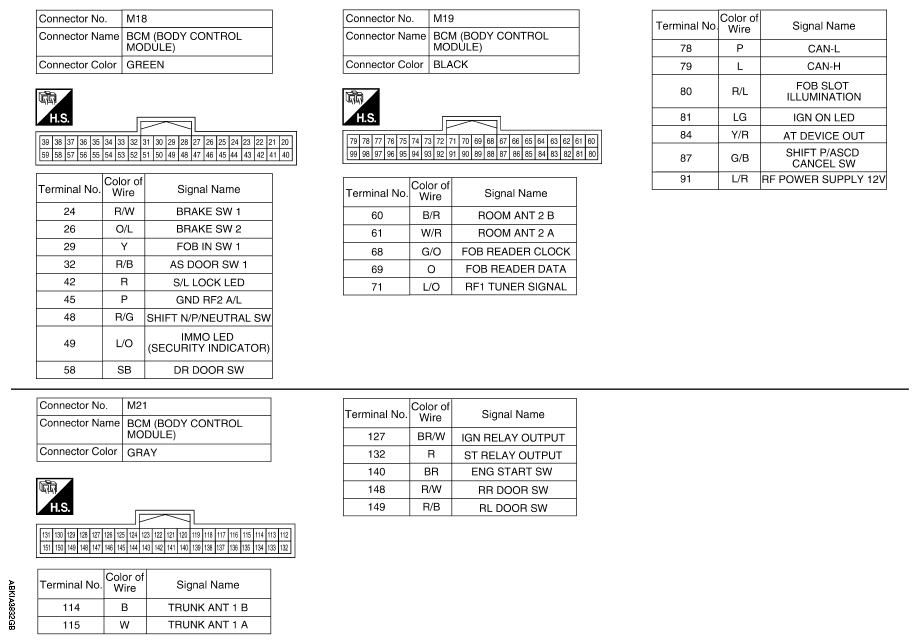

Fig 3: Intelligent Key System/Engine Start Function Connector End Views (3 Of 8)
G08924338Courtesy of NISSAN NORTH AMERICA, INC.

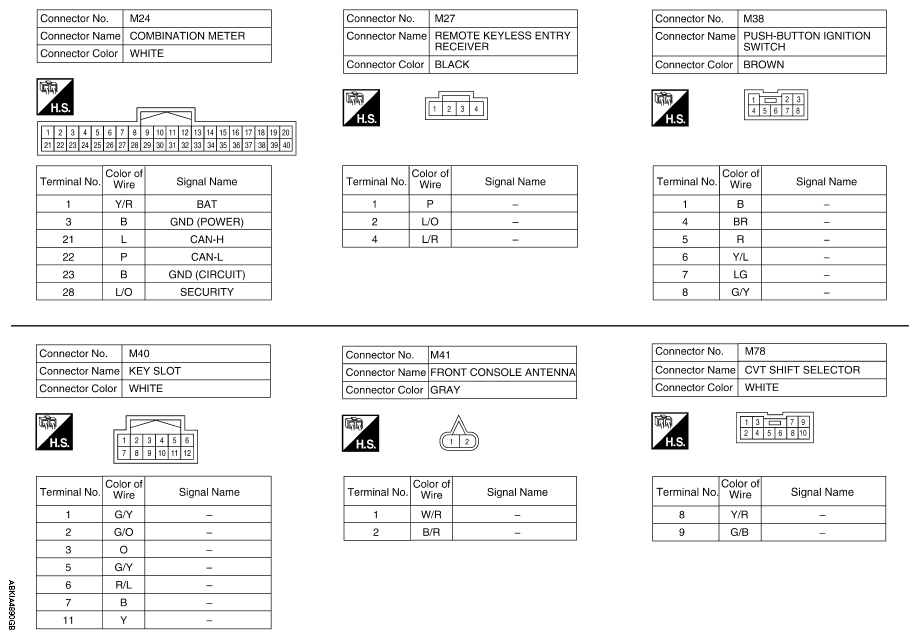

Fig 4: Intelligent Key System/Engine Start Function Connector End Views (4 Of 8)
G09557705Courtesy of NISSAN NORTH AMERICA, INC.

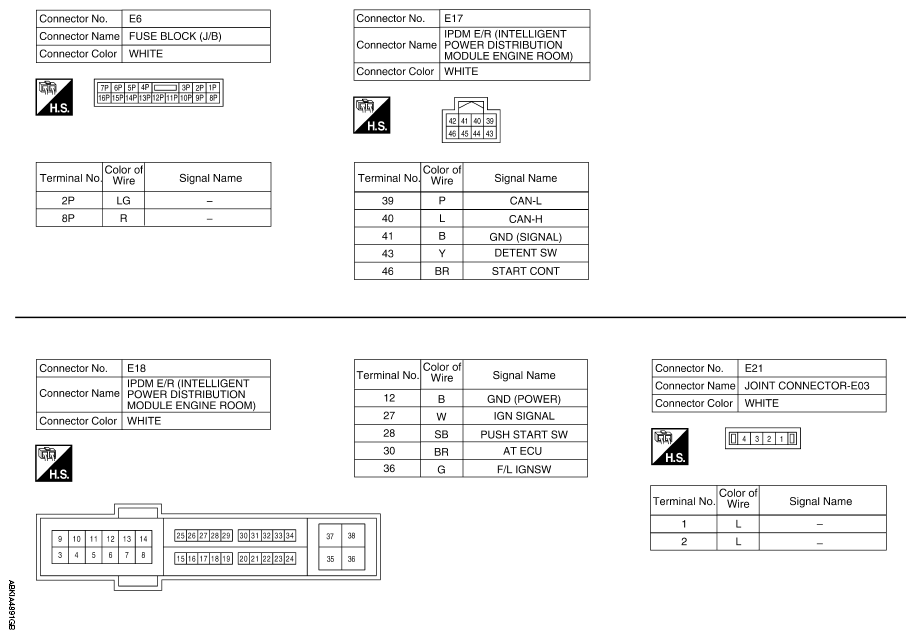

Fig 5: Intelligent Key System/Engine Start Function Connector End Views (5 Of 8)
G09557706Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Intelligent Key System/Engine Start Function Connector End Views (6 Of 8)
G08147467Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Intelligent Key System/Engine Start Function Connector End Views (7 Of 8)
G08147468Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: Intelligent Key System/Engine Start Function Connector End Views (8 Of 8)
G08147469Courtesy of NISSAN NORTH AMERICA, INC.
