IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to loop wires as shown below.

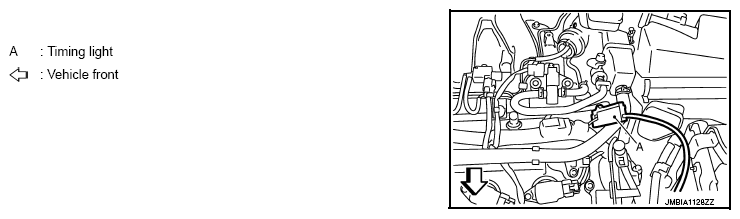

  Fig 1: Identifying Timing Light
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  : INSPECTION END

  Fig 2: Aligning Pointer With TDC Mark On Crankshaft Pulley
  Courtesy of NISSAN NORTH AMERICA, INC.
