System - Engine Mechanical & Other

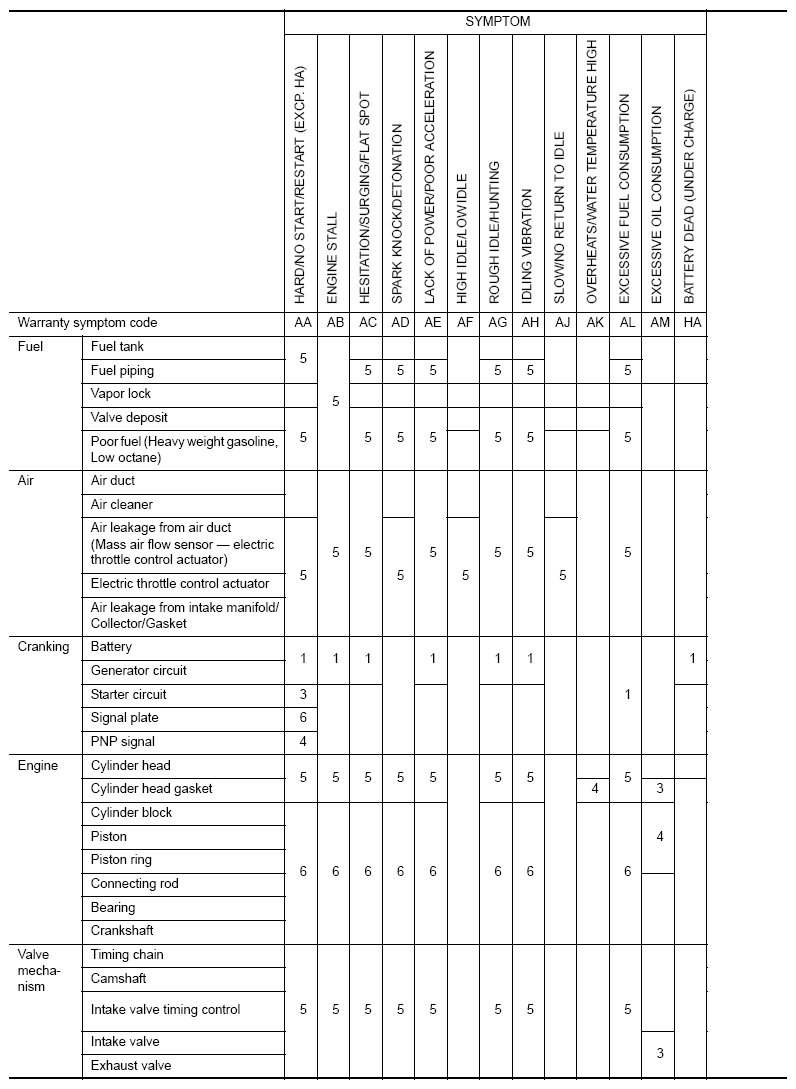

Fig 1: Engine Mechanical And Other System Symptom Chart (1 Of 2)
G09555677Courtesy of NISSAN NORTH AMERICA, INC.

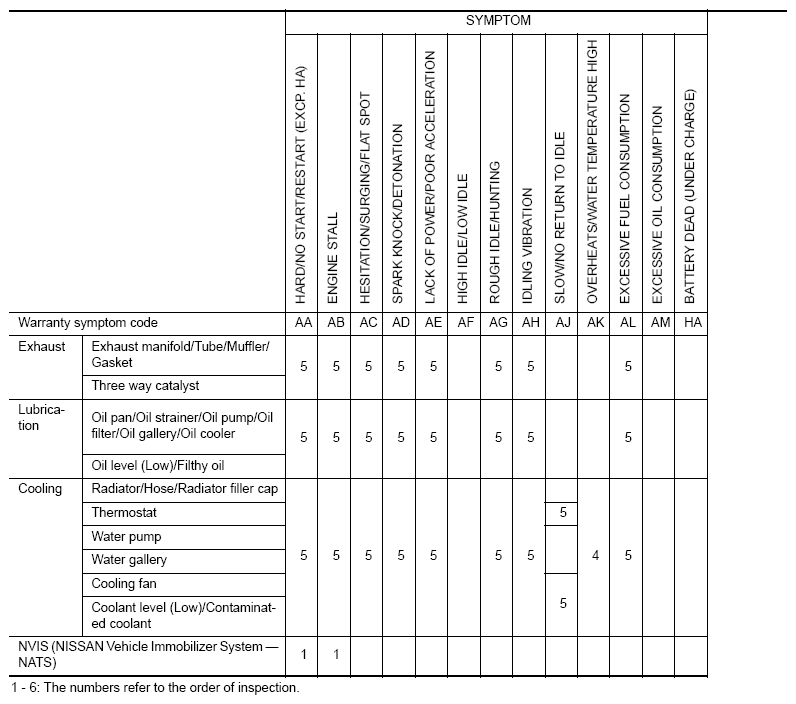

Fig 2: Engine Mechanical And Other System Symptom Chart (2 Of 2)
G09555678Courtesy of NISSAN NORTH AMERICA, INC.
