Power Window System Connector End Views

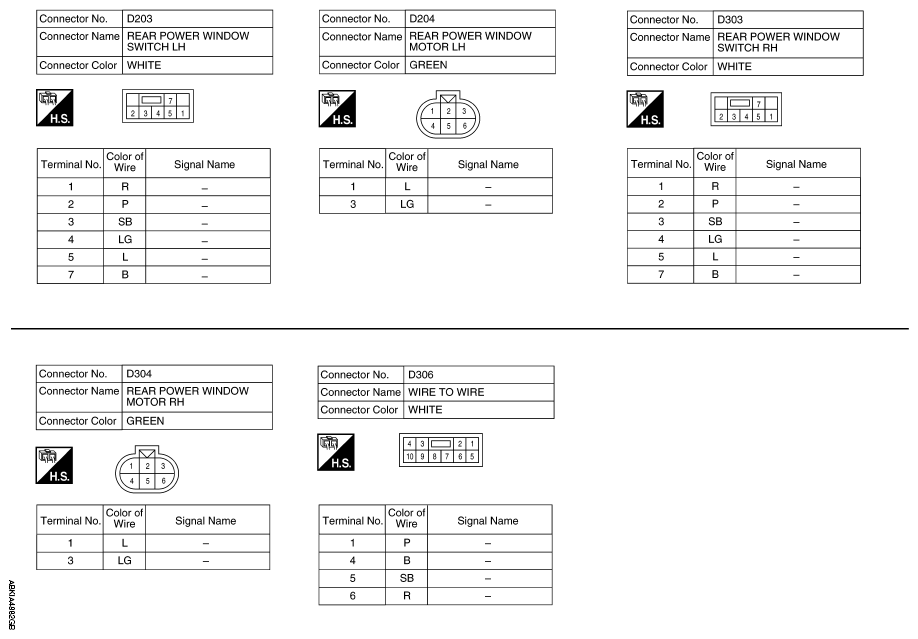

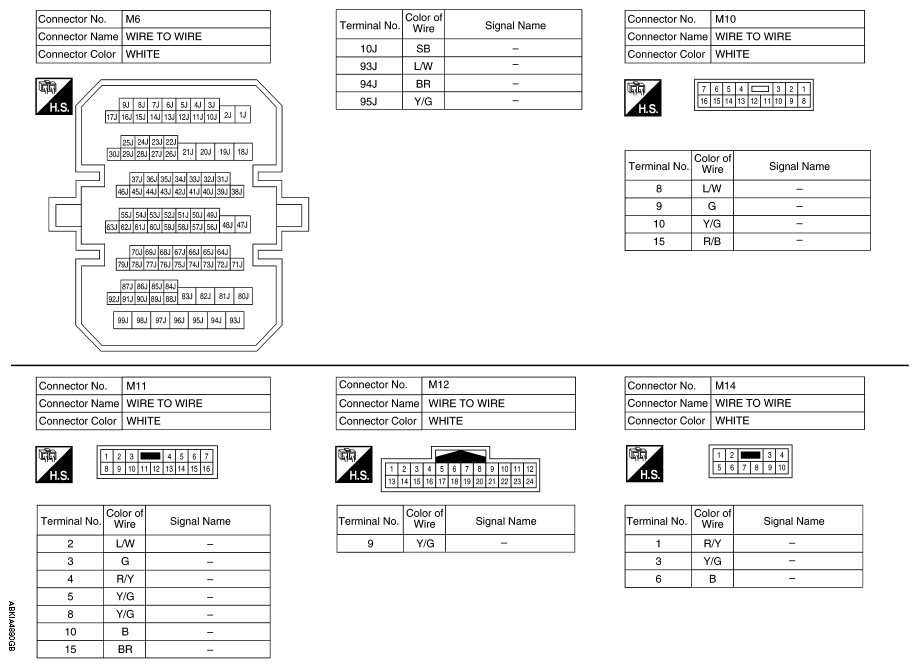

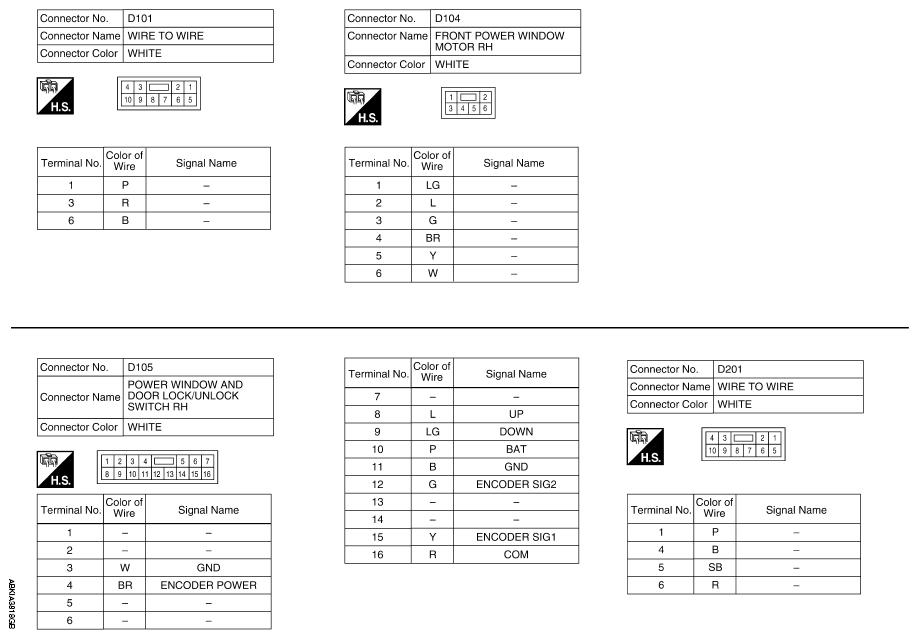

Fig 1: Power Window System Connector End View (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Power Window System Connector End View (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Power Window System Connector End View (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Power Window System Connector End View (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Power Window System Connector End View (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Power Window System Connector End View (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Power Window System Connector End View (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
