Component Parts Location

Fig 1: ECM Component Parts Location (1 Of 7)

G09555196

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: ECM Component Parts Location (2 Of 7)

G09555197

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: ECM Component Parts Location (3 Of 7)

G09555198

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: ECM Component Parts Location (4 Of 7)

G09555199

Courtesy of NISSAN NORTH AMERICA, INC.

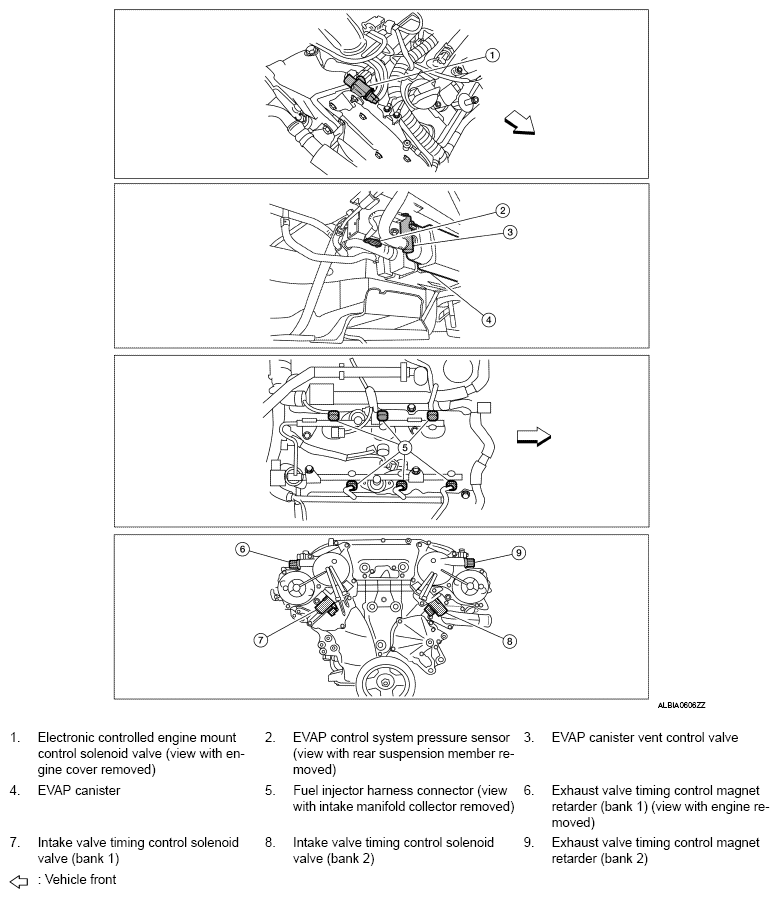

Fig 5: ECM Component Parts Location (5 Of 7)

G09555200

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: ECM Component Parts Location (6 Of 7)

G09555201

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: ECM Component Parts Location (7 Of 7)

G09555202

Courtesy of NISSAN NORTH AMERICA, INC.
