Component Function Check

With CONSULT

1. Start engine and warm it up to the normal operating temperature.
2. Perform "VIAS S/V-1" in "ACTIVE TEST" mode with CONSULT.
3. Turn VIAS control solenoid valve 1 "ON" and "OFF", and check that power valve actuator 1 rod moves.

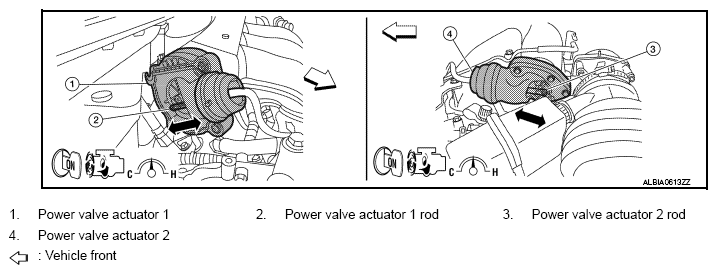

   Fig 1: Checking Variable Induction Air System Overall Function-I (With Consult)

   Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

1. Start engine and warm it up to the normal operating temperature.
2. When revving engine up to 5, 000 rpm quickly.
3. Check that power valve actuator 1 rod moves under the following conditions.
   Fig 2: Checking Variable Induction Air System Overall Function-I (Without Consult)

   Courtesy of NISSAN NORTH AMERICA, INC.

   Condition	Operation
   Idle	Existed
   When revving engine up to 5, 000 rpm quickly	Not existed

   Is the inspection result normal?

   YES: GO TO 2.

   NO: "DIAGNOSIS PROCEDURE ".

With CONSULT

1. Perform "VIAS S/V-2" in "ACTIVE TEST" mode with CONSULT.
2. Turn VIAS control solenoid valve 2 "ON" and "OFF", and check that power valve actuator 2 rod moves.
   Fig 3: Checking Variable Induction Air System Overall Function-II (With Consult)

   Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

1. When revving engine up to 5, 000 rpm quickly.
2. Check that power valve actuator 2 rod moves under the following conditions.
   Fig 4: Checking Variable Induction Air System Overall Function-II (Without Consult)

   Courtesy of NISSAN NORTH AMERICA, INC.

   Condition	Operation
   Idle	Existed
   When revving engine up to 5, 000 rpm quickly	Not existed

   Is the inspection result normal?

   YES: INSPECTION END

   NO: "DIAGNOSIS PROCEDURE ".
