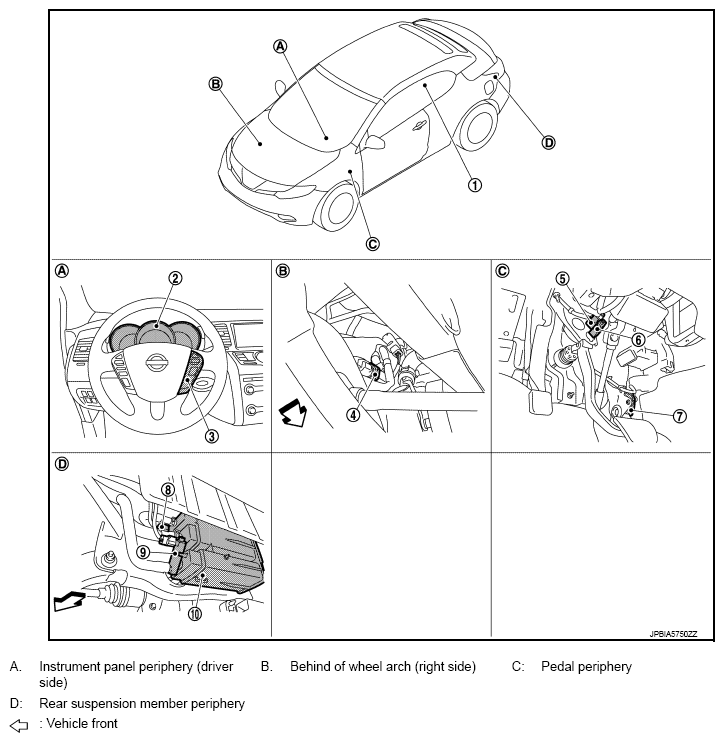

ENGINE CONTROL SYSTEM: Component Parts Location: Body
| No. | Component | Function | |
|---|---|---|---|
| 1. | Fuel level sensor unit and fuel pump | "FUEL LEVEL SENSOR UNIT AND FUEL PUMP " Refer to , "METER SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location. |
|
| 2. | Combination meter | Malfunction indicator lamp (MIL) | "MALFUNCTION INDICATOR LAMP (MIL) " |
| Information display | The operation mode of the ASCD is indicated on the information display in the combination meter. ECM transmits the status signal to the combination meter via CAN communication according to ASCD operation. |
||
| 3. | ASCD steering switch | "ASCD STEERING SWITCH " | |
| 4. | Power steering pressure sensor | "POWER STEERING PRESSURE SENSOR " | |
| 5. | Stop lamp switch | "STOP LAMP SWITCH & ASCD BRAKE SWITCH " | |
| 6. | ASCD brake switch | ||
| 7. | Accelerator pedal position sensor | "ACCELERATOR PEDAL POSITION SENSOR " | |
| 8. | EVAP control system pressure sensor | "EVAP CONTROL SYSTEM PRESSURE SENSOR " | |
| 9. | EVAP canister vent control valve | "EVAP CANISTER VENT CONTROL VALVE " | |
| 10. | EVAP canister | "EVAP CANISTER " | |
