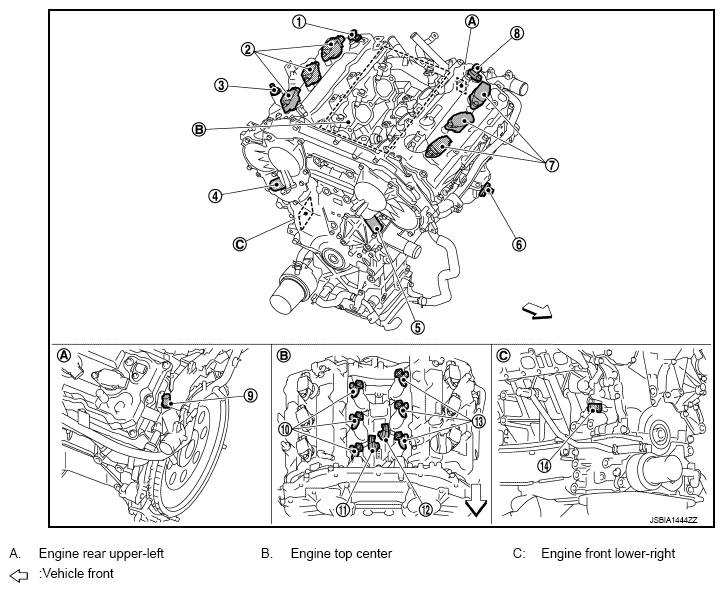

| 1. |
Camshaft position sensor (PHASE) (bank 1) |
"CAMSHAFT POSITION SENSOR (PHASE) " |
| 2. |
Ignition coil (with power transistor) (bank 1) |
"IGNITION COIL (WITH POWER TRANSISTOR) " |
| 3. |
PCV valve |
"POSITIVE CRANKCASE VENTILATION (PCV) " |
| 4. |
Intake valve timing control solenoid valve (bank 1) |
"INTAKE VALVE TIMING CONTROL SOLENOID VALVE " |
| 5. |
Intake valve timing control solenoid valve (bank 2) |
"INTAKE VALVE TIMING CONTROL SOLENOID VALVE " |
| 6. |
Crankshaft position sensor (POS) |
"CRANKSHAFT POSITION SENSOR (POS) " |
| 7. |
Ignition coil (with power transistor) (bank 2) |
"IGNITION COIL (WITH POWER TRANSISTOR) " |
| 8. |
Camshaft position sensor (PHASE) (bank 2) |
"CAMSHAFT POSITION SENSOR (PHASE) " |
| 9. |
Engine coolant temperature sensor |
"ENGINE COOLANT TEMPERATURE SENSOR " |
| 10. |
Fuel injector (bank 1) |
"FUEL INJECTOR " |
| 11. |
Knock sensor (bank 1) |
"KNOCK SENSOR " |
| 12. |
Knock sensor (bank 2) |
"KNOCK SENSOR " |
| 13. |
Fuel injector (bank 2) |
"FUEL INJECTOR " |
| 14. |
Engine oil temperature sensor |
"ENGINE OIL TEMPERATURE SENSOR " |
