Connector End Views

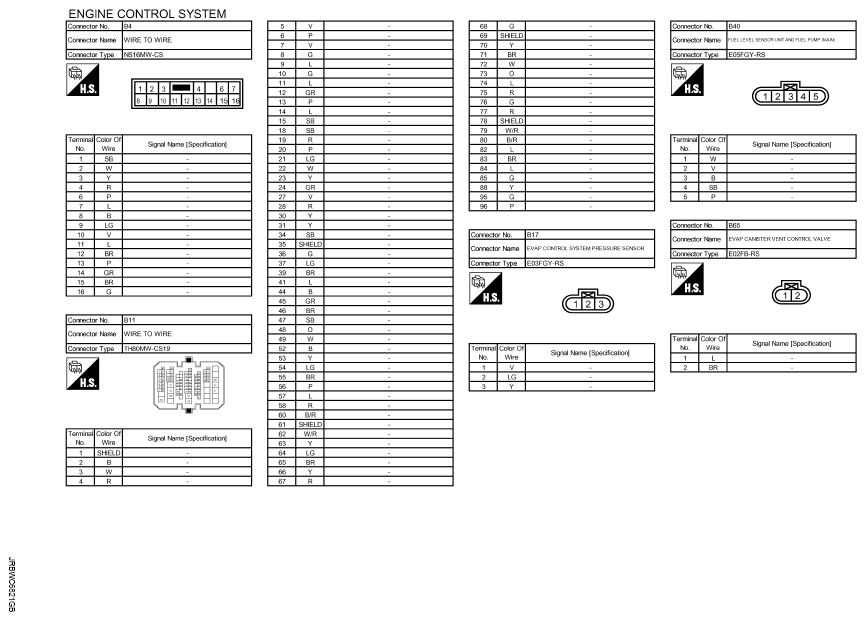

Fig 1: Engine Control System Connector End Views (1 Of 12)
G09235474Courtesy of NISSAN NORTH AMERICA, INC.

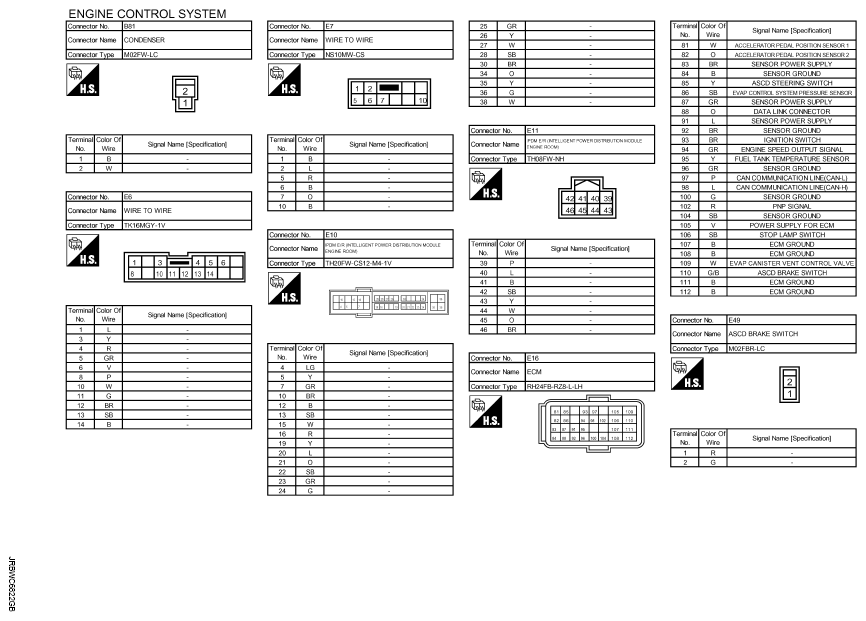

Fig 2: Engine Control System Connector End Views (2 Of 12)
G09235475Courtesy of NISSAN NORTH AMERICA, INC.

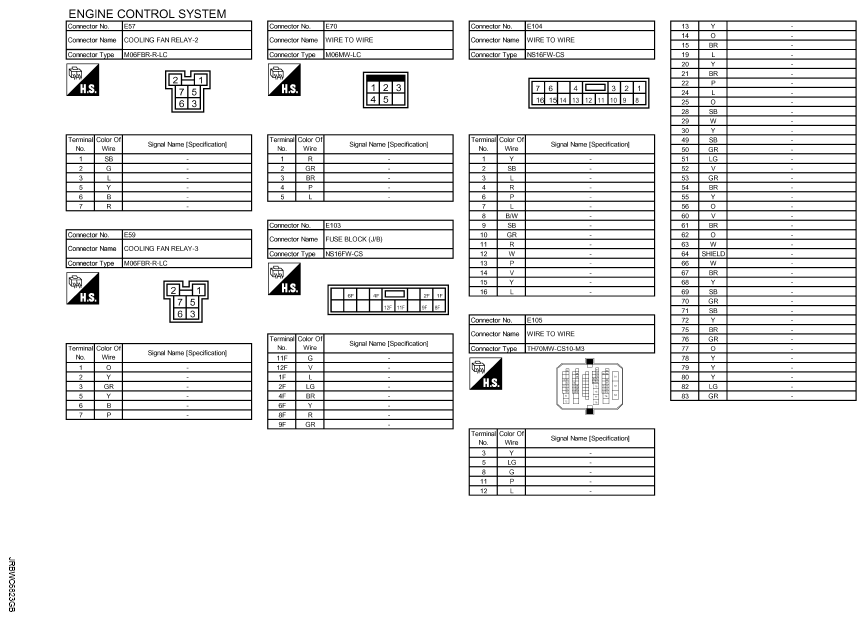

Fig 3: Engine Control System Connector End Views (3 Of 12)
G09235476Courtesy of NISSAN NORTH AMERICA, INC.

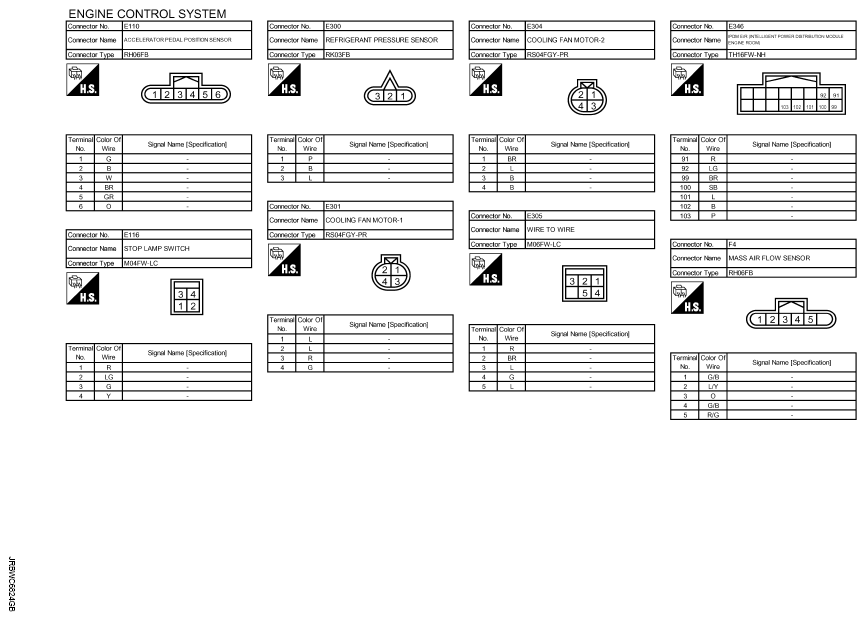

Fig 4: Engine Control System Connector End Views (4 Of 12)
G09235477Courtesy of NISSAN NORTH AMERICA, INC.

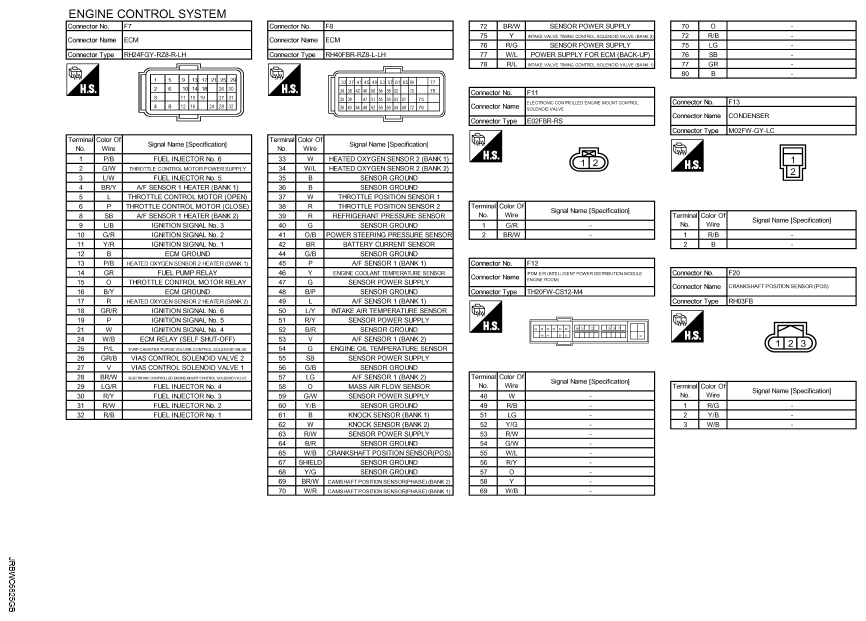

Fig 5: Engine Control System Connector End Views (5 Of 12)
G09235478Courtesy of NISSAN NORTH AMERICA, INC.

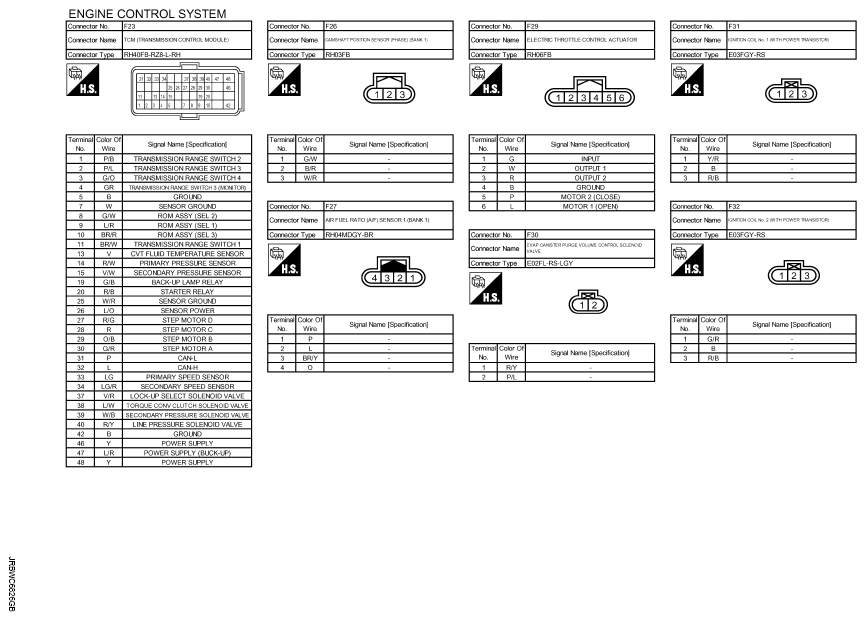

Fig 6: Engine Control System Connector End Views (6 Of 12)
G09235479Courtesy of NISSAN NORTH AMERICA, INC.

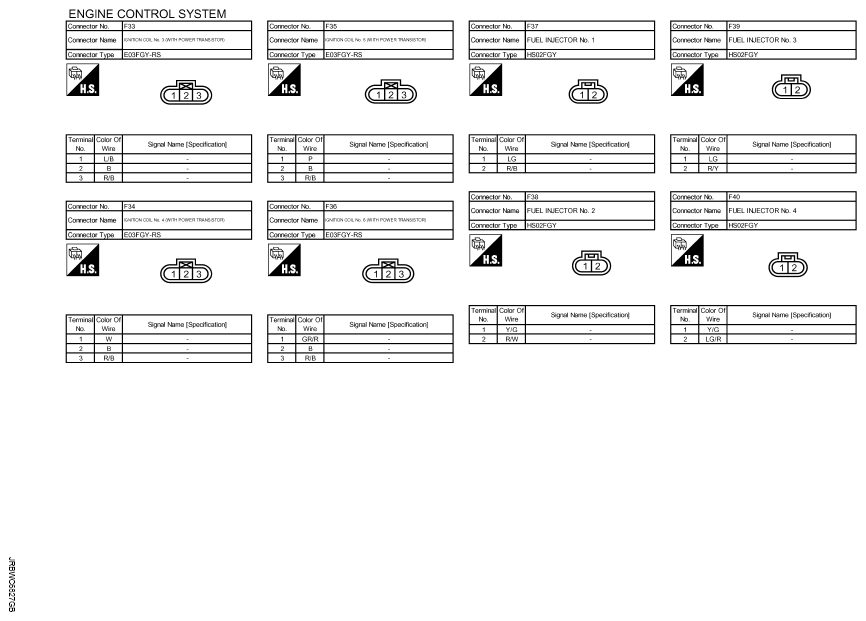

Fig 7: Engine Control System Connector End Views (7 Of 12)
G09235480Courtesy of NISSAN NORTH AMERICA, INC.

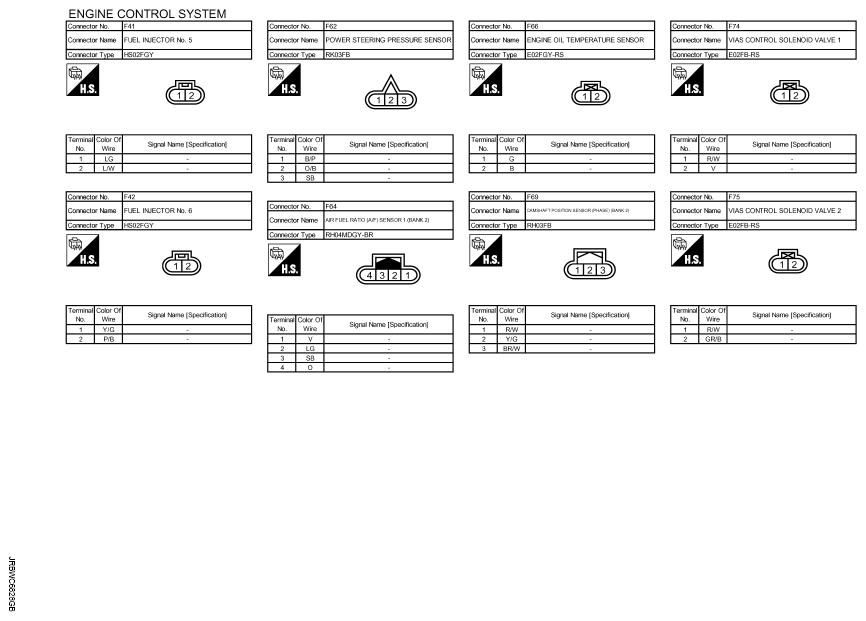

Fig 8: Engine Control System Connector End Views (8 Of 12)
G09235481Courtesy of NISSAN NORTH AMERICA, INC.

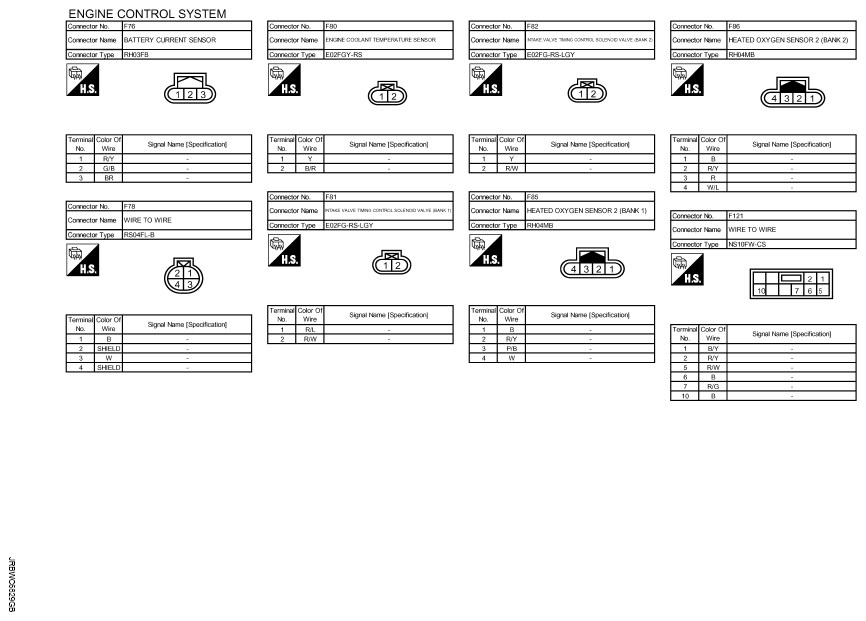

Fig 9: Engine Control System Connector End Views (9 Of 12)
G09235482Courtesy of NISSAN NORTH AMERICA, INC.

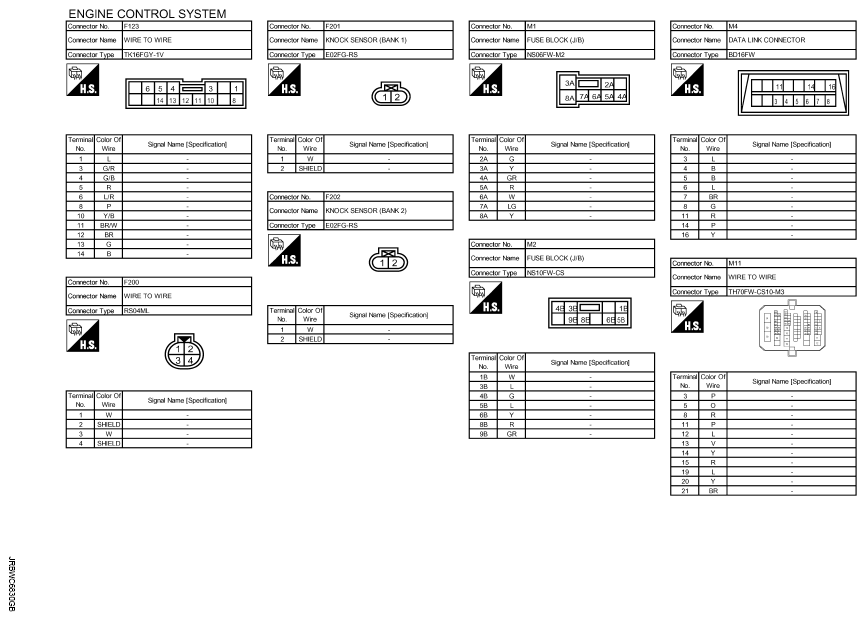

Fig 10: Engine Control System Connector End Views (10 Of 12)
G09235483Courtesy of NISSAN NORTH AMERICA, INC.

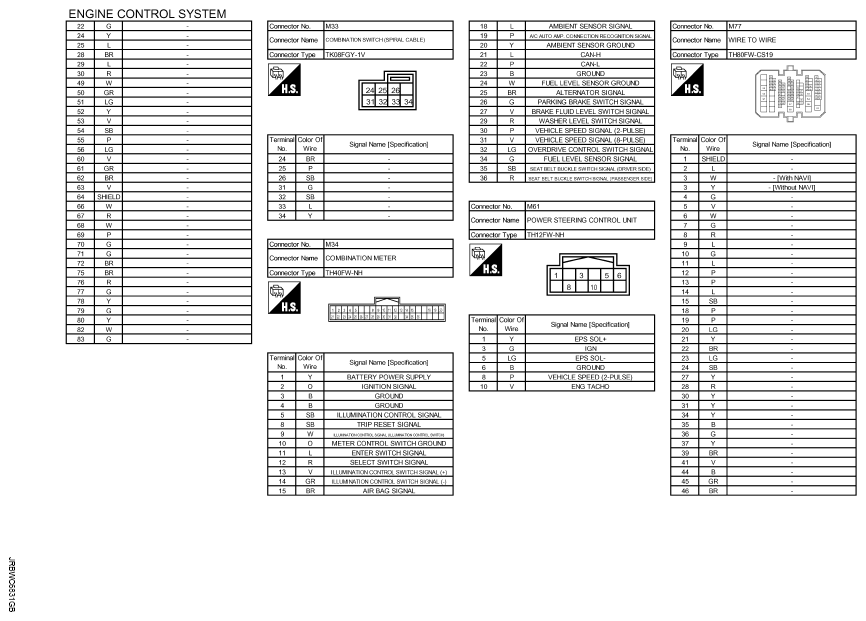

Fig 11: Engine Control System Connector End Views (11 Of 12)
G09235484Courtesy of NISSAN NORTH AMERICA, INC.

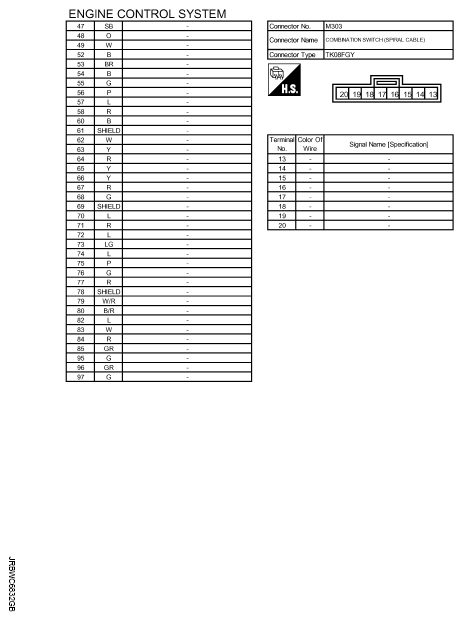

Fig 12: Engine Control System Connector End Views (12 Of 12)
G09235485Courtesy of NISSAN NORTH AMERICA, INC.
