Component Parts Location

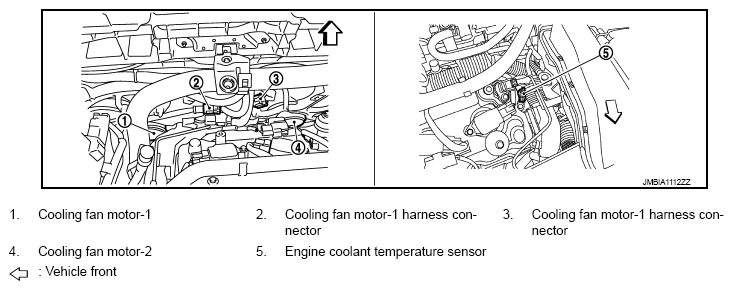

Fig 1: Cooling Fan Control Components Location (1 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

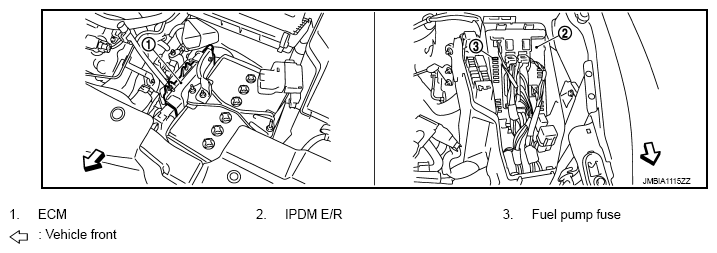

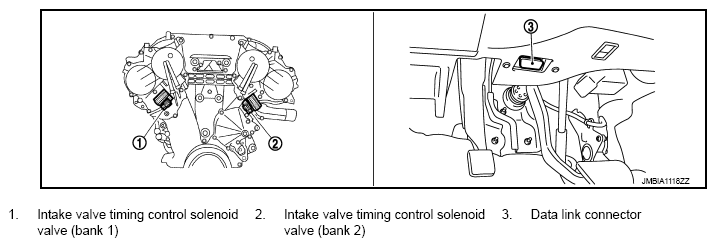

Fig 2: Cooling Fan Control Components Location (2 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

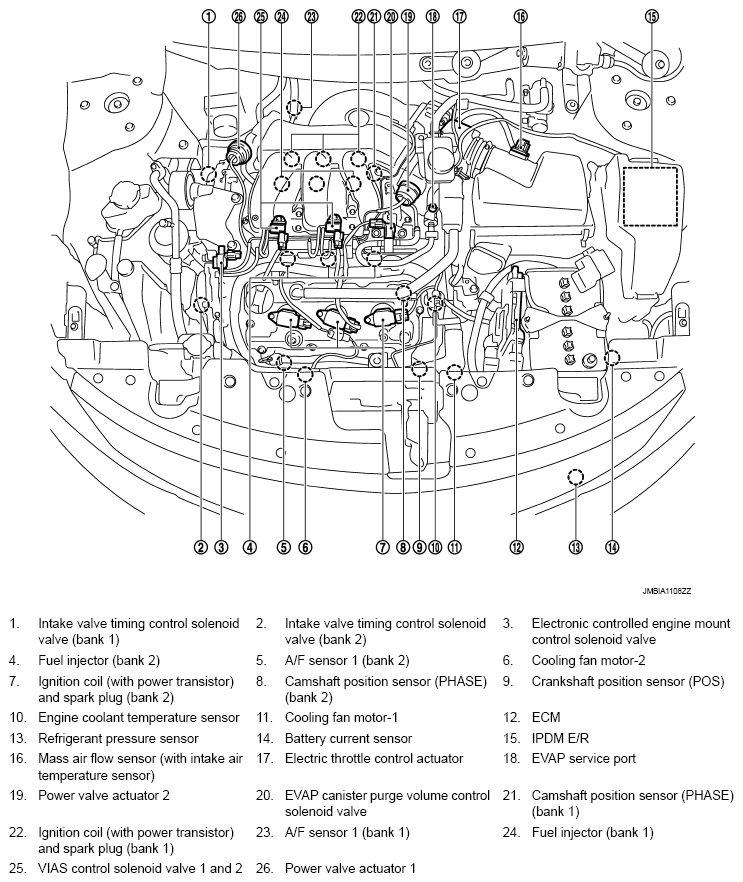

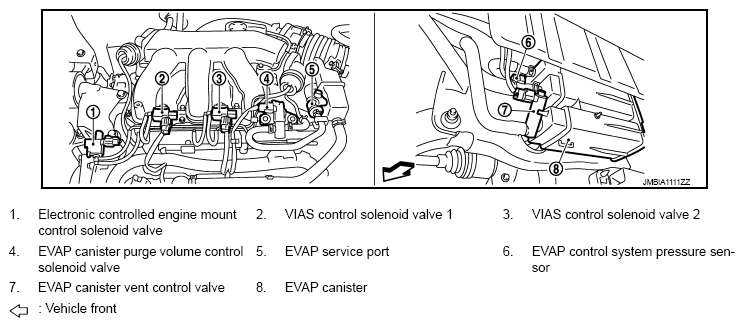

Fig 3: Cooling Fan Control Components Location (3 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

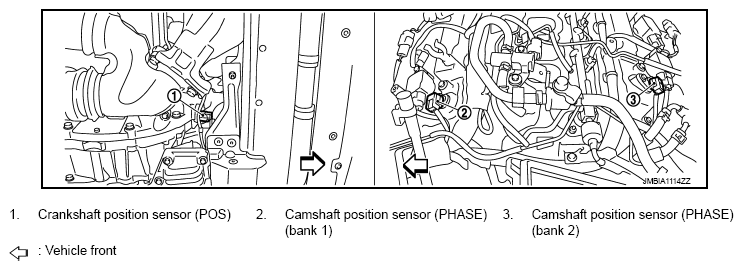

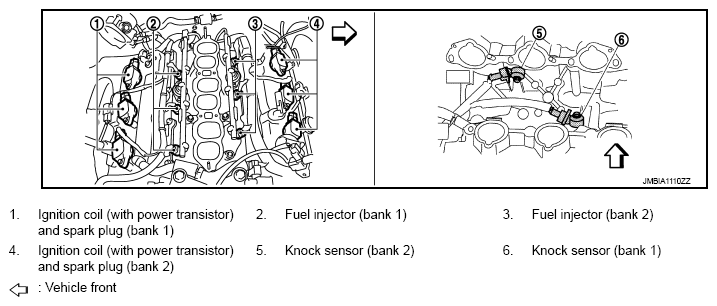

Fig 4: Cooling Fan Control Components Location (4 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

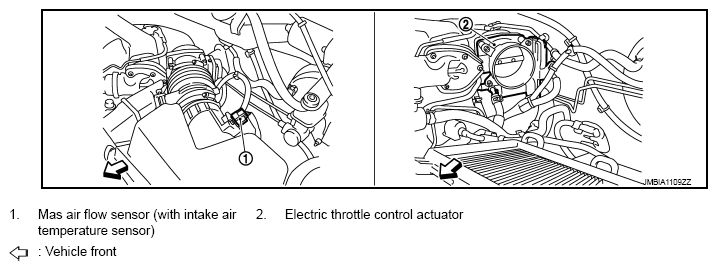

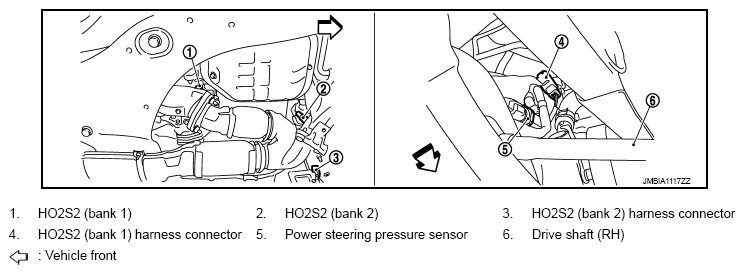

Fig 5: Cooling Fan Control Components Location (5 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

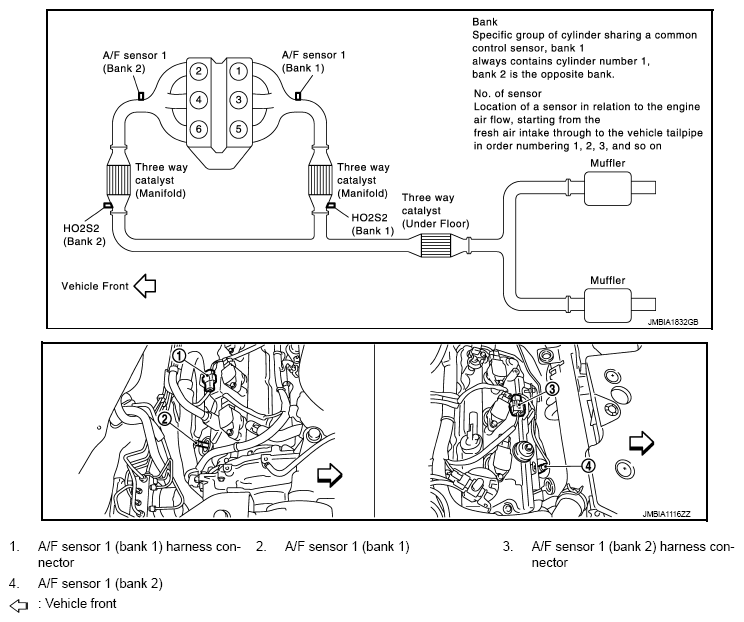

Fig 6: Cooling Fan Control Components Location (6 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Cooling Fan Control Components Location (7 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

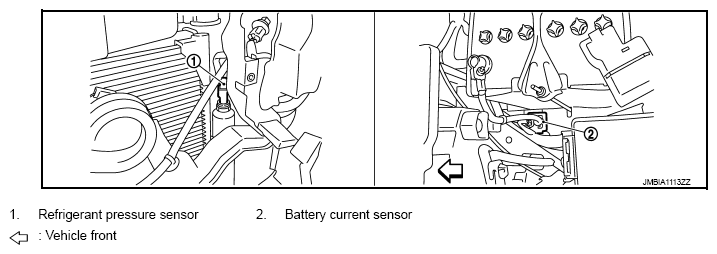

Fig 8: Cooling Fan Control Components Location (8 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Cooling Fan Control Components Location (9 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Cooling Fan Control Components Location (10 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Cooling Fan Control Components Location (11 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Cooling Fan Control Components Location (12 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Cooling Fan Control Components Location (13 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Cooling Fan Control Components Location (14 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.
