Component Parts Location

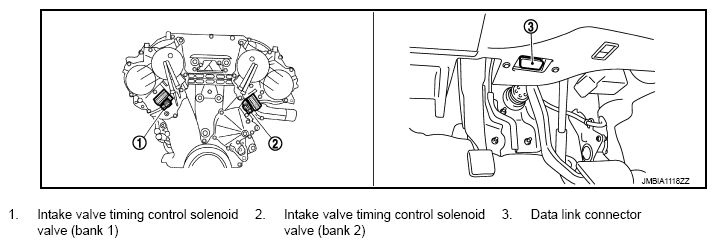

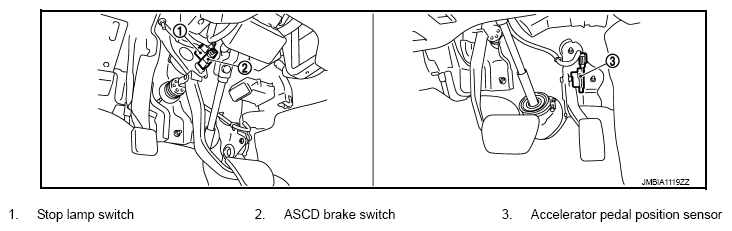

Fig 1: Air Conditioning Cut Control System Components Location (1 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

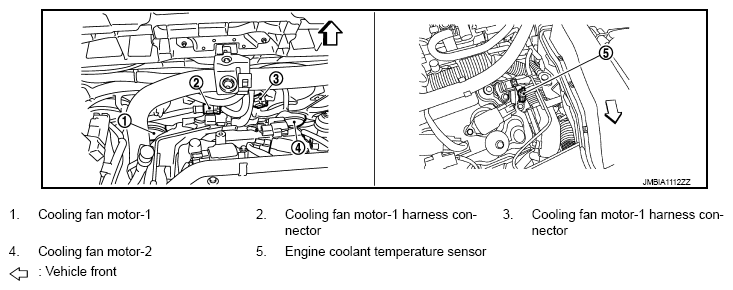

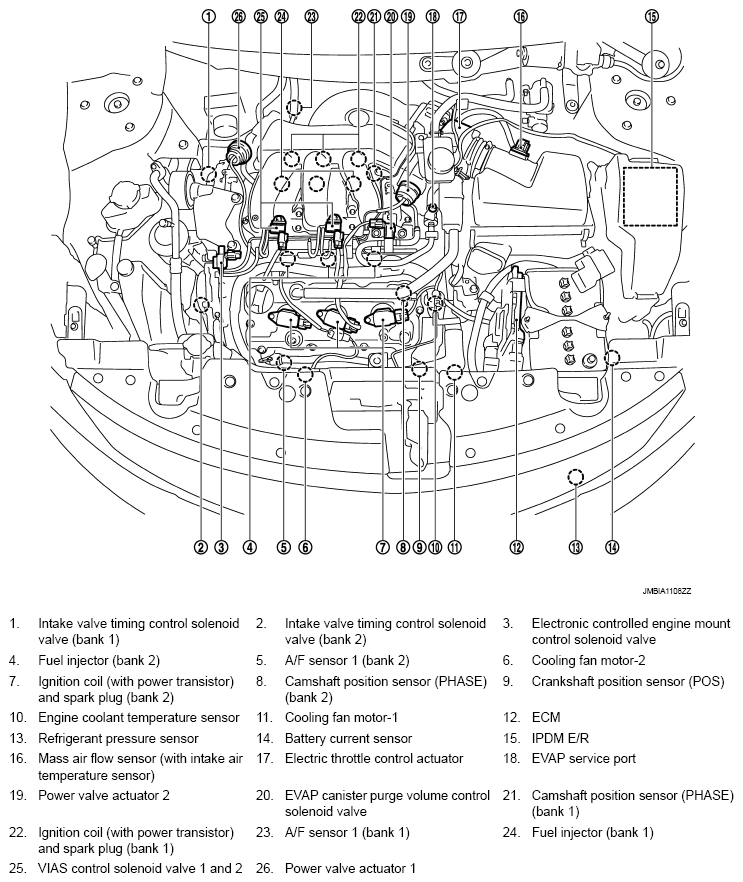

Fig 2: Air Conditioning Cut Control System Components Location (2 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

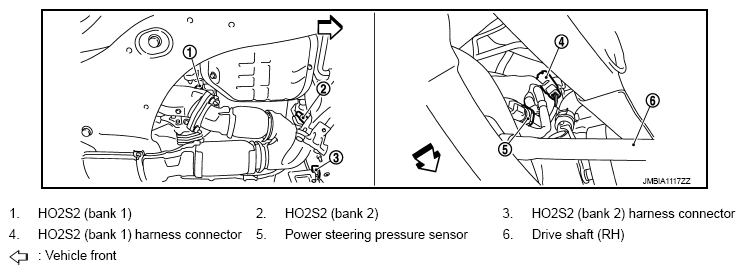

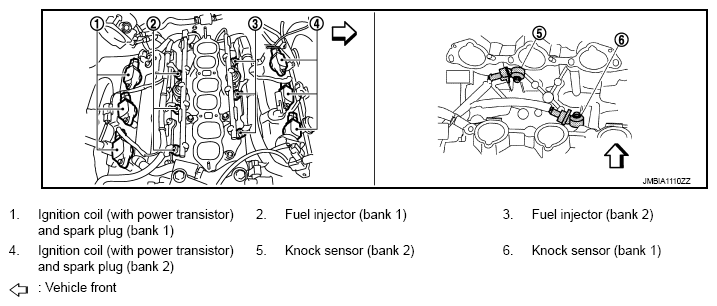

Fig 3: Air Conditioning Cut Control System Components Location (3 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

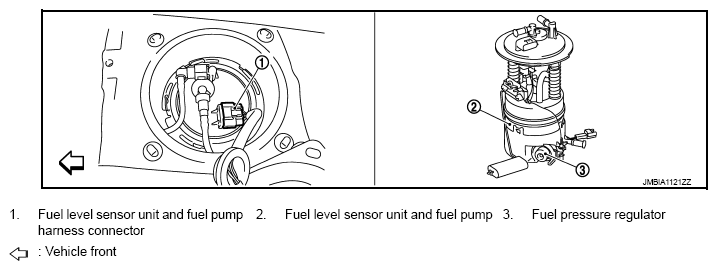

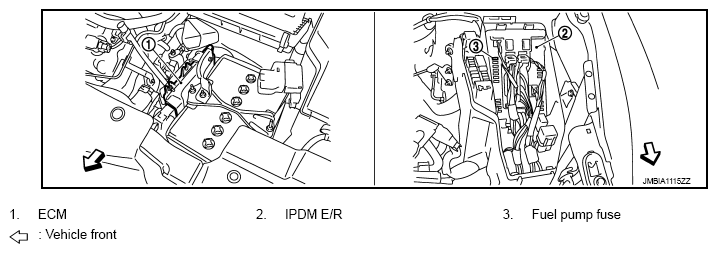

Fig 4: Air Conditioning Cut Control System Components Location (4 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

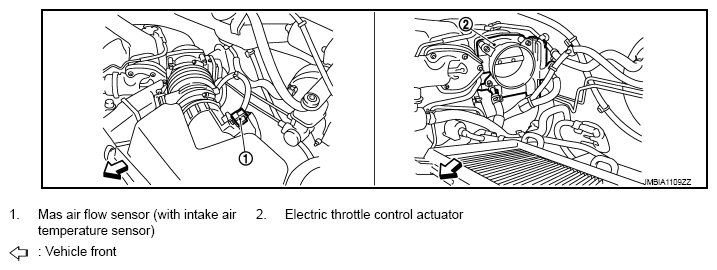

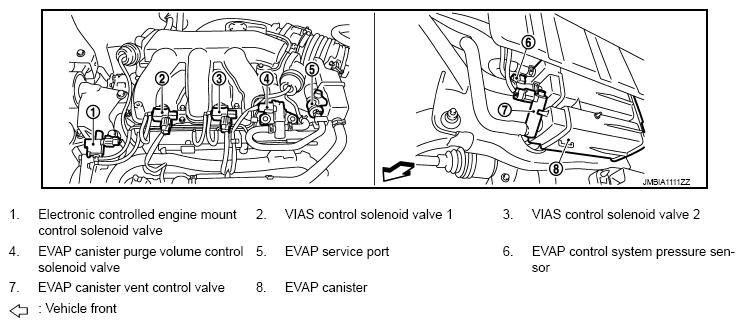

Fig 5: Air Conditioning Cut Control System Components Location (5 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

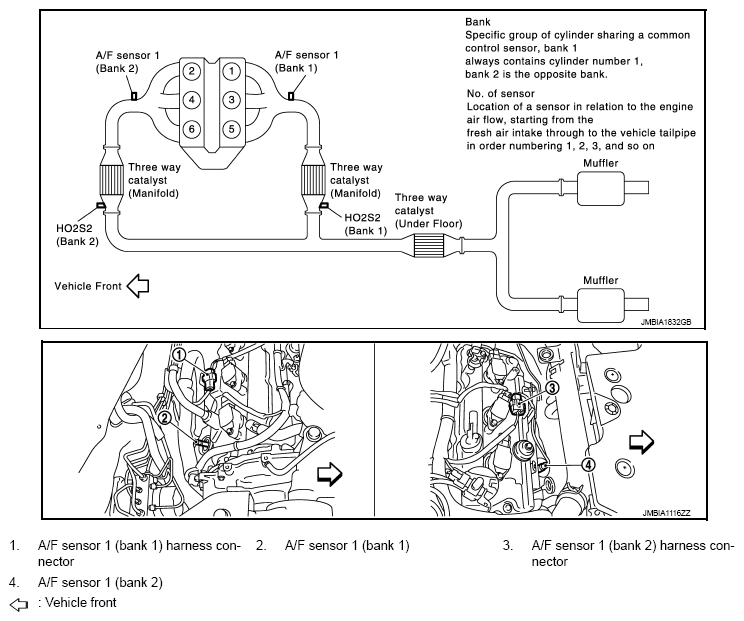

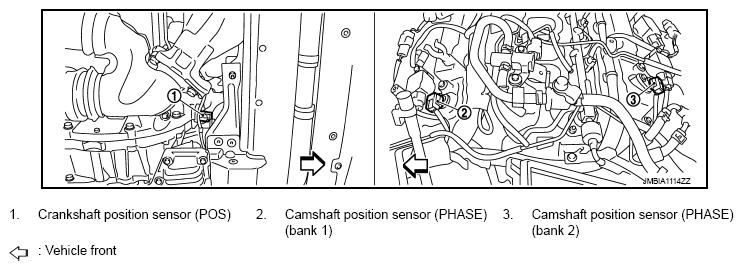

Fig 6: Air Conditioning Cut Control System Components Location (6 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

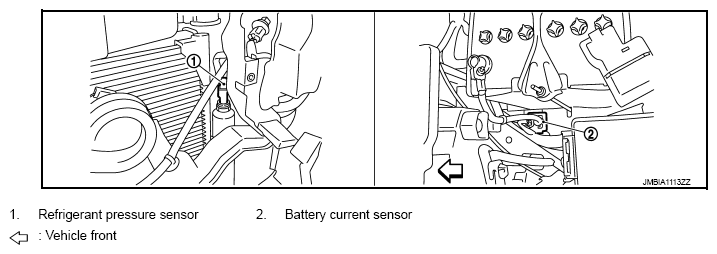

Fig 7: Air Conditioning Cut Control System Components Location (7 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

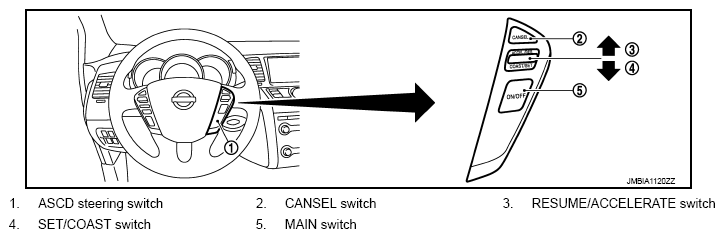

Fig 8: Air Conditioning Cut Control System Components Location (8 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Air Conditioning Cut Control System Components Location (9 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Air Conditioning Cut Control System Components Location (10 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Air Conditioning Cut Control System Components Location (11 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Air Conditioning Cut Control System Components Location (12 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Air Conditioning Cut Control System Components Location (13 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Air Conditioning Cut Control System Components Location (14 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.
