Connector End Views

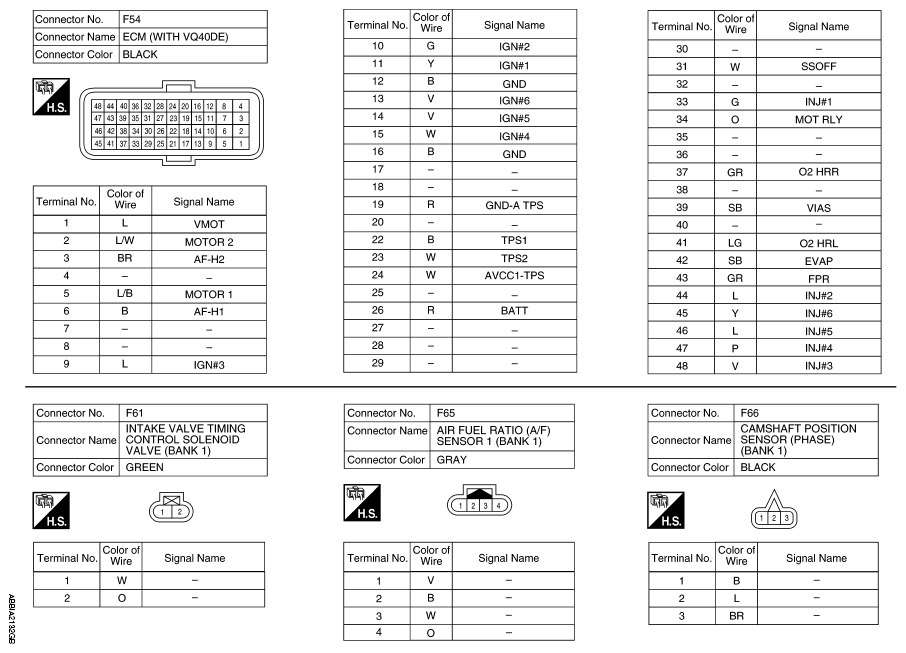

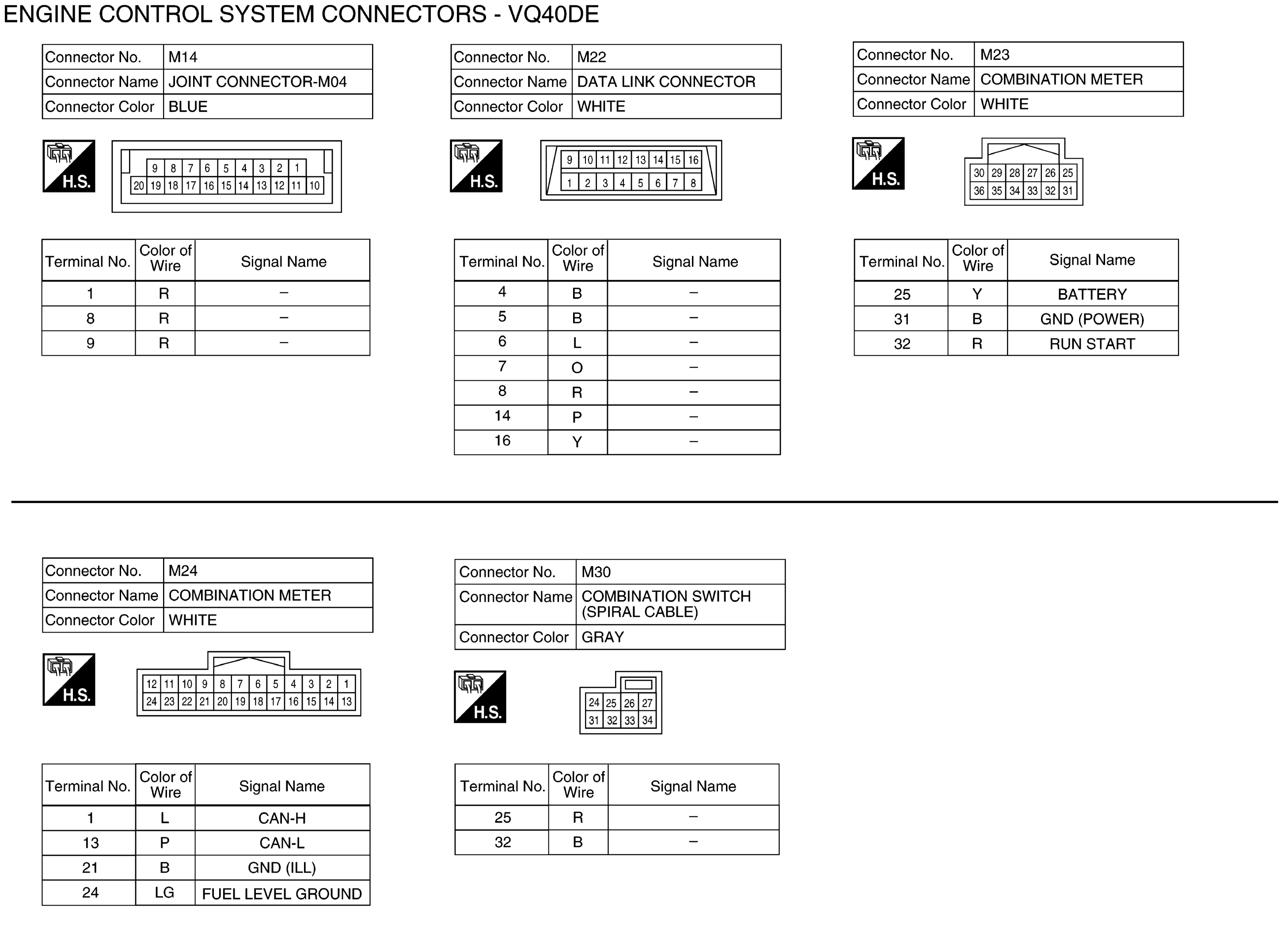

Fig 1: Engine Control System Connector End Views - VQ40DE (1 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

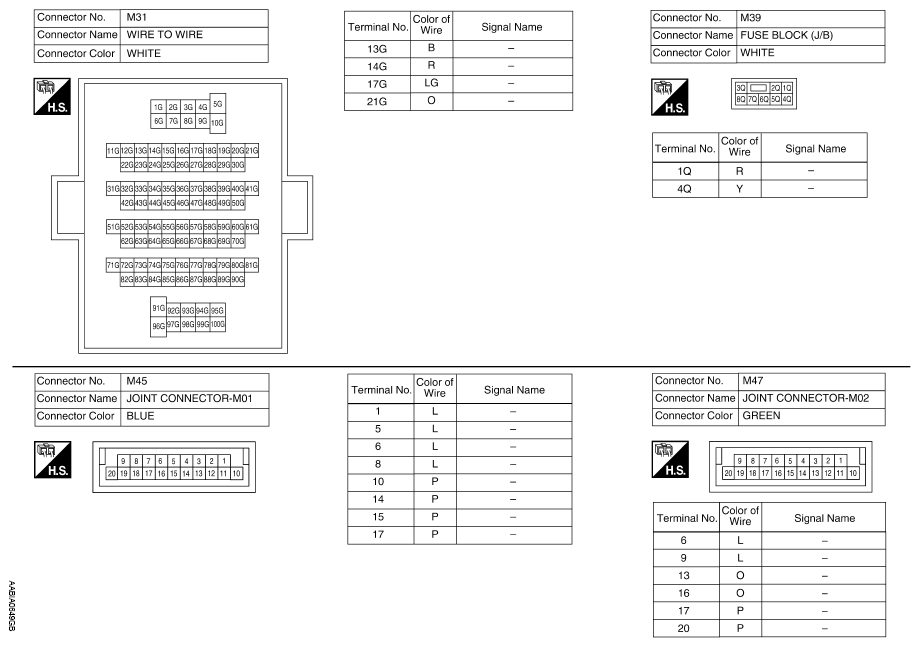

Fig 2: Engine Control System Connector End Views - VQ40DE (2 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

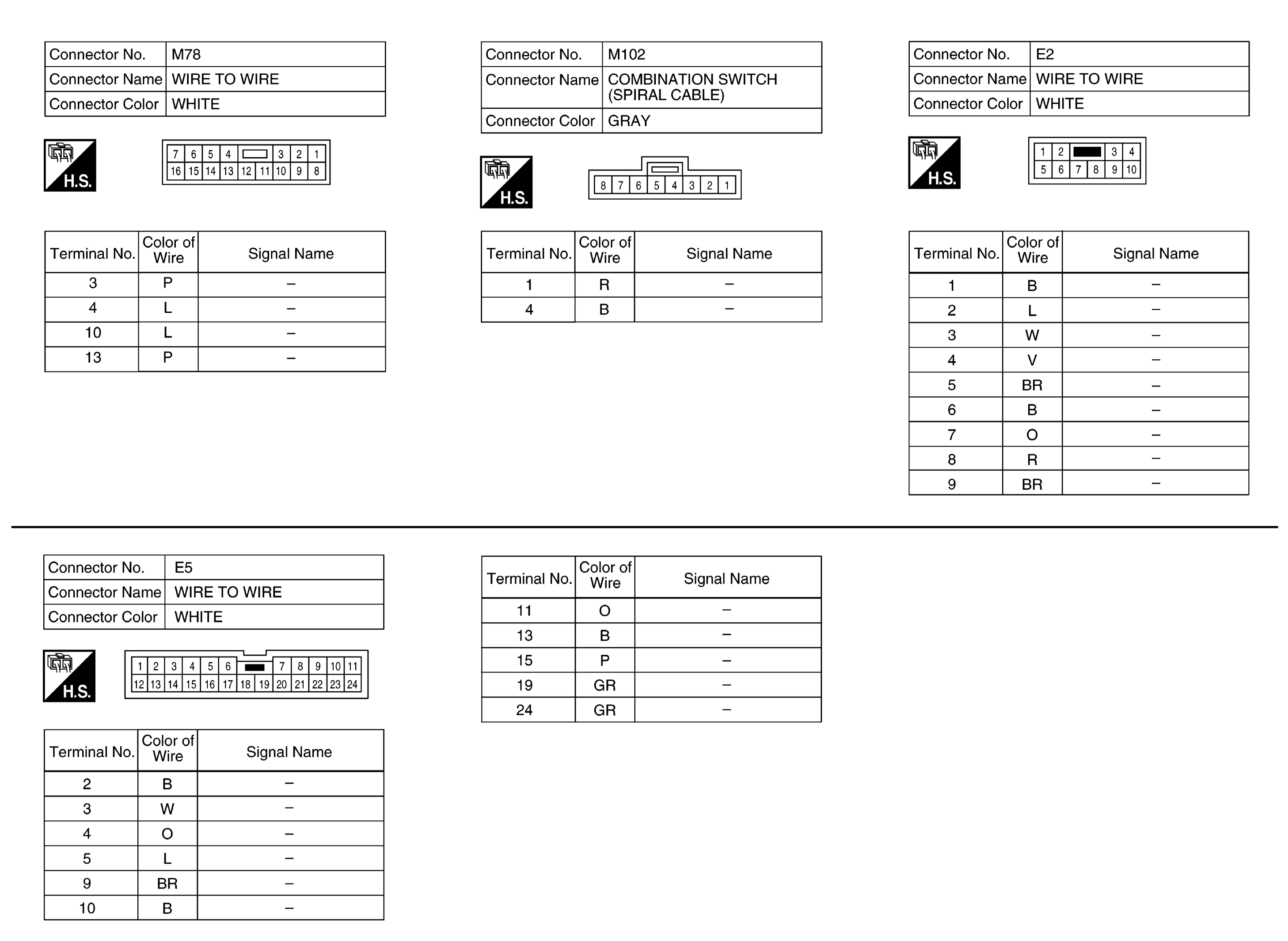

Fig 3: Engine Control System Connector End Views - VQ40DE (3 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

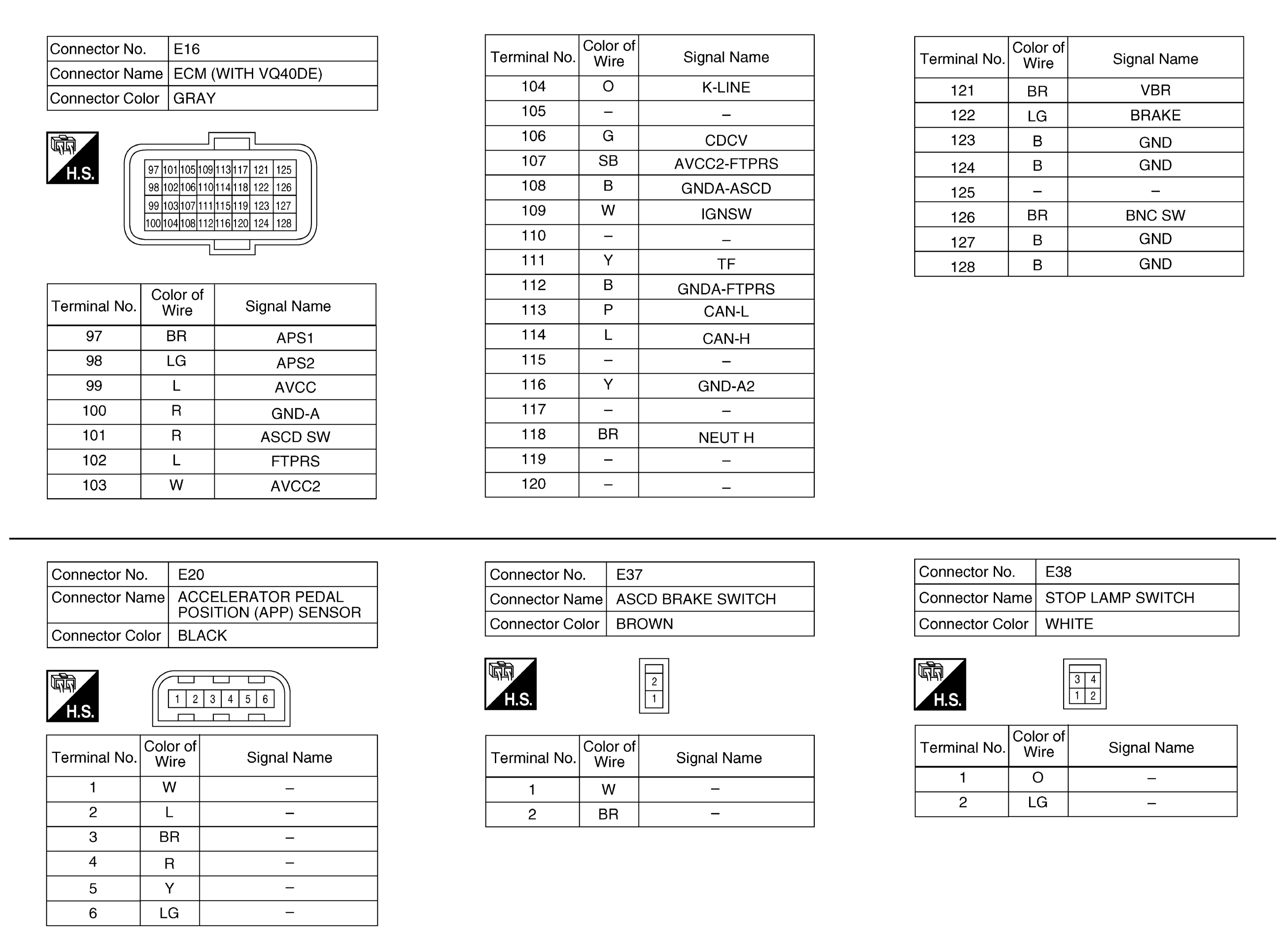

Fig 4: Engine Control System Connector End Views - VQ40DE (4 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

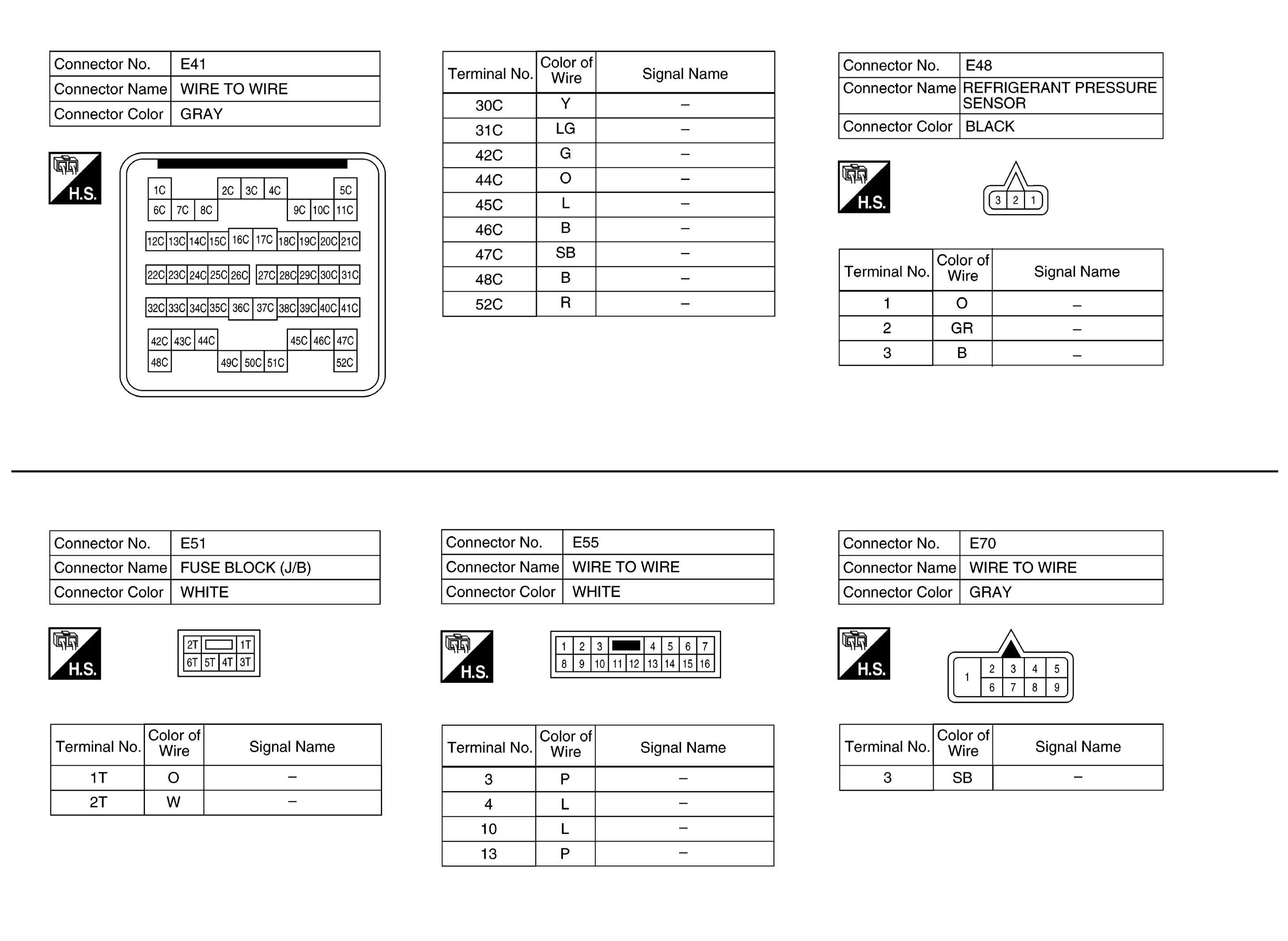

Fig 5: Engine Control System Connector End Views - VQ40DE (5 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

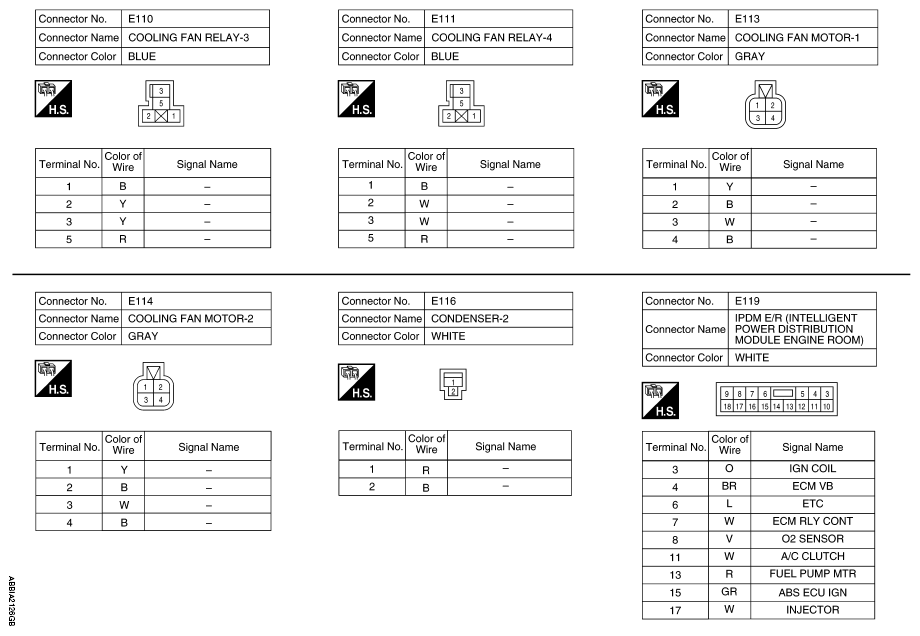

Fig 6: Engine Control System Connector End Views - VQ40DE (6 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

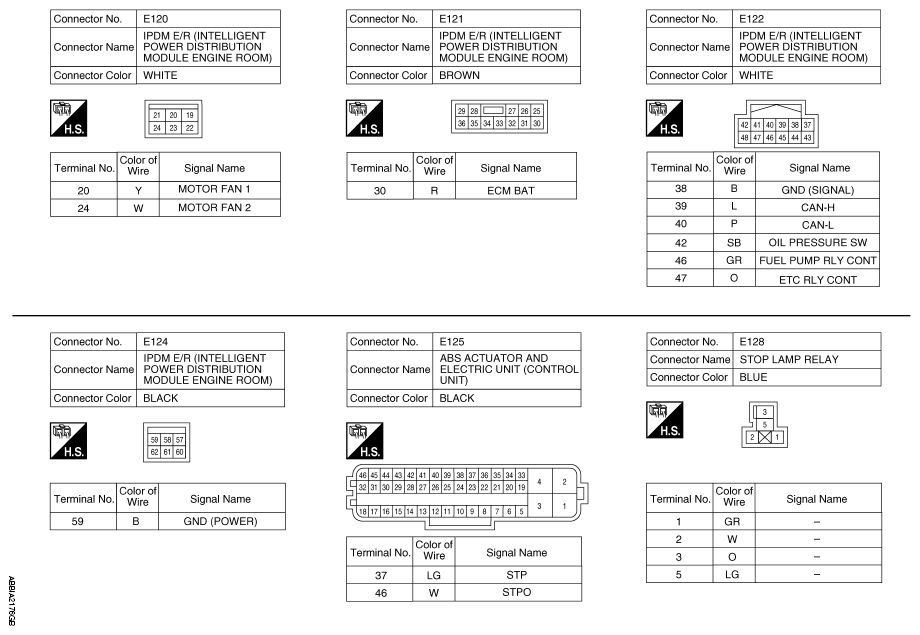

Fig 7: Engine Control System Connector End Views - VQ40DE (7 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

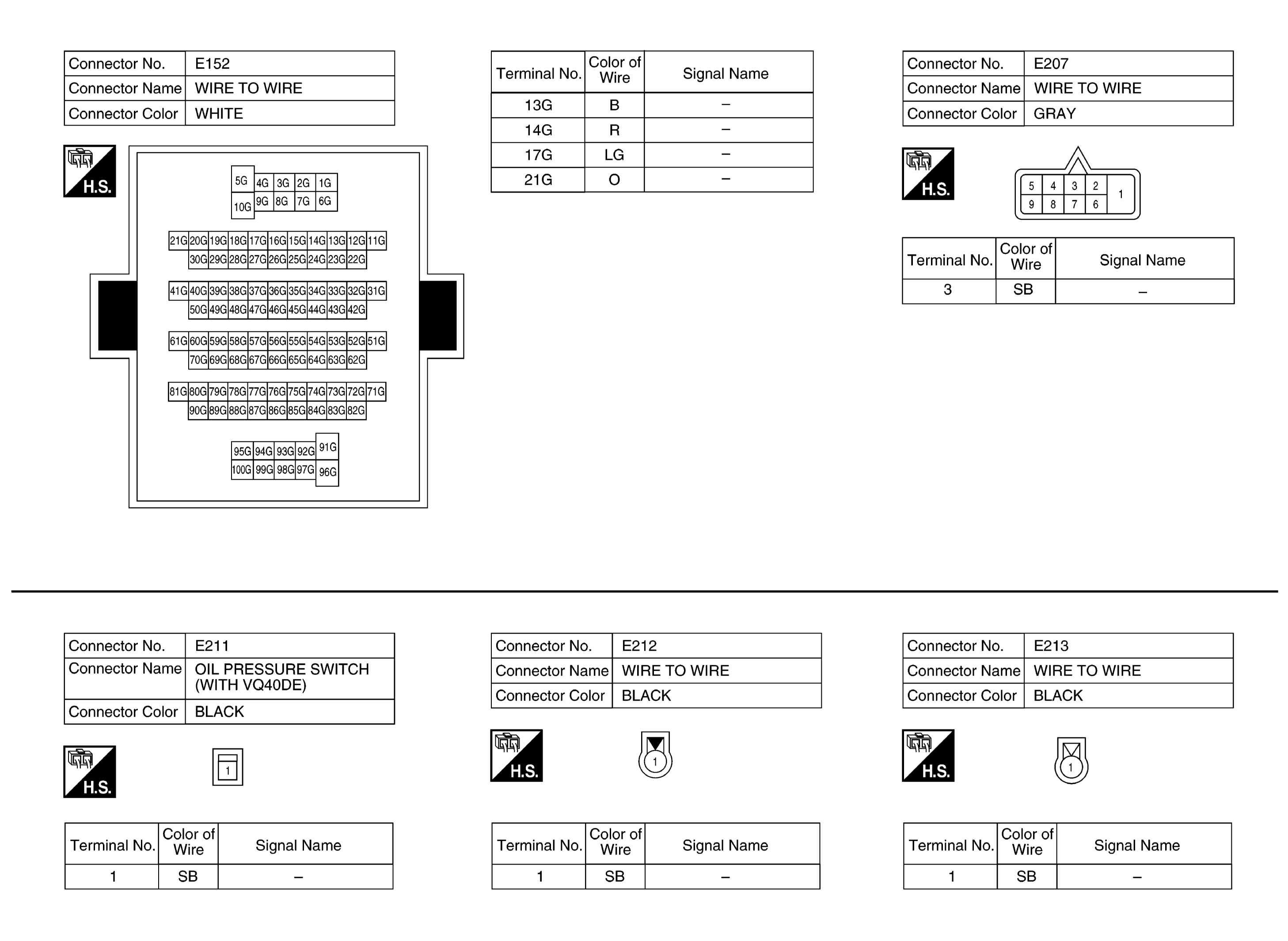

Fig 8: Engine Control System Connector End Views - VQ40DE (8 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

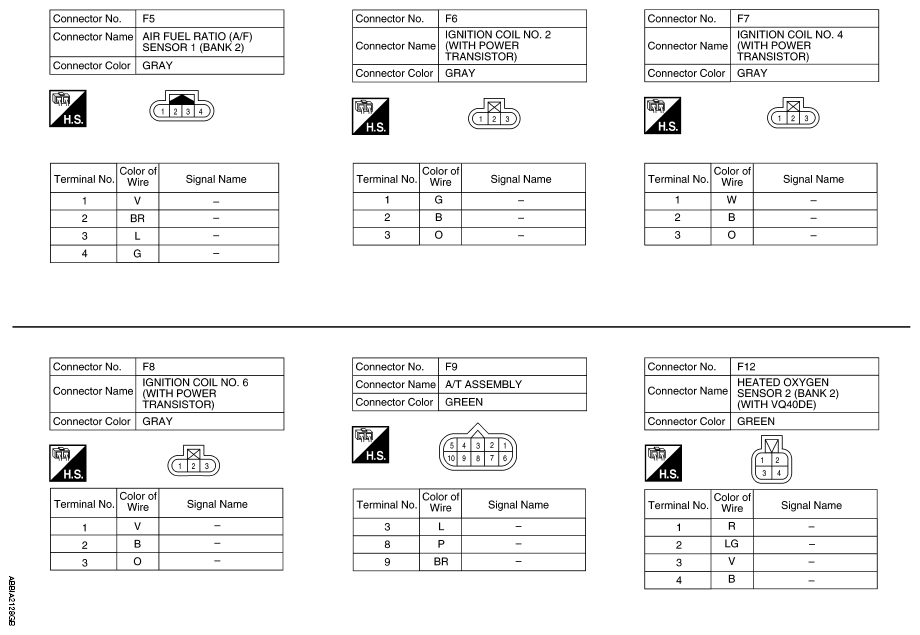

Fig 9: Engine Control System Connector End Views - VQ40DE (9 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

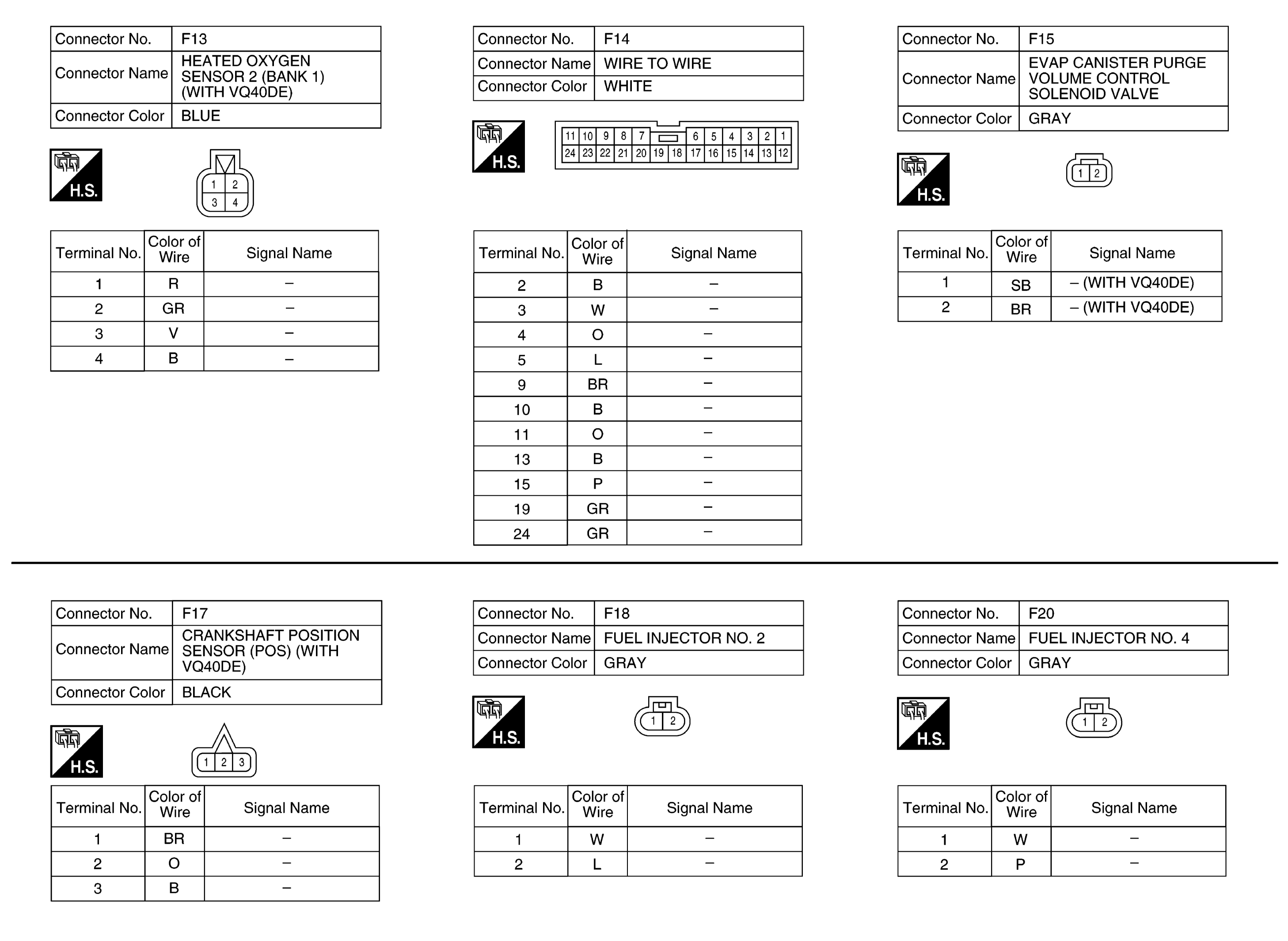

Fig 10: Engine Control System Connector End Views - VQ40DE (10 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

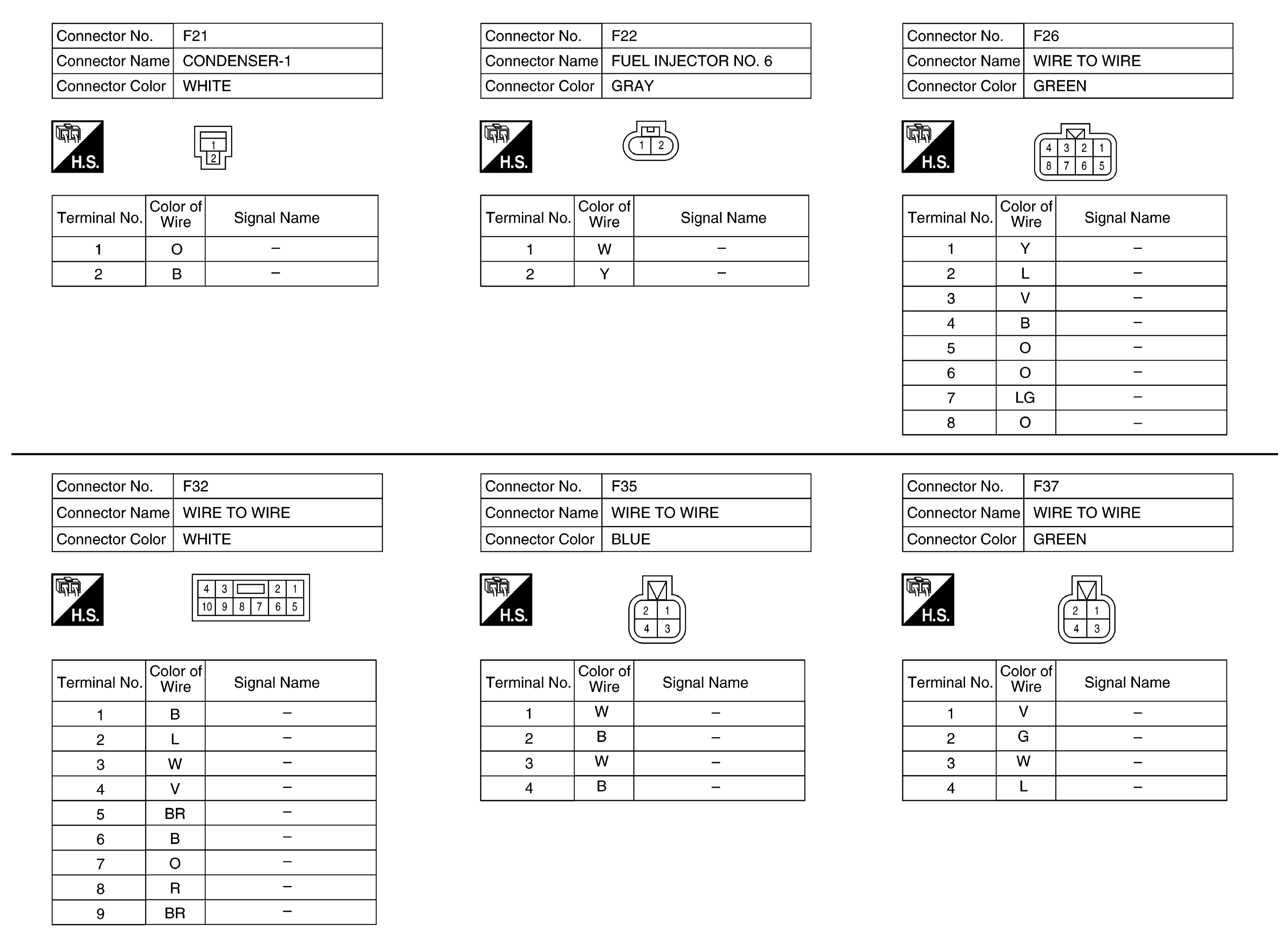

Fig 11: Engine Control System Connector End Views - VQ40DE (11 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

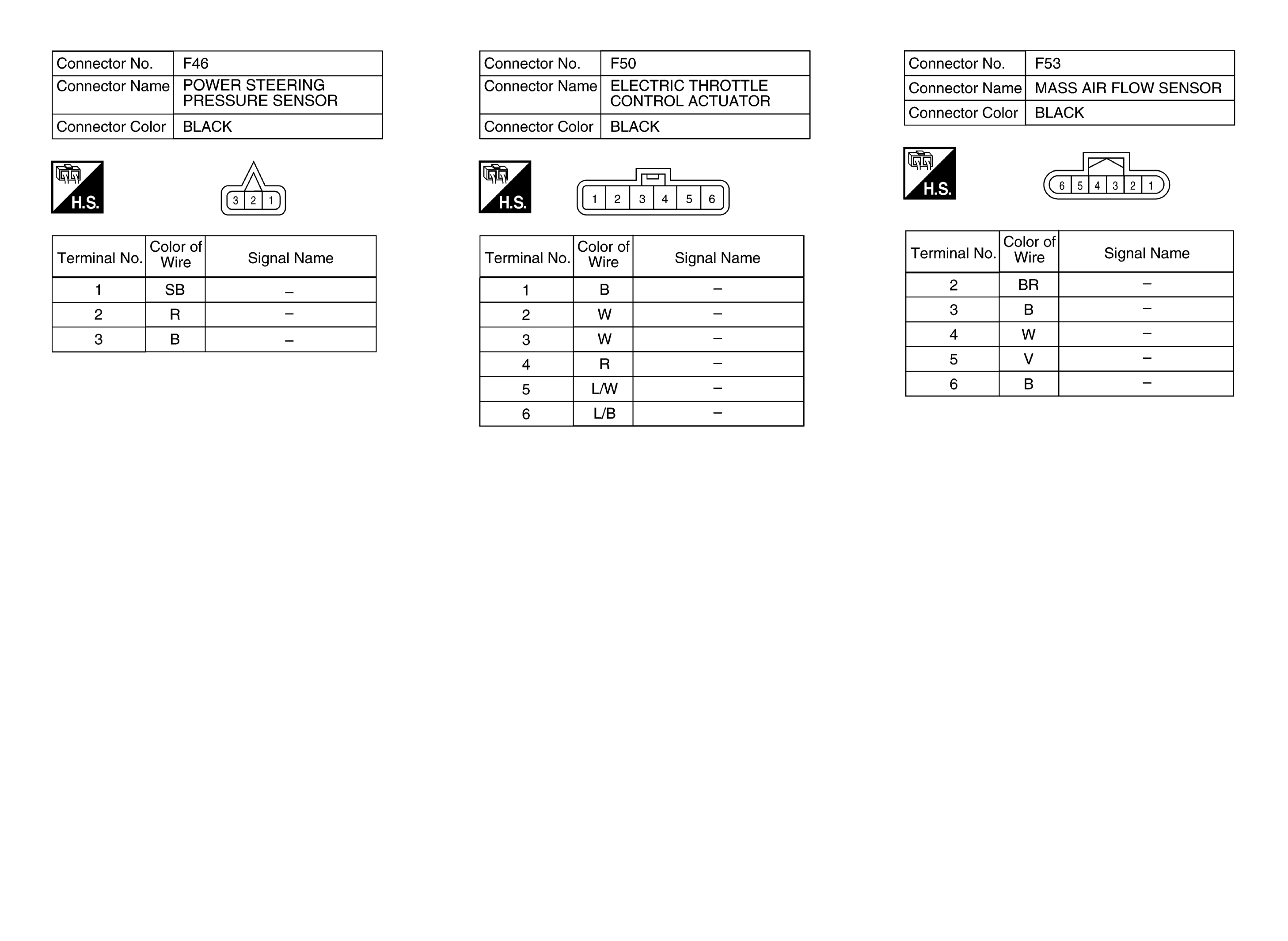

Fig 12: Engine Control System Connector End Views - VQ40DE (12 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System Connector End Views - VQ40DE (13 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

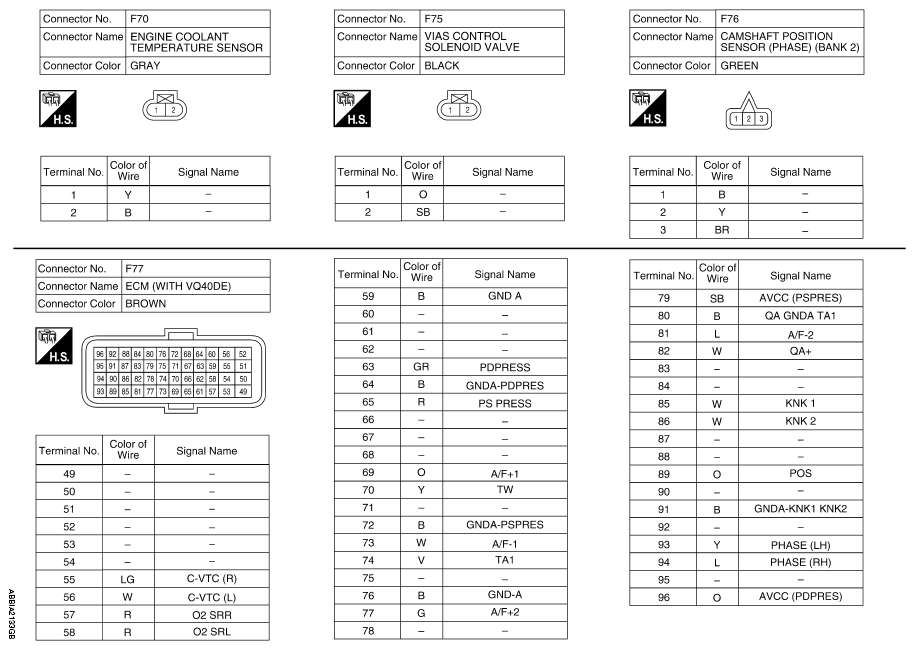

Fig 14: Engine Control System Connector End Views - VQ40DE (14 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

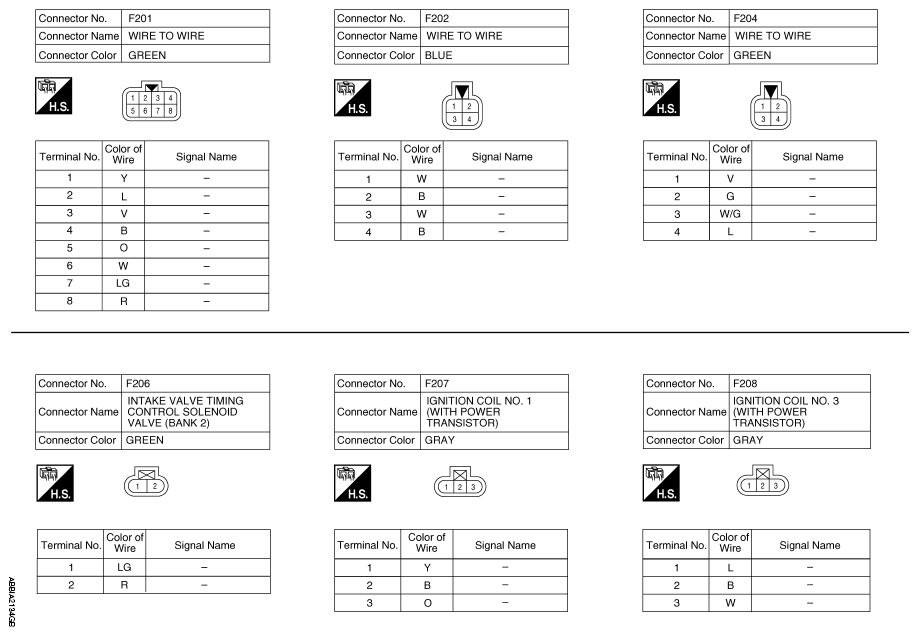

Fig 15: Engine Control System Connector End Views - VQ40DE (15 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

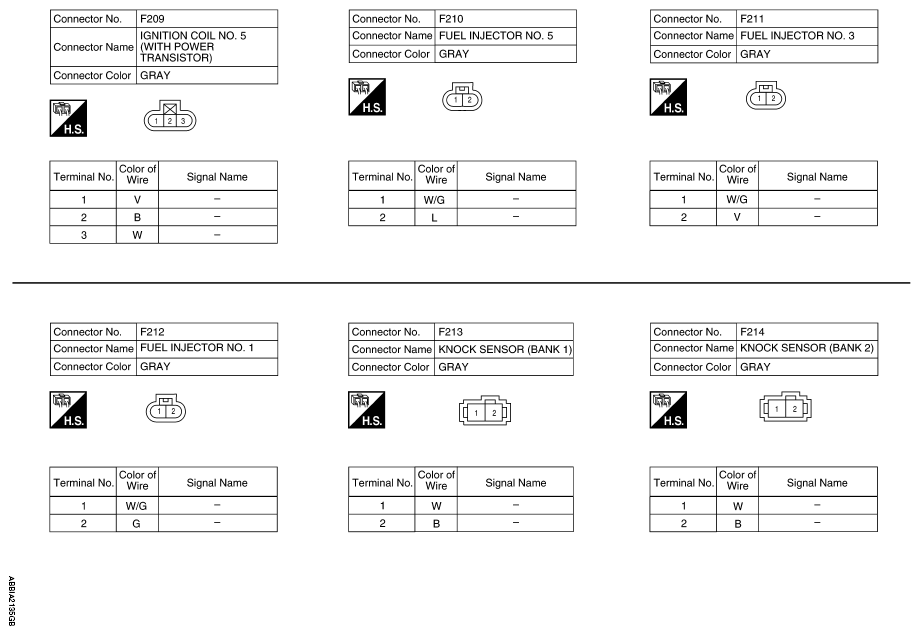

Fig 16: Engine Control System Connector End Views - VQ40DE (16 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

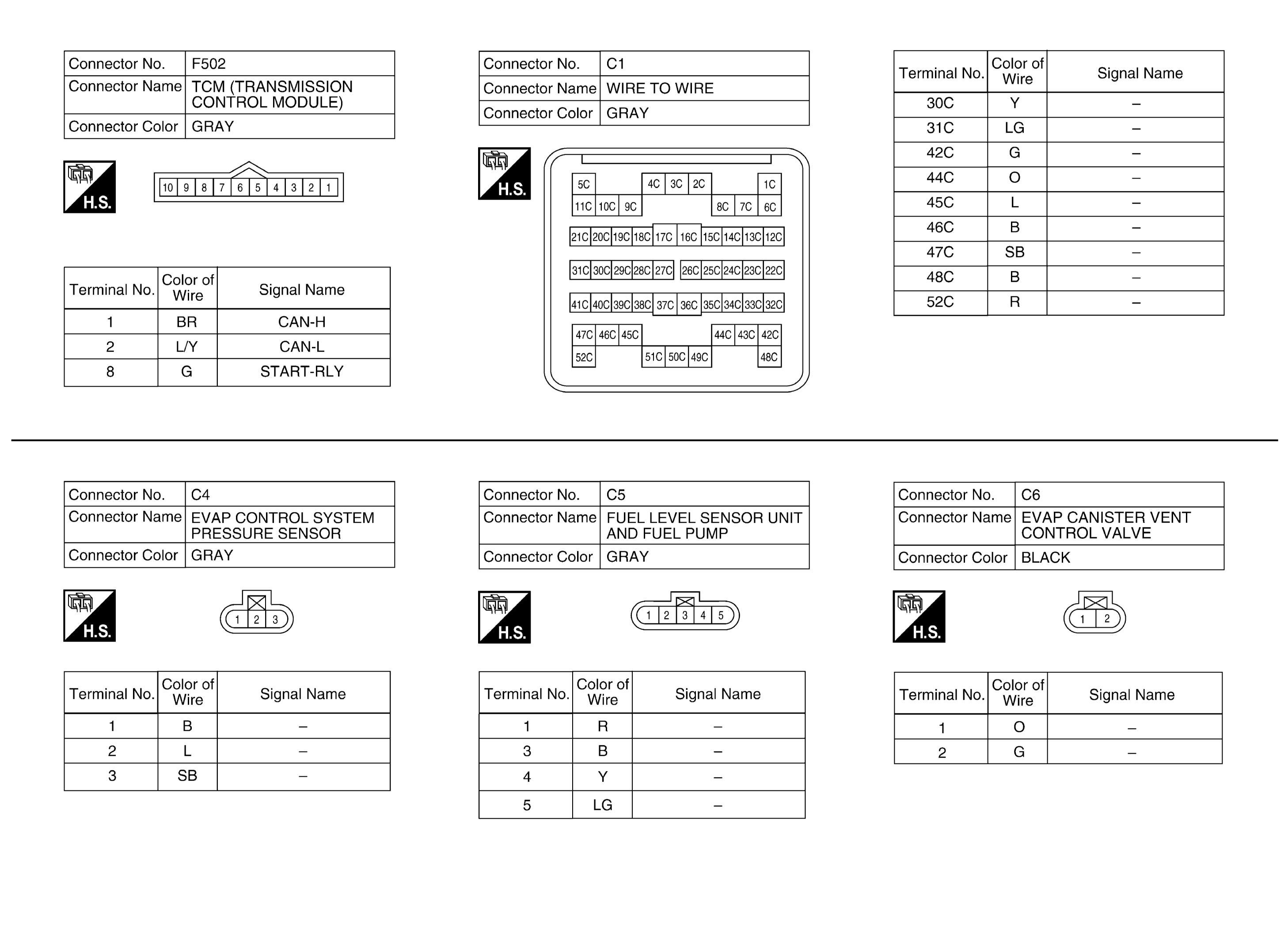

Fig 17: Engine Control System Connector End Views - VQ40DE (17 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.
