Side Air Bag System Warning Lamp Flash Code Chart

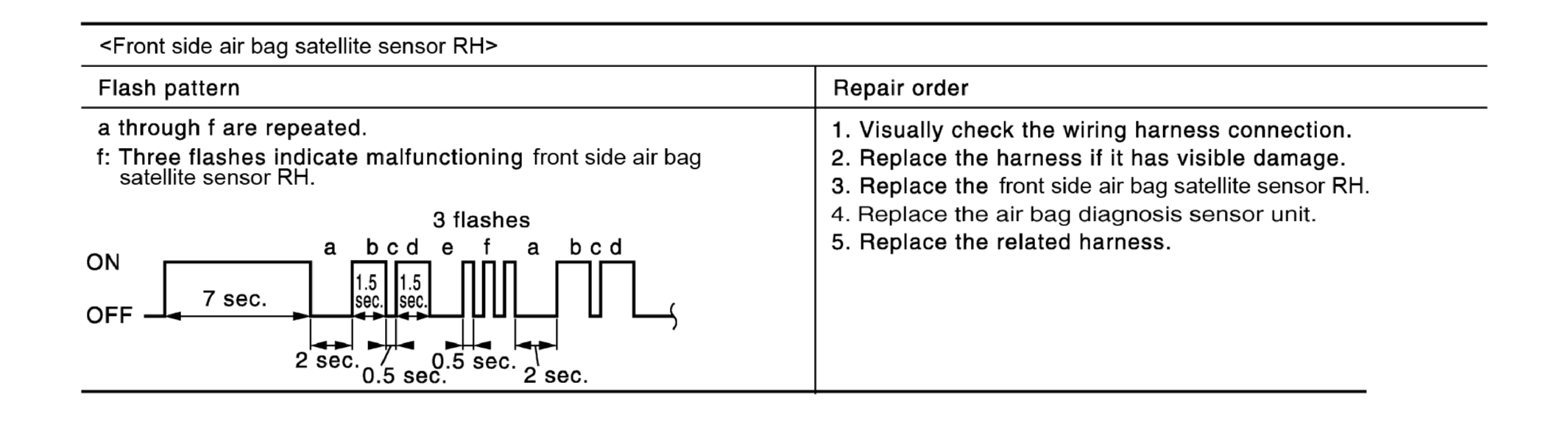

Fig 1: Front Side Air Bag Satellite Sensor RH Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

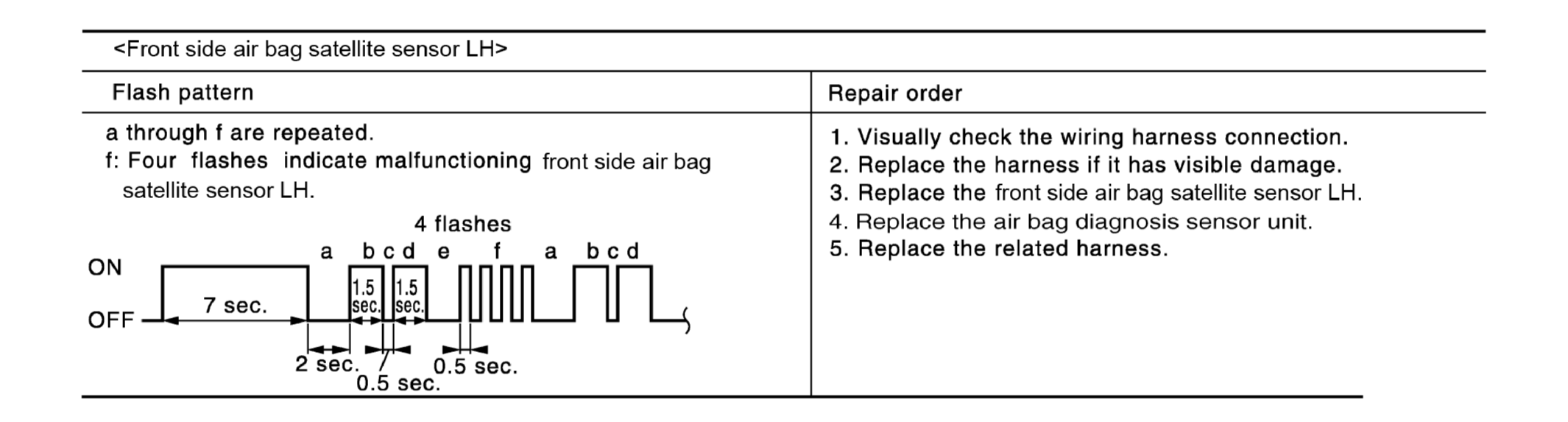

Fig 2: Front Side Air Bag Satellite Sensor LH Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Front RH Side Air Bag Module Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Front LH Side Air Bag Module Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

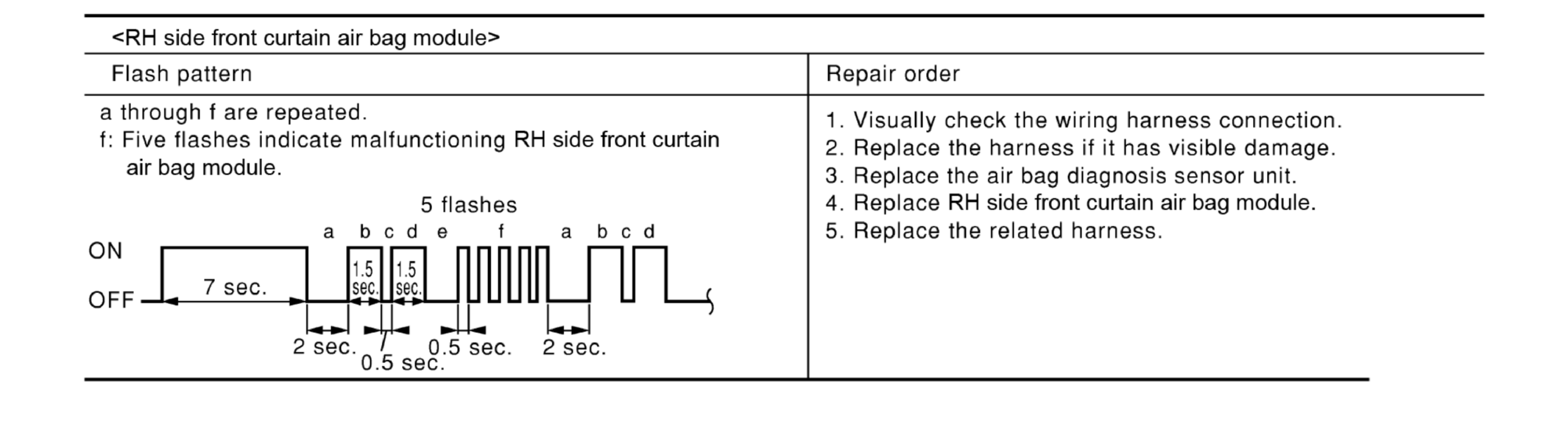

Fig 5: RH Side Front Curtain Air Bag Module Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

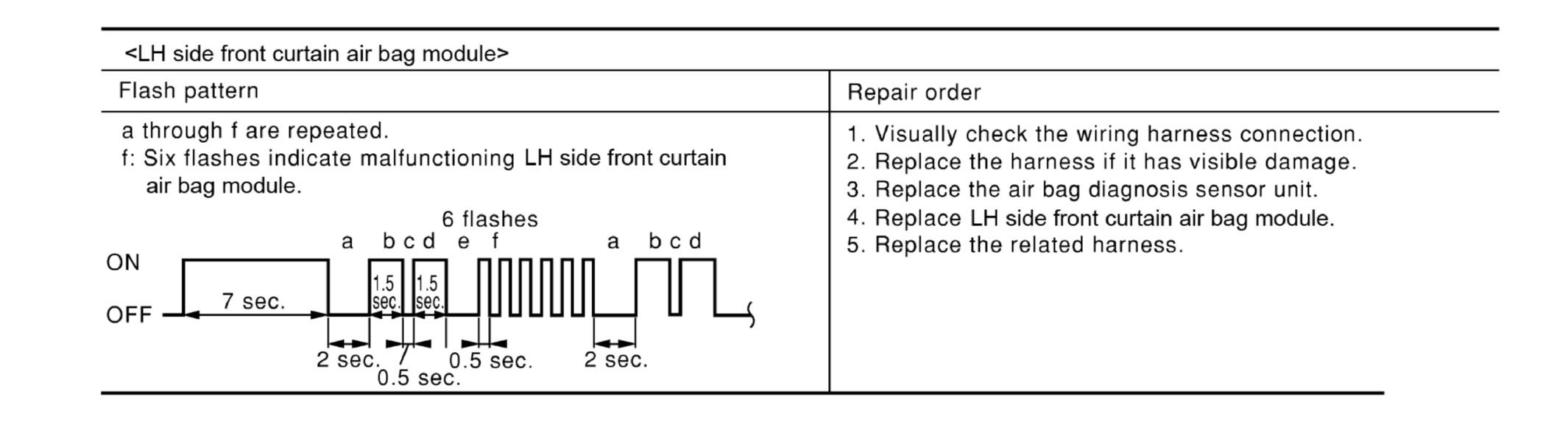

Fig 6: LH Side Front Curtain Air Bag Module Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

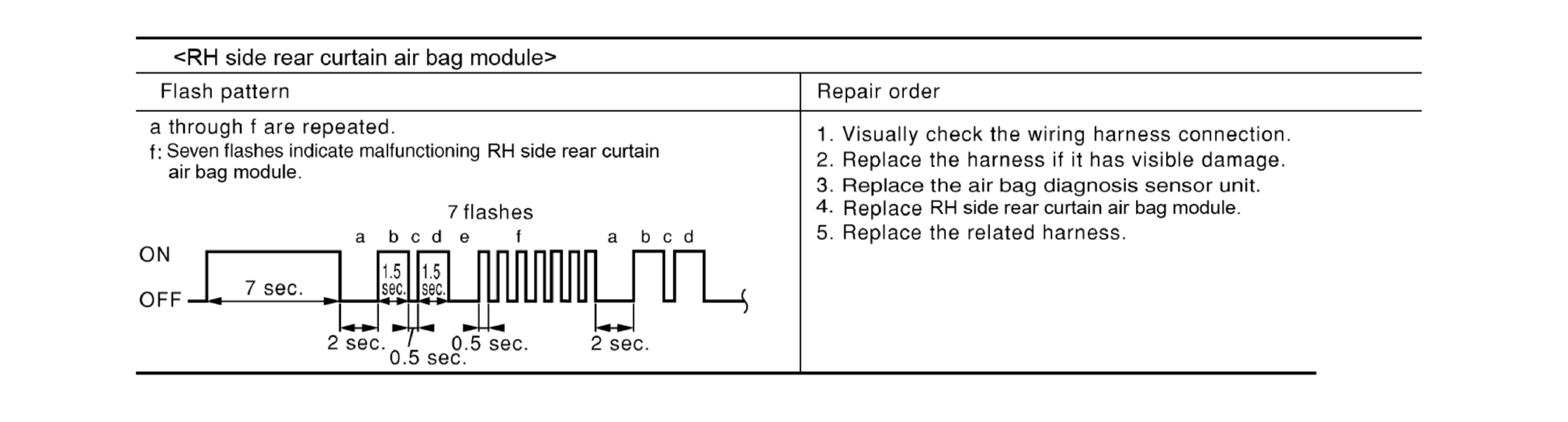

Fig 7: RH Side Rear Curtain Air Bag Module Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

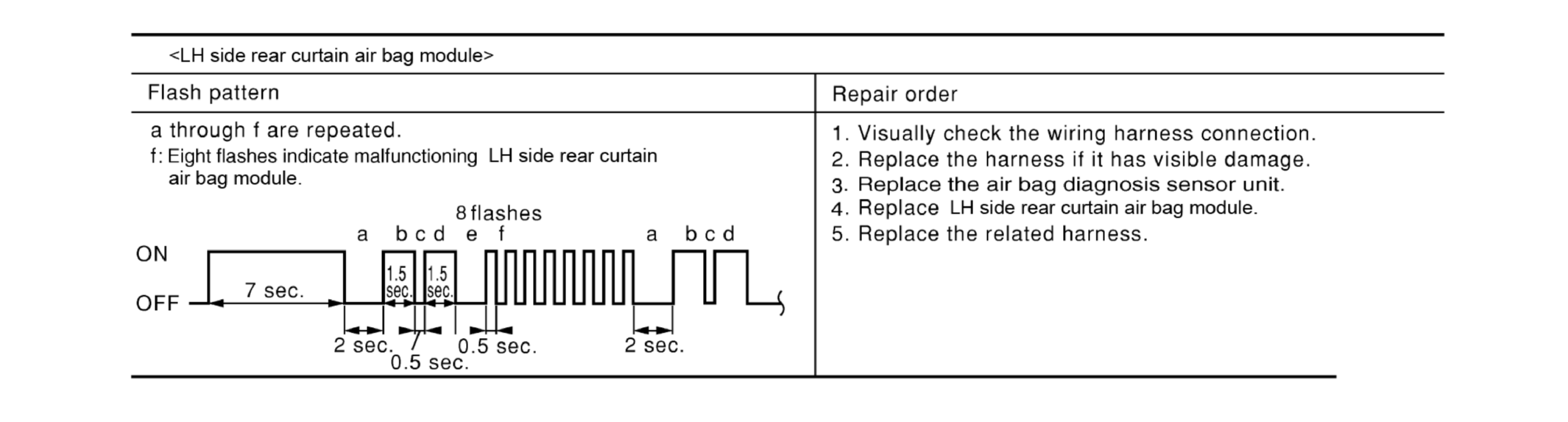

Fig 8: LH Side Rear Curtain Air Bag Module Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

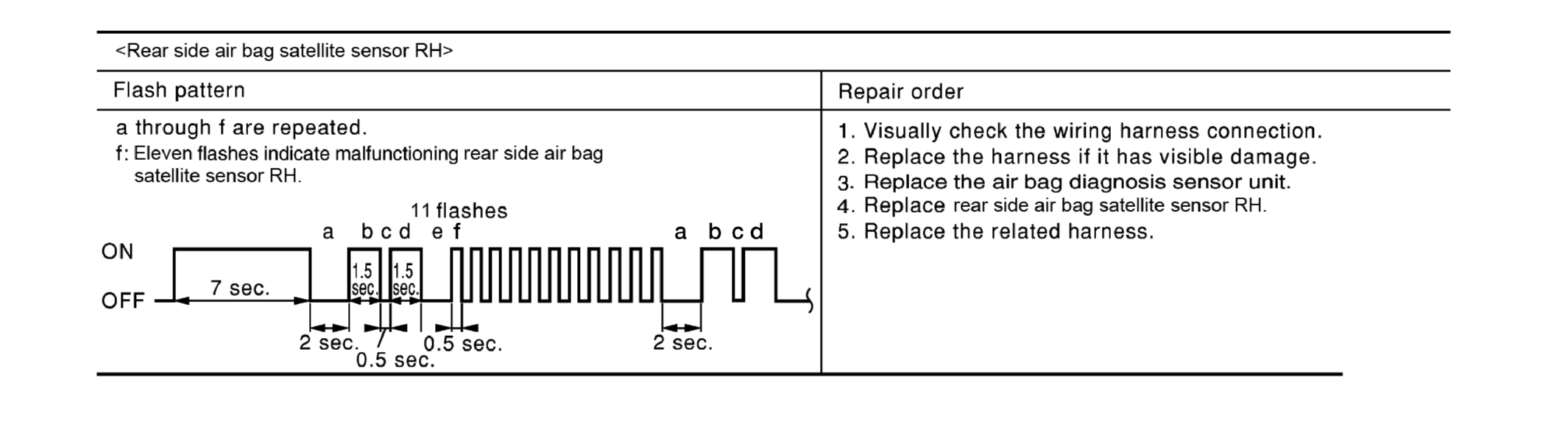

Fig 9: Rear Side Air Bag Satellite Sensor RH Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

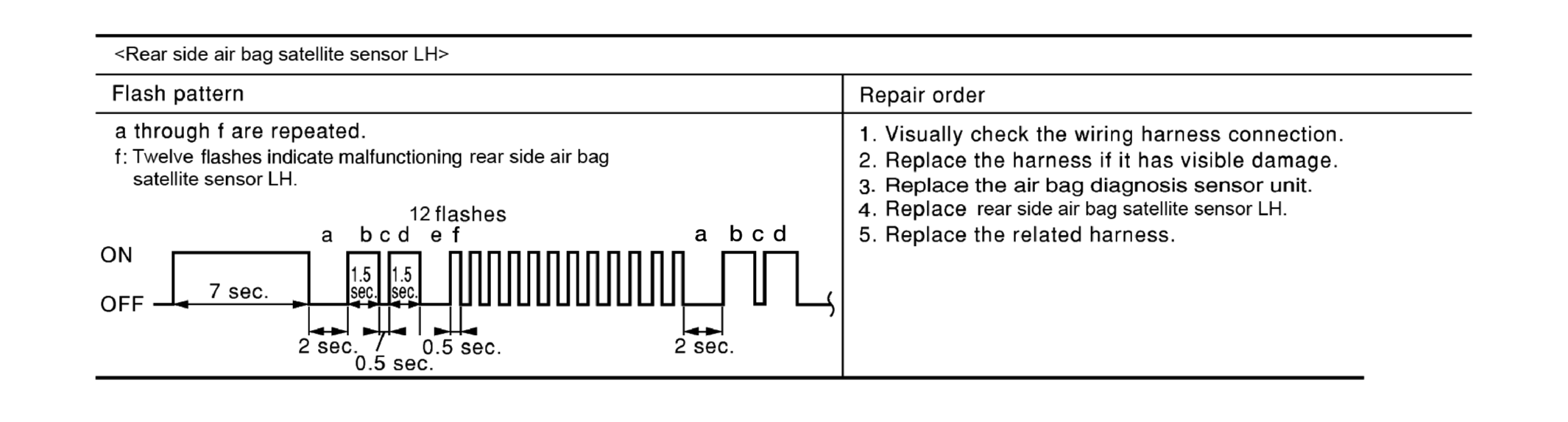

Fig 10: Rear Side Air Bag Satellite Sensor LH Flash Pattern

Courtesy of NISSAN NORTH AMERICA, INC.
