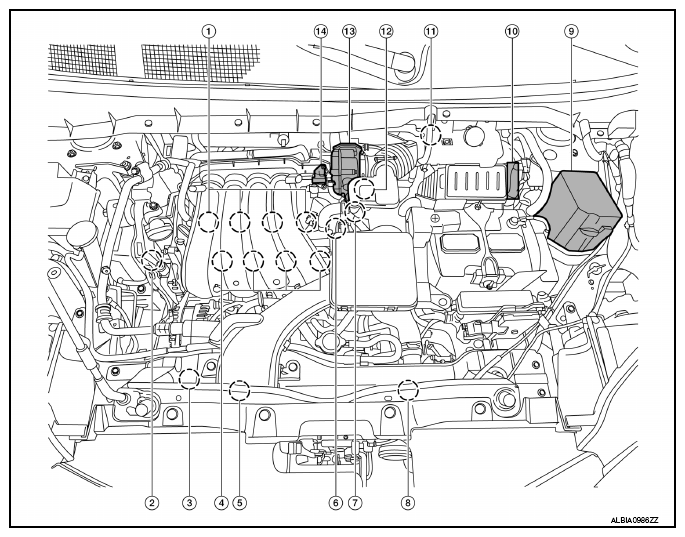

Engine Room Compartment
| No. | Component | Function |
|---|---|---|
| (1) | Ignition coil (with power transistor) |
"IGNITION COIL WITH POWER TRANSISTOR " |
| (2) | Intake valve timing control solenoid valve | "INTAKE VALVE TIMING CONTROL SOLENOID VALVE " |
| (3) | Refrigerant pressure sensor | "REFRIGERANT PRESSURE SENSOR " |
| (4) | Fuel injector | "FUEL INJECTOR " |
| (5) | Cooling fan motor-2 | "COOLING FAN " |
| (6) | Camshaft position sensor (PHASE) | "CAMSHAFT POSITION SENSOR (PHASE) " |
| (7) | Engine coolant temperature sensor | "ENGINE COOLANT TEMPERATURE SENSOR " |
| (8) | Cooling fan motor-1 | "COOLING FAN " |
| (9) | IPDM E/R | IPDM E/R control the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
| (10) | ECM | "ECM " |
| (11) | Mass air flow sensor (with intake air temperature sensor) |
"MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) " |
| (12) | EVAP service port | EVAP service port is prepared in order to perform evaporative emission system leak check. |
| (13) | Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
"ELECTRIC THROTTLE CONTROL ACTUATOR " |
| (14) | EVAP canister purge volume control solenoid valve | "EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE " |
