Connector End Views

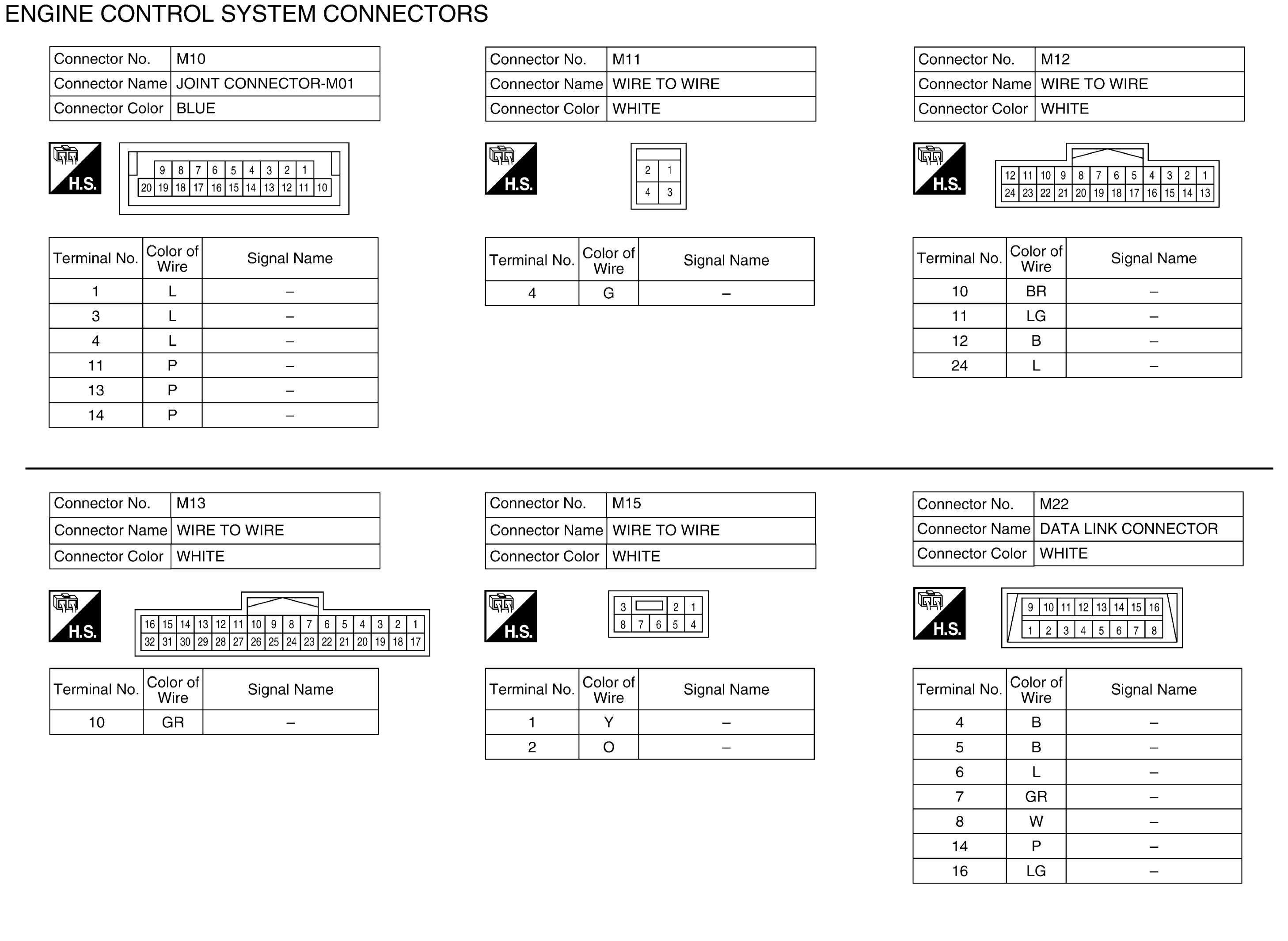

Fig 1: Engine Control System Connector End Views (1 Of 14)
G08983771Courtesy of NISSAN NORTH AMERICA, INC.

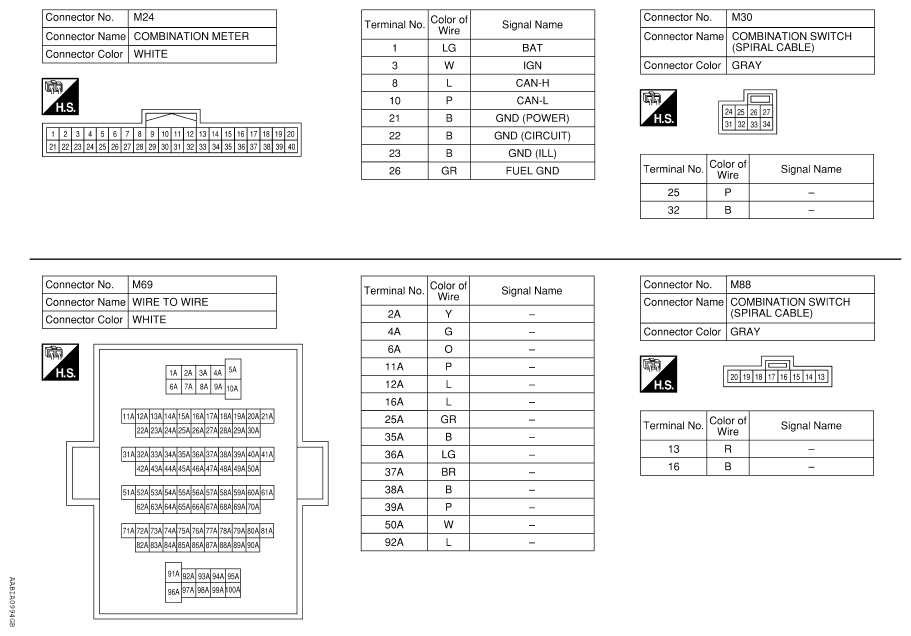

Fig 2: Engine Control System Connector End Views (2 Of 14)
G08983772Courtesy of NISSAN NORTH AMERICA, INC.

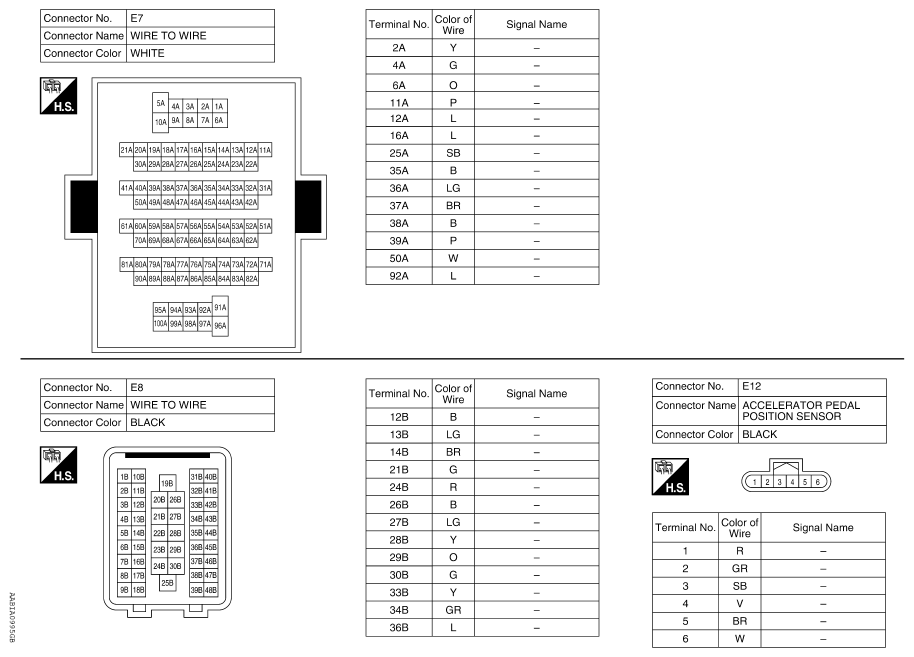

Fig 3: Engine Control System Connector End Views (3 Of 14)
G08983773Courtesy of NISSAN NORTH AMERICA, INC.

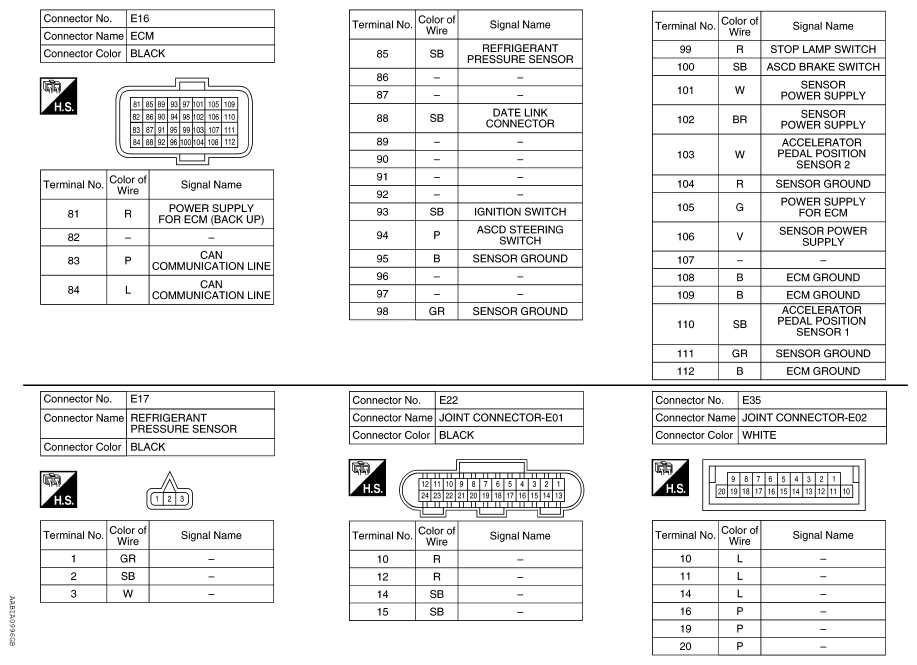

Fig 4: Engine Control System Connector End Views (4 Of 14)
G08983774Courtesy of NISSAN NORTH AMERICA, INC.

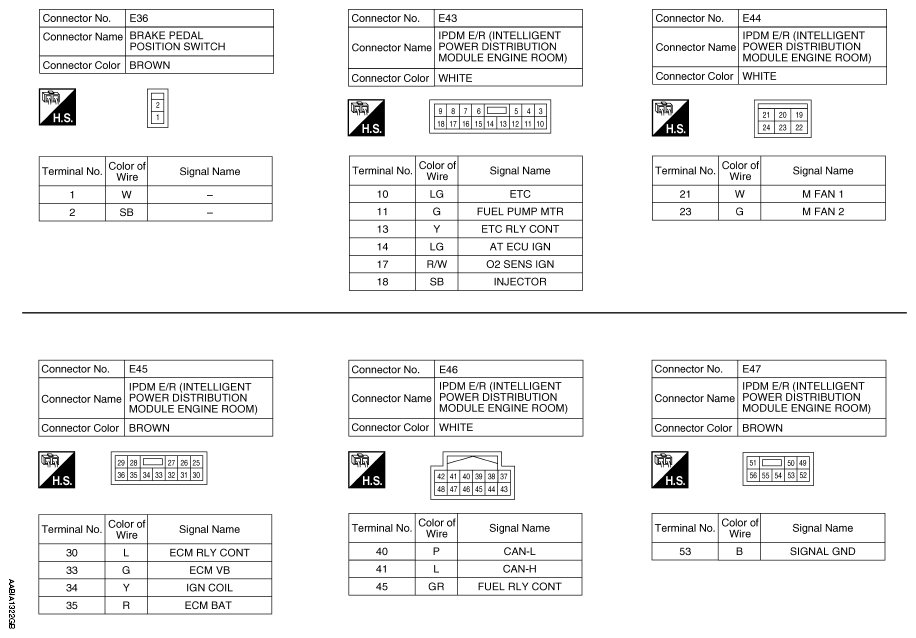

Fig 5: Engine Control System Connector End Views (5 Of 14)
G09446930Courtesy of NISSAN NORTH AMERICA, INC.

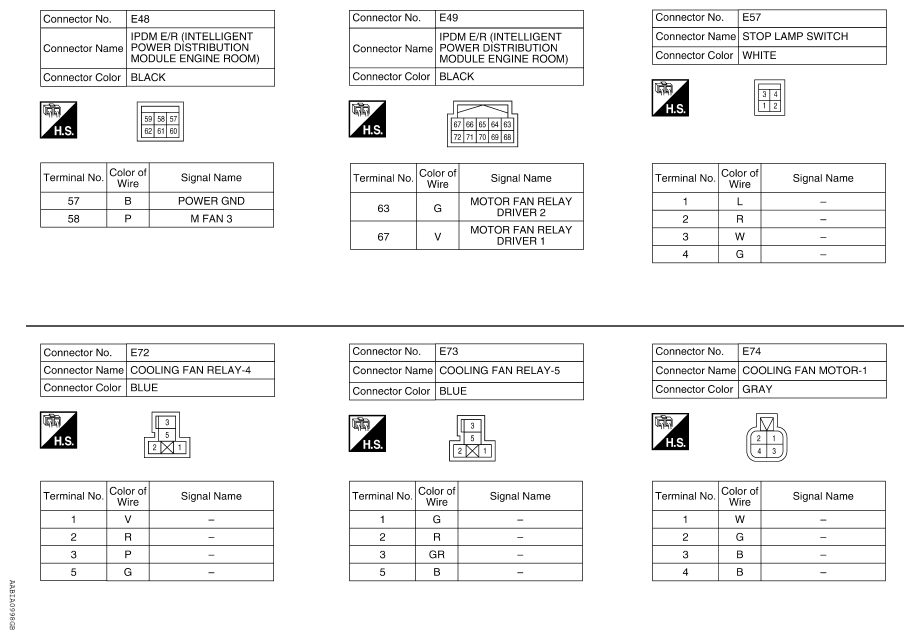

Fig 6: Engine Control System Connector End Views (6 Of 14)
G08983776Courtesy of NISSAN NORTH AMERICA, INC.

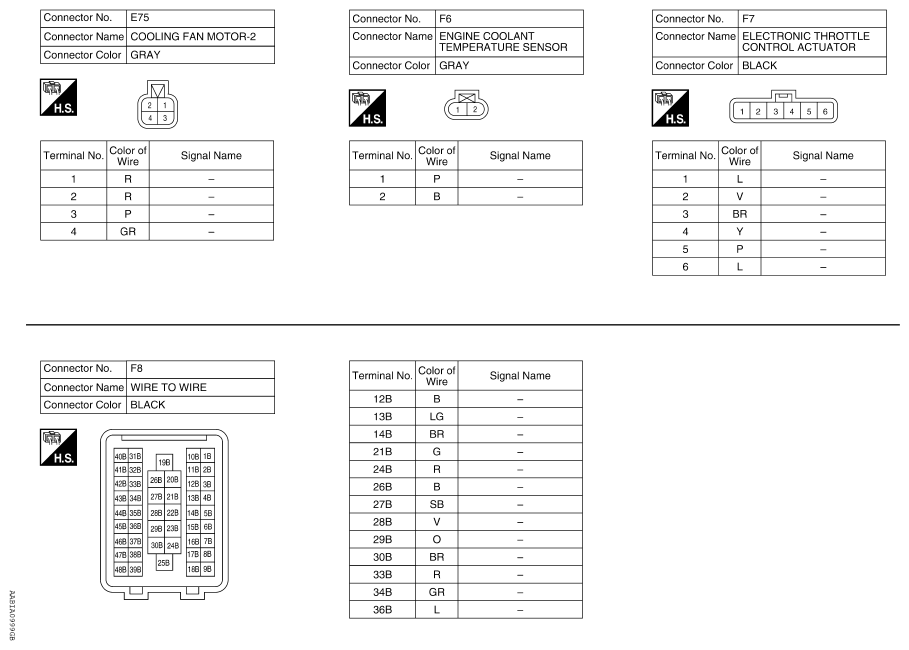

Fig 7: Engine Control System Connector End Views (7 Of 14)
G08983777Courtesy of NISSAN NORTH AMERICA, INC.

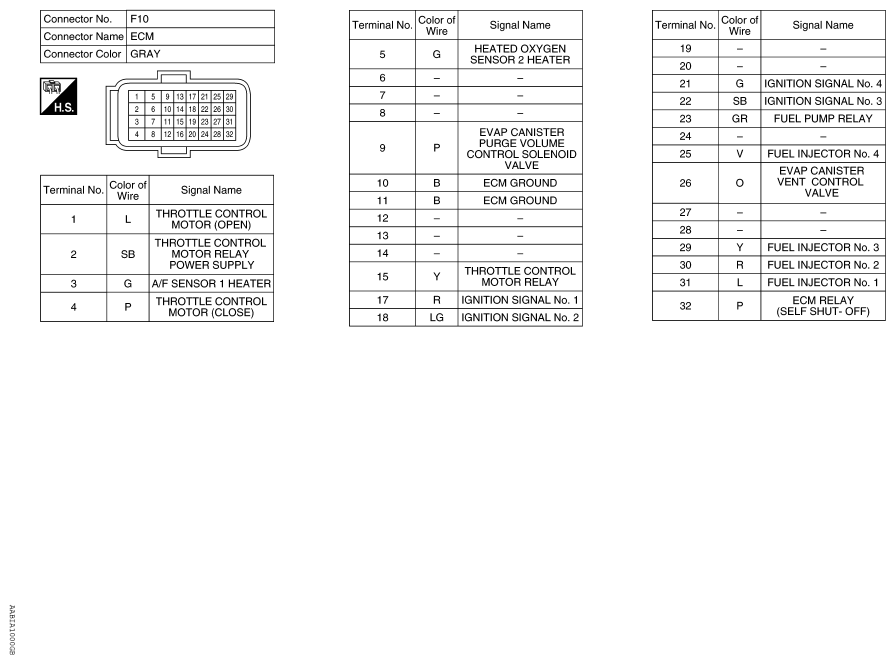

Fig 8: Engine Control System Connector End Views (8 Of 14)
G08983778Courtesy of NISSAN NORTH AMERICA, INC.

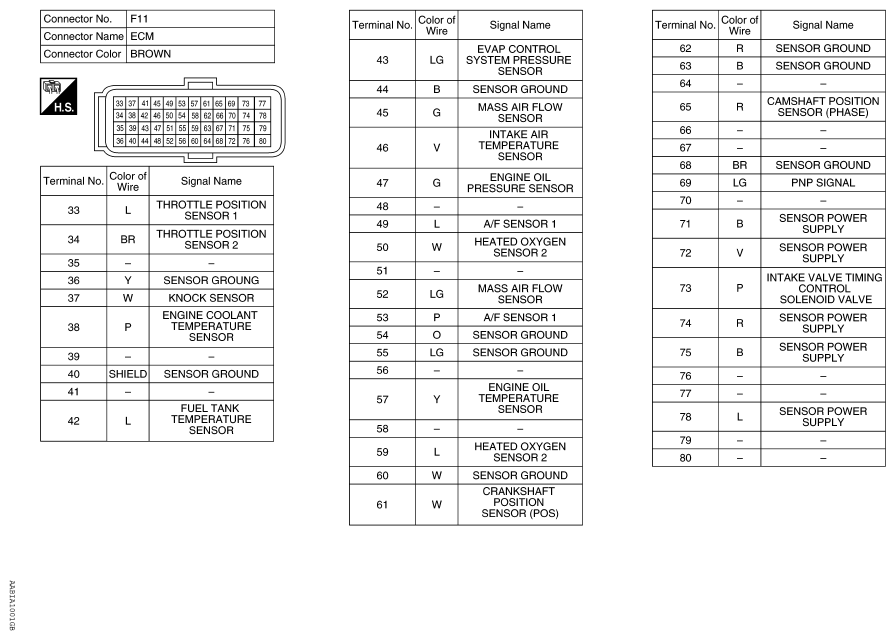

Fig 9: Engine Control System Connector End Views (9 Of 14)
G08983779Courtesy of NISSAN NORTH AMERICA, INC.

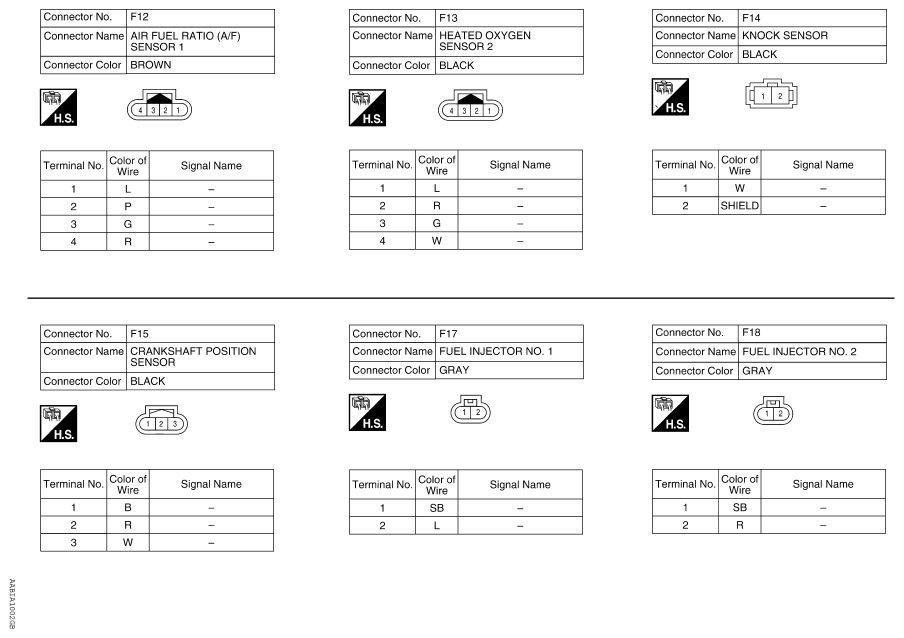

Fig 10: Engine Control System Connector End Views (10 Of 14)
G08983780Courtesy of NISSAN NORTH AMERICA, INC.

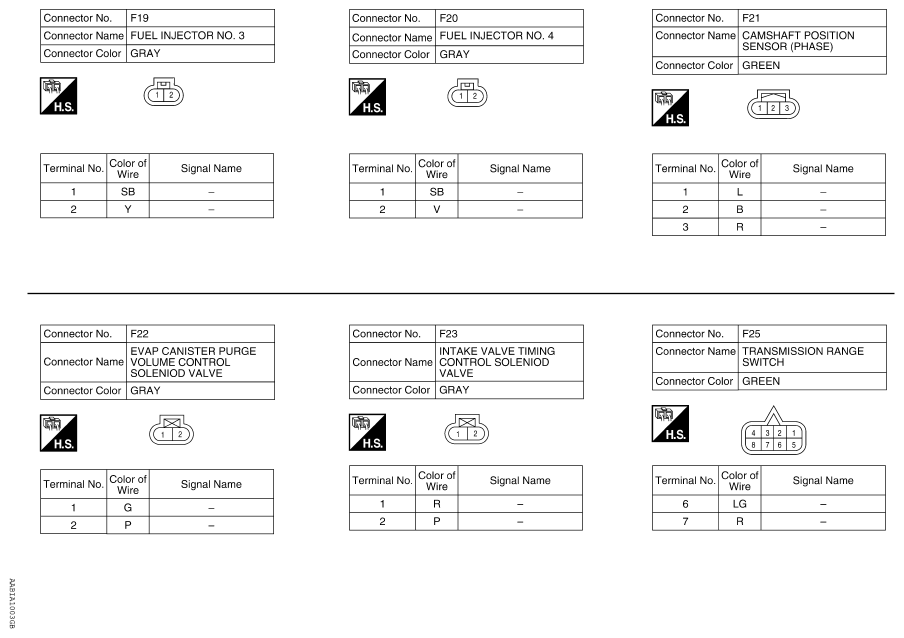

Fig 11: Engine Control System Connector End Views (11 Of 14)
G08983781Courtesy of NISSAN NORTH AMERICA, INC.

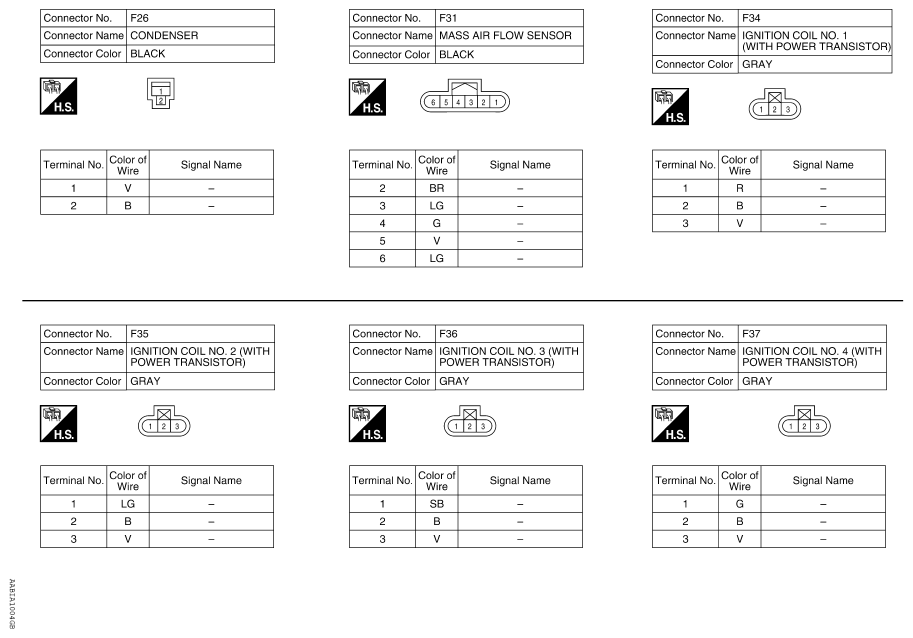

Fig 12: Engine Control System Connector End Views (12 Of 14)
G08983782Courtesy of NISSAN NORTH AMERICA, INC.

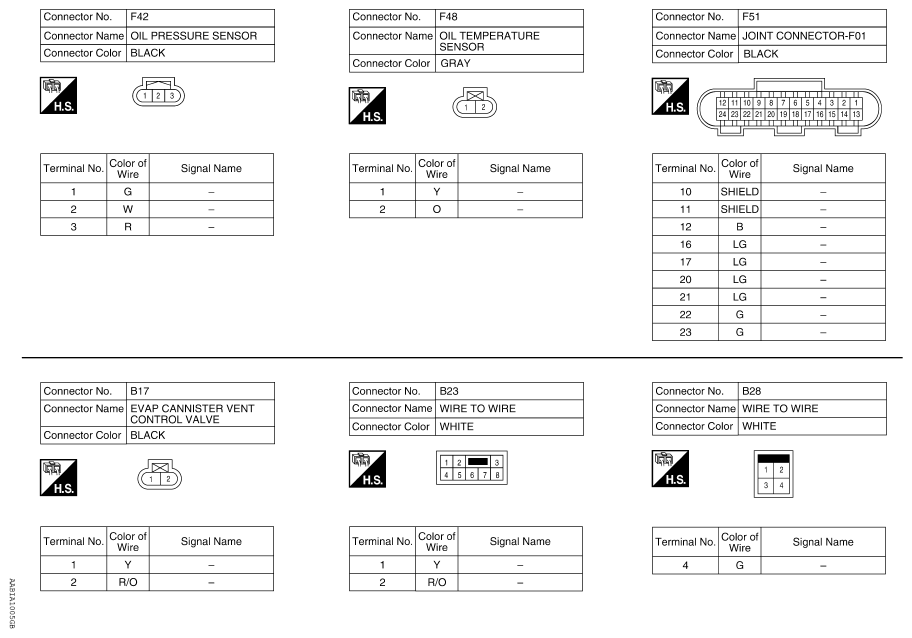

Fig 13: Engine Control System Connector End Views (13 Of 14)
G08983783Courtesy of NISSAN NORTH AMERICA, INC.

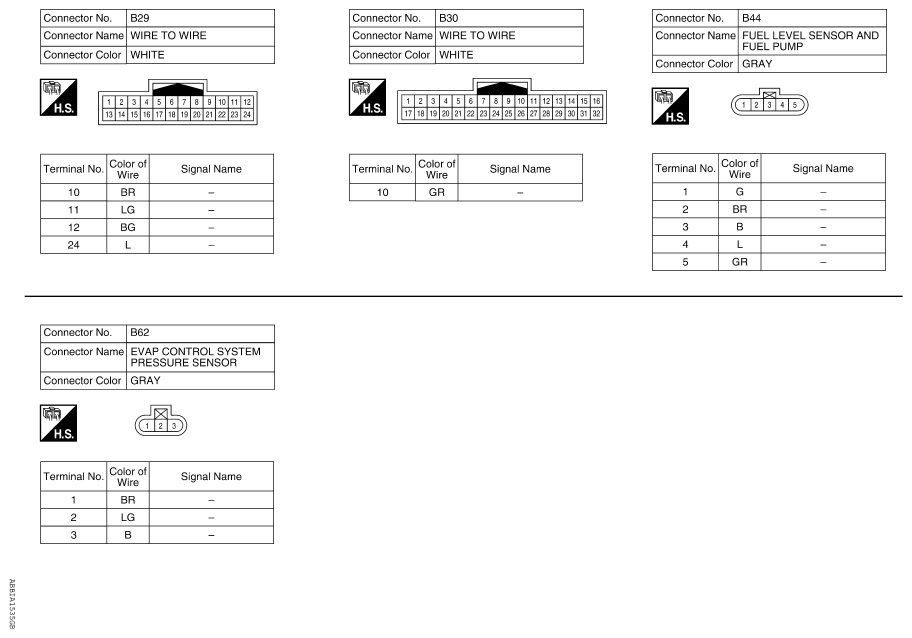

Fig 14: Engine Control System Connector End Views (14 Of 14)
G08983784Courtesy of NISSAN NORTH AMERICA, INC.
