Connector End View

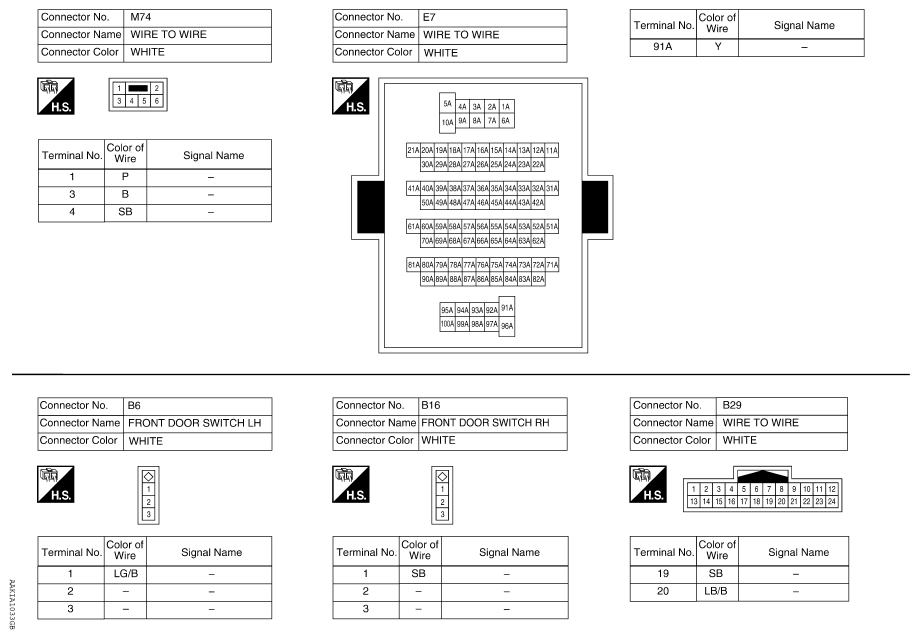

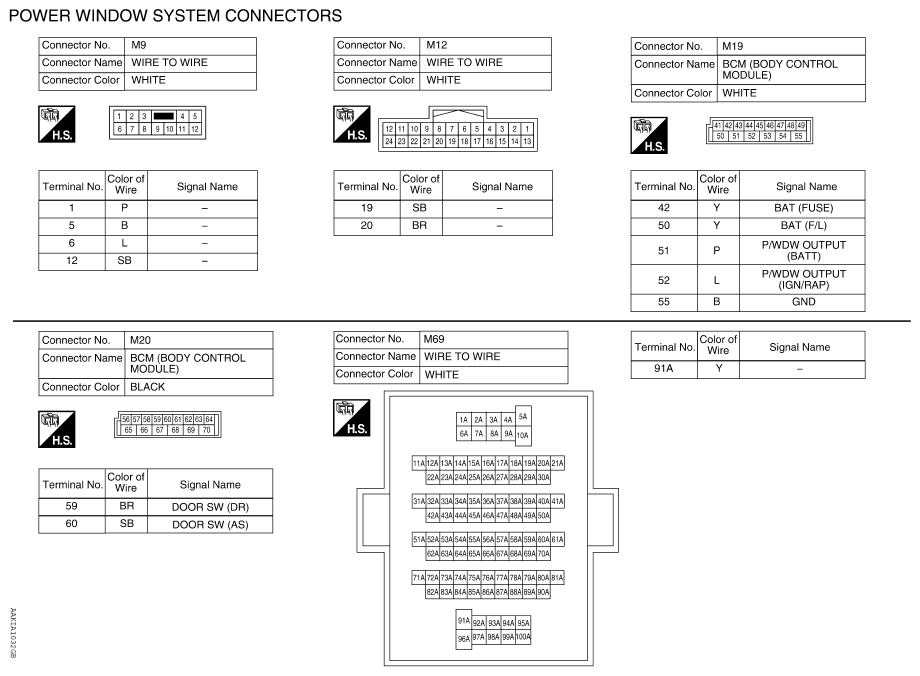

Fig 1: Power Window System Connector End View (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

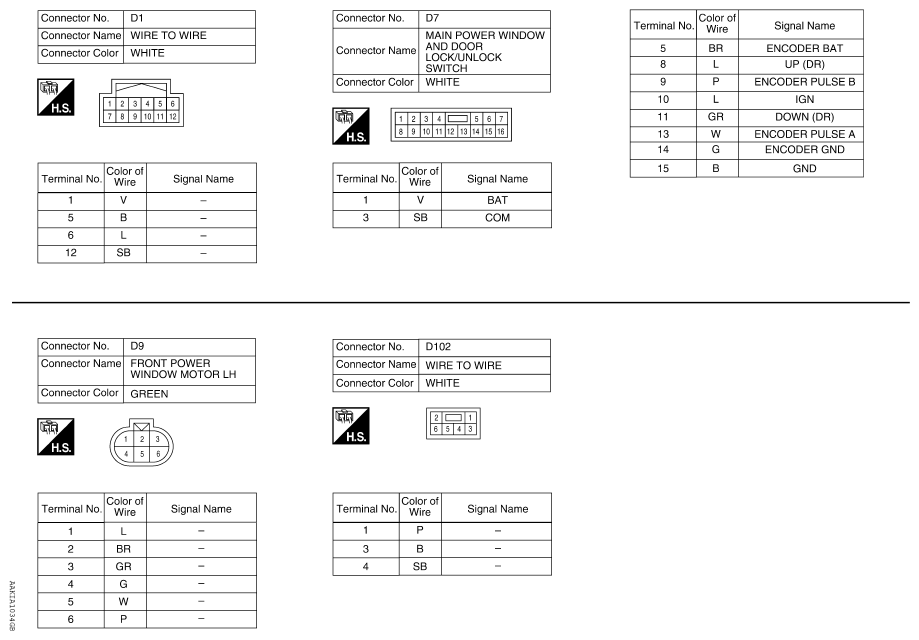

Fig 2: Power Window System Connector End View (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

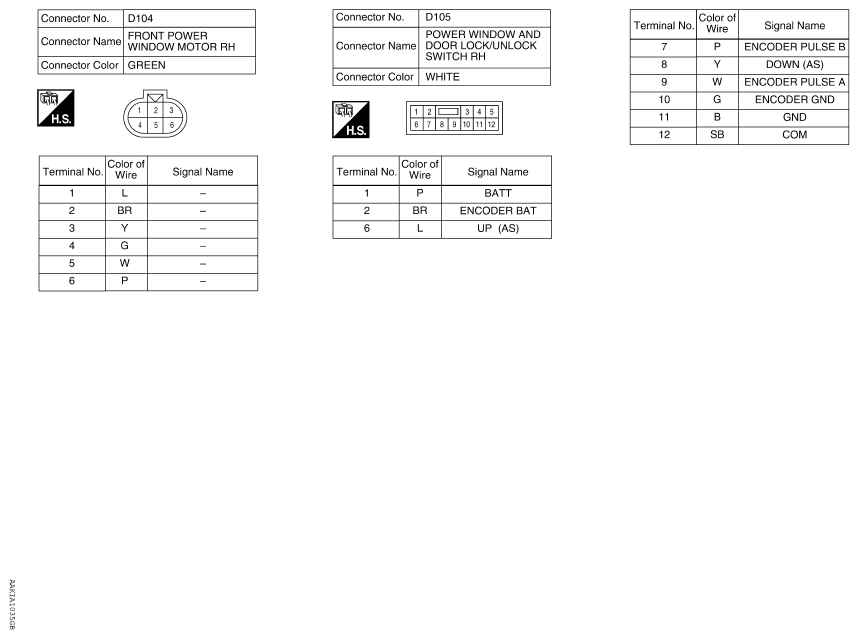

Fig 3: Power Window System Connector End View (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Power Window System Connector End View (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
