Connector End Views

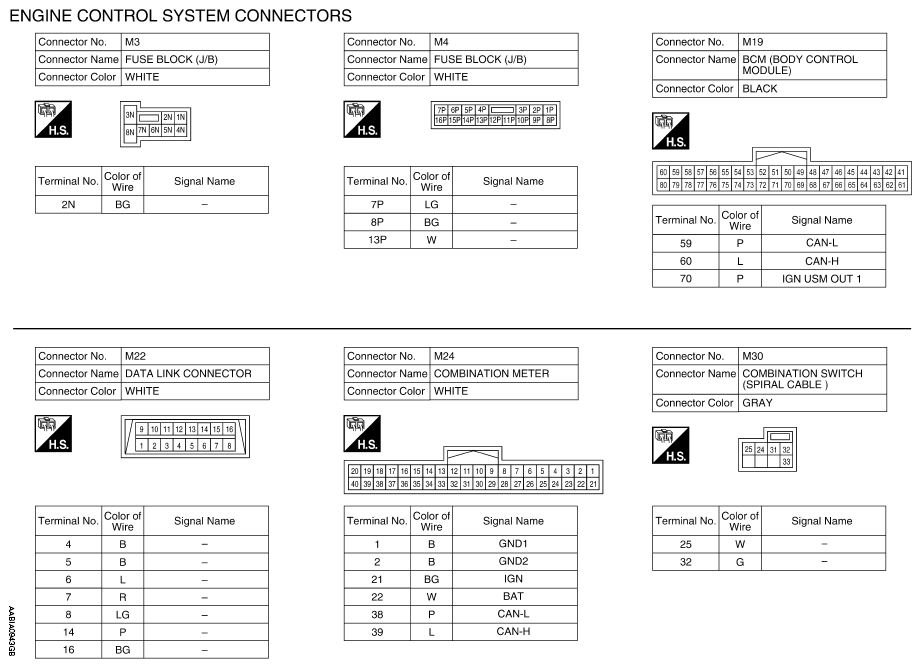

Fig 1: Engine Control System Connector End Views (1 Of 22)
G09151736Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Engine Control System Connector End Views (2 Of 22)
G09151737Courtesy of NISSAN NORTH AMERICA, INC.

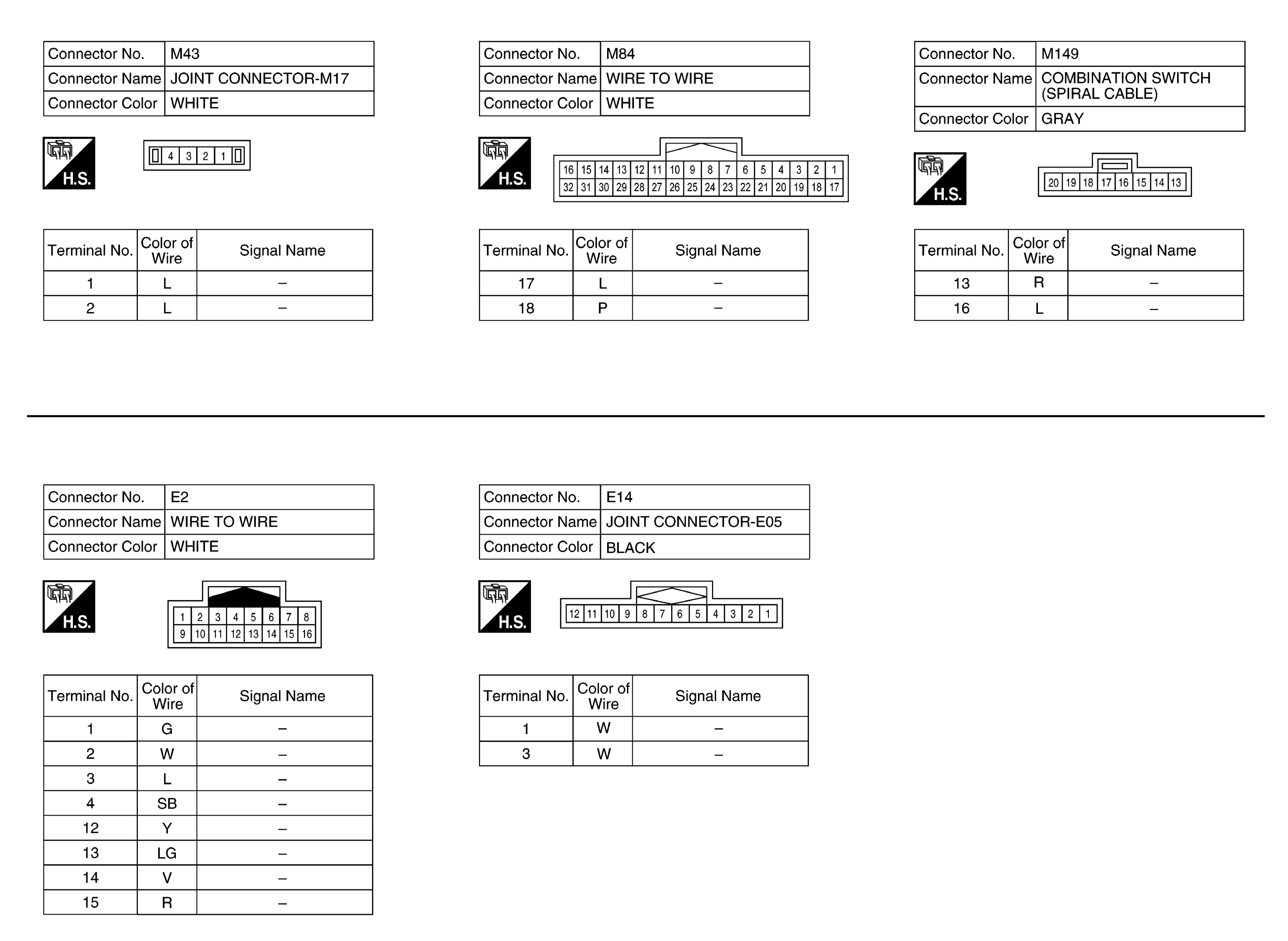

Fig 3: Engine Control System Connector End Views (3 Of 22)
G09151738Courtesy of NISSAN NORTH AMERICA, INC.

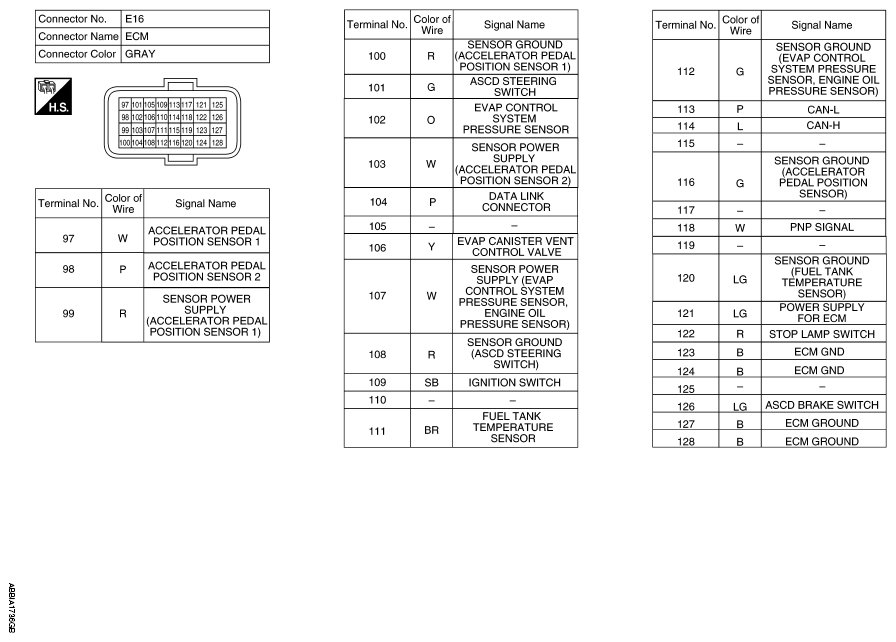

Fig 4: Engine Control System Connector End Views (4 Of 22)
G09151739Courtesy of NISSAN NORTH AMERICA, INC.

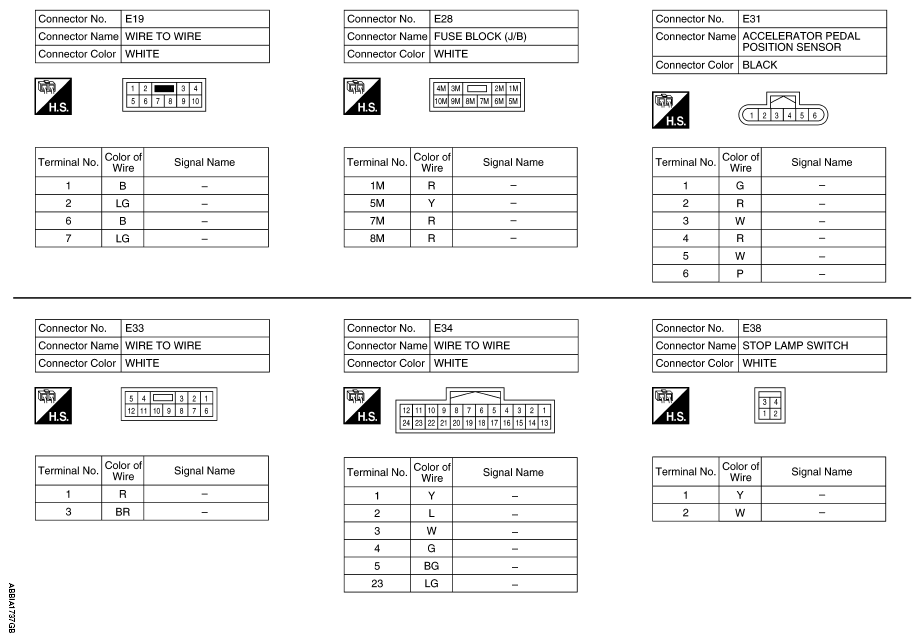

Fig 5: Engine Control System Connector End Views (5 Of 22)
G09151740Courtesy of NISSAN NORTH AMERICA, INC.

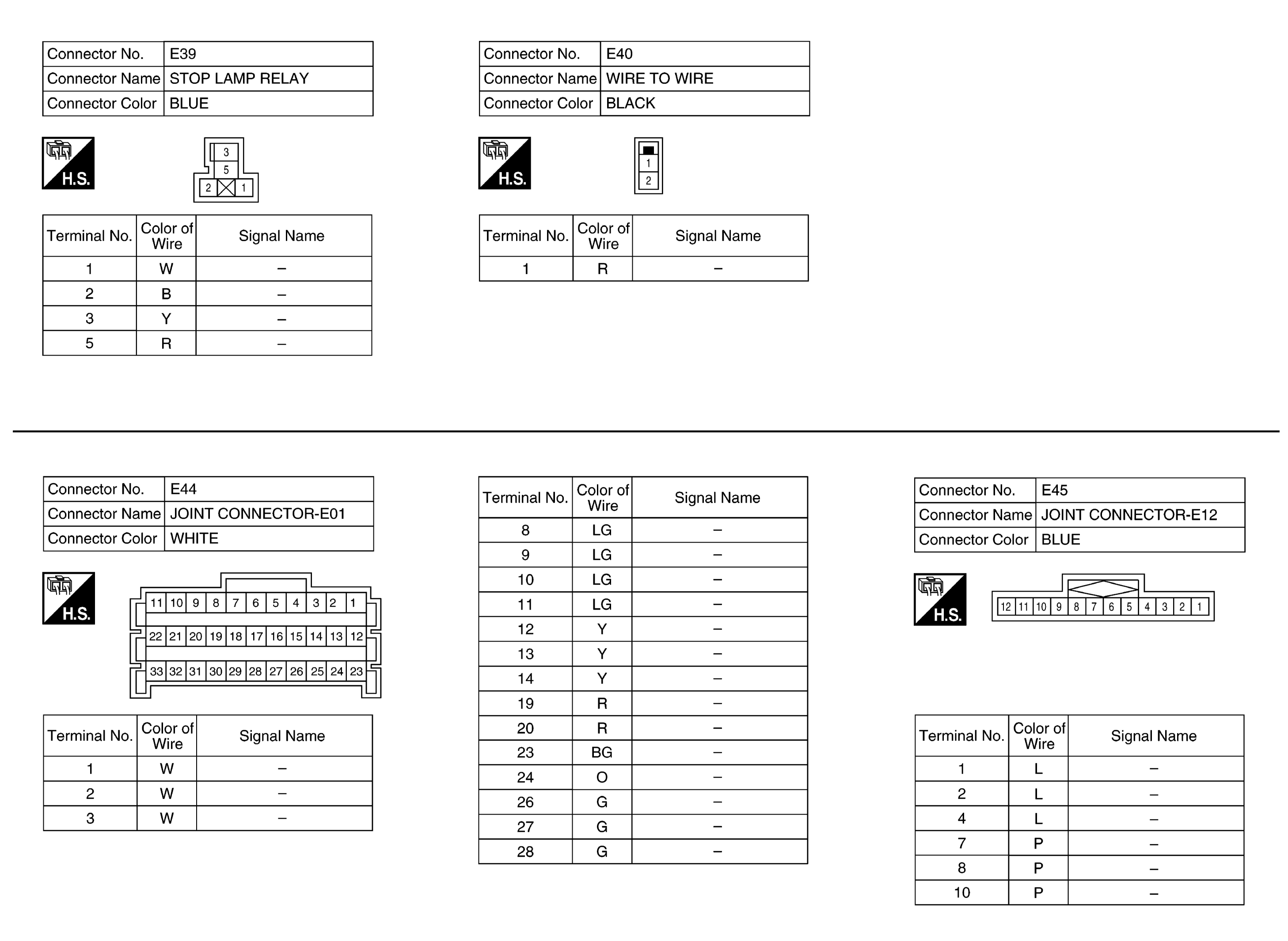

Fig 6: Engine Control System Connector End Views (6 Of 22)
G09151741Courtesy of NISSAN NORTH AMERICA, INC.

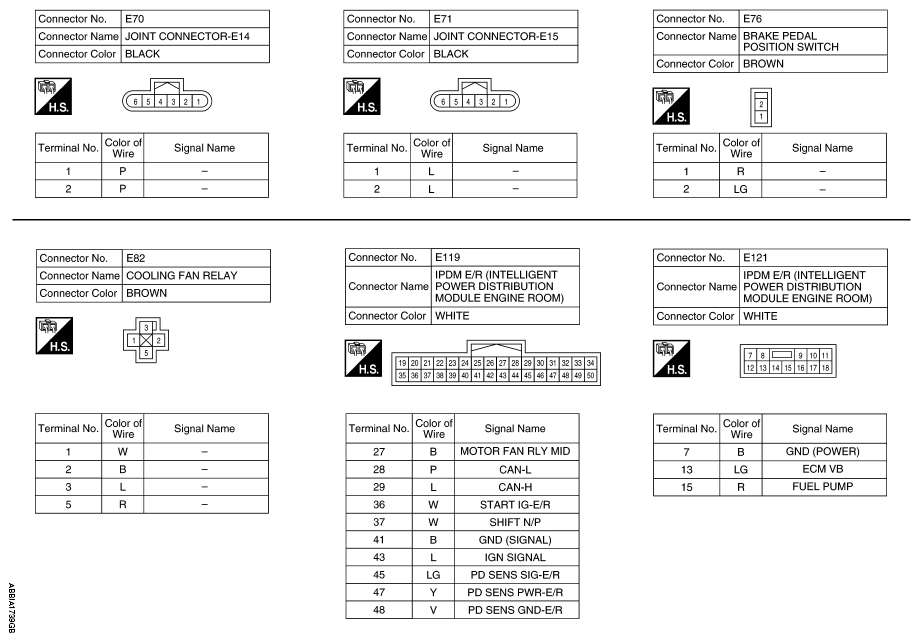

Fig 7: Engine Control System Connector End Views (7 Of 22)
G09151742Courtesy of NISSAN NORTH AMERICA, INC.

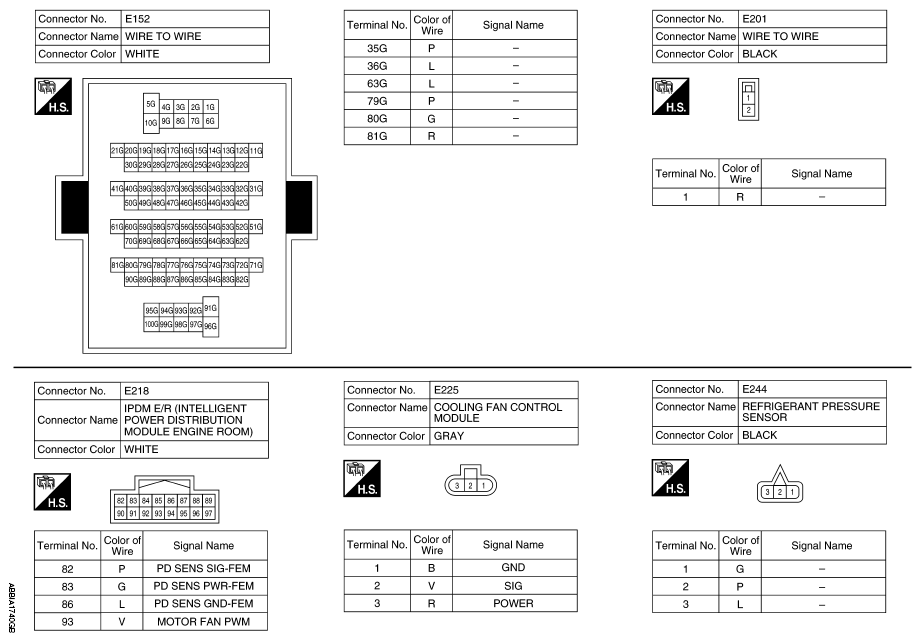

Fig 8: Engine Control System Connector End Views (8 Of 22)
G09151743Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Engine Control System Connector End Views (9 Of 22)
G09151744Courtesy of NISSAN NORTH AMERICA, INC.

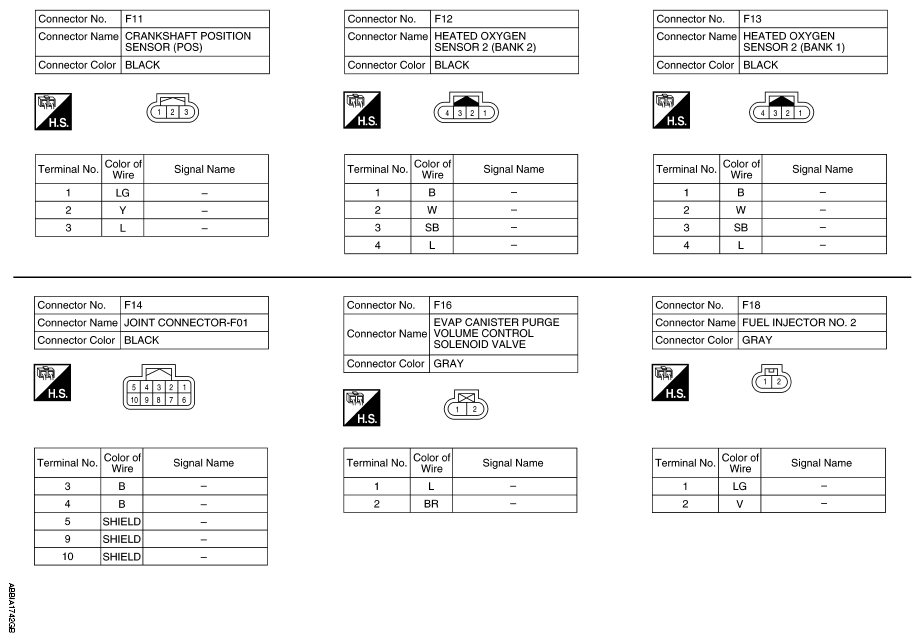

Fig 10: Engine Control System Connector End Views (10 Of 22)
G09151745Courtesy of NISSAN NORTH AMERICA, INC.

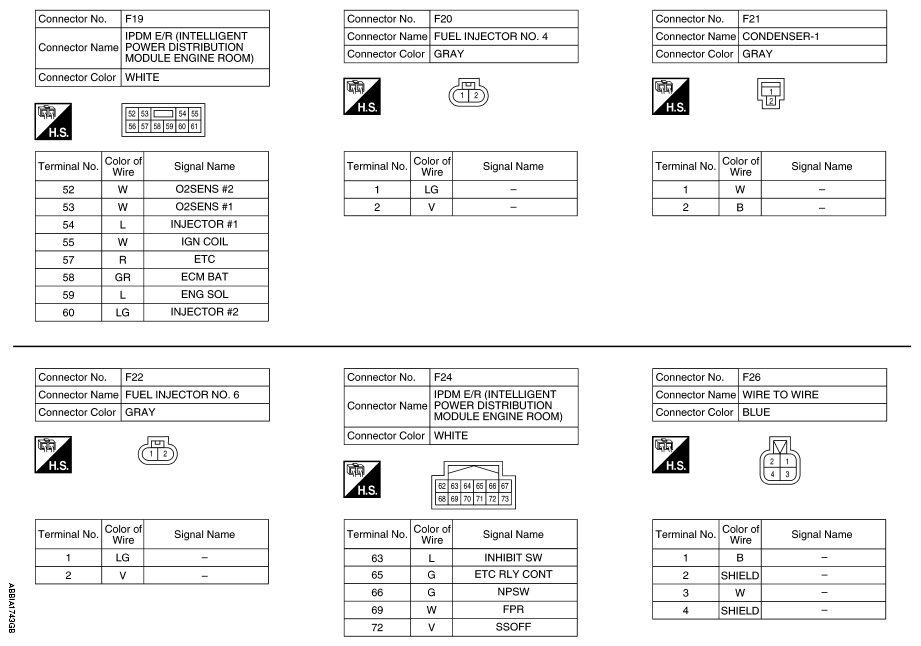

Fig 11: Engine Control System Connector End Views (11 Of 22)
G09151746Courtesy of NISSAN NORTH AMERICA, INC.

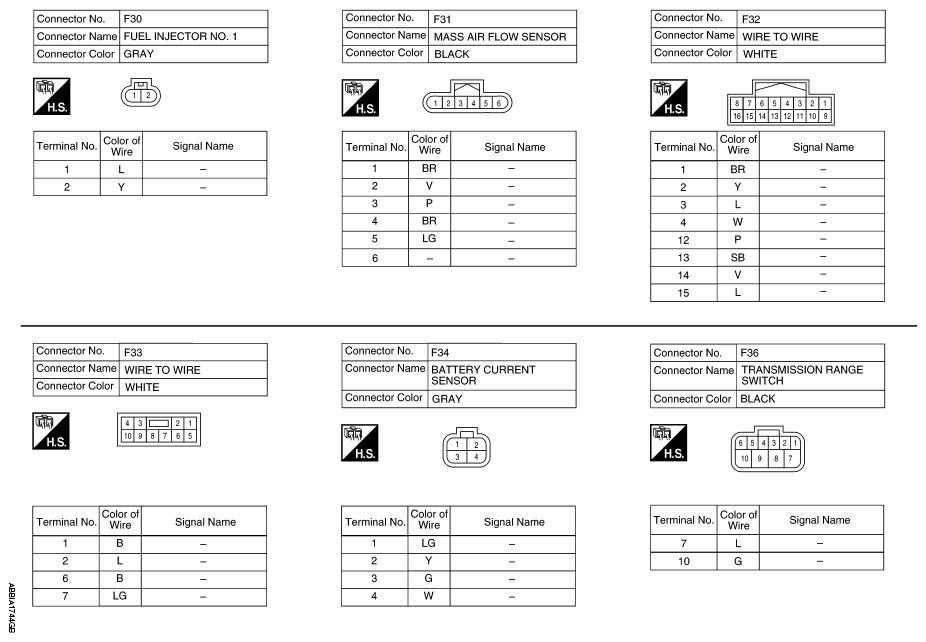

Fig 12: Engine Control System Connector End Views (12 Of 22)
G09151747Courtesy of NISSAN NORTH AMERICA, INC.

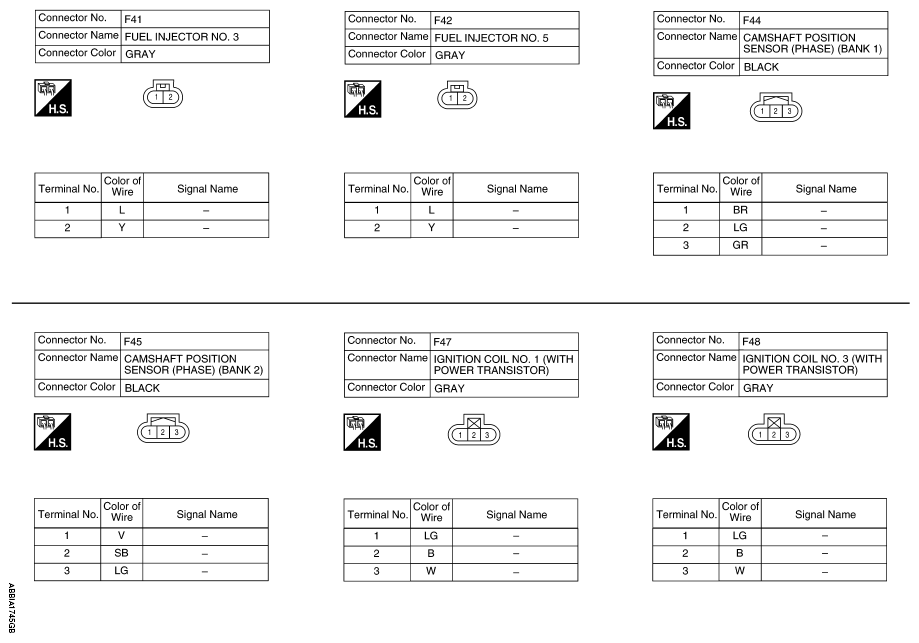

Fig 13: Engine Control System Connector End Views (13 Of 22)
G09151748Courtesy of NISSAN NORTH AMERICA, INC.

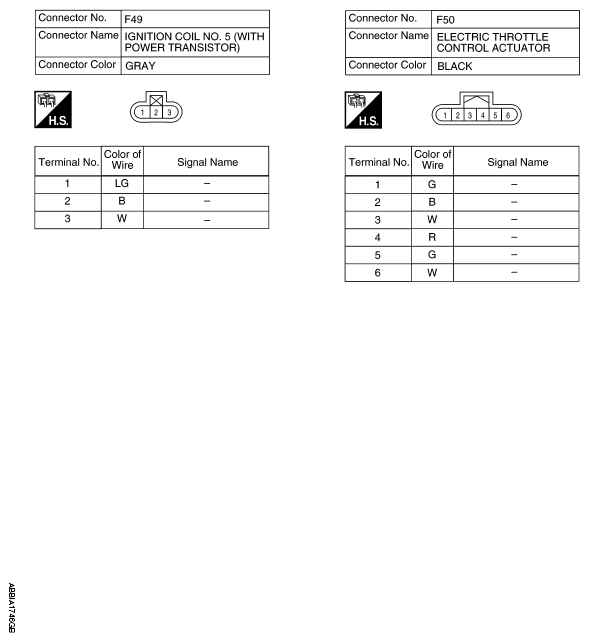

Fig 14: Engine Control System Connector End Views (14 Of 22)
G09151749Courtesy of NISSAN NORTH AMERICA, INC.

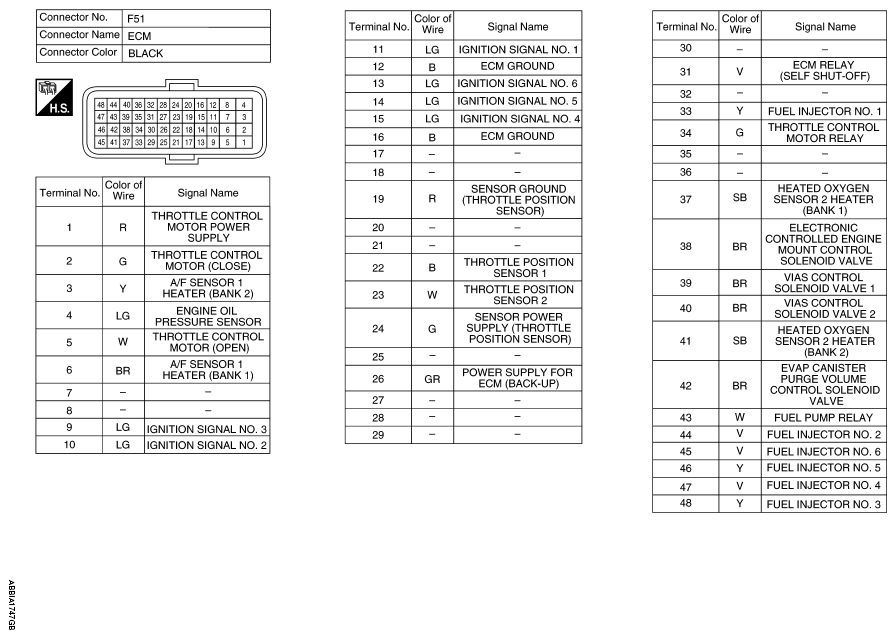

Fig 15: Engine Control System Connector End Views (15 Of 22)
G09151750Courtesy of NISSAN NORTH AMERICA, INC.
Fig 16: Engine Control System Connector End Views (16 Of 22)
G09151751Courtesy of NISSAN NORTH AMERICA, INC.

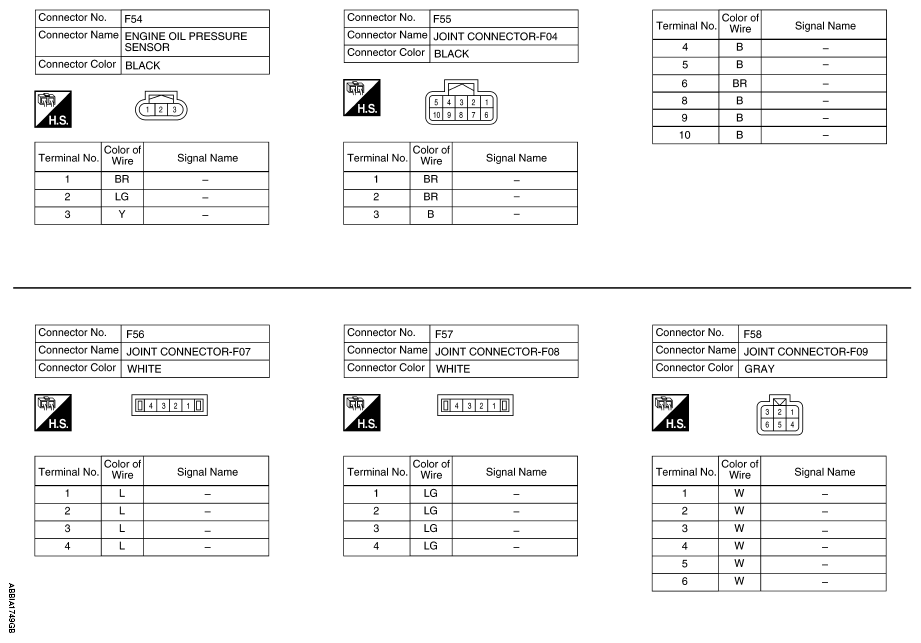

Fig 17: Engine Control System Connector End Views (17 Of 22)
G09151752Courtesy of NISSAN NORTH AMERICA, INC.

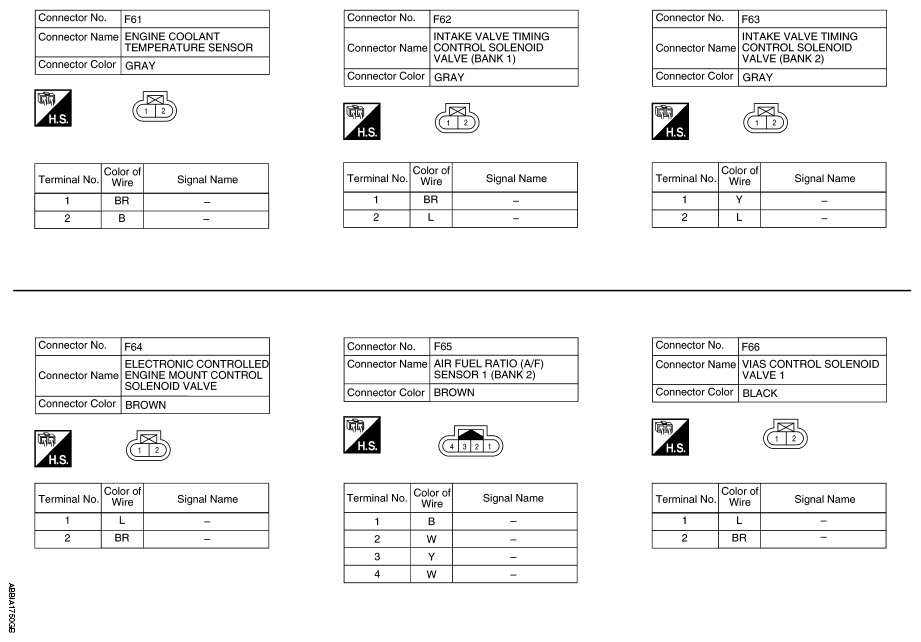

Fig 18: Engine Control System Connector End Views (18 Of 22)
G09151753Courtesy of NISSAN NORTH AMERICA, INC.

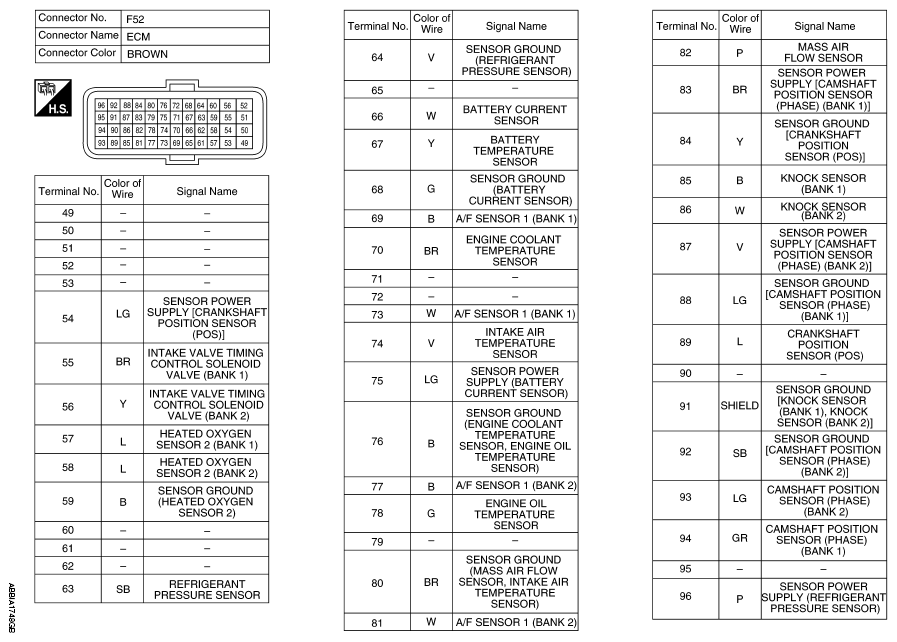

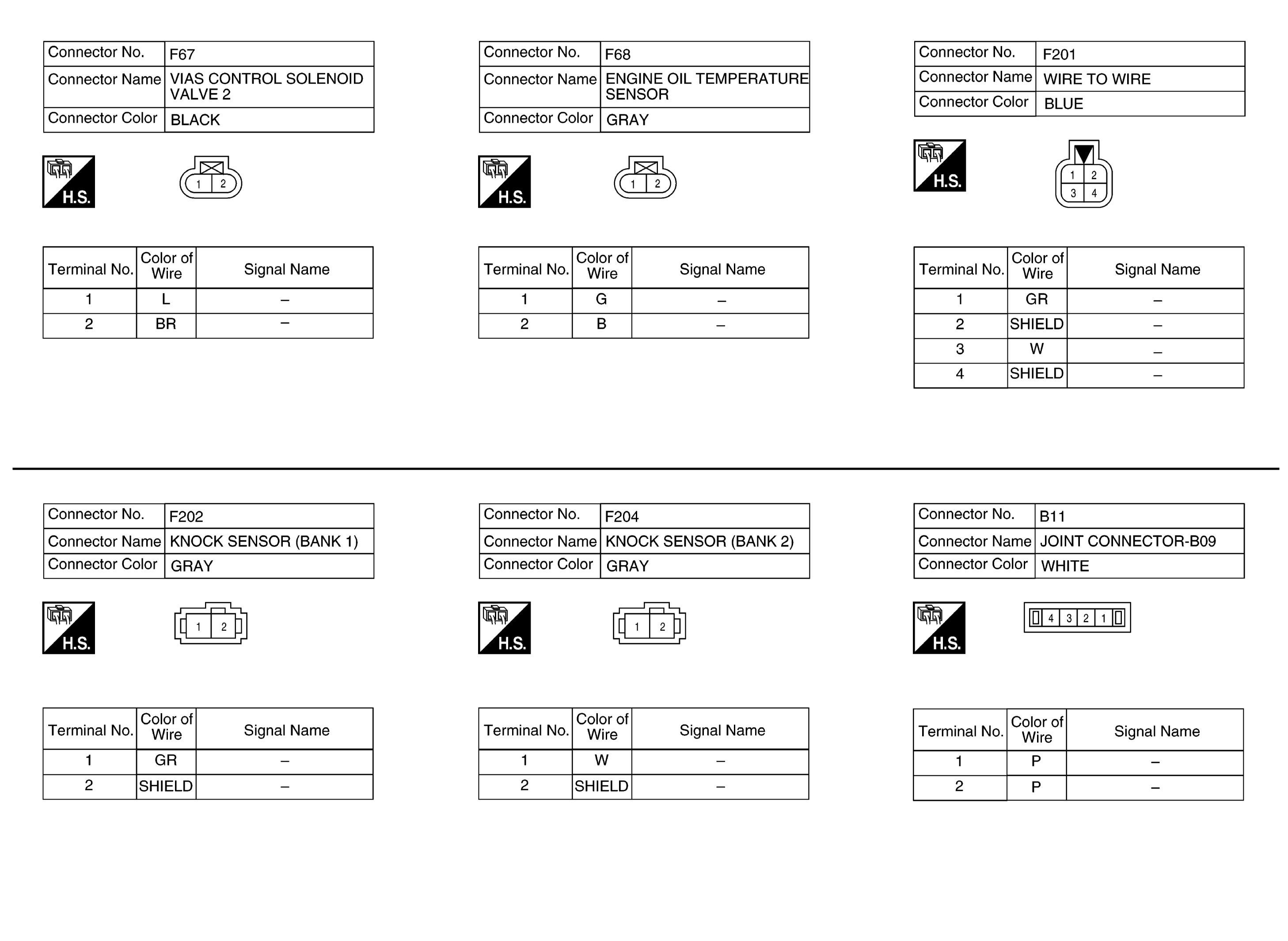

Fig 19: Engine Control System Connector End Views (19 Of 22)
G09151754Courtesy of NISSAN NORTH AMERICA, INC.

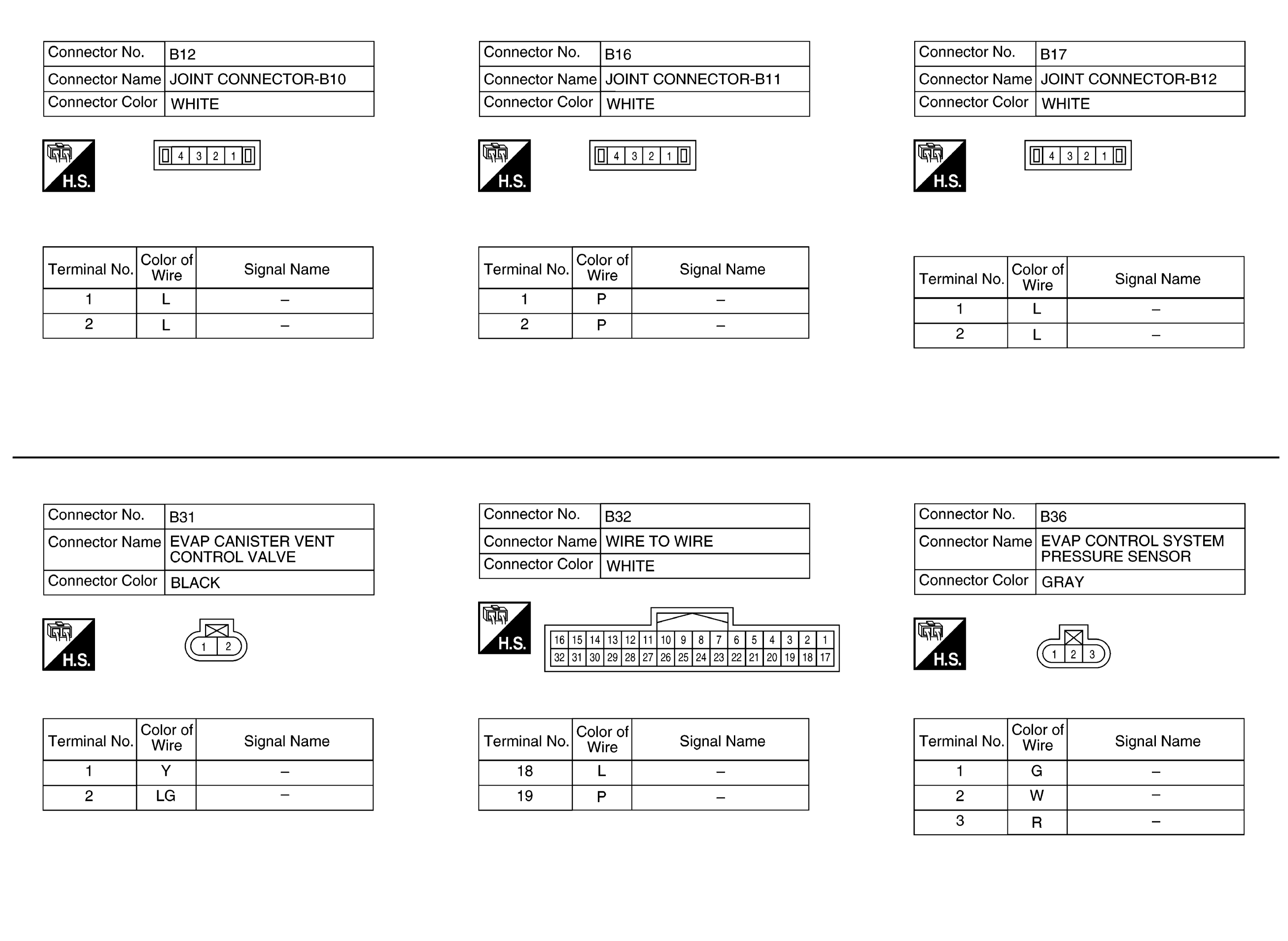

Fig 20: Engine Control System Connector End Views (20 Of 22)
G09151755Courtesy of NISSAN NORTH AMERICA, INC.
Fig 21: Engine Control System Connector End Views (21 Of 22)
G09151756Courtesy of NISSAN NORTH AMERICA, INC.

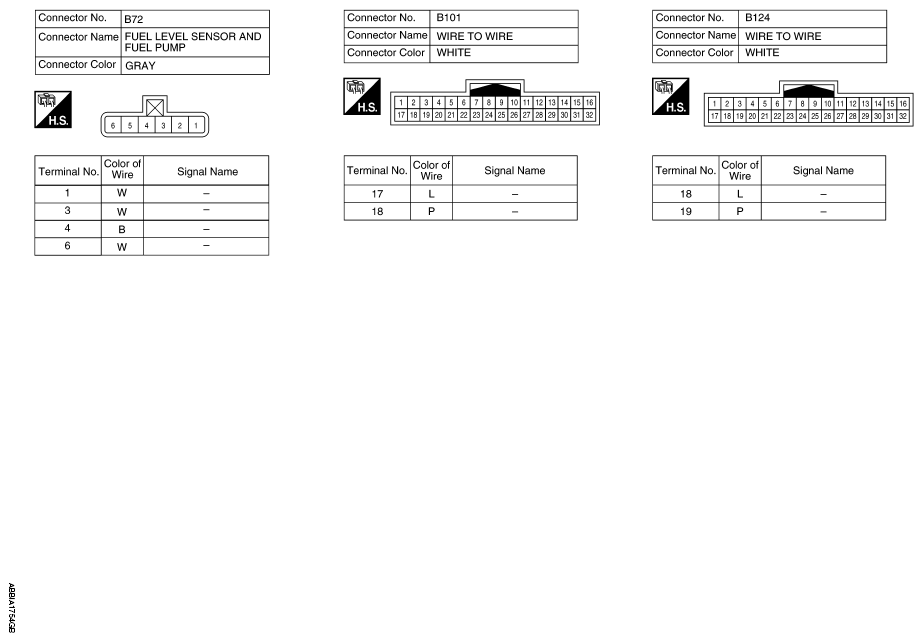

Fig 22: Engine Control System Connector End Views (22 Of 22)
G09151757Courtesy of NISSAN NORTH AMERICA, INC.
