| (1) |
IPDM E/R |

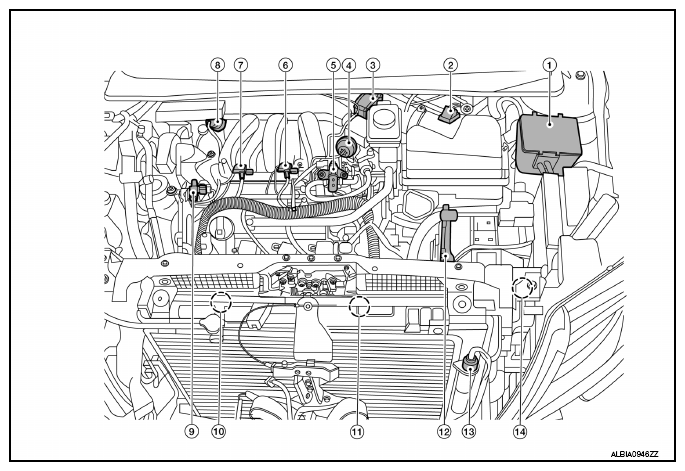

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication.
Refer to
"COMPONENT PARTS LOCATION
" for detailed installation location. |
| (2) |
Mass air flow sensor (with intake air temperature sensor) |
"MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) " |
| (3) |
Electric throttle control actuator |
"ELECTRIC THROTTLE CONTROL ACTUATOR " |
| (4) |
Power valve actuator 2 |
"POWER VALVE ACTUATOR 1 AND 2 " |
| (5) |
EVAP canister purge volume control solenoid valve |
"EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE " |
| (6) |
VIAS control solenoid valve 2 |
"VIAS CONTROL SOLENOID VALVE 1 AND 2 " |
| (7) |
VIAS control solenoid valve 1 |
"VIAS CONTROL SOLENOID VALVE 1 AND 2 " |
| (8) |
Power valve actuator 1 |
"POWER VALVE ACTUATOR 1 AND 2 " |
| (9) |
Electronic controlled engine mount control solenoid valve |
"ELECTRONIC CONTROLLED ENGINE MOUNT " |
| (10) |
Cooling fan motor-2 |
"COOLING FAN MOTOR & COOLING FAN CONTROL MODULE " |
| (11) |
Cooling fan motor-1 |
"COOLING FAN MOTOR & COOLING FAN CONTROL MODULE " |
| (12) |
ECM |
"ECM " |
| (13) |
Refrigerant pressure sensor |
"REFRIGERANT PRESSURE SENSOR " Refer to
"FRONT AUTOMATIC AIR CONDITIONING SYSTEM: COMPONENT PARTS LOCATION
" for detailed installation location. |
| (14) |
Battery current sensor (with battery temperature sensor) |
"BATTERY CURRENT SENSOR (WITH BATTERY TEMPERATURE SENSOR) " |
