FRONT AUTOMATIC AIR CONDITIONING SYSTEM : Temperature Control
WARNING: This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- When ignition switch is in the ON position, A/C auto amp. always automatically controls temperature regardless of air conditioning system operational state.

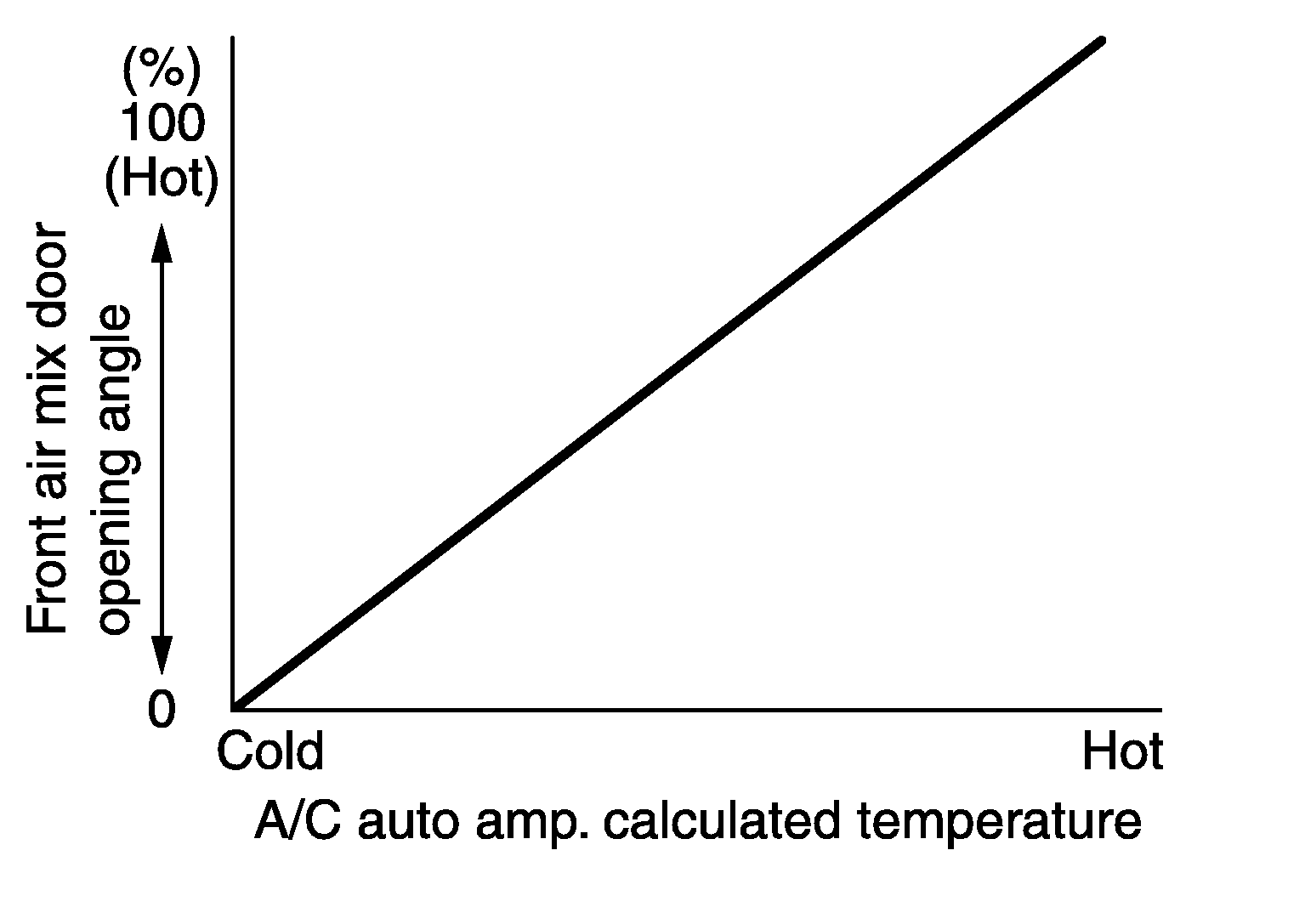

- A/C auto amp. calculates the target front air mix door opening angle depending on set temperature, in-vehicle temperature, ambient temperature, and sunload.
- Front air mix door is controlled depending on the comparison of current front air mix door opening angle and target front air mix door opening angle.
- Regardless of in-vehicle temperature, ambient temperature, and sunload, front air mix door is fixed at the fully cold position when set temperature is 18°C (60°F), and at the fully hot position when set temperature is 32°C (90°F).
