Connector End Views

Fig 1: Security Control System Connector End View (1 Of 12)
G09581061Courtesy of NISSAN NORTH AMERICA, INC.

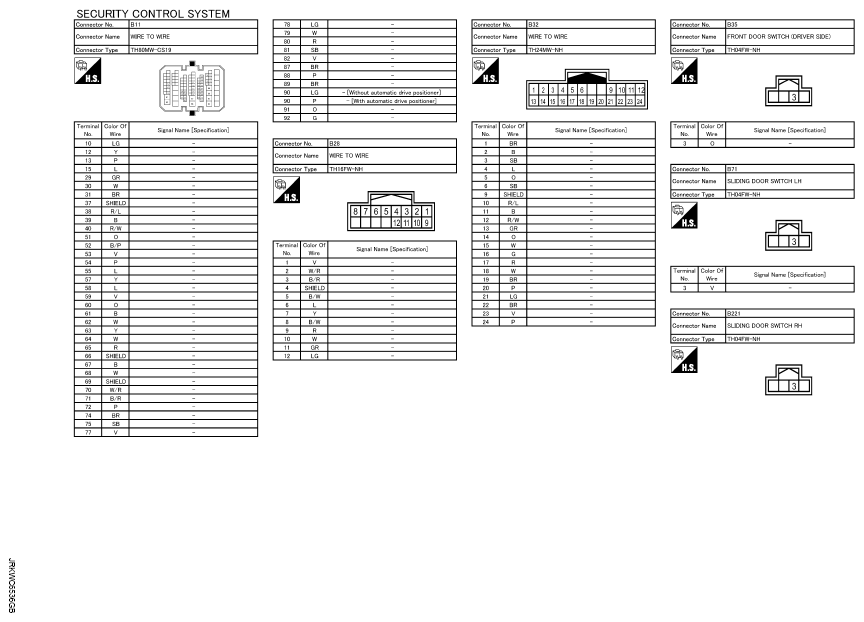

Fig 2: Security Control System Connector End View (2 Of 12)
G09581062Courtesy of NISSAN NORTH AMERICA, INC.

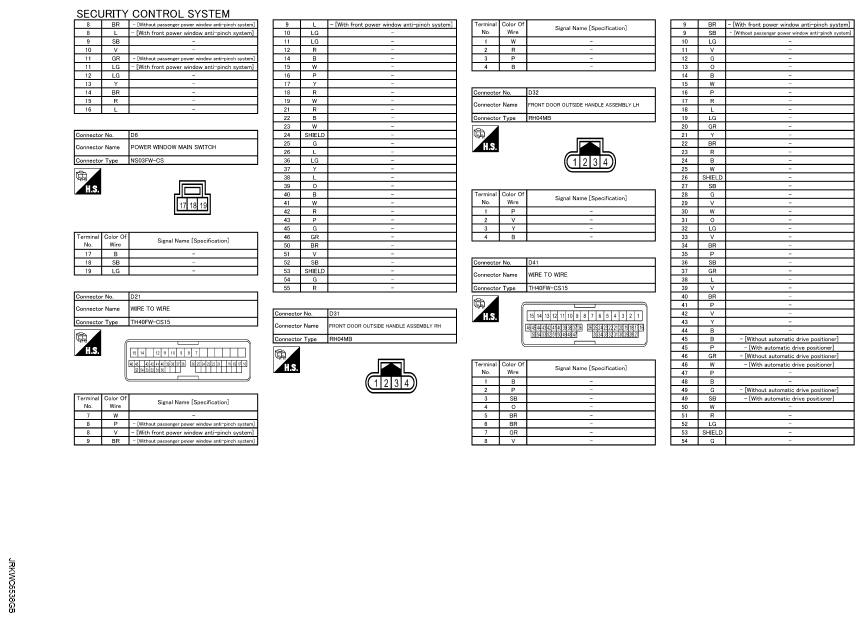

Fig 3: Security Control System Connector End View (3 Of 12)
G09581063Courtesy of NISSAN NORTH AMERICA, INC.

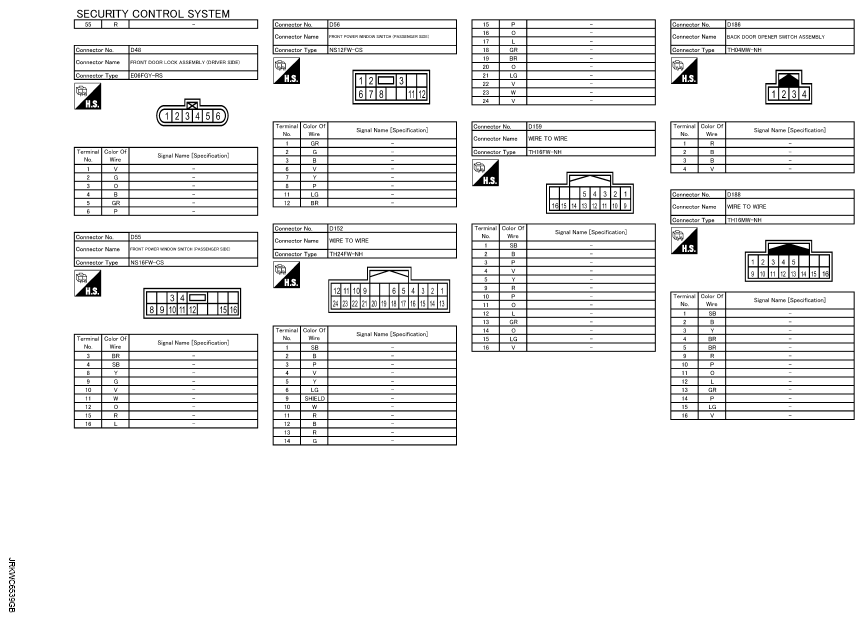

Fig 4: Security Control System Connector End View (4 Of 12)
G09581064Courtesy of NISSAN NORTH AMERICA, INC.

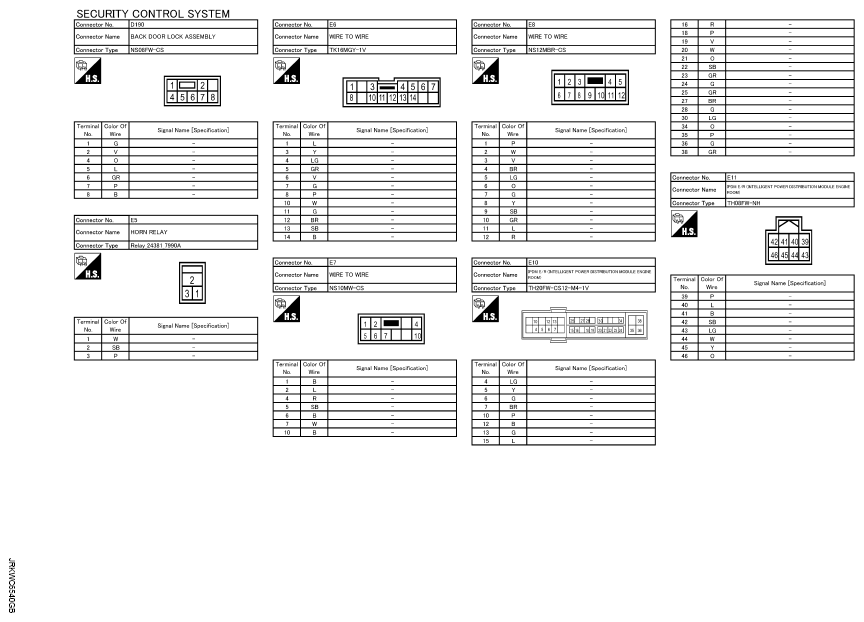

Fig 5: Security Control System Connector End View (5 Of 12)
G09581065Courtesy of NISSAN NORTH AMERICA, INC.

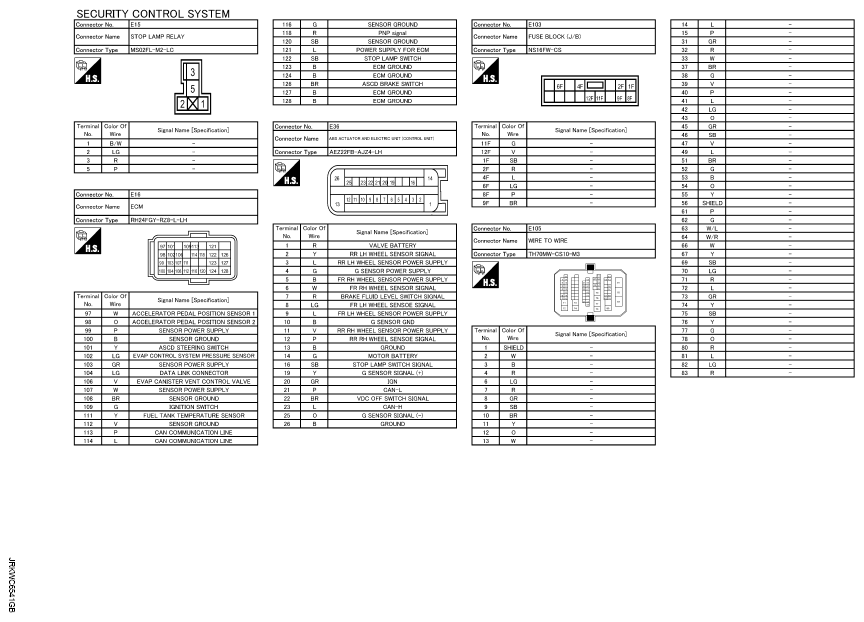

Fig 6: Security Control System Connector End View (6 Of 12)
G09581066Courtesy of NISSAN NORTH AMERICA, INC.

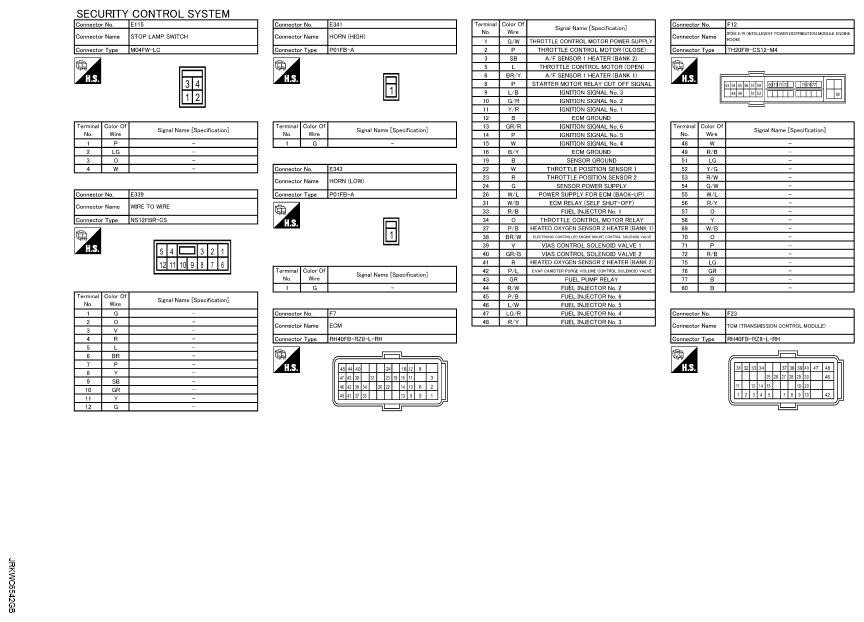

Fig 7: Security Control System Connector End View (7 Of 12)
G09581067Courtesy of NISSAN NORTH AMERICA, INC.

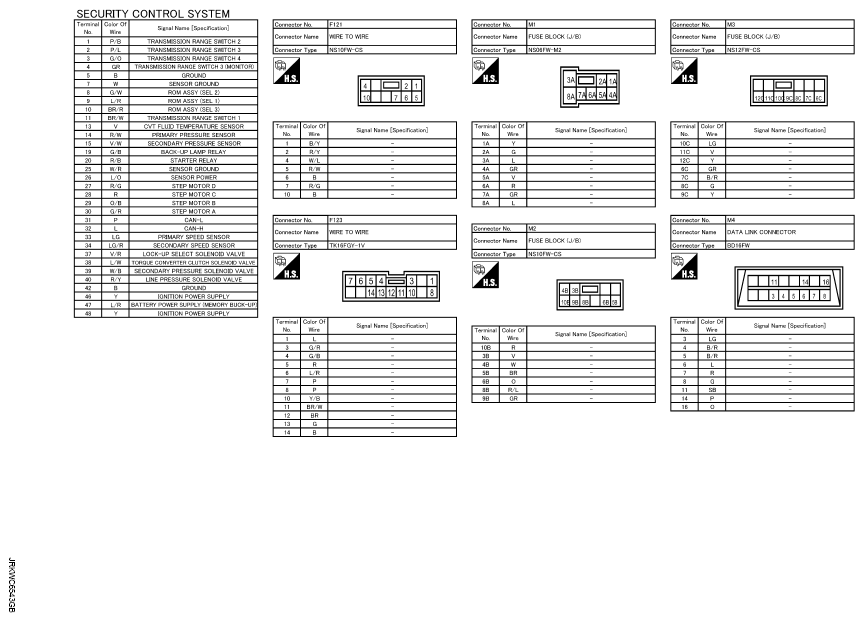

Fig 8: Security Control System Connector End View (8 Of 12)
G09581068Courtesy of NISSAN NORTH AMERICA, INC.

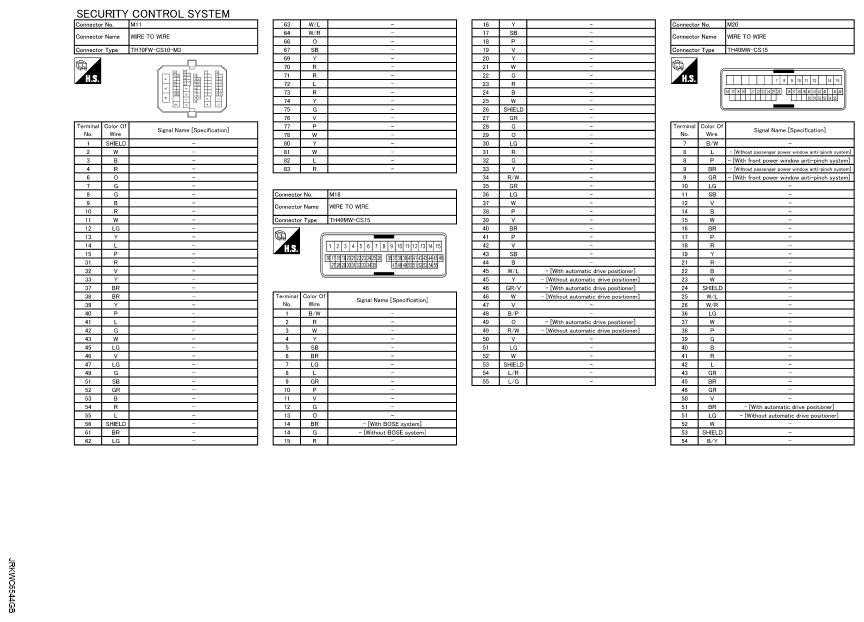

Fig 9: Security Control System Connector End View (9 Of 12)
G09581069Courtesy of NISSAN NORTH AMERICA, INC.

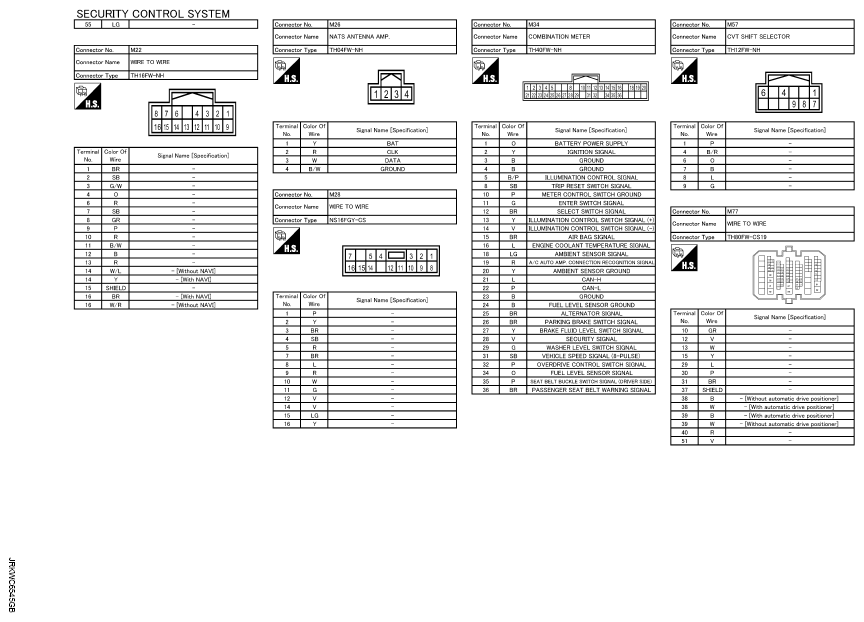

Fig 10: Security Control System Connector End View (10 Of 12)
G09581070Courtesy of NISSAN NORTH AMERICA, INC.

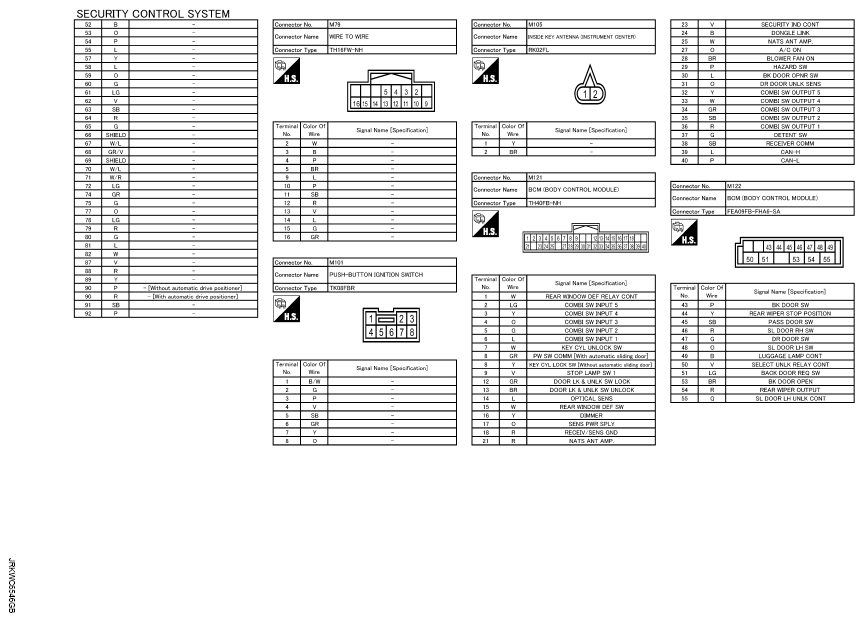

Fig 11: Security Control System Connector End View (11 Of 12)
G09581071Courtesy of NISSAN NORTH AMERICA, INC.

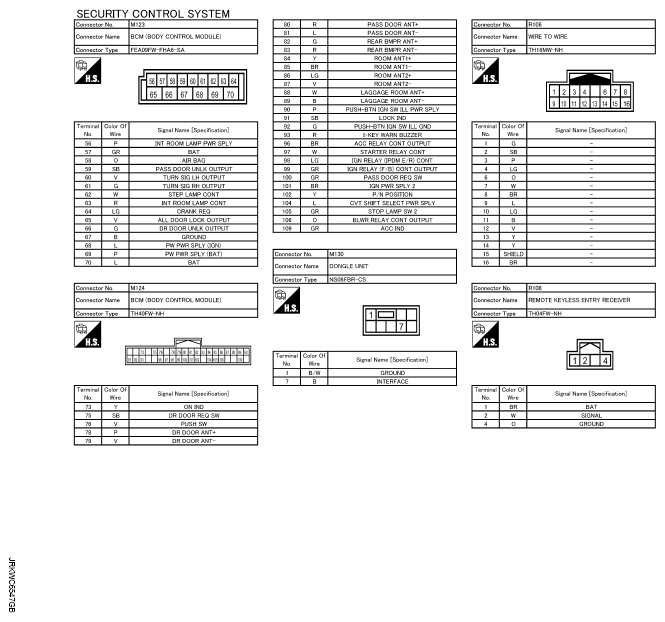

Fig 12: Security Control System Connector End View (12 Of 12)
G09581072Courtesy of NISSAN NORTH AMERICA, INC.
