System - Basic Engine Control System

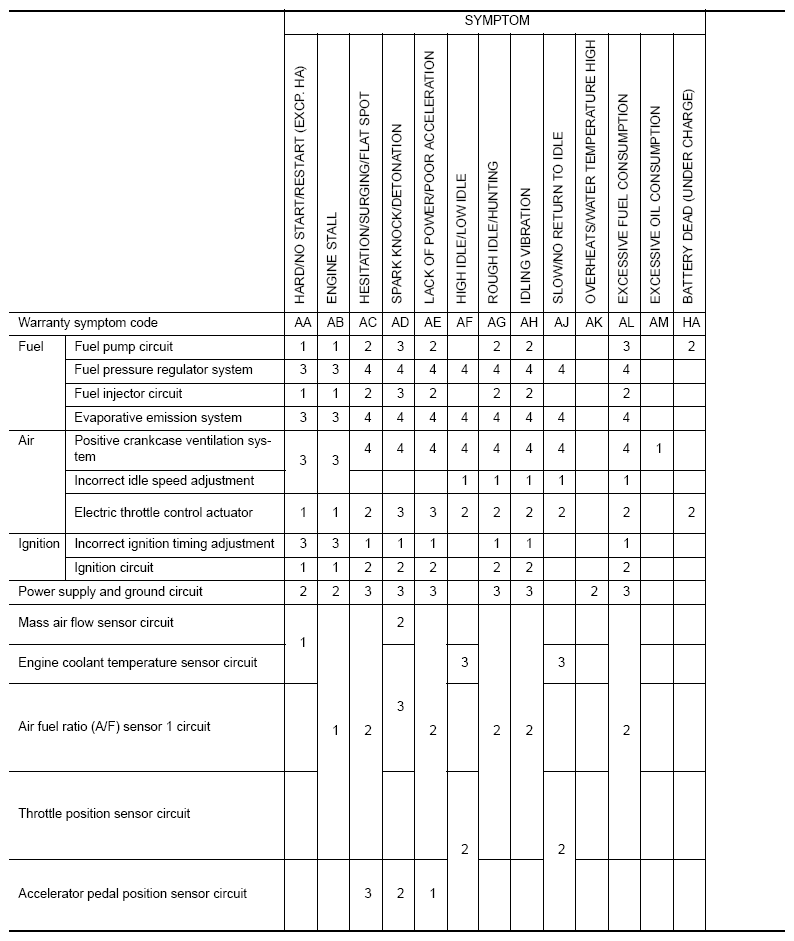

Fig 1: Engine Control System Symptoms Chart (1 Of 2)
G09580971Courtesy of NISSAN NORTH AMERICA, INC.

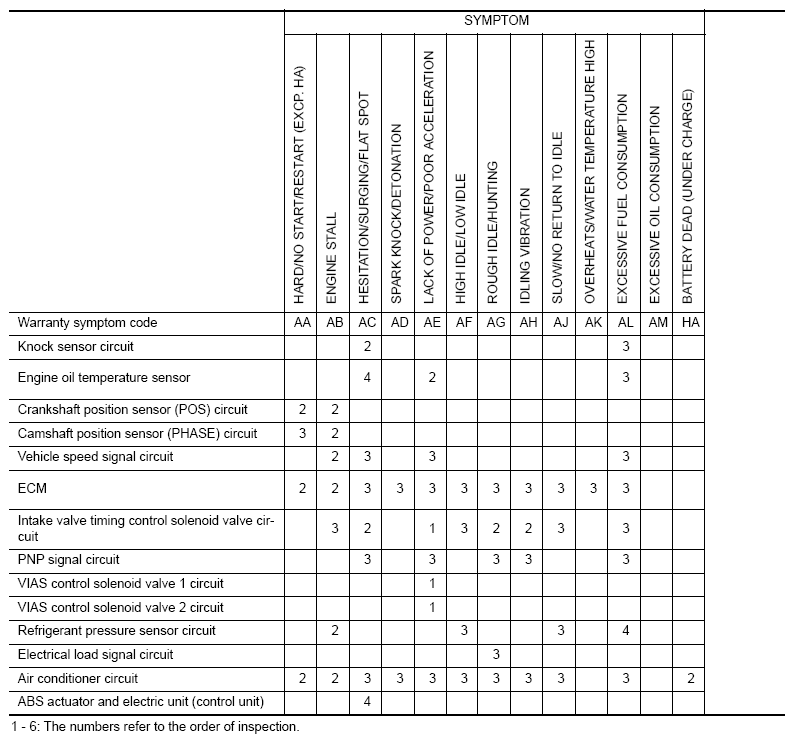

Fig 2: Engine Control System Symptoms Chart (2 Of 2)
G09580972Courtesy of NISSAN NORTH AMERICA, INC.
