Exploded View

CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "CONFIGURATION (BCM): DESCRIPTION ".

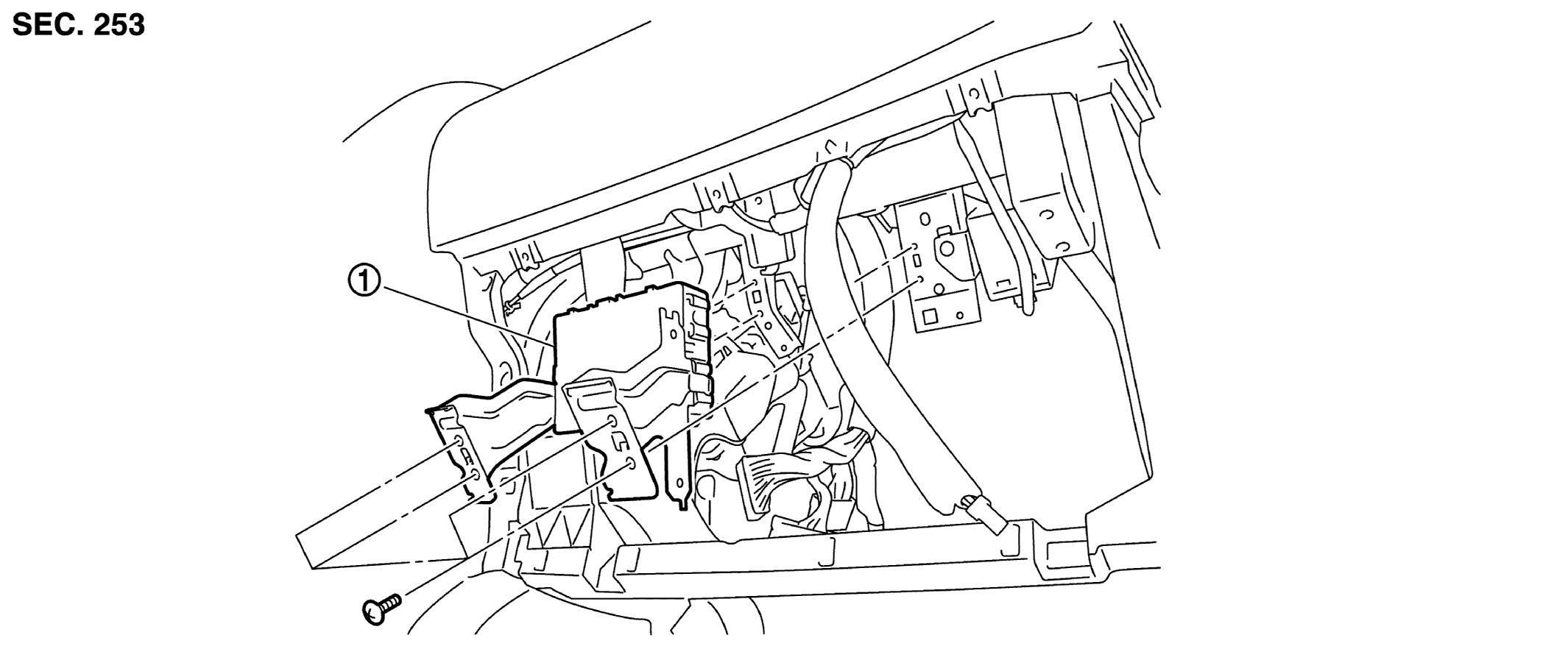

Fig 1: Identifying Body Control Module
G06059686Courtesy of NISSAN NORTH AMERICA, INC.
