Operation Procedure: Notes

  1. Turn ignition switch to the ON position.
  2. Turn the audio unit off.
  3. While pressing the "1" button, turn the volume control dial clockwise or counterclockwise 30 clicks or more. When the self-diagnosis mode is started, a short beep will be heard.
    Fig 1: Turning Volume Control Dial
    G07136074Courtesy of NISSAN NORTH AMERICA, INC.
  4. Initially, all display segments will be illuminated.

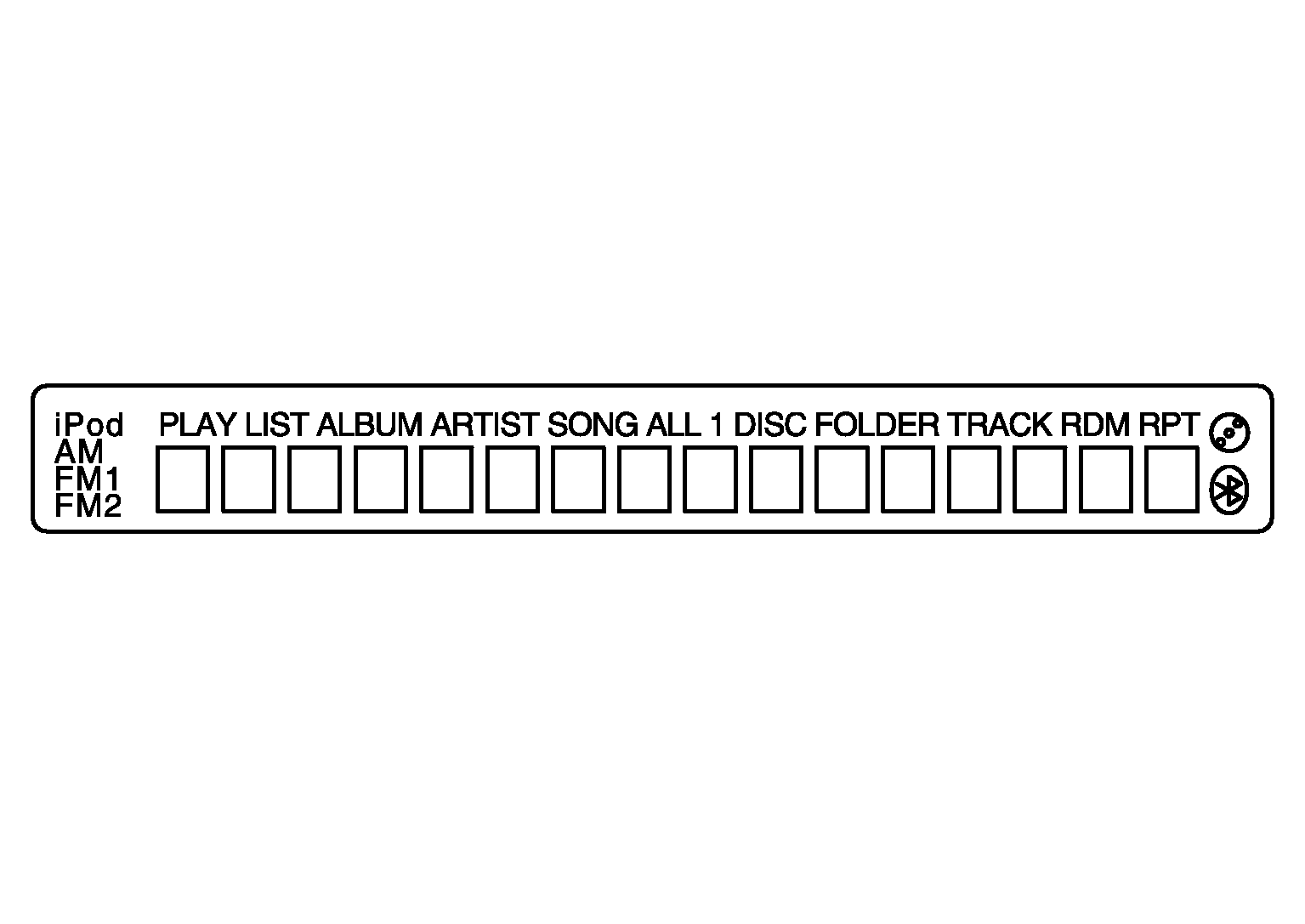

    Fig 2: Display - Illuminated Display Segments Screen
    G05918192Courtesy of NISSAN NORTH AMERICA, INC.
  5. Press the "DISP TEXT" switch to enter version diagnostics. "Soft" (audio software version) is displayed.

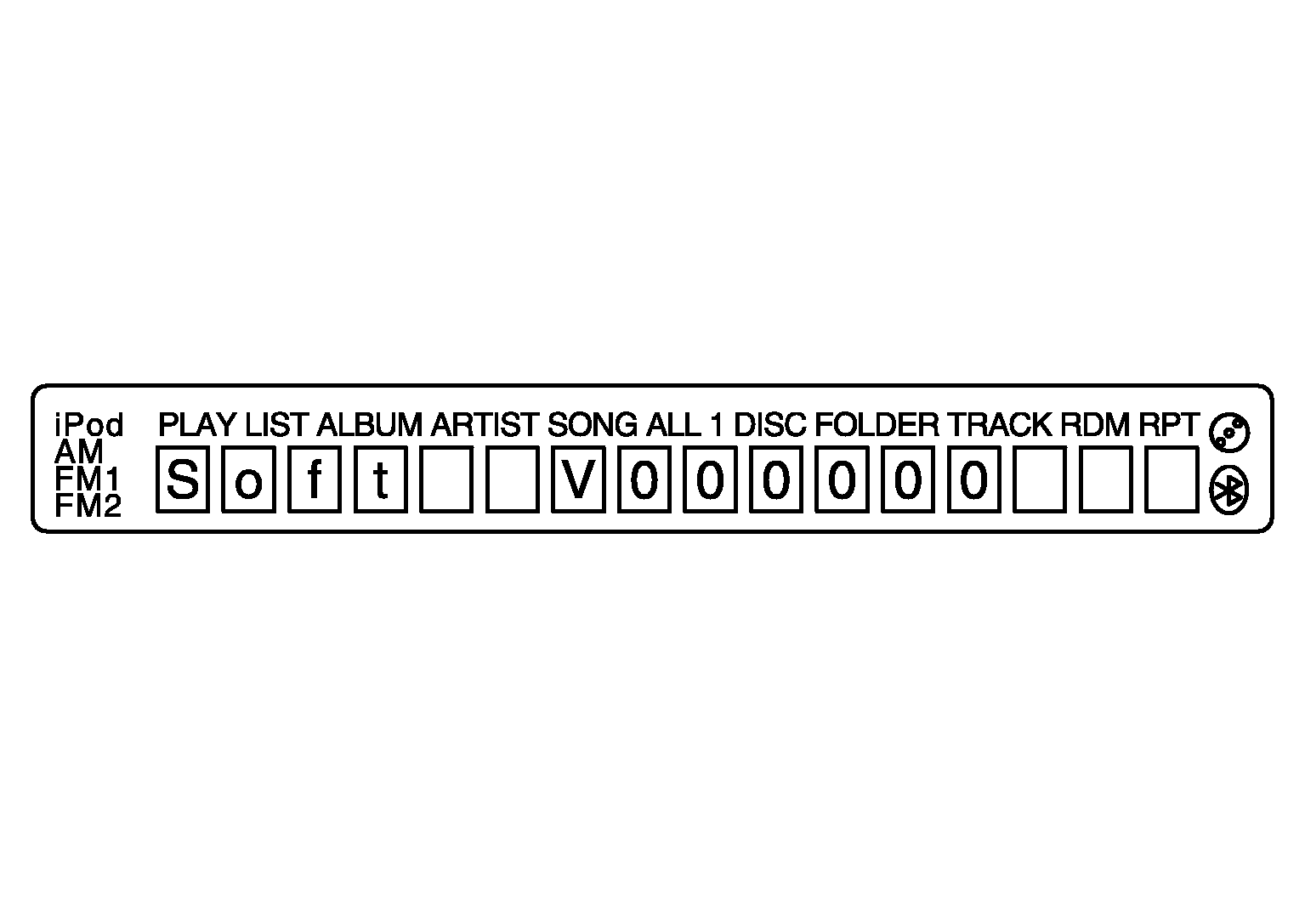

    Fig 3: Display - Soft Screen (Audio Software Version)
    G05918193Courtesy of NISSAN NORTH AMERICA, INC.
  6. Press the "DISP TEXT" switch again to display the "Hard" (audio hardware version).
    Fig 4: Display - Hard Screen (Audio Hardware Version)
    G05918194Courtesy of NISSAN NORTH AMERICA, INC.
  7. Press the "DISP TEXT" switch again to display the "CD Mech" (CD mechanism version).

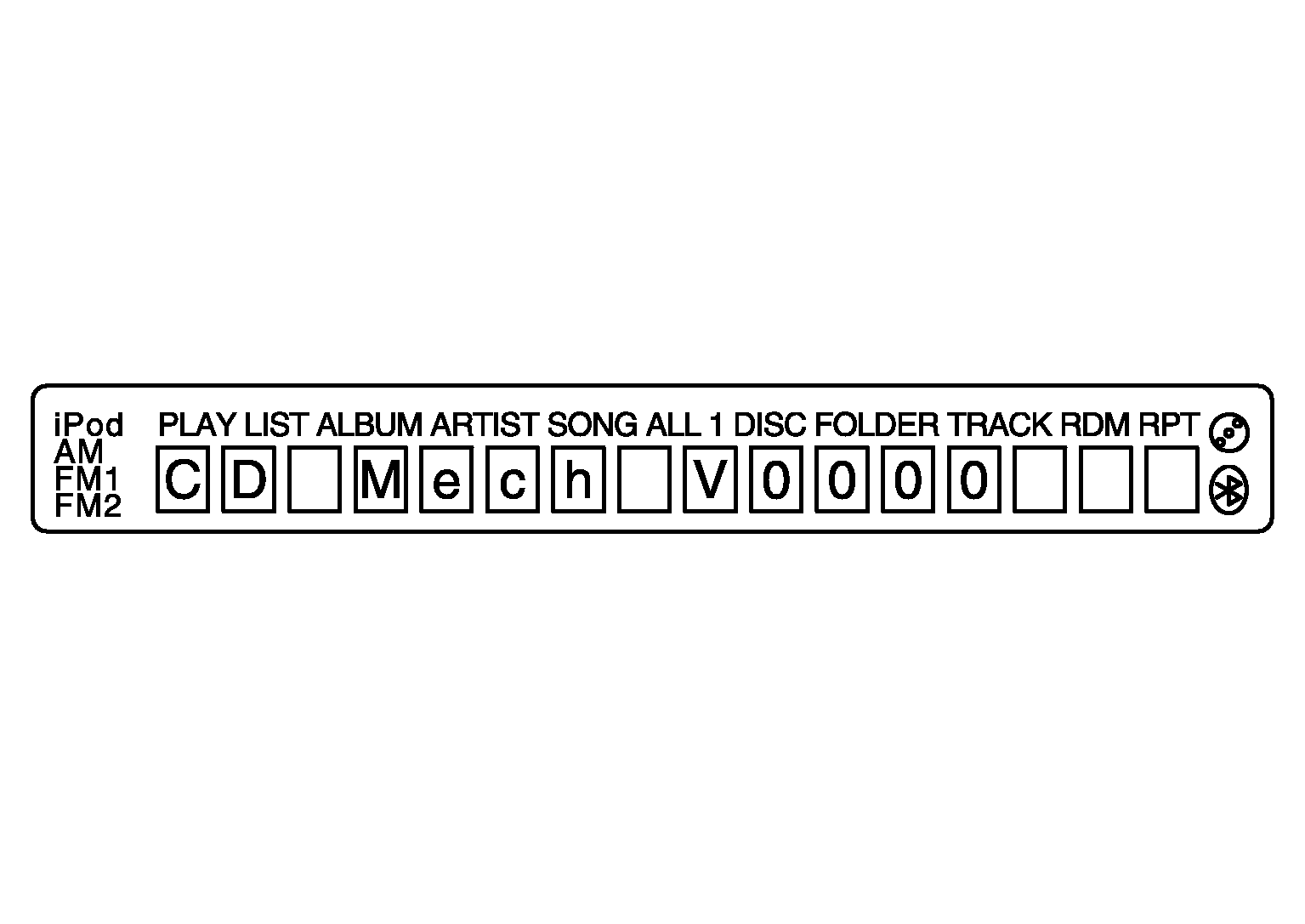

    Fig 5: Display - CD Mech Screen (CD Mechanism Version)
    G05918195Courtesy of NISSAN NORTH AMERICA, INC.
  8. Press the "DISP TEXT" switch again to display the "EEP" (audio unit EEPROM version).
    Fig 6: Display - EEP Screen (Audio Unit EEPROM Version)
    G05918196Courtesy of NISSAN NORTH AMERICA, INC.
  9. Press the "DISP TEXT" switch again to display the "SDARS" (satellite radio version).

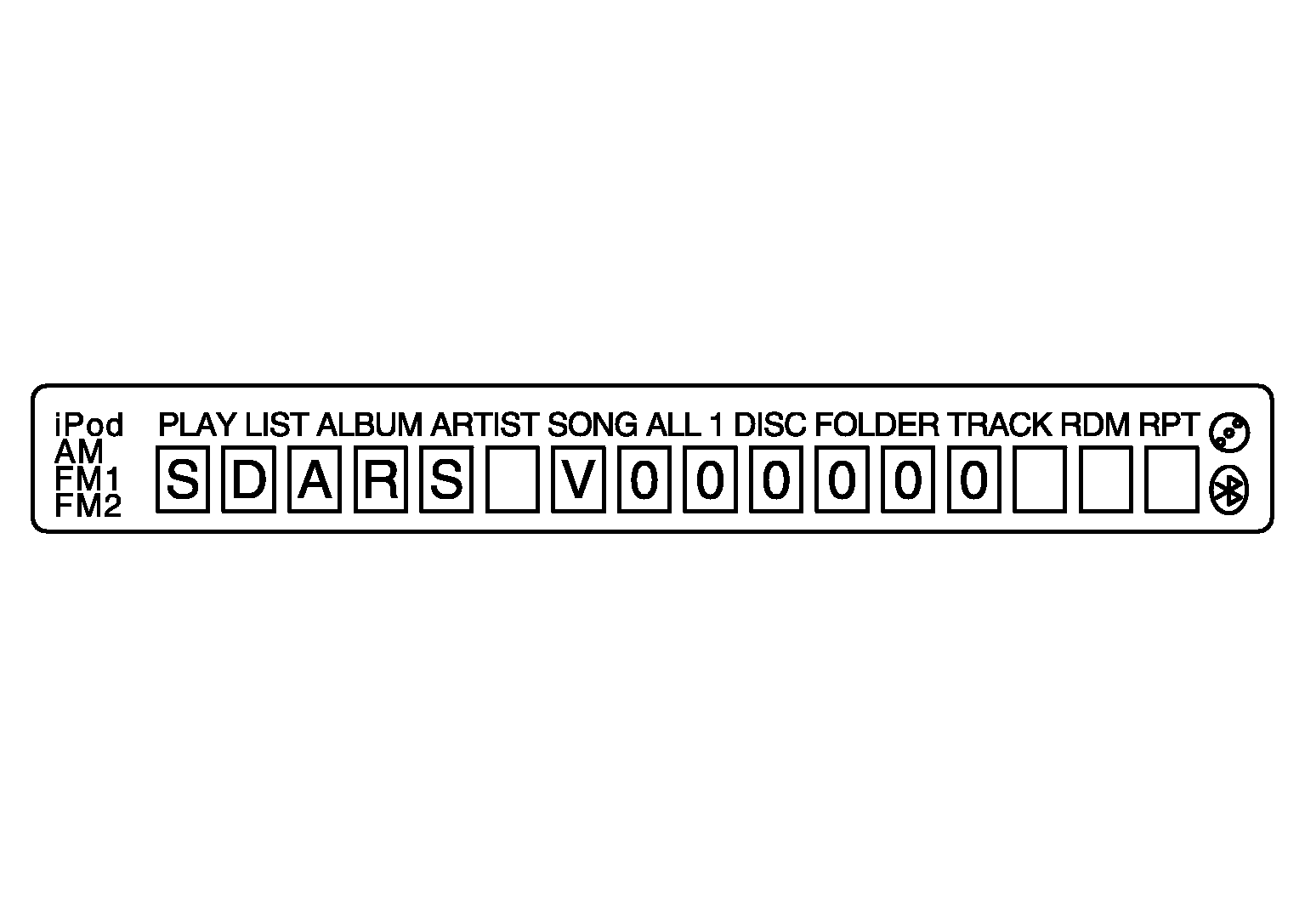

    Fig 7: Display - SDARS Screen (Satellite Radio Version)
    G05918197Courtesy of NISSAN NORTH AMERICA, INC.
  10. Press the "DISP TEXT" switch again to display the "CHG" (audio CD changer version). If audio CD changer is not connected, "FFFFFF" is displayed.

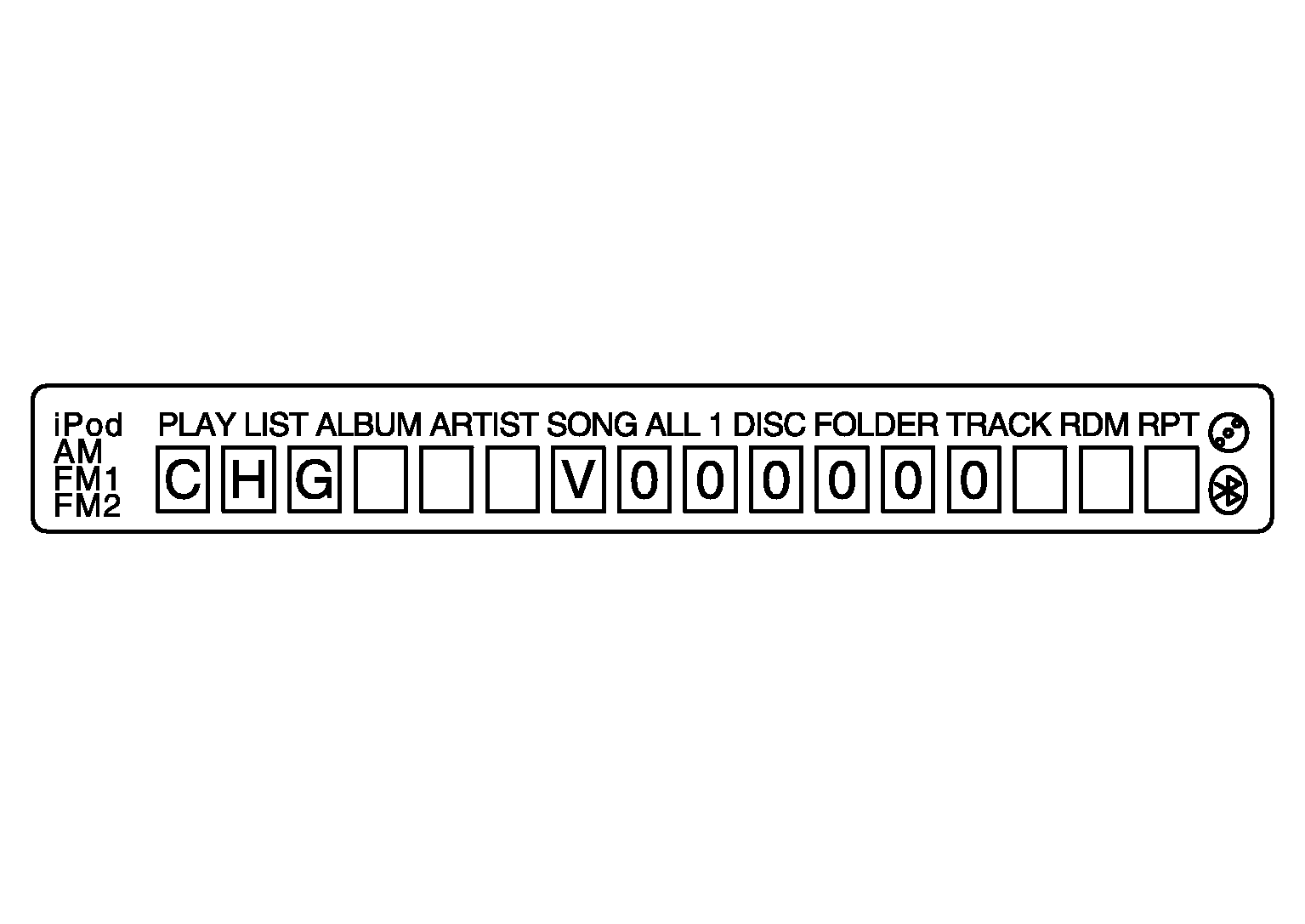

    Fig 8: Display - CHG Screen (Audio CD Changer Version)
    G05918198Courtesy of NISSAN NORTH AMERICA, INC.
  11. Press the "DISP TEXT" switch again to display the "iPodS" (iPod software version). "FFFFFF" is displayed when communication signals between the audio unit and iPod adapter include a malfunction.

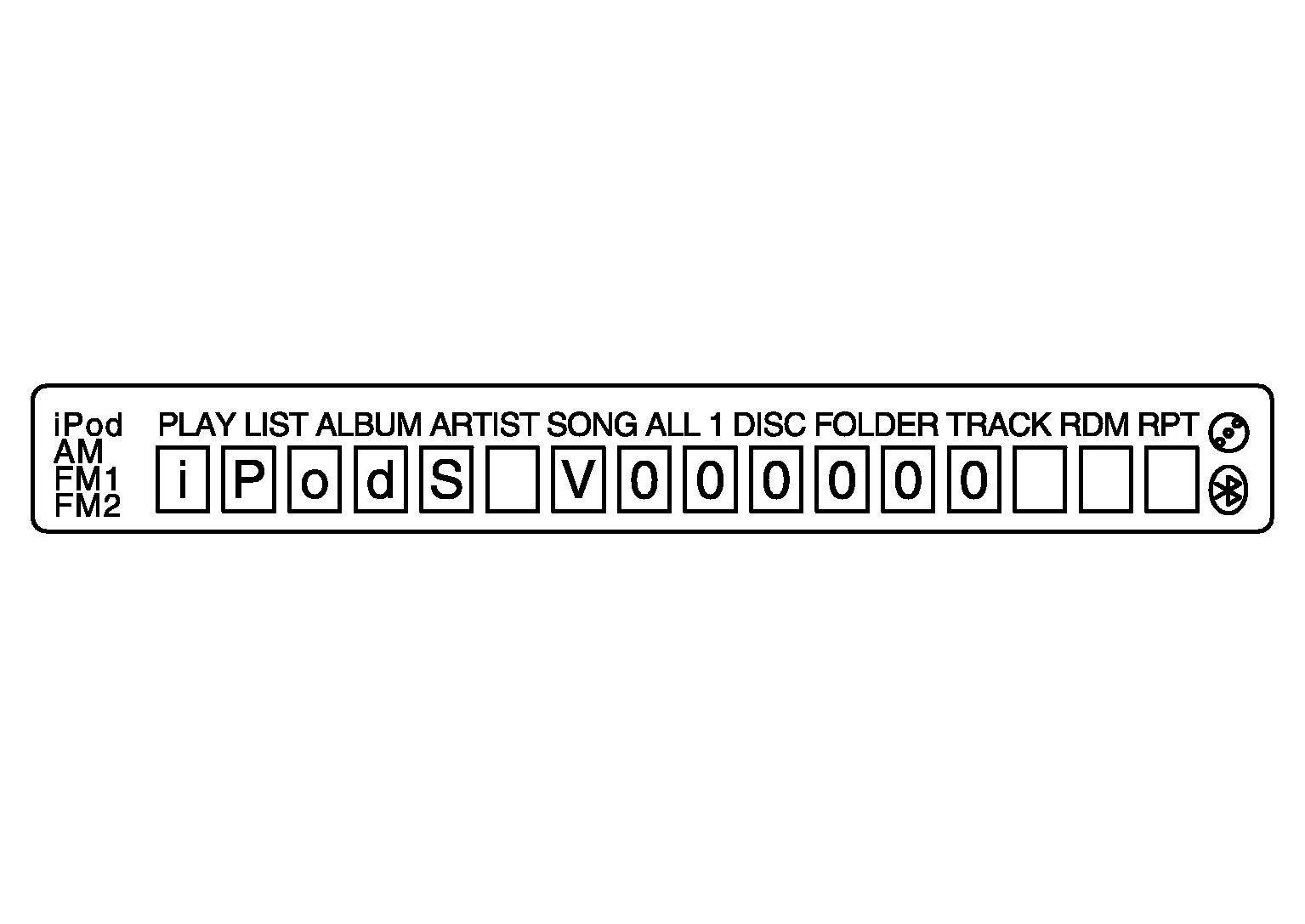

    Fig 9: Display - iPodS Screen (iPod Software Version)
    G05918199Courtesy of NISSAN NORTH AMERICA, INC.
  12. Press the "DISP TEXT" switch again to display the "iPodH" (iPod hardware version). "FFFFFF" is displayed when communication signals between the audio unit and iPod adapter include a malfunction.
    Fig 10: Display - iPodH Screen (iPod Hardware Version)
    G05918200Courtesy of NISSAN NORTH AMERICA, INC.
